Line Splitter

953.022UK LS26

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input...

  • Up to 12 outputs from 1 or 2 inputs
  • Individual volume control for each output
  • Input peak LEDs
Description Version Packed
953.022UK
LS26 line splitter
Box Printed

Line Splitter

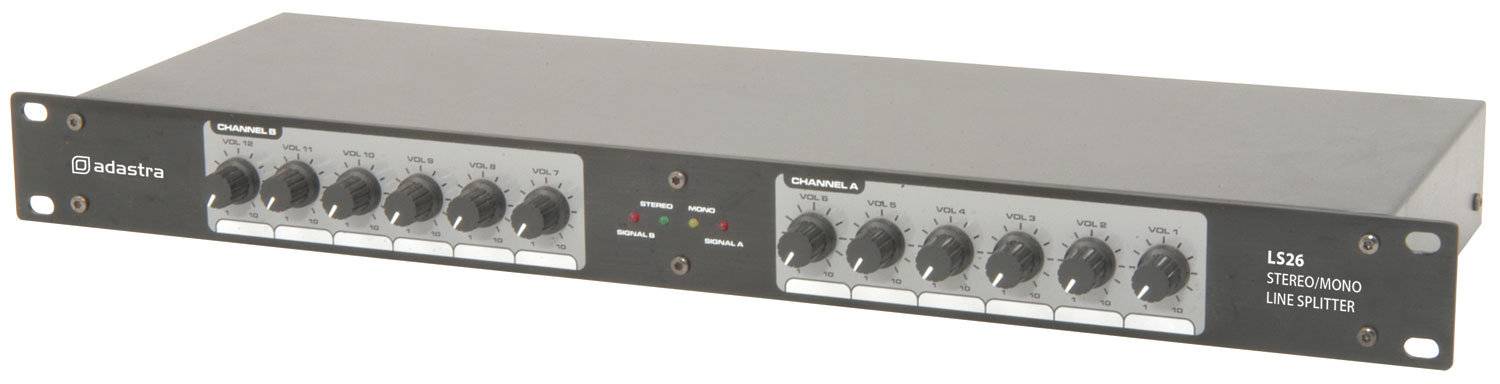

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

  • Up to 12 outputs from 1 or 2 inputs
  • Individual volume control for each output
  • Input peak LEDs

Specification

  • Power supply 115/230Vac, 50/60Hz (IEC)
  • Inputs A & B, (6.3mm jack)
  • Outputs 1 - 6 & 7 - 12 (6.3mm jack)
  • Input impedance 20k Ohms
  • Output impedance 220 Ohms
  • Frequency response 20Hz - 20kHz, +0/-1dB
  • Signal to noise ratio >95dB
  • THD <0.008%
  • Dimensions 483 x 44 x 170mm
  • Weight 2.0kg

Trade information

  953.022UK
Barcode / EAN 5015972101971
Package type Box Printed
Package dimensions 560 x 95 x 250mm
Package weight 2.00kg
Package quantity 1 unit
Carton dimensions 570 x 480 x 260mm
Carton weight 10.00kg
Carton quantity 5 packages

Support

Instruction manual
For 953.022UK (444KB)
