1U Mic/Line Rack Mixer

953.026UK ML622

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output...

  • 6 switchable mic or line inputs
  • 2 stereo aux inputs
  • Individually switchable phantom power
Description Version Packed
953.026UK
ML622 6 Mic + 2 Aux Rack Mixer 1U
ML622 Box Label BW

Accessories

Description Version Packed
853.081UK
RACK-IT Wall / Counter Mounting Brackets 1U - pair
1U Box Label BW

1U Mic/Line Rack Mixer

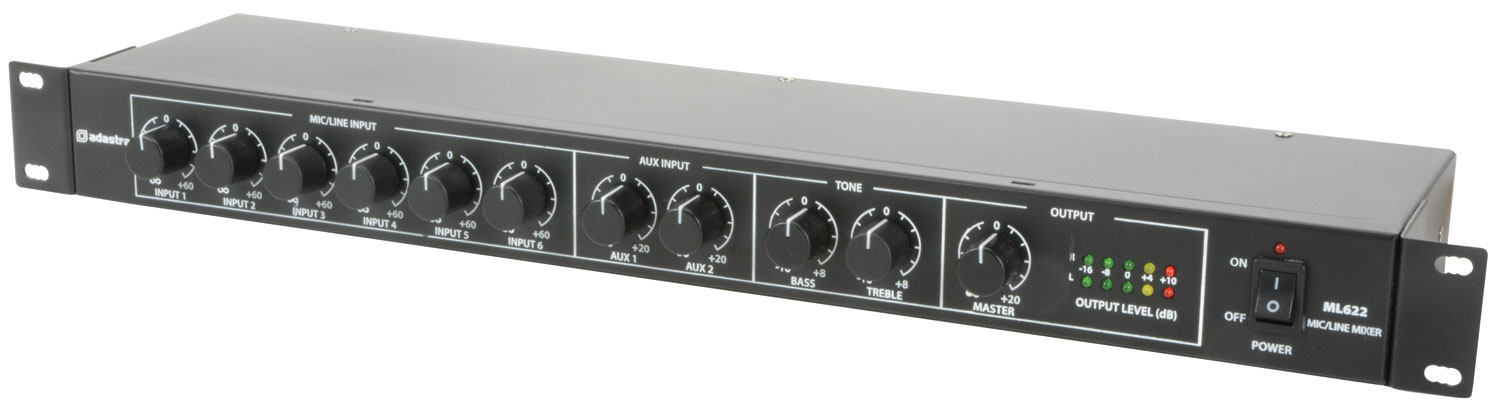

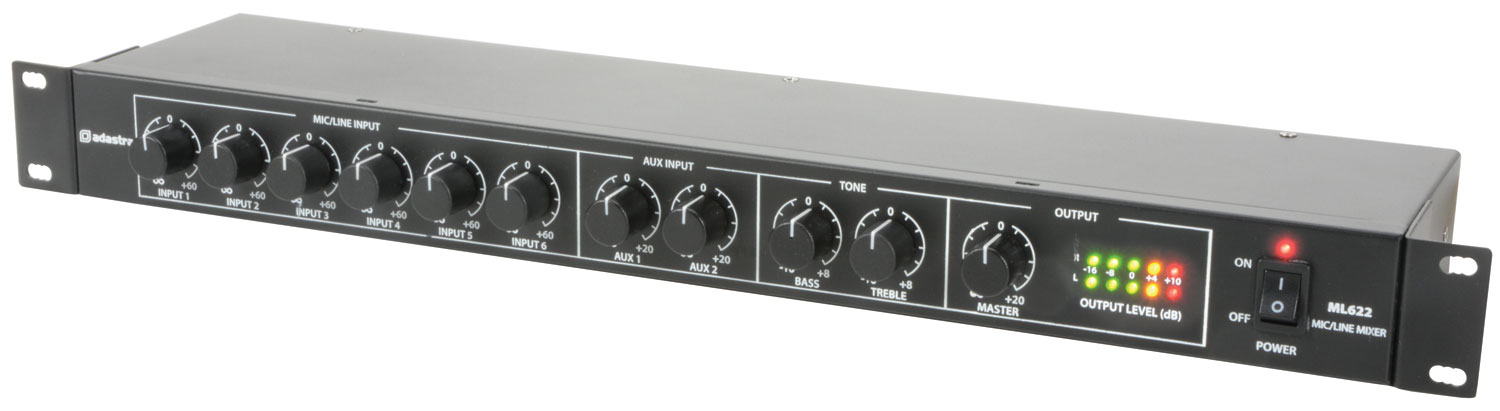

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

  • 6 switchable mic or line inputs
  • 2 stereo aux inputs
  • Individually switchable phantom power
  • 24Vdc power option
  • Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
  • Fuse T1AL 250V (mains) or F500mA (24Vdc)
  • Phantom power +20Vdc (switchable)
  • Inputs : mic/line 6 x balanced XLR
  • Inputs : aux 2 x L+R RCA

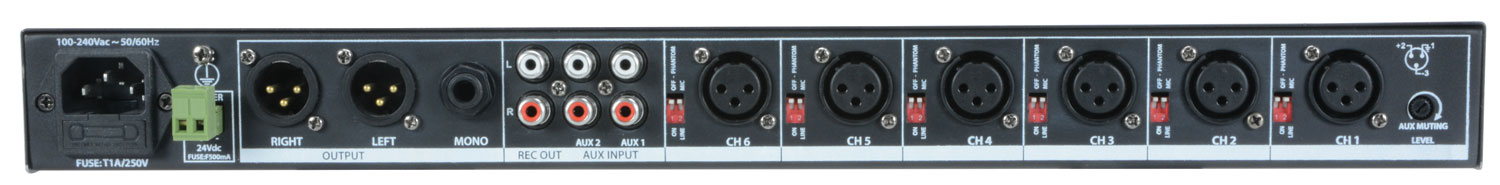

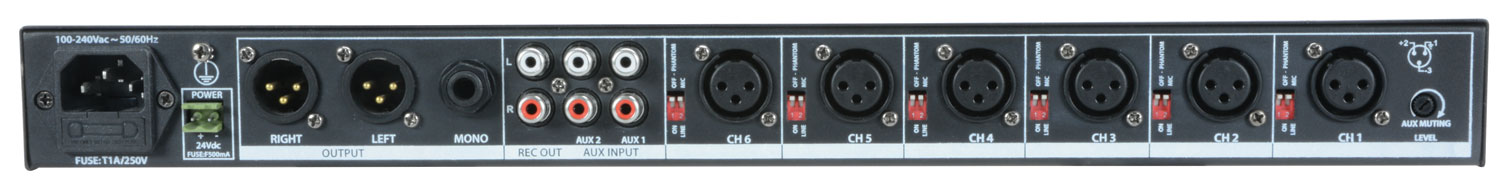

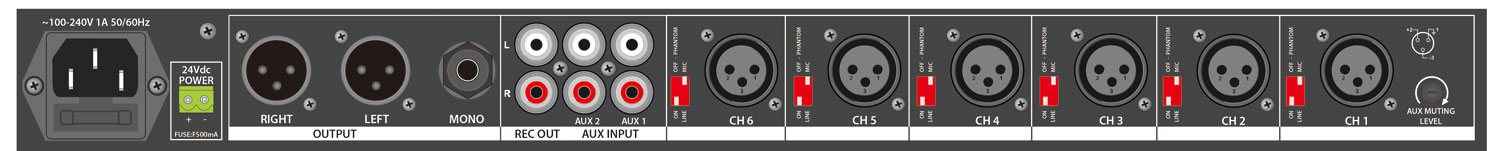

  • Outputs L+R XLR, mono 6.3mm jack, L+R RCA (REC)

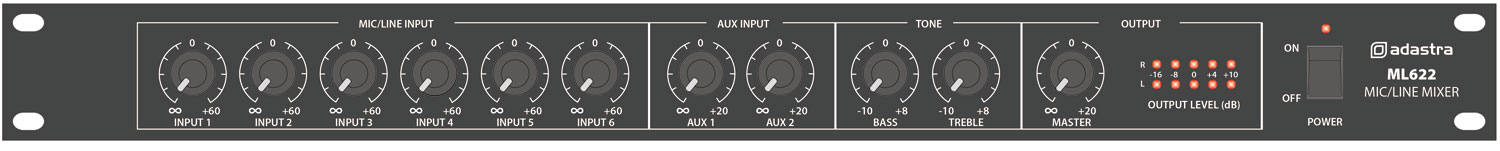

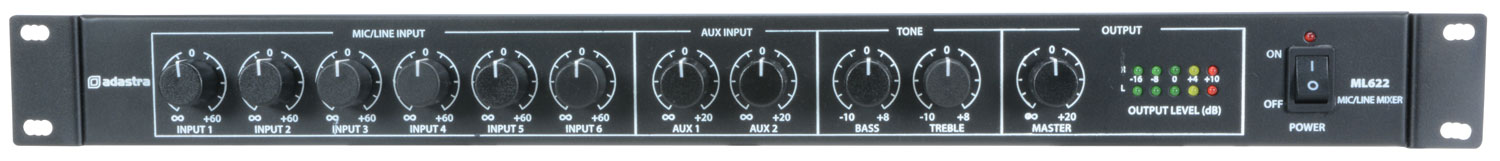

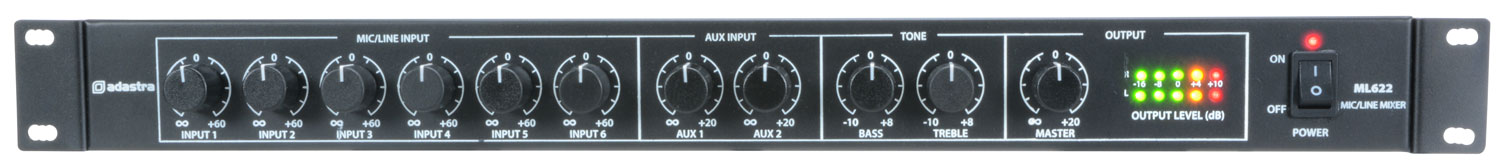

  • Controls 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
  • Input impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
  • Frequency response : mic 20Hz - 18kHz
  • Frequency response : line 14Hz - 20kHz
  • Frequency response : aux 10Hz - 23kHz
  • Input sensitivity : mic -45dBV
  • Input sensitivity : aux/line -10dBV
  • Signal to noise ratio : mic 55dB
  • Signal to noise ratio : aux/line 60dB
  • THD 0.05%
  • Dimensions 482 x 130 x 44mm
  • Weight 1.43kg

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

Downloads

Instruction manual
For 953.026UK (418KB)
UK Declaration of conformity
For 953.026UK (250KB)
EU Declaration of conformity
For 953.026UK (239KB)
