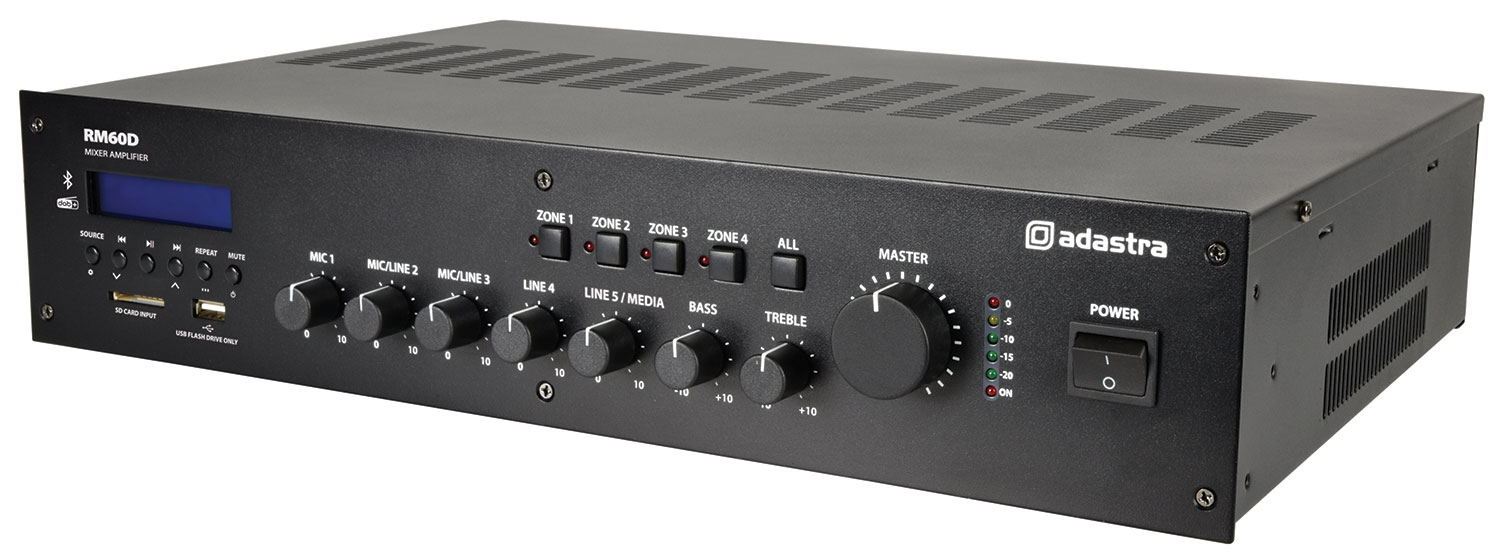

RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD

953.223UK RM60D

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switc...

  • DAB+/FM radio tuner
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
Description Version Packed
953.223UK
RM60D Mixer-amp 100V BT/DAB+
60W Box Label
953.224UK
RM120D Mixer-amp 100V BT/DAB+
120W Box Label
953.225UK
RM240D Mixer-amp 100V BT/DAB+
240W Box Label
953.226UK
RM360D Mixer-amp 100V BT/DAB+
360W Box Label
953.227UK
RM480D Mixer-amp 100V BT/DAB+
480W Box Label

Accessories

Description Version Packed
952.352UK
Conference/paging microphone with LED collar
Box Label
952.353UK
Conference microphone - slimline
Box Label
952.341UK
COM41 Dynamic Paging Microphone
COM41 Box Label
952.360UK
COM60 Paging Mic + Chime
Box Label

RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD

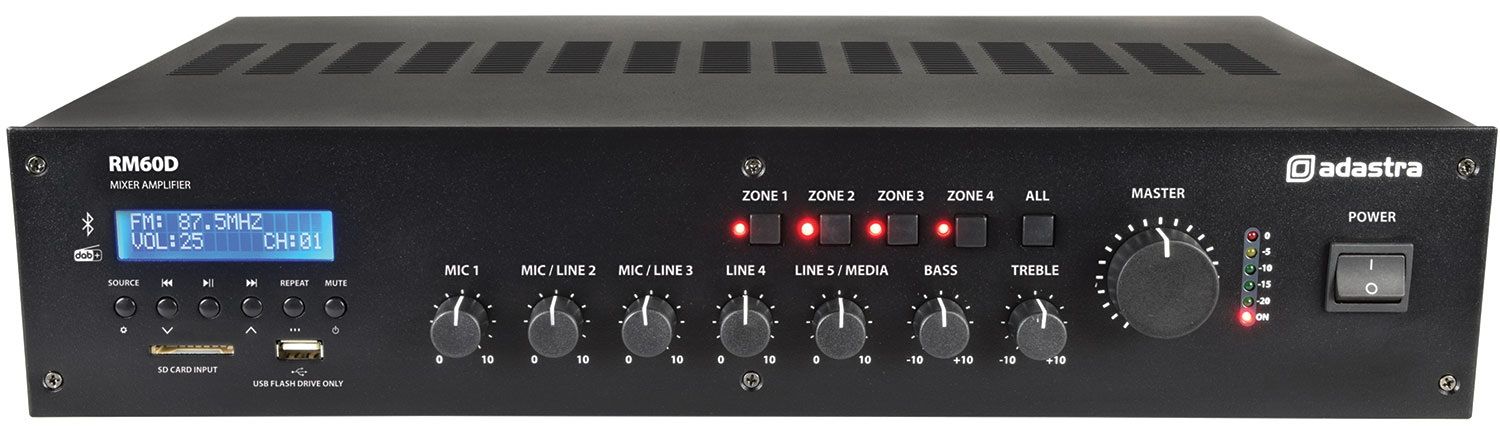

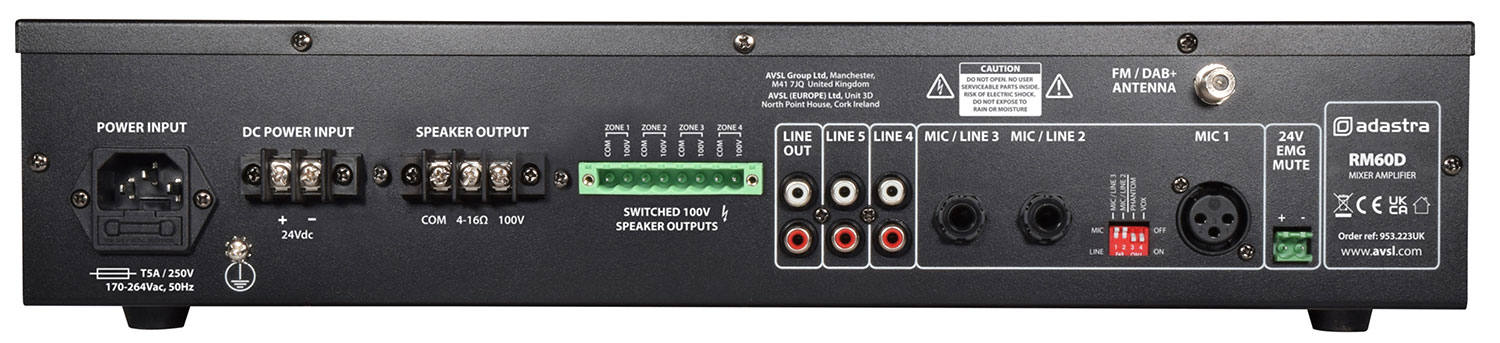

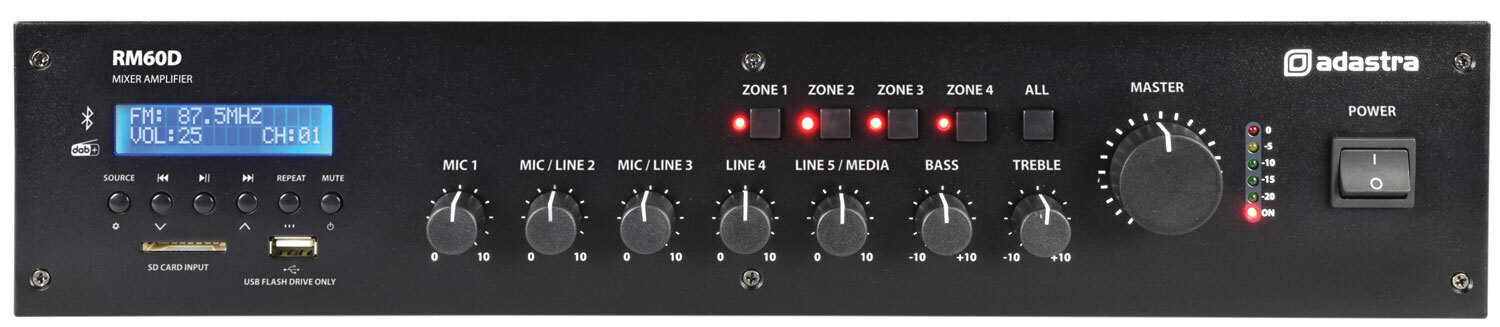

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.

  • DAB+/FM radio tuner
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • 4 switchable 100V outputs and 1 unswitched output
  • Optional 4-16 Ohm output
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • 2U 19" rack mountable (rack ears supplied)
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
  • Power supply 170-264Vac, 50Hz (IEC)
  • DC power 24Vdc (screw terminals)
  • Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced) -53dBV
  • Input impedance : mic 1 5k Ohms
  • Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
  • Input impedance : inputs 2-5 1k Ohms
  • Line output RCA
  • Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
  • Bluetooth version 5.0
  • Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equaliser : bass 100Hz ±10dB
  • Equaliser : treble 10kHz ±10dB
  • Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power +20V (mic 1 XLR, switchable)
  • Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
  • Emergency control 24V contacts - mute all except Mic.1 when triggered
  • THD <1.0%

Versions

  953.223UK 953.224UK 953.225UK 953.226UK 953.227UK
Output power : rms 60W 120W 240W 360W 480W
Fuse T2A T3.15A T5A T5A T6.3A
Dimensions 433 x 320 x 88mm 433 x 320 x 88mm 433 x 320 x 88mm 433 x 410 x 88mm 433 x 410 x 88mm
Weight 4.98kg 6.36kg 7.37kg 9.14kg 9.66kg

Support : articles

Zoning Systems

Zoning systems are flexible sound systems that provide control for the sound that is delivered to different areas, called “zones”.

Friday, 28th February 2020

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • RM-series 100V mixer-amplifier
  • Rack-mounting ears & hardware
  • IEC power lead(s)

Downloads

Instruction manual
For 953.223UK (609KB)
UK Declaration of conformity
For 953.223UK (250KB)
EU Declaration of conformity
For 953.223UK (239KB)
