100V Mixer Amplifier with 4-zone Paging

953.244UK RM244V

100V public address amplifier with background music source and optional zone paging control.

  • 4 individual output level rotary switches
  • Built-in Bluetooth, USB/SD player and FM tuner
Description Version Packed
RM244V Mixer-amp with 4-zone paging
Box Label


Description Version Packed
CS4 Call Station for RM244V
Box Label

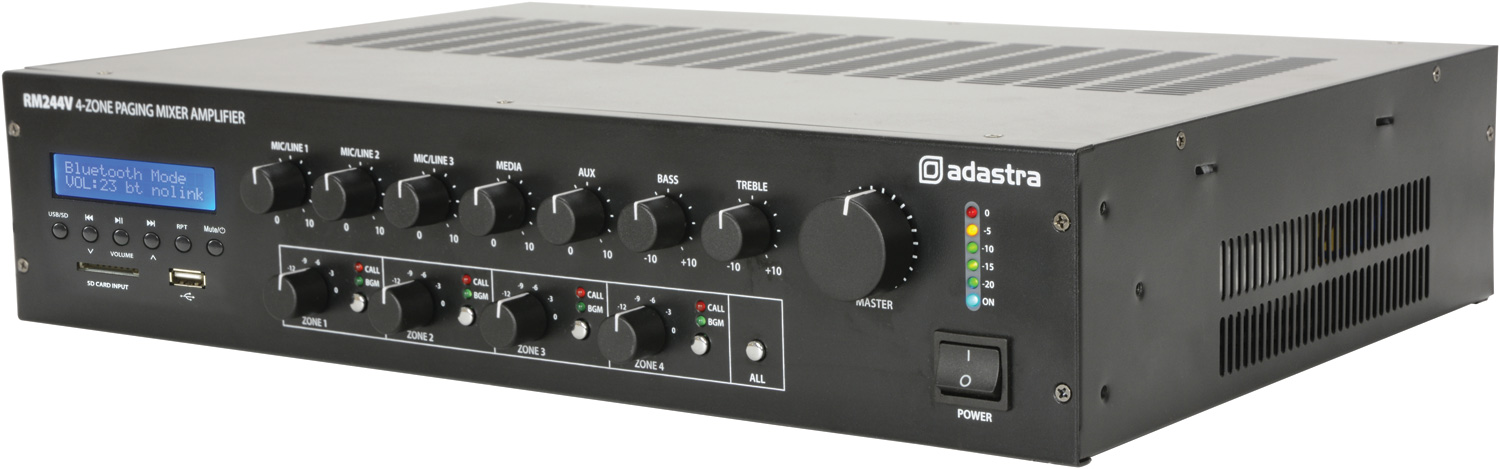

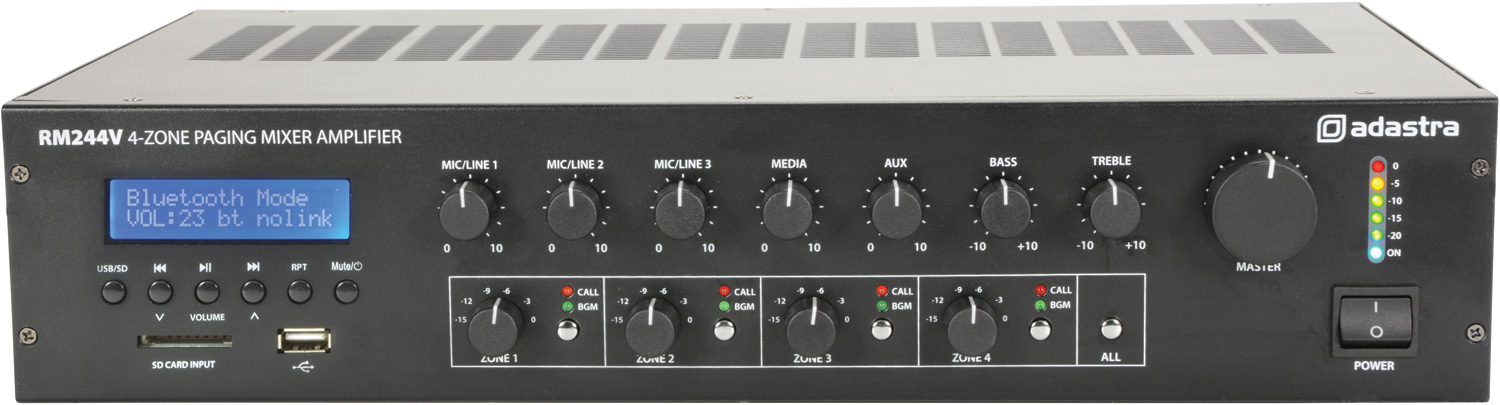

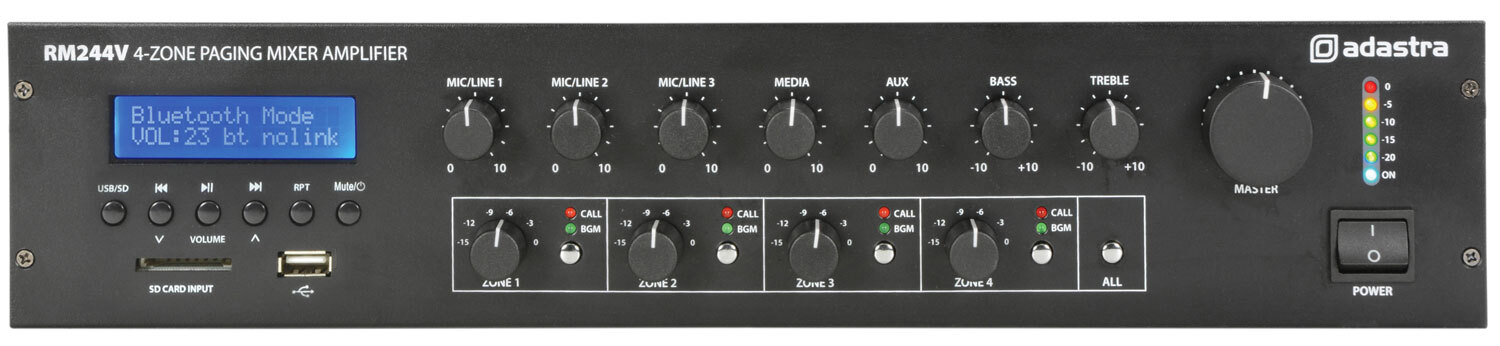

100V Mixer Amplifier with 4-zone Paging

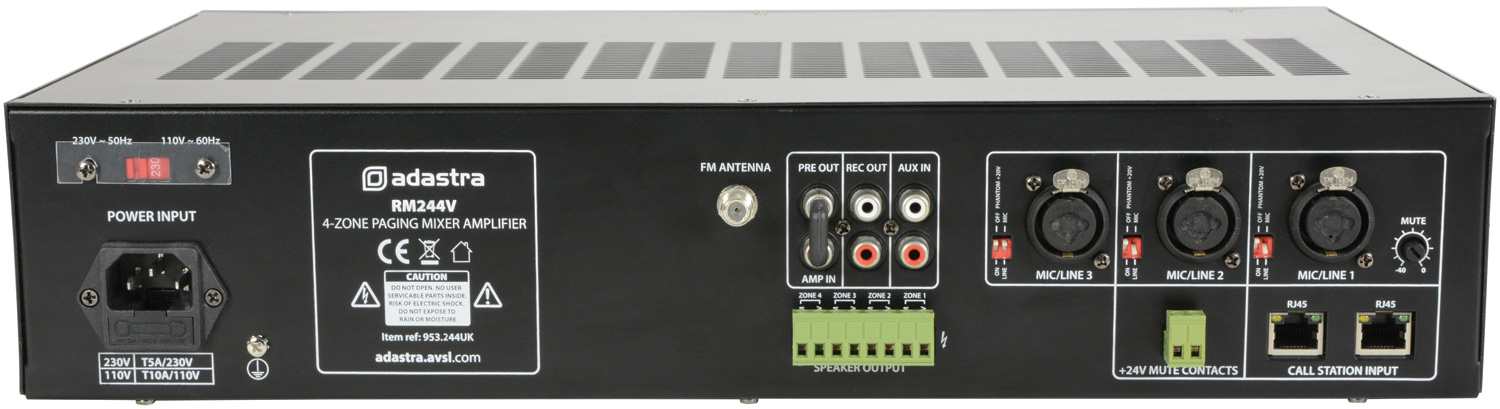

240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

  • Built-in USB/SD player with Bluetooth and FM tuner
  • Compatible with CS4 call station (953.146UK)
  • 4 individual volume attenuators
  • Switchable +20V phantom power
  • Send/return loop for connection to audio processors or amplifiers

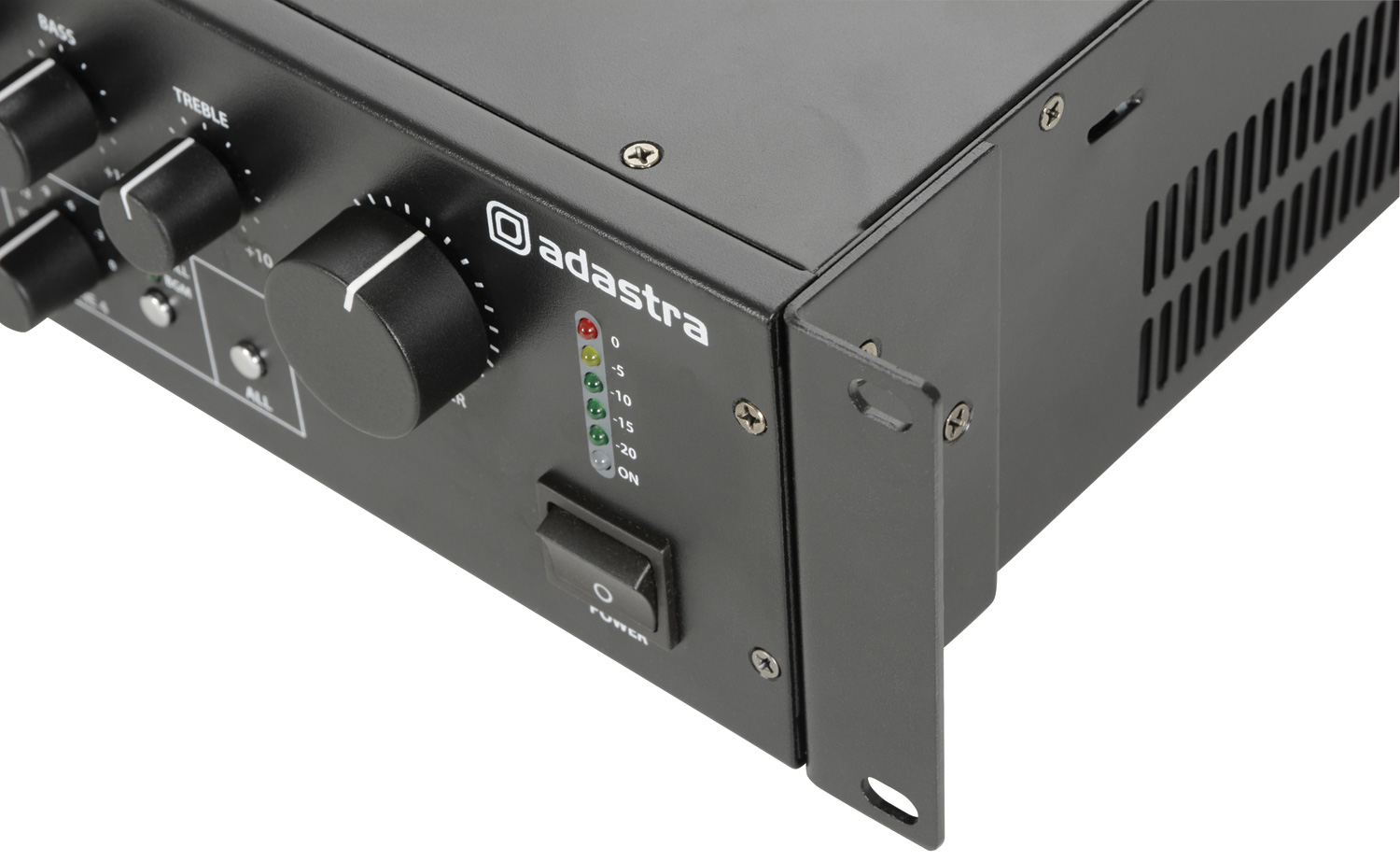

  • Supplied with 19" rack-mount ears (2U)
  • Bluetooth with programmable ID
  • Power supply 110/230Vac, 50/60Hz (IEC)
  • Output power : rms 240W (shared across 4 zones @ 100V)
  • Inputs 3 x mic/line (jack/XLR), 1 x aux (RCA)
  • Input sensitivity : mic -47dBV
  • Input impedance : mic 5k Ohms
  • Input sensitivity : line -10dBV
  • Input impedance : line 1k Ohms
  • Call station input 2 x RJ45 (for optional CS-4 call stations)
  • Line output RCA
  • Sends : returns Pre out, amp in (RCA)
  • Channel controls Ch1, Ch2, Ch3, Media and Aux volume
  • Output controls Master volume, 4 x zone volumes & mutes
  • Equaliser : bass 100Hz ±10dB
  • Equaliser : treble 10kHz ±10dB
  • Phantom power +20V (switchable inputs 1-3)
  • Audio source USB/SD player, FM tuner and Bluetooth receiver
  • Bluetooth version 5.0
  • Fire alarm contacts 24V screw terminals
  • THD +N <2% @ 1kHz (rated power)
  • Protection Short circuit, overload, overheat
  • Speaker : outputs 4 x 100V (modular terminal block)
  • Dimensions 430 x 315 x 89mm
  • Weight 10.4kg
