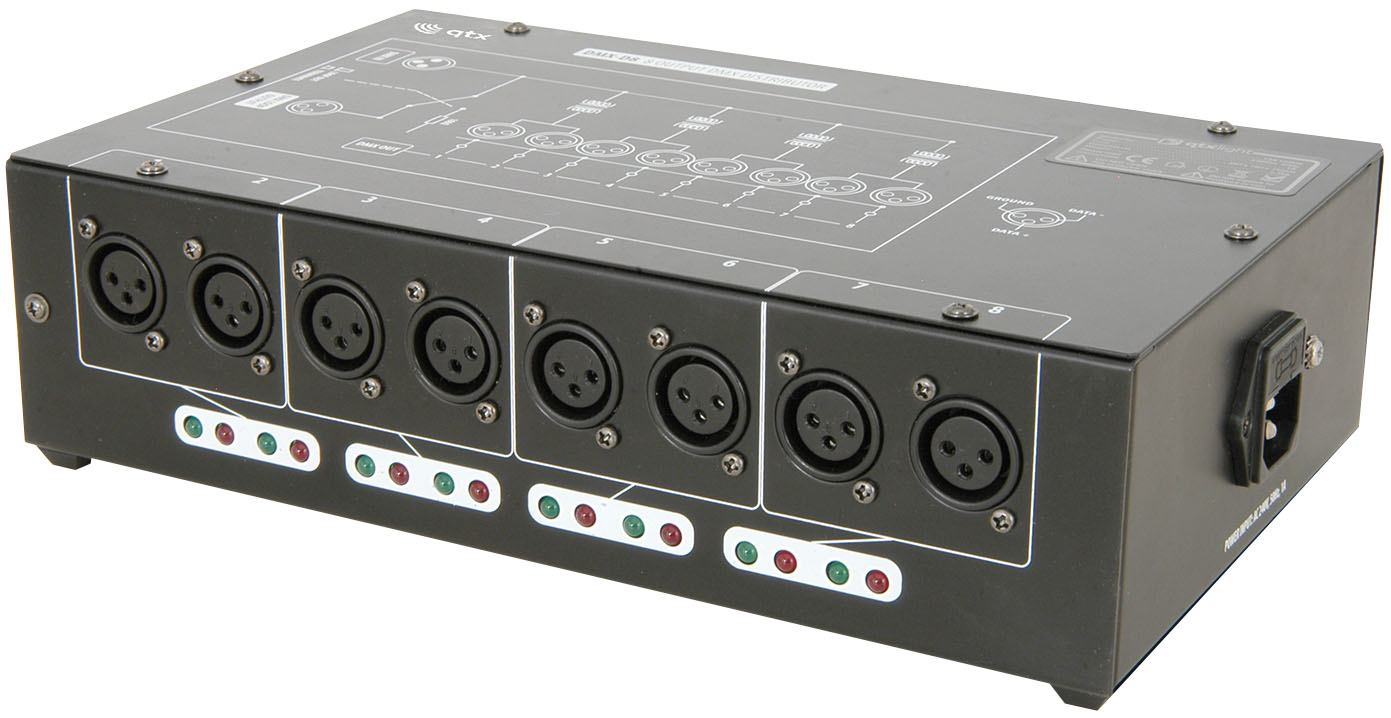

DMX-D8
8 Way DMX Booster/Distributor
154.102UK
Introduction
8 way DMX Booster/distributor with one input, loop through and four pairs of electrically opto-isolated outputs.
Both DMX input and DMX output are provided with 3 pin XLR connectors, making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area or to isolating individual fixtures making it quick and easy to diagnose and fix faulty fixtures without the whole system failing.
 |
Caution: Please read this manual carefully before operating |
|---|---|
| Damage caused by misuse is not covered by the warranty | |
- DMX Loop out or DMX terminated (supplied)
- 8 x opto isolated DMX outputs (isolated in pairs, CH1+2, CH3+4, CH5+6, CH7+8)
- Powered by mains to boost signal over a long distance.

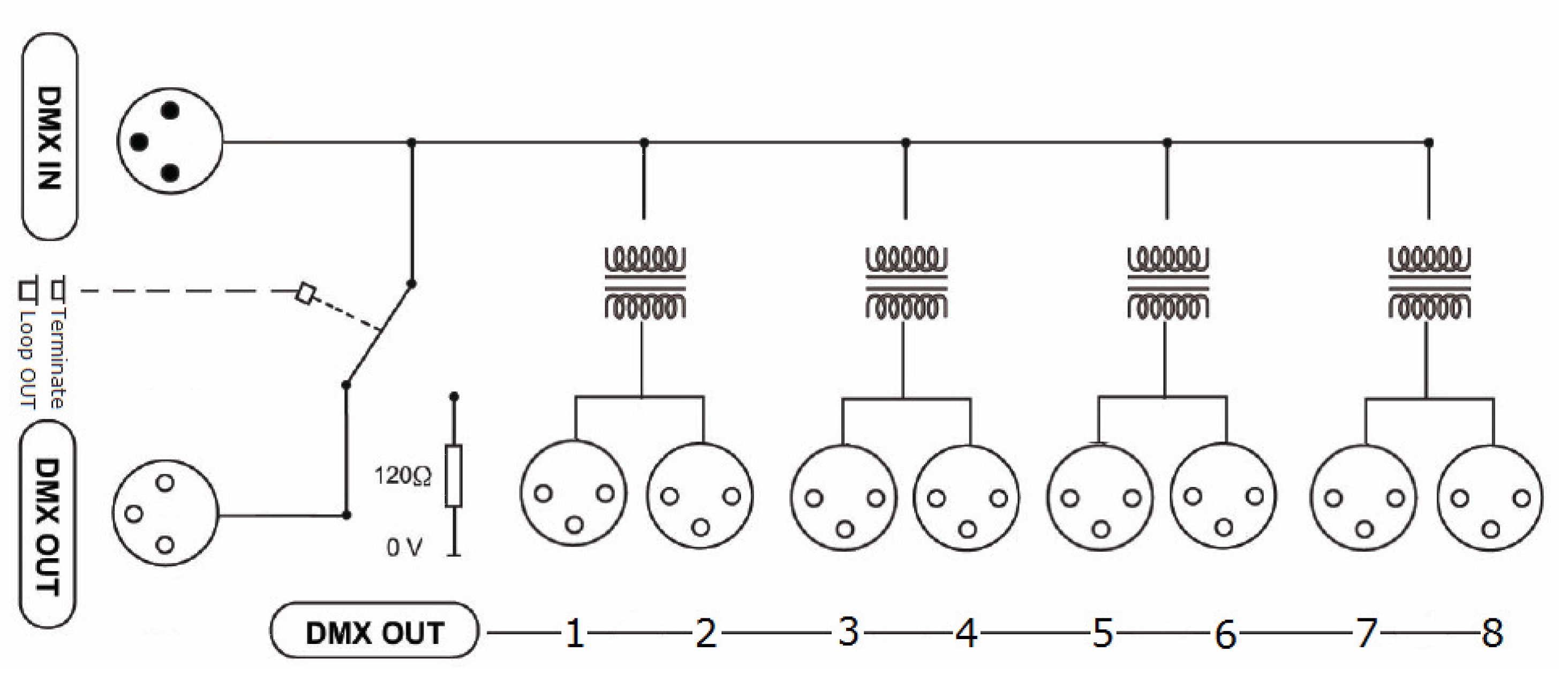

Circuit Diagram
Warning: Before Use
This item is for professional use only. Please take note of the following instructions before using this device.
- This unit must be earthed.
- Do not turn on the power until all connections are securely made.
- The DMX-D8 will not work if 32 or more fixtures are connected before it in the chain.
- The DMX-D8 should not be connected to more than 32 fixtures per channel.
- Always use a DMX terminator at the end of each DMX chain.
- If the DMX-D8 is last in a DMX chain, switch in the internal DMX terminator.
- Always disconnect from the mains before replacing the fuse.
- There are no user serviceable parts inside.
Specification
| Specification | Value |
|---|---|
| Power supply | 230Vac, 50Hz (IEC) |
| DMX inputs | 1 |
| DMX outputs | 8 |
| Dimensions | 280 x 180 x 75mm |
| Weight | 2.3kg |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
