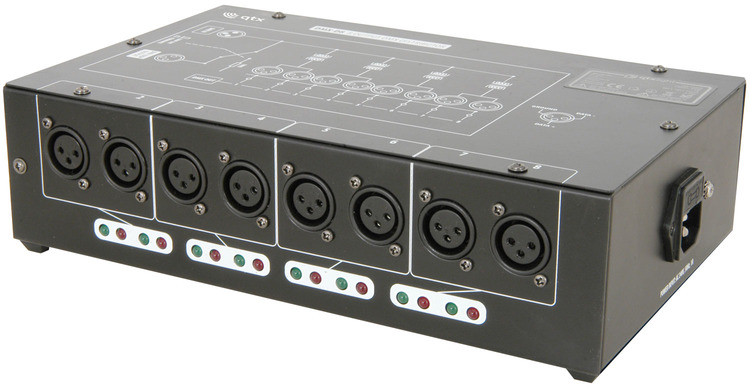

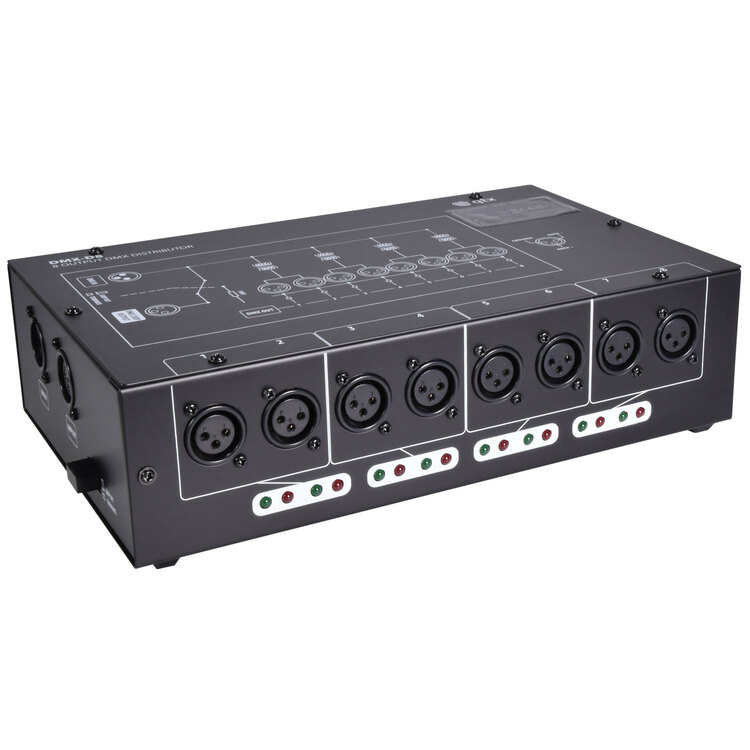

8 Way DMX Booster/Distributor

154.102UK DMX-D8

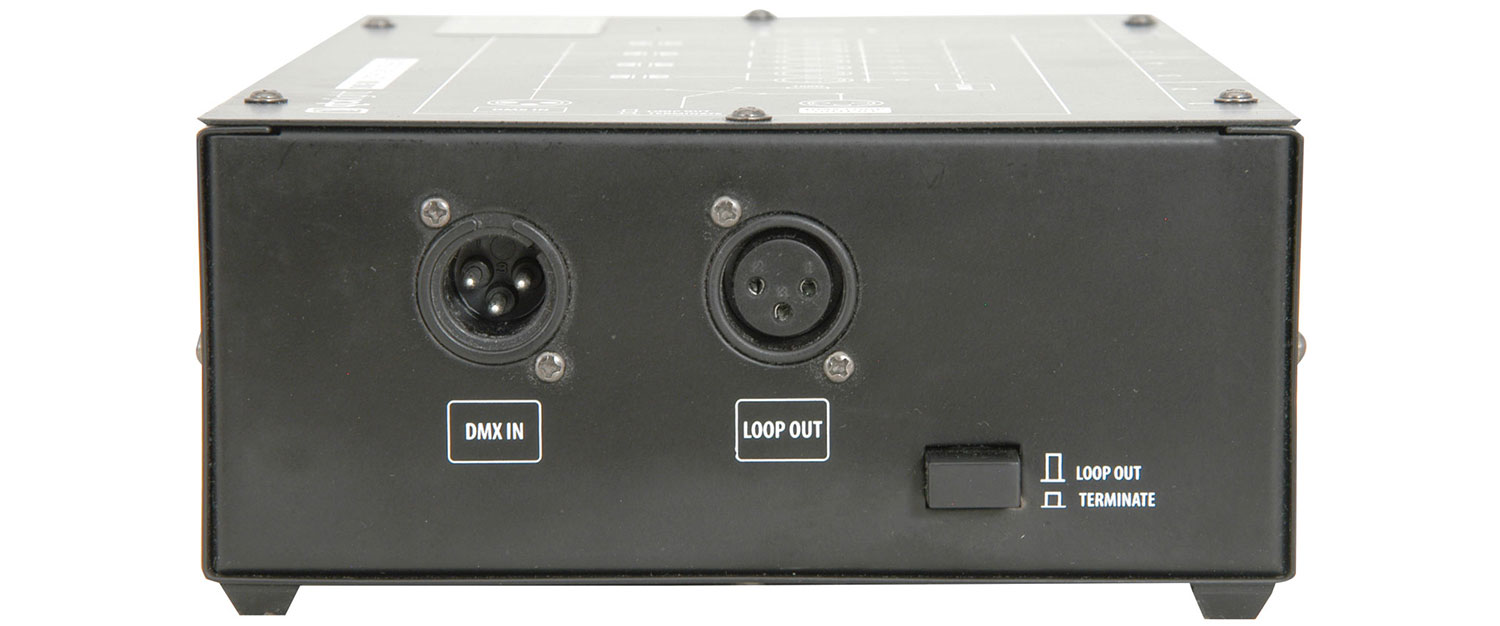

This 8 way DMX Booster/distributor has one input, loop through and four electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universall...

  • DMX Loop out or DMX terminated switch

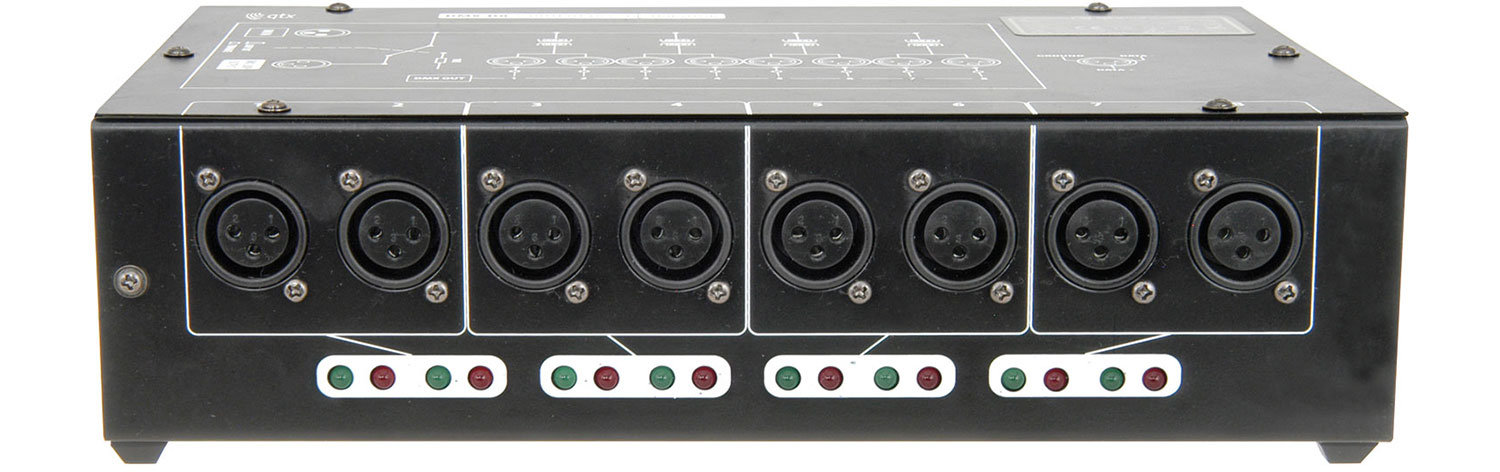

  • 8 x Opto isolated DMX outputs
  • LED data indicators
Full description Find retailer
Description Version Packed
154.102UK
DMX-D8 - 8 Way DMX booster/distributor 		Box Printed

8 Way DMX Booster/Distributor

This 8 way DMX Booster/distributor has one input, loop through and four electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area or to isolate individual fixtures making it quick and easy to highlight and fix without the whole system failing.

  • DMX Loop out or DMX terminated switch
  • 8 x Opto isolated DMX outputs
  • LED data indicators
  • Powered by mains to maintain a strong signal

Specification

  • Power supply 230Vac, 50Hz (IEC)
  • DMX inputs 1
  • DMX outputs 8
  • Dimensions 280 x 180 x 75mm
  • Weight 2.3kg

Trade information

  154.102UK
Barcode / EAN 5015972086285
Tariff code 9405109190
Country of Origin CN
Package type Box Printed
Package dimensions 245 x 145 x 355mm
Package weight 2.57kg
Package quantity 1 unit
Carton dimensions 375 x 320 x 530mm
Carton weight 10.28kg
Carton quantity 4 packages
Pack paper weight 0.18kg
Pack plastic weight 0.06kg

Support

Instruction manual
For 154.102UK (317KB)
