Active speakers
Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.
CM-Series Active Wedge Monitors inc. Bluetooth®
178.695UK
CM15A
Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium twee...
- High power class-D bi-amplifier
- Bluetooth receiver
- 5 Profile DSP section
CM-Series Active Wedge Monitors inc. Bluetooth®

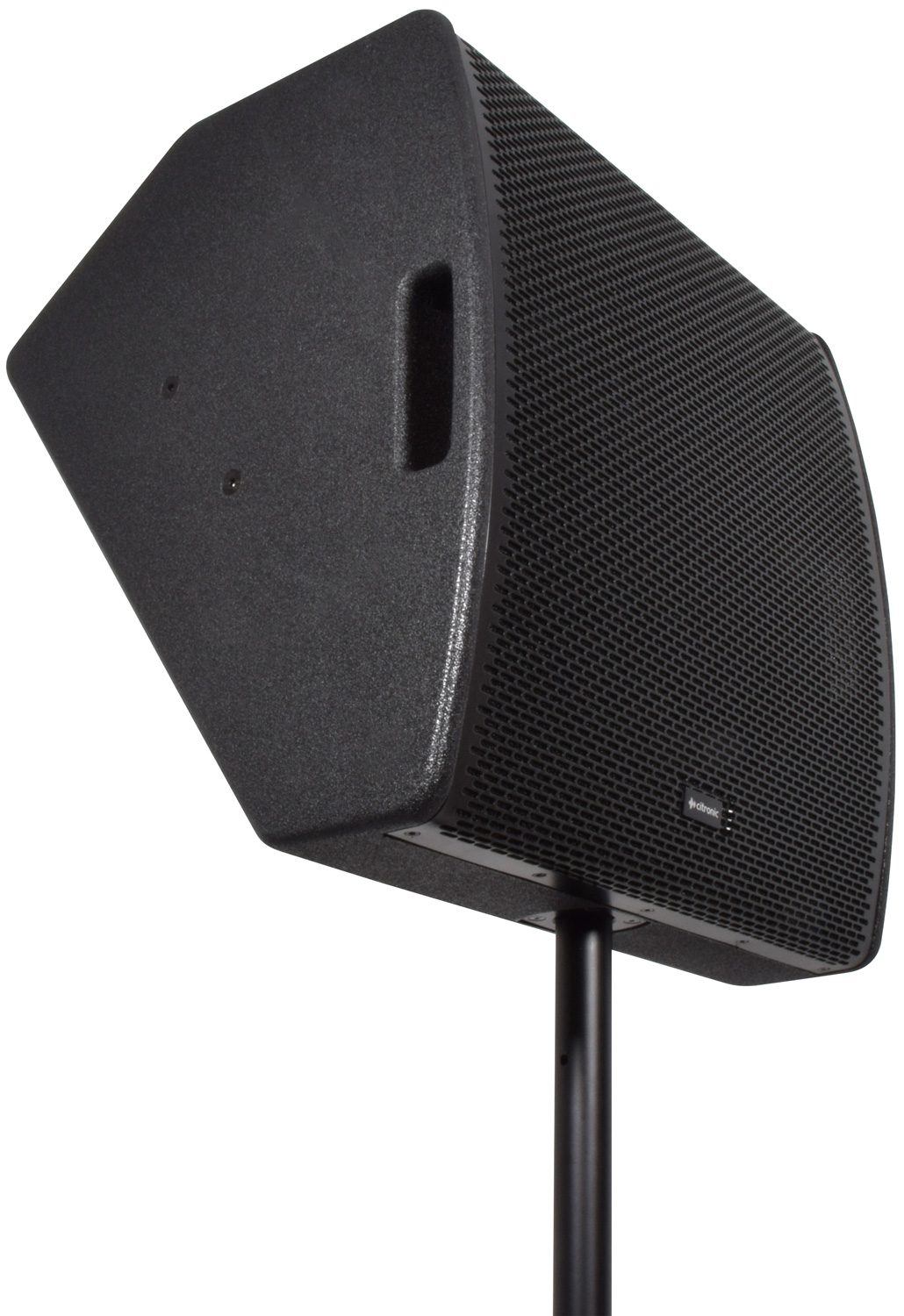

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. Powered from its inbuilt class-D amplifier, each wedge has enough output to deliver clear sound quality in high SPL situations and is even serviceable independently as a compact PA cabinet, thanks to the 35mmØ pole mount socket and M8 flying points. A DSP section provides 5 different EQ profiles to accurately match the program material and sound environment. In addition to a mic/lin input and separate line input, the CM-series wedges also have a Bluetooth® receiver, which makes it ideal as a musician's practice amplifier. Surprisingly powerful in such a compact enclosure, this speaker offers high quality sound output with flexible options for stage foldback, keyboard and e-drum amplification.
- High power class-D bi-amplifier
- Bluetooth receiver
- 5 Profile DSP section
- Concentric HF driver
- Amplifier : construction Class-D
- Impedance 4 Ohms
- HF driver 44mmØ (1.75") Ti compression driver
- Inputs Mic/Line (XLR/jack), Line (XLR/jack/RCA), Bluetooth®
- Outputs Headphones (6.35mm jack), Mix out (XLRM)
- DSP settings Normal, DJ. Voice, Live, Flat
- Weight 9.87kg
Versions
| 178.690UK | 178.692UK | 178.695UK | |
|---|---|---|---|
| Main driver | 250mmØ (10") with concentric tweeter | 300mmØ (12") with concentric tweeter | 380mmØ (15") with concentric tweeter |
| Voice coil | 50mmØ (2") | 75mmØ (2.5") | 75mmØ (2.5") |
| Magnet weight | 1.13kg (40oz) | 1.50kg (53oz) | 1.50kg (53oz) |
| Output power rms | 250Wrms | 300Wrms | 350Wrms |
| Output power peak | 400W | 600W | 700W |
| Frequency response | 65Hz - 20kHz | 55Hz - 20kHz | 45Hz - 20kHz |
| Sensitivity | 95dB | 96dB | 97dB |
| Dimensions | 355 x 350 x 275mm | 445 x 410 x 335mm | 528 x 504 x 382mm |
| Weight | 9.87kg | 12.10kg | 15.00kg |
Support : articles
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
Wireless Audio
A description of various wireless technologies available to musicians, presenters and performers
In the box
The box for this item contains :
- CM-series wedge monitor
- IEC mains lead
Downloads
Instruction manual
For 178.695UK (382KB)
For 178.695UK (382KB)
UK Declaration of conformity
For 178.695UK (248KB)
For 178.695UK (248KB)
EU Declaration of conformity
For 178.695UK (239KB)
For 178.695UK (239KB)
