Digital Stereo Amplifier with Bluetooth

103.122UK KAD-2BT

This compact digital amplifier has three selectable stereo inputs, two microphone inputs and is capable of delivering up to 55W max. per side. Mic volume, tone and echo effects are adjustable throu...

  • Efficient Class D digital amplifier
  • Bluetooth connectivity
  • Built-in media player with USB and SD card inputs and FM receiver
Full description Video Find retailer
Description Version Packed
103.122UK
KAD-2BT Digital stereo amplifier with Bluetooth 		Box Label

Digital Stereo Amplifier with Bluetooth

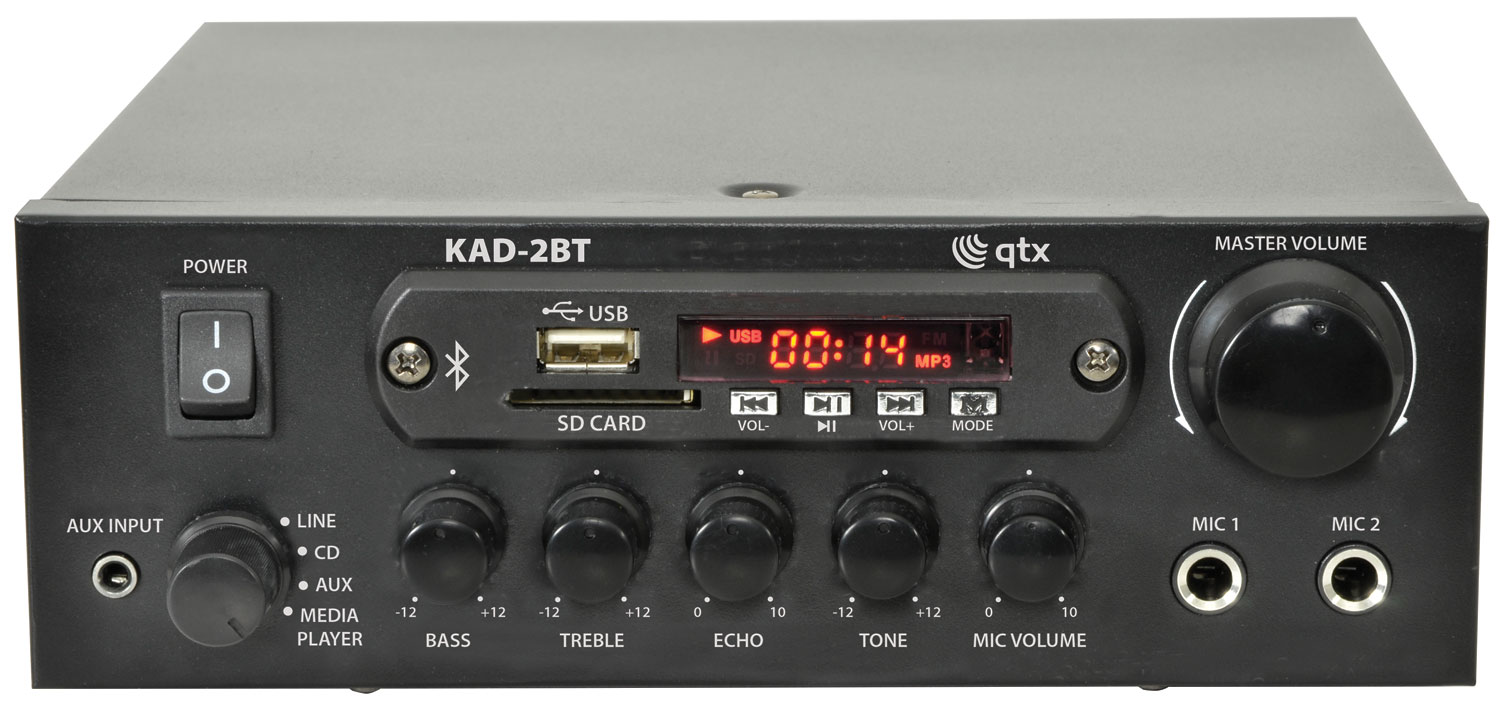

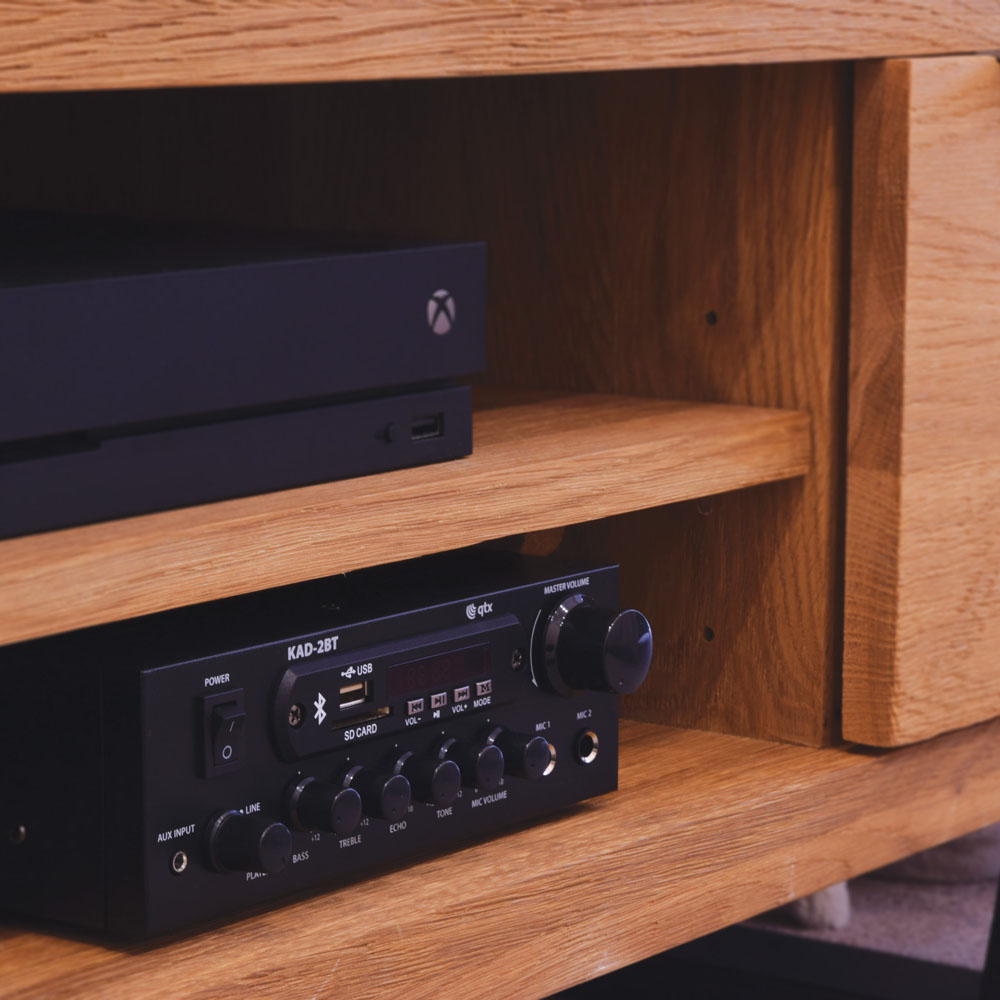

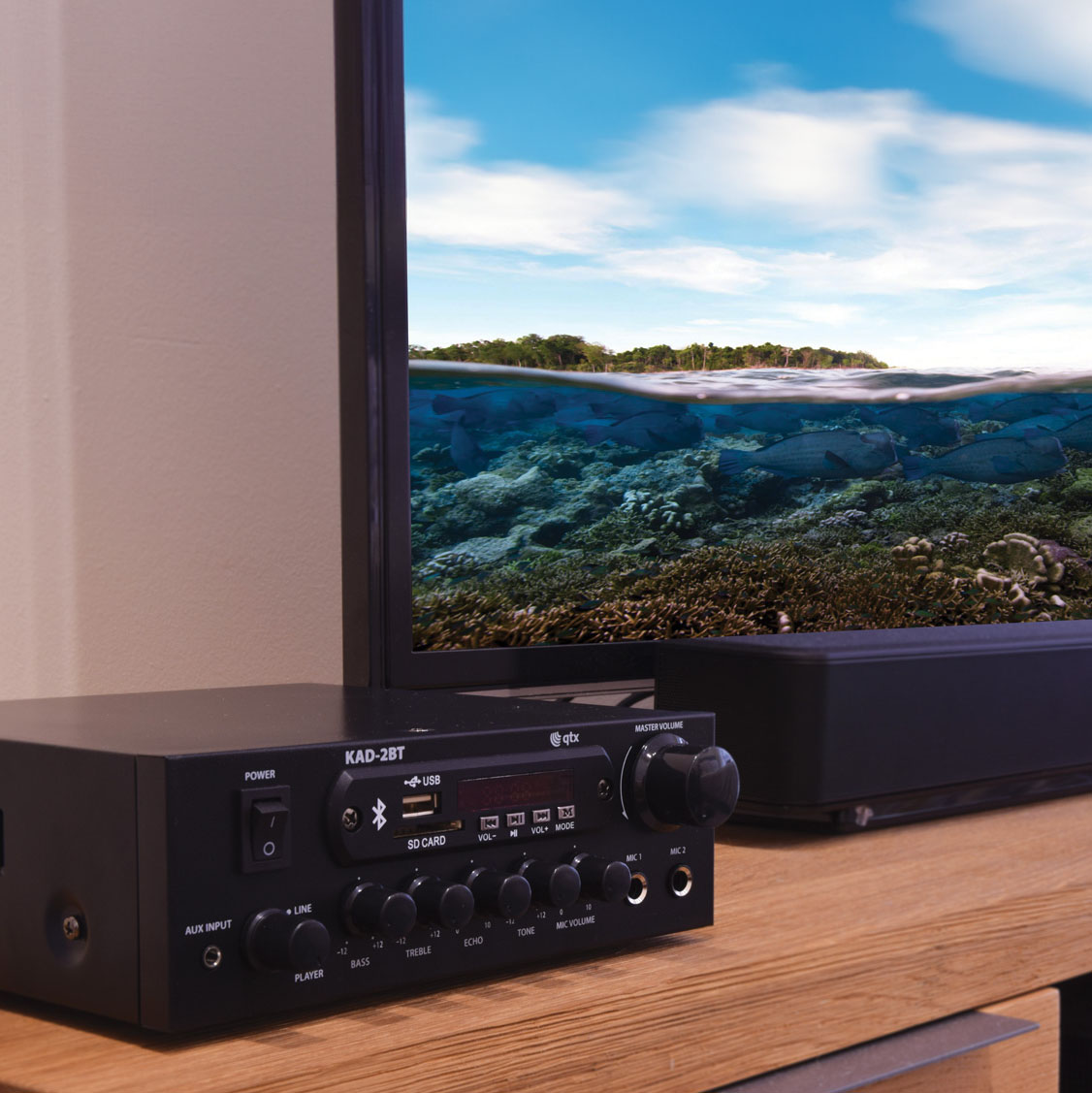

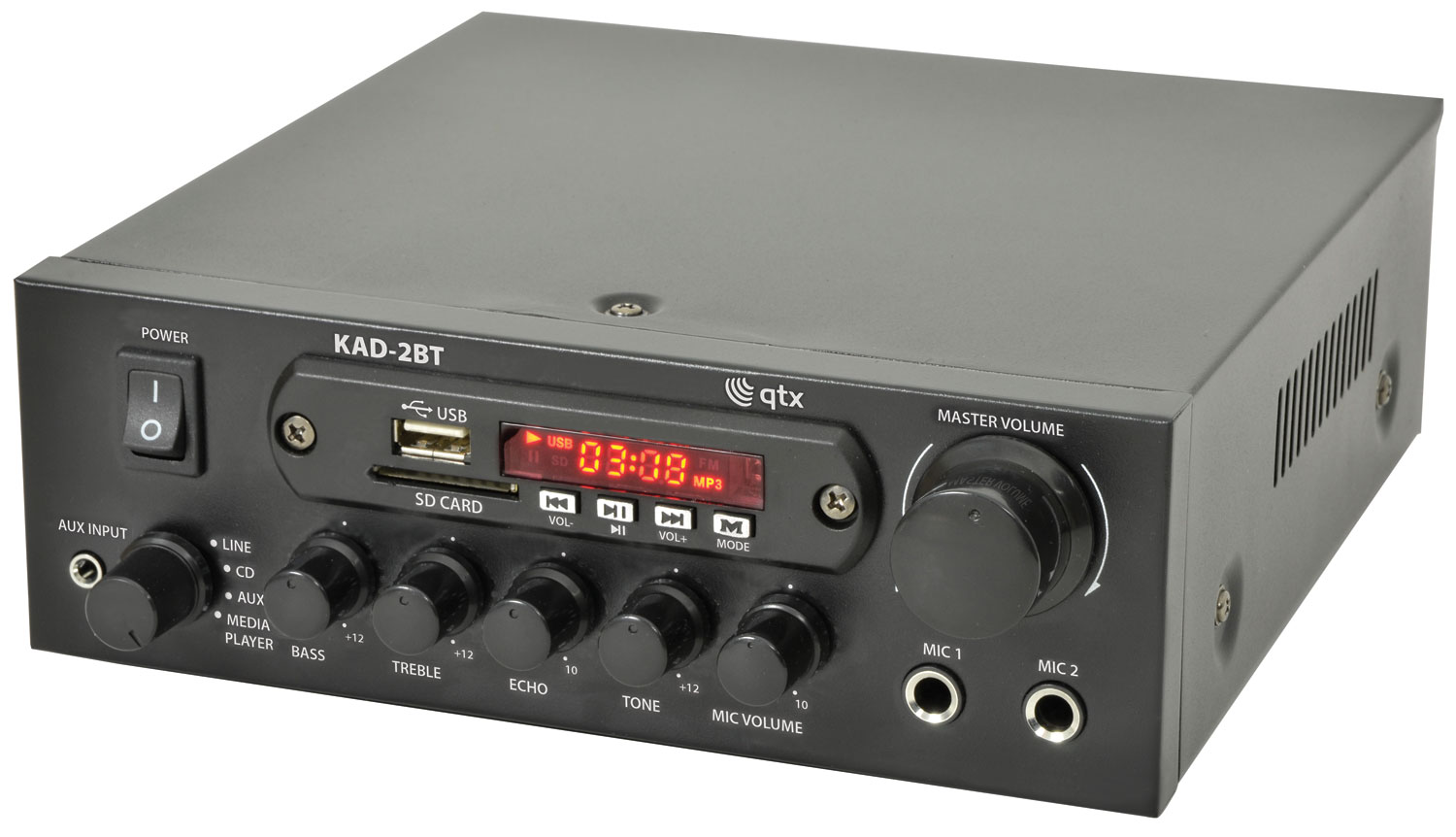

This compact digital amplifier has three selectable stereo inputs, two microphone inputs and is capable of delivering up to 55W max. per side. Mic volume, tone and echo effects are adjustable through rotary controls. Master Volume, Treble and Bass rotaries control tone and overall output. This amp also features built-in media player, Bluetooth connectivity and FM receiver. A multi-functional amplifier suitable for both domestic and commercial use.

  • Efficient Class D digital amplifier
  • Bluetooth connectivity
  • Built-in media player with USB and SD card inputs and FM receiver
  • A high output power of 55W max. per side
  • 3.5mm stereo line input on the front panel

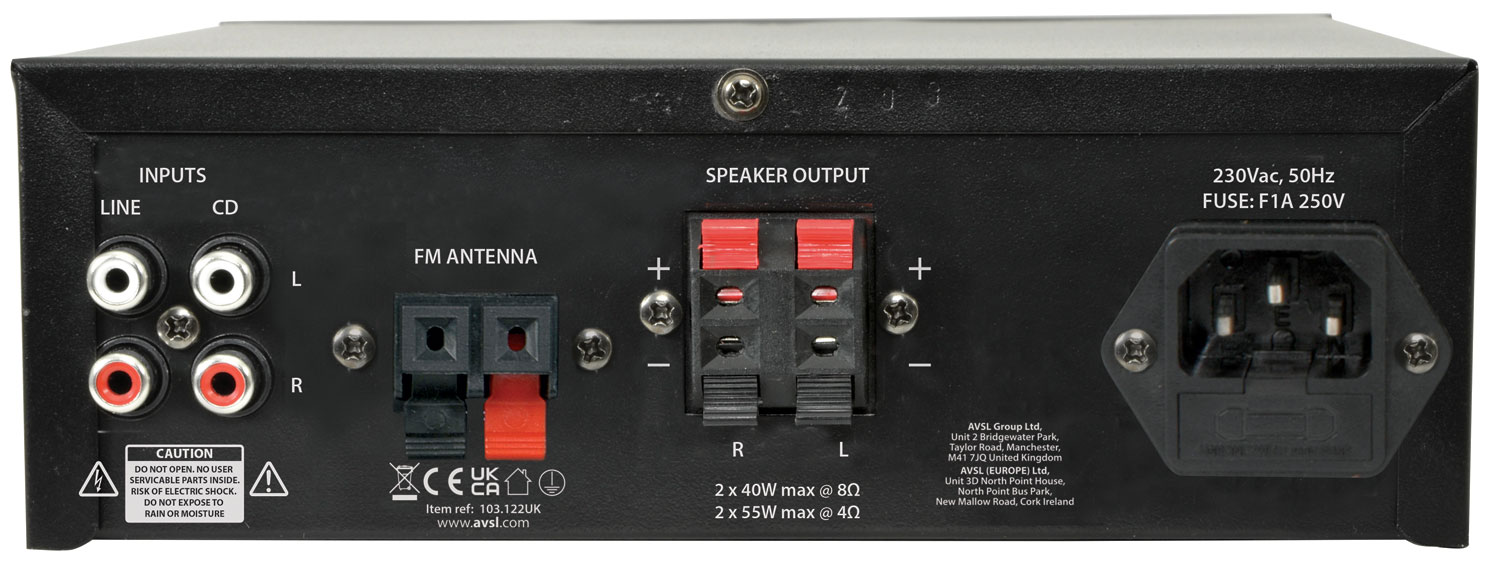

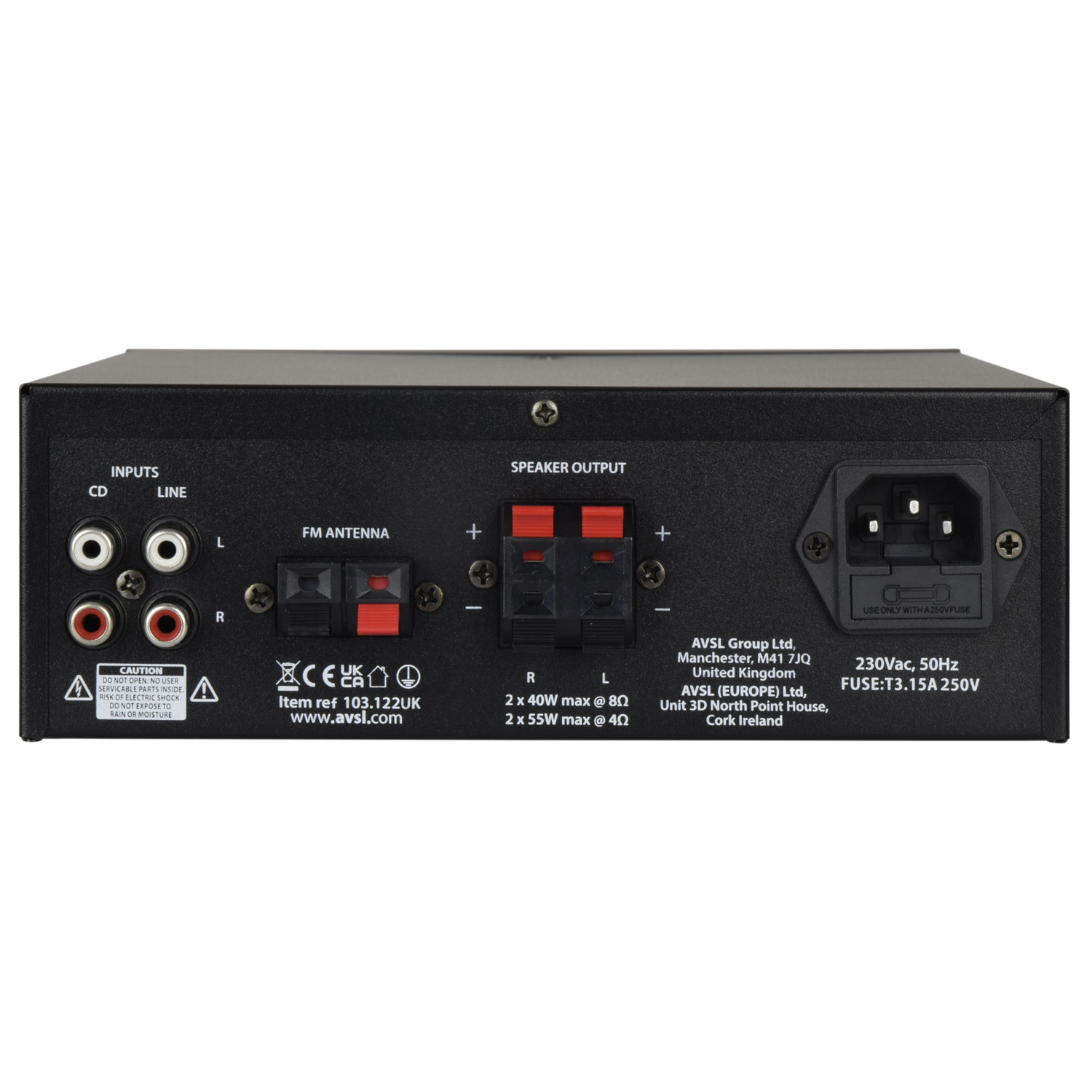

  • 2 stereo line inputs on RCA
  • 2 x 6.3mm microphone inputs
  • Spring clip speaker output terminals
  • Power supply 230Vac, 50Hz (IEC)
  • Output impedance 4 - 8 Ohms
  • Input sensitivity : line 380mV
  • Input sensitivity : mic (unbalanced) 15mV
  • Output power : 8 Ohms 2 x 25W rms / 2 x 40W max. (@ 1kHz 10% THD)
  • Output power : 4 Ohms 2 x 35W rms / 2 x 55W max. (@ 1kHz 10% THD)
  • Bluetooth version 2.3
  • Finish Black

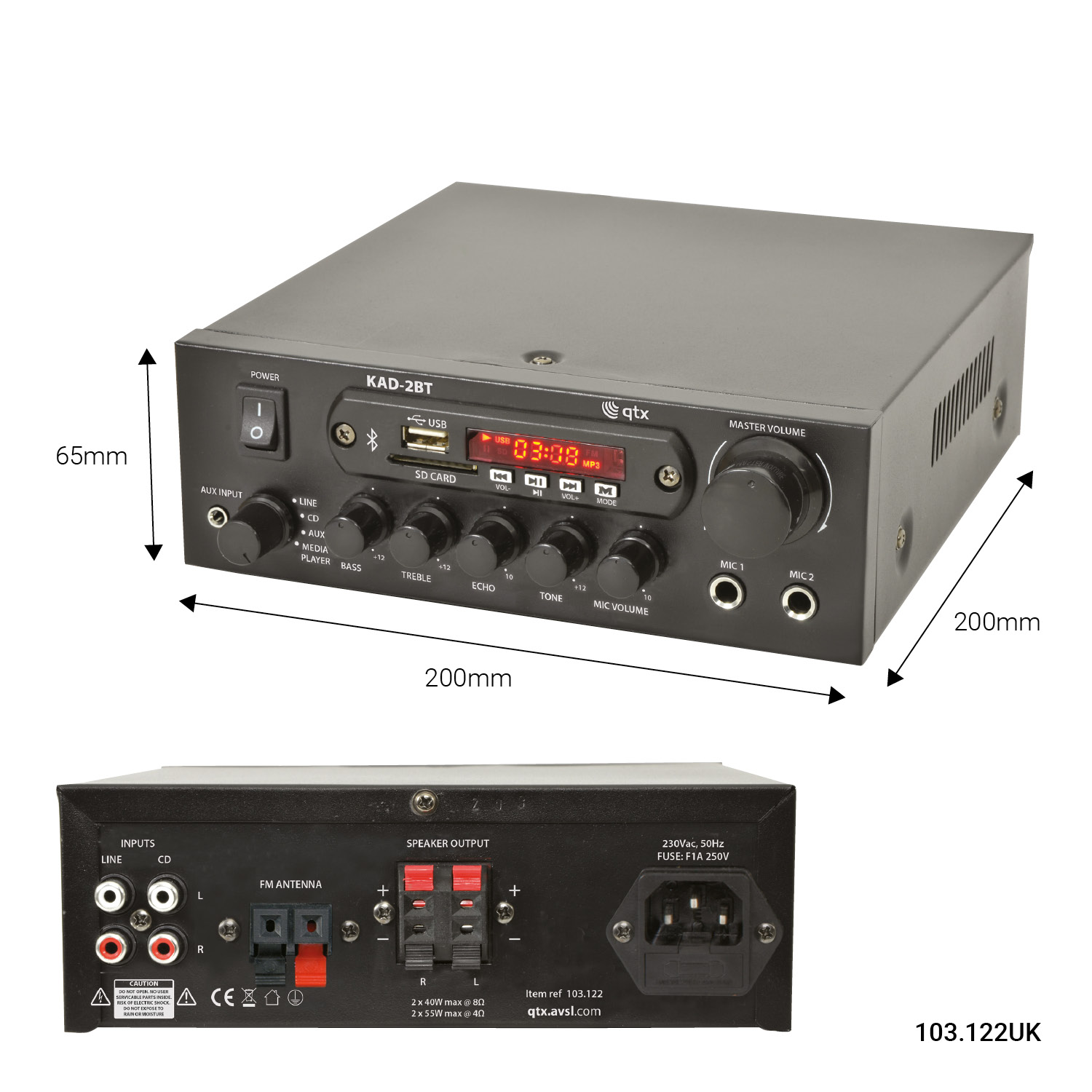

  • Dimensions 200 x 200 x 65mm
  • Weight 1.6kg
