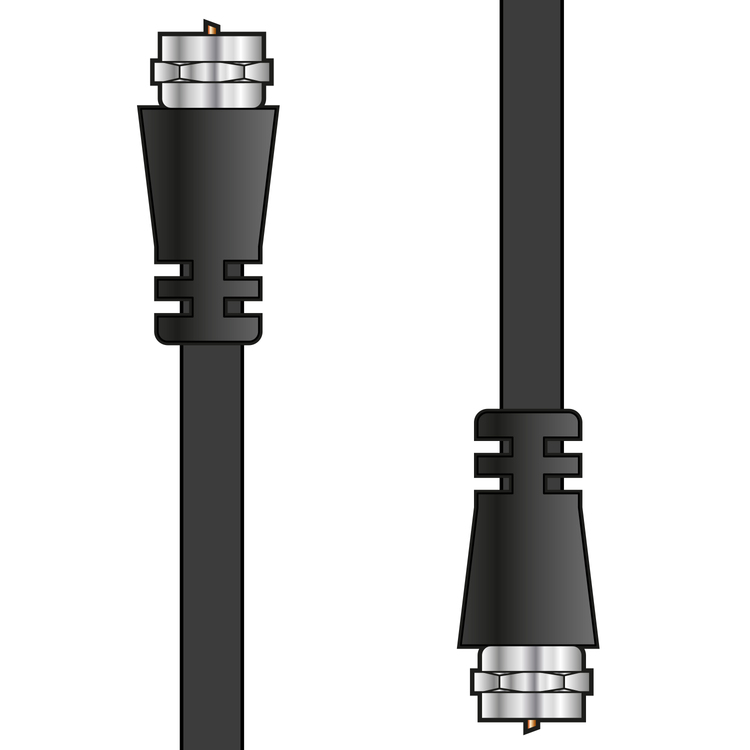

75 Ohms RG6 Coaxial F-type Plug to Plug Leads
112.158UK
75 Ohms RG6 F-type plug to plug lead constructed of solid copper clad steel conductor, foamed polyethylene dielectric, aluminium foil screen, copper clad steel braid and PVC sheath. The overall scr...
- Solid CCS conductor
- Foamed PE dielectric
- Aluminium foil screen
| Description | |
|---|---|
|
112.158UK

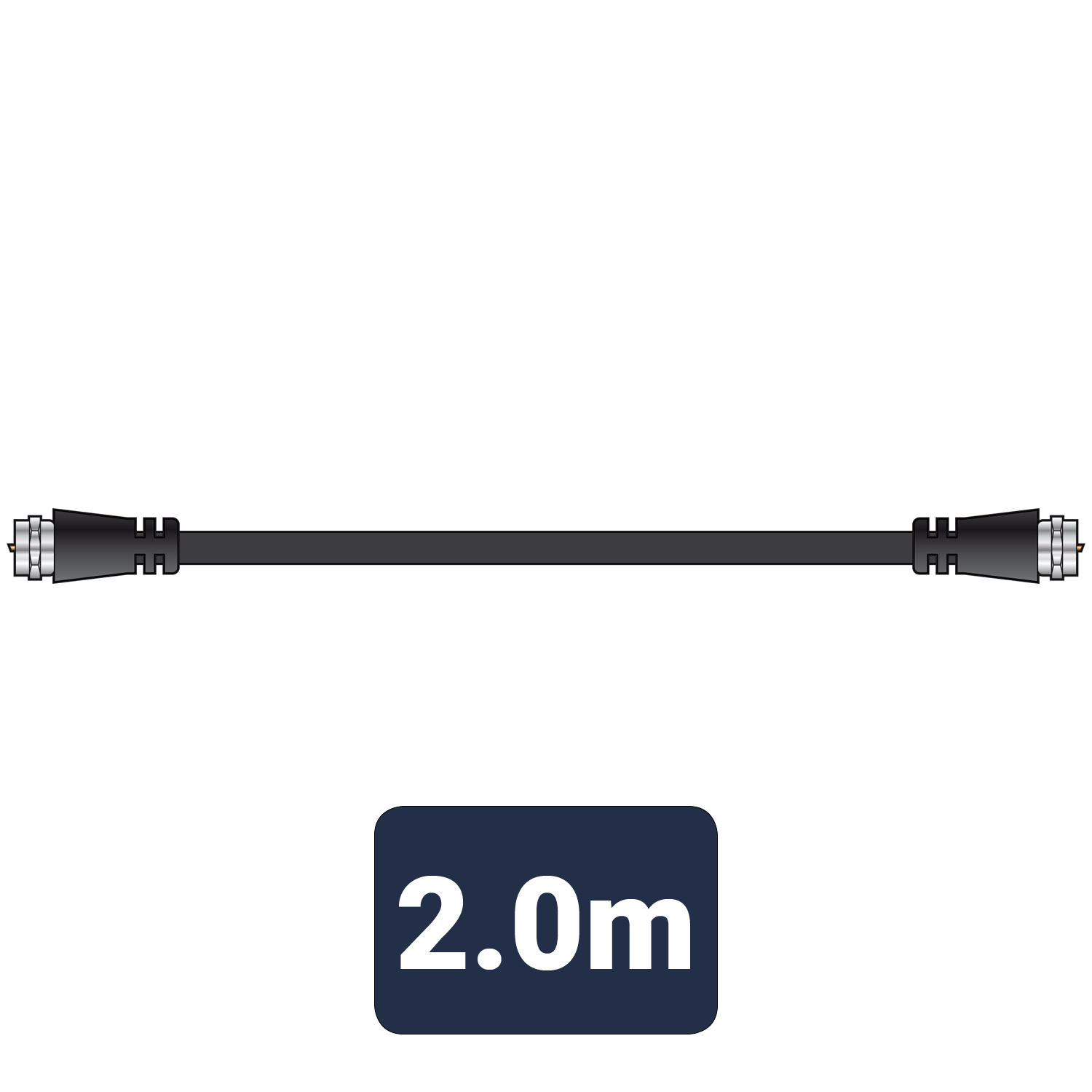

RG6 coaxial F-type plug to plug lead 2.0m |
75 Ohms RG6 Coaxial F-type Plug to Plug Leads
75 Ohms RG6 F-type plug to plug lead constructed of solid copper clad steel conductor, foamed polyethylene dielectric, aluminium foil screen, copper clad steel braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
- Solid CCS conductor
- Foamed PE dielectric
- Aluminium foil screen
- CCS braid
- Fitted with nickel plated F-type plugs
- Supplied in retail friendly sealed bag
Specification : Common
- Conductor diameter 1mmØ
- Braid 48 x 0.1mmØ
- Screen Aluminium
- Cable : diameter 6.8mmØ
Specification : Versions
| 112.158UK | |
|---|---|
| Length | 2.0m |
| Weight | 200g |
Trade information
| 112.158UK | |
|---|---|
| Barcode / EAN | 5015972169193 |
| Package type | Bag Sealed |
| Package dimensions | 120 x 225 x 22mm |
| Package weight | 0.12kg |
| Package quantity | 1 unit |
| Carton dimensions | 240 x 340 x 420mm |
| Carton weight | 6.96kg |
| Carton quantity | 60 packages |
| Pack plastic weight | 0.01kg |
