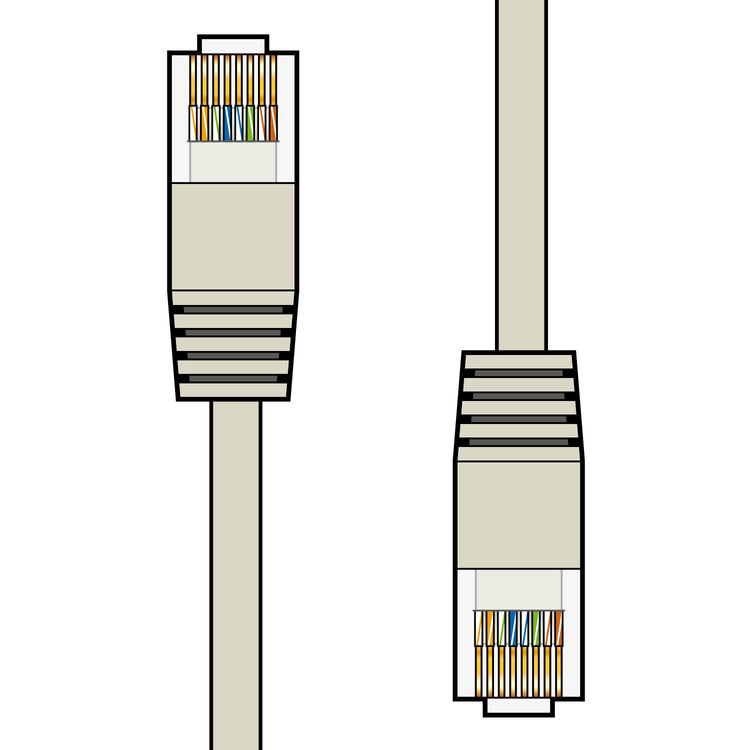

Cat5e UTP RJ45 Network Patch Leads

113.162UK

Coloured network patch leads capable of transmitting 100/1000Base-T ethernet.

  • Solid 24AWG copper clad aluminium twist pair
  • Capable of transmitting at GHz speed
  • Supplied in retail friendly sealed bag (apart from 20m, 25m and 30m)
Full description Find retailer
Description Version Packed
113.150UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 1.0m 		Grey 1.0m Bag Sealed
113.170UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 1.5m 		Grey1.5m Bag Sealed
113.152UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 2.0m 		Grey 2.0m Bag Sealed
113.154UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 3.0m 		Grey 3.0m Bag Sealed
113.156UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 5.0m 		Grey 5.0m Bag Sealed
113.158UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 10.0m 		Grey 10.0m Bag Sealed
113.160UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 15.0m 		Grey 15.0m Bag Sealed
113.162UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 20.0m 		Grey 20.0m Bag
113.164UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 25.0m 		Grey 25.0m Bag
113.166UK
Cat5e Patch Lead UTP RJ45 plug to RJ45 plug 30.0m 		Grey 30.0m Bag

Cat5e UTP RJ45 Network Patch Leads

Coloured network patch leads capable of transmitting 100/1000Base-T ethernet.

  • Solid 24AWG copper clad aluminium twist pair
  • Capable of transmitting at GHz speed
  • Supplied in retail friendly sealed bag (apart from 20m, 25m and 30m)

Specification : Common

  • Core diameter 4 x 2 x 0.51mmØ
  • Overall diameter 5.2mm

Specification : Versions

  113.150UK 113.170UK 113.152UK 113.154UK 113.156UK 113.158UK 113.160UK 113.162UK 113.164UK 113.166UK
Colour Grey Black Grey Grey Grey Grey Grey Grey Grey Grey
Length 1.0m 1.5m 2.0m 3.0m 5.0m 10.0m 15.0m 20.0m 25.0m 30.0m
Weight 20g 30g 35g 40g 90g 150g 220g 280g 350g 520g

Trade information

  113.150UK 113.170UK 113.152UK 113.154UK 113.156UK 113.158UK 113.160UK 113.162UK 113.164UK 113.166UK
Barcode / EAN 5015972151860 5015972152133 5015972151891 5015972151921 5015972151952 5015972151983 5015972152010 5015972152041 5015972152072 5015972152102
Package type Bag Sealed Bag Sealed Bag Sealed Bag Sealed Bag Sealed Bag Sealed Bag Sealed Bag Bag Bag
Package dimensions 120 x 225 x 15mm 120 x 225 x 20mm 120 x 225 x 15mm 160 x 225 x 18mm 160 x 225 x 25mm 160 x 225 x 28mm 185 x 280 x 42mm 155 x 155 x 40mm 175 x 175 x 38mm 155 x 155 x 70mm
Package weight 0.03kg 0.04kg 0.05kg 0.08kg 0.12kg 0.23kg 0.35kg 0.28kg 0.35kg 0.52kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm 240 x 340 x 420mm
Carton weight 3.60kg 4.00kg 3.40kg 4.80kg 5.76kg 6.44kg 7.00kg 5.60kg 7.00kg 8.32kg
Carton quantity 120 packages 120 packages 80 packages 60 packages 48 packages 28 packages 20 packages 20 packages 16 packages 16 packages
Pack plastic weight 0.01kg 0.01kg 0.01kg 0.01kg 0.01kg 0.01kg 0.01kg 0.00kg - -
