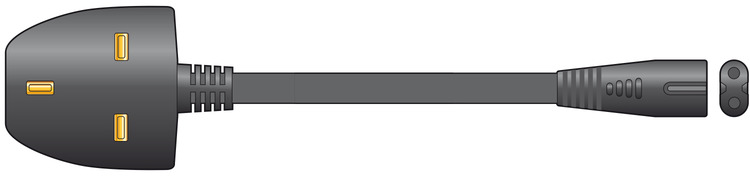

Mains Power Leads UK Plug - Figure 8 3A

114.039UK

UK 3 pin plug to figure 8, 2 core mains power lead, suitable for connecting power to general electronic equipment up to 575W.

  • BS 1363 approved plug
  • 2 Cores BSI approved cable
  • 3A fused plug
Description Version Packed
114.031UK
Mains Power Lead UK Plug - Fig 8 Black 0.5m
0.5m/Black Bag Sealed
114.033UK
Mains Power Lead UK Plug - Fig 8 Black 1.0m
1.0m/Black Bag Resealable
114.035UK
Mains Power Lead UK Plug - Fig 8 Black 2.0m
2.0m/Black Bag Resealable
114.037UK
Mains Power Lead UK Plug - Fig 8 Black 5.0m
5.0m/Black Bag Sealed
114.039UK
Mains Power Lead UK Plug - Fig 8 Black 10.0m
10.0m/Black Bag Resealable

Mains Power Leads UK Plug - Figure 8 3A

UK 3 pin plug to figure 8, 2 core mains power lead, suitable for connecting power to general electronic equipment up to 575W.

  • BS 1363 approved plug
  • 2 Cores BSI approved cable
  • 3A fused plug
  • Suitable for appliances rated up to 575W

Specification : Common

  • Max. current 2.5A
  • Max. power 575W
  • Colour Black
  • Cable : specification 2 x 0.75mmØ

Specification : Versions

  114.031UK 114.033UK 114.035UK 114.037UK 114.039UK
Length 0.5m 1.0m 2.0m 5.0m 10.0m
Weight 89g 126g 140g 316g 500g

Trade information

  114.031UK 114.033UK 114.035UK 114.037UK 114.039UK
Barcode / EAN 5015972177990 5015972178003 5015972178010 5015972178027 5015972178034
Package type Bag Sealed Bag Resealable Bag Resealable Bag Sealed Bag Resealable
Package dimensions 180 x 225 x 50mm 180 x 225 x 50mm 180 x 225 x 50mm 180 x 280 x 50mm 180 x 280 x 50mm
Package weight 0.10kg 0.13kg 0.15kg 0.33kg 0.51kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 350 x 420 x 250mm 394 x 420 x 300mm 394 x 420 x 300mm 394 x 420 x 300mm 394 x 420 x 300mm
Carton weight 10.40kg 19.90kg 18.00kg 20.00kg 21.00kg
Carton quantity 100 packages 150 packages 120 packages 60 packages 40 packages
Pack plastic weight 0.01kg 0.01kg 0.01kg 0.01kg 0.01kg
