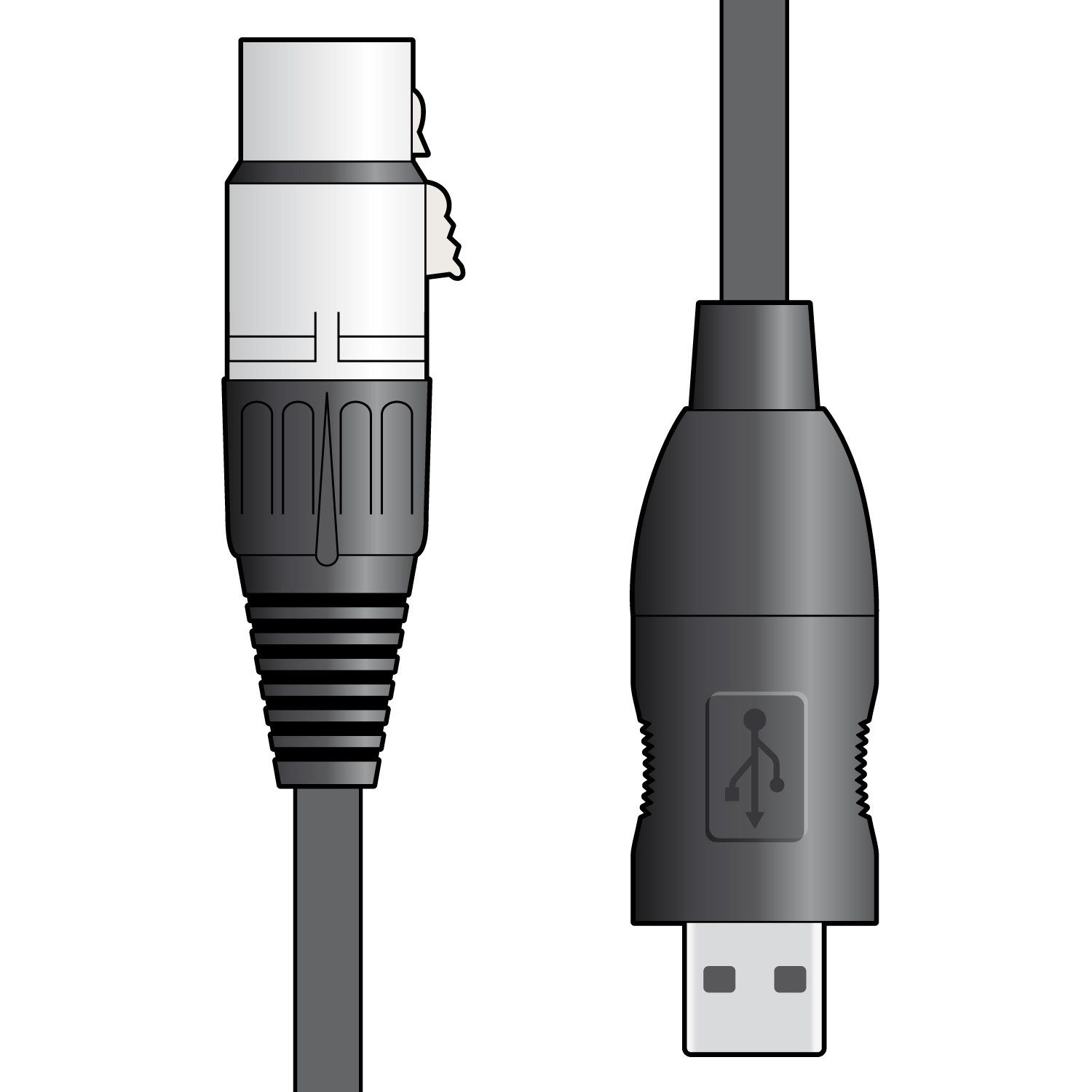

XLR to USB Converter Lead

173.616UK XLRF-USB2

Analogue to digital conversion lead with XLRF jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac ...

  • USB bus powered
  • Plug-and-play solution
  • Up to 48kHz A/D conversion
Description Version Packed
173.616UK
XLRF to USB converter lead
Blister

XLR to USB Converter Lead

Analogue to digital conversion lead with XLRF jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac computer. An easy and efficient solution for digital recording of vocal lines, instruments and podcasts.

  • Plug-and-play solution
  • Up to 48kHz A/D conversion
  • USB bus powered
  • Compatible with Windows 2000/XP/7/8 or Mac OS X 10.1 and above

Specification : Common

  • Sampling format 16bit @ 48/44.1kHz
  • THD +N -76dB (-3dBr)
  • S/N ratio 83dB
  • Dynamic range 80dB
  • Input impedance 1M Ohms
  • Frequency response 20Hz-19kHz (@48kHz)
  • Input level 0-2.8Vpp
  • Gain +20dB
  • Lead length 3.0m

Specification : Versions

  173.616UK
Connectors XLRF, USB type A
Weight 174g

Trade information

  173.616UK
Barcode / EAN 5015972167380
Package type Blister
Package dimensions 170 x 275 x 40mm
Package weight 0.17kg
Package quantity 1 unit
Carton dimensions 400 x 500 x 415mm
Carton weight 8.70kg
Carton quantity 50 packages
Pack paper weight 0.03kg
Pack plastic weight 0.03kg

In the box

The box for this item contains :

  • XLR to USB converter lead
