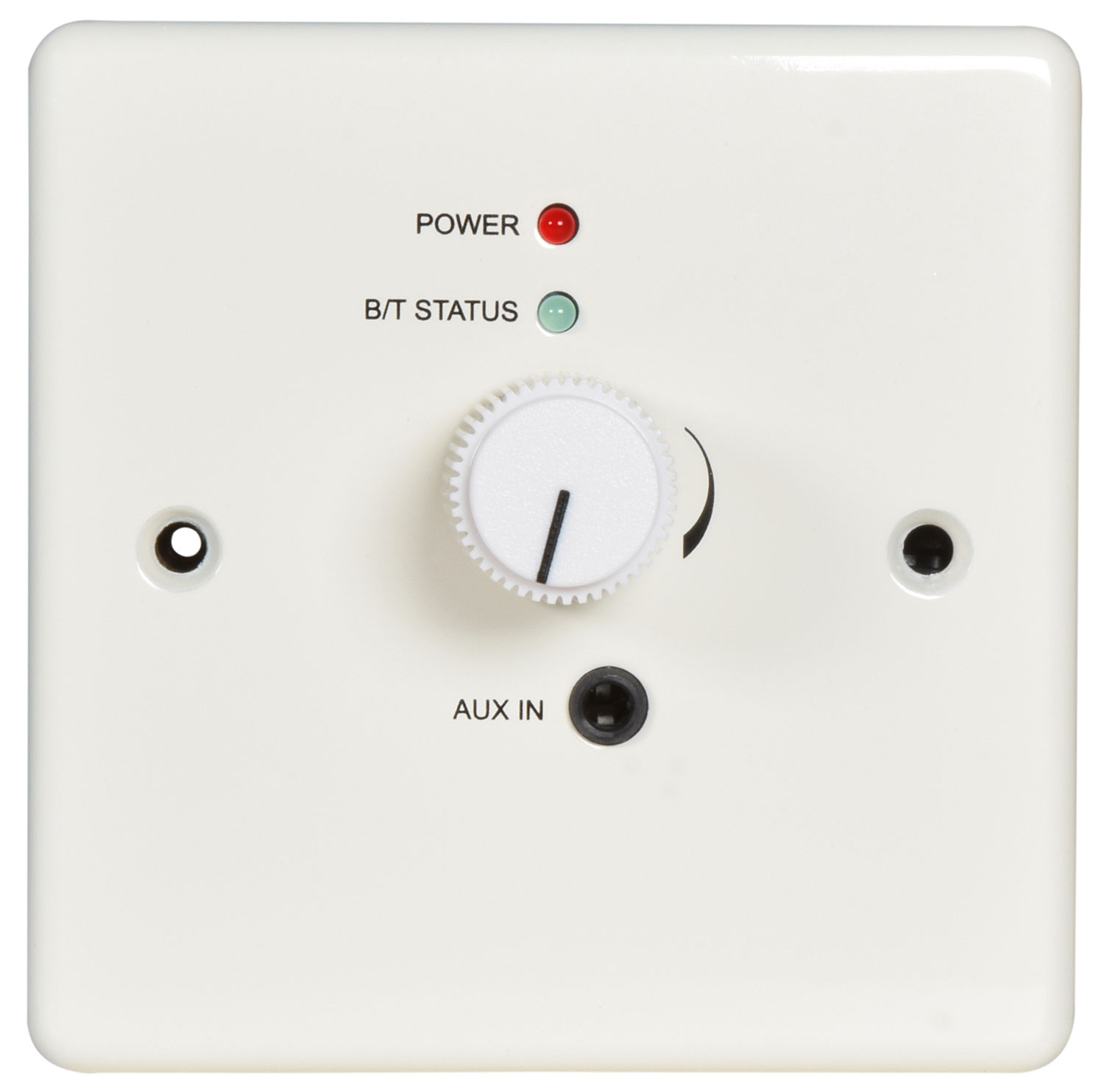

Bluetooth Receiver Wallplate and Backbox

122.383UK

A Bluetooth receiver conveniently housed in a standard 1-gang plastic wallplate which allows connection of Bluetooth enabled devices such as smartphones, tablets, iPods etc. Ideal for use in classr...

  • Bluetooth version 5.0 apt-X compliant for reduced latency and 30m transmission range
  • Central power/volume knob for easier control and connection
  • 3.5mm AUX in socket for use with non Bluetooth devices
Full description Find retailer
Description Version Packed
122.383UK
Bluetooth Receiver Wallplate and Backbox 		v2 Box Label

Bluetooth Receiver Wallplate and Backbox

A Bluetooth receiver conveniently housed in a standard 1-gang plastic wallplate which allows connection of Bluetooth enabled devices such as smartphones, tablets, iPods etc. Ideal for use in classrooms, boardrooms, kitchens or home studies, the unit comes supplied with a UK power supply and a 50mm backbox for easy installation.

  • Bluetooth version 5.0 apt-X compliant for reduced latency and 30m transmission range
  • Central power/volume knob for easier control and connection
  • 3.5mm AUX in socket for use with non Bluetooth devices
  • Internal terminal block for signal connection
  • Bluetooth status and power LEDs

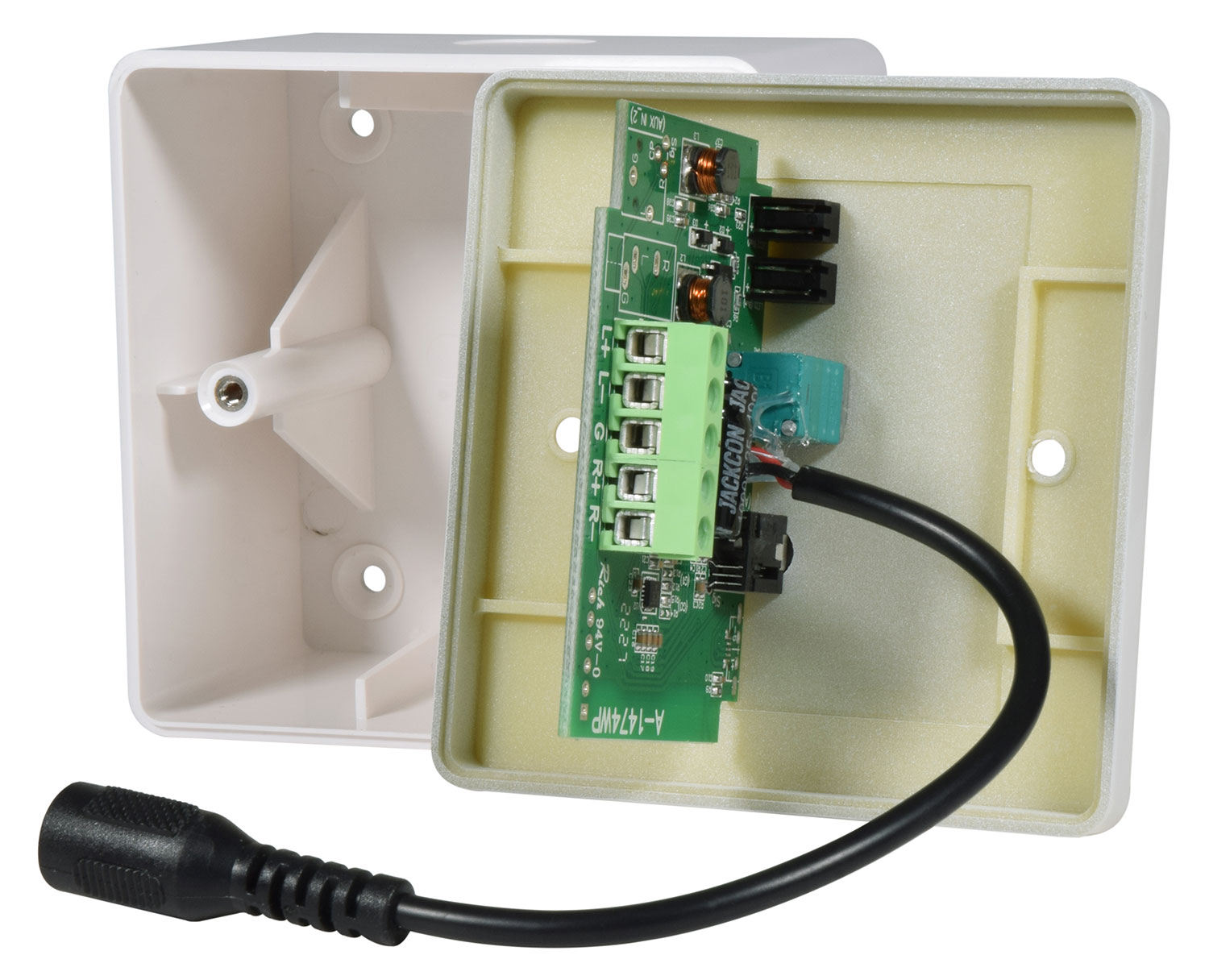

  • Supplied with a UK power supply and a 50mm backbox for easy installation
  • Bluetooth version v5.0 with apt-X
  • Bluetooth range Up to 30m (clear line of sight)
  • Audio output Bluetooth or stereo line level (3.5mm jack)
  • Audio output 5-way screw terminal (balanced)
  • Power in 5VDC/1A via UK PSU (supplied)
  • Dimensions 87 x 87 x 68mm (wallplate only)
  • Weight 62g

In the box

The box for this item contains :

  • Bluetooth receive wallplate

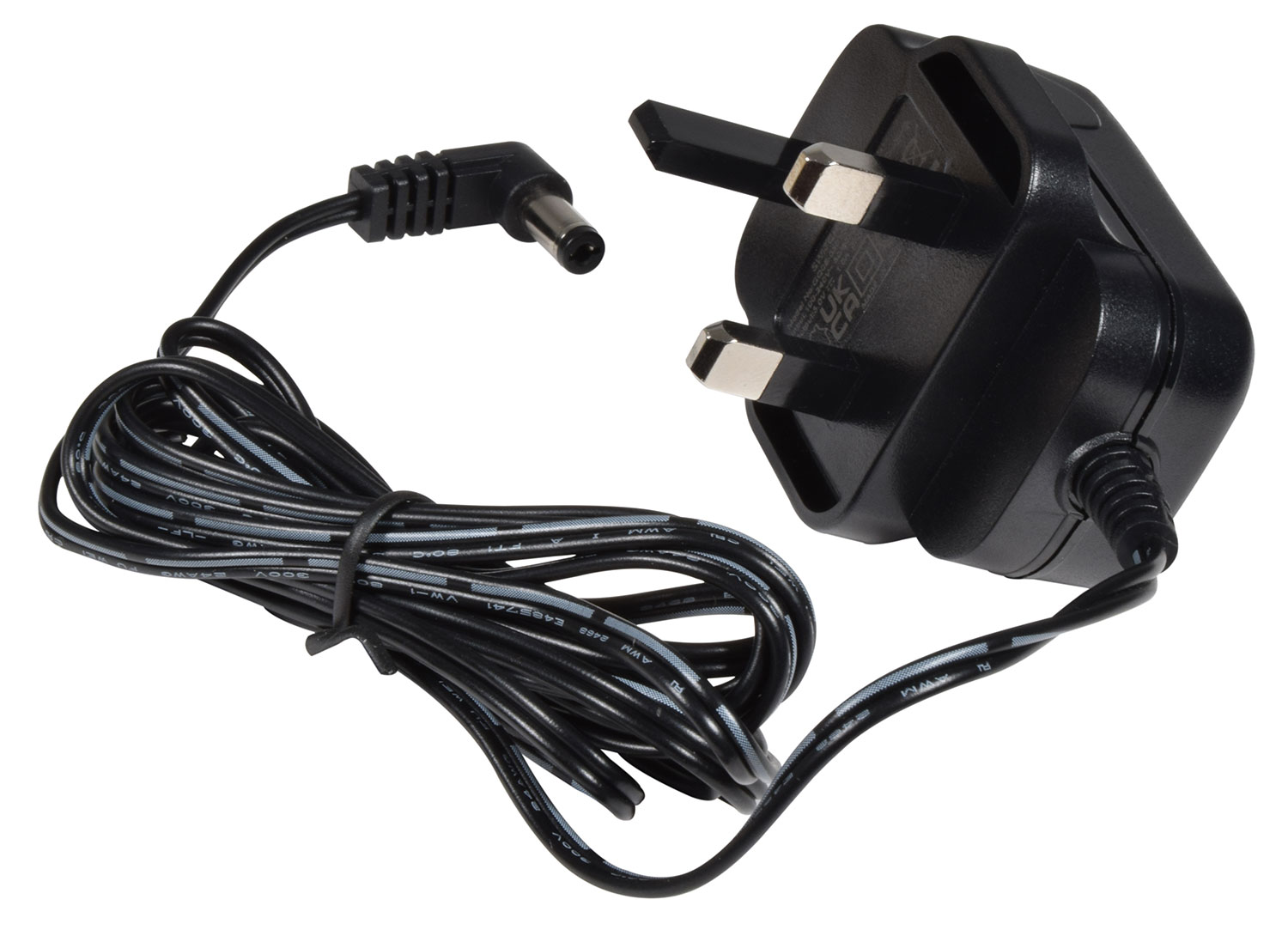

  • UK power supply
  • Backbox (50mm depth)
  • Wallplate screws (x2)
  • User guide

Downloads

Instruction manual
For 122.383UK (154KB)
UK Declaration of conformity
For 122.383UK (250KB)
EU Declaration of conformity
For 122.383UK (240KB)
