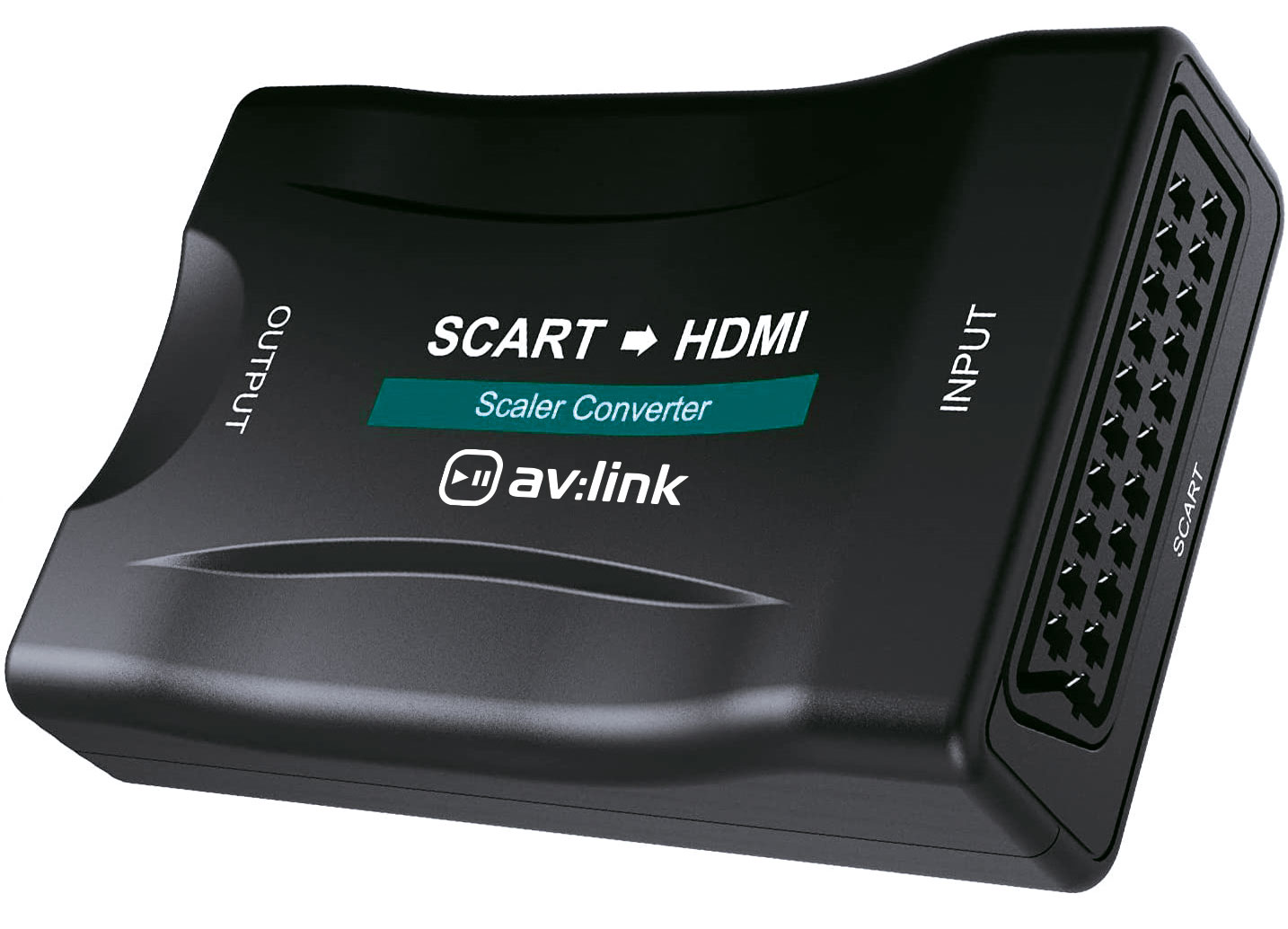

Scart to HDMI Converter

122.416UK

A simple USB powered unit that converts analogue video signals from older devices with a Scart interface to high-definition HDMI outputs. Simple to install and operate, this handy little device is ...

  • Converts analogue video signals from Scart devices to high-definition HDMI output
  • Simple plug and play installation and instant synchronisation without delay

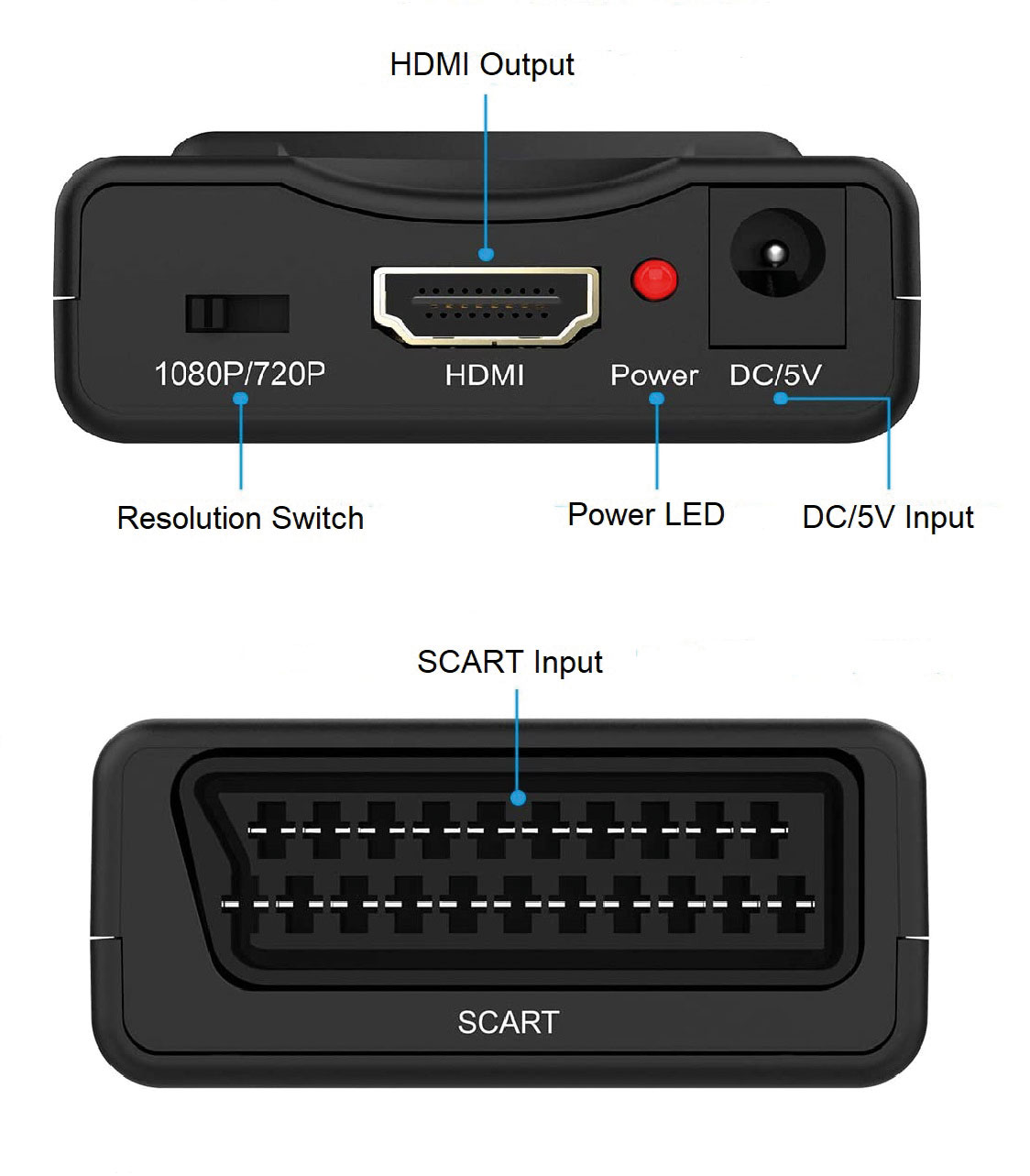

  • Switchable output for 720p and 1080p display settings
Full description Find retailer
Description Version Packed
122.416UK
Scart to HDMI Converter 		Gift Box

Scart to HDMI Converter

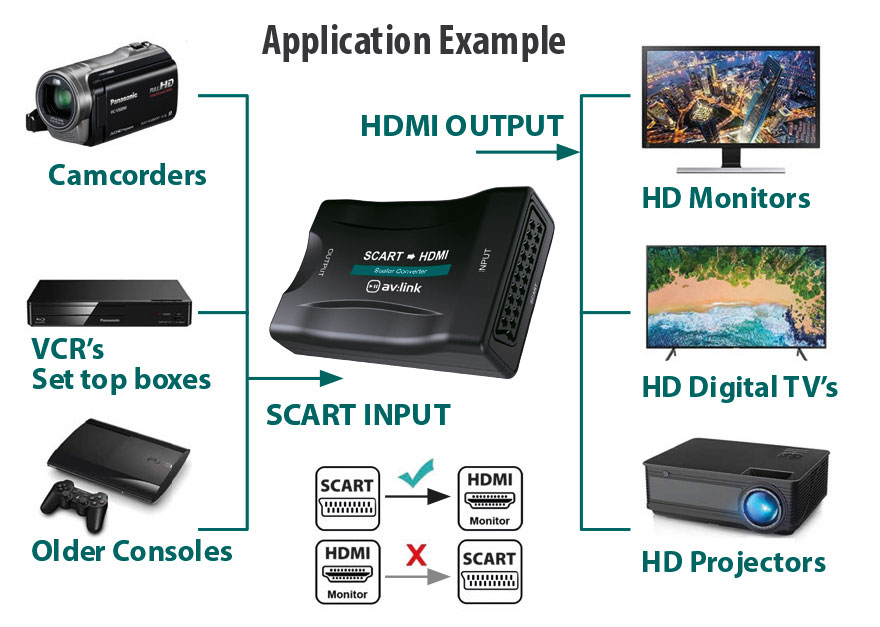

A simple USB powered unit that converts analogue video signals from older devices with a Scart interface to high-definition HDMI outputs. Simple to install and operate, this handy little device is ideal for use with VCR's, DVD players, Games consoles, Freeview boxes etc when connecting to newer HDTV's or displays.

  • Converts analogue video signals from Scart devices to high-definition HDMI output
  • Simple plug and play installation and instant synchronisation without delay
  • Switchable output for 720p and 1080p display settings
  • Ideal for use with VCR's, DVD players, Games consoles, Freeview boxes and more
  • Supports PAL, NTSC and SECAM formats
  • USB power lead supplied
  • Input Scart (PAL, NTSC3/4, 43 SECAM, PAL/M, PAL/N)
  • Output HDMI (720p, 1080p)
  • Max. cable length Scart input <=8m; HDMI output <=7m
  • Max. working current 350mA
  • Operating temperature range -10° to 55°C
  • Power : input DC/5V 1A
  • Dimensions 88.5 x 57.5 x 25mm
  • Weight 60g

In the box

The box for this item contains :

  • Scart to HDMI Converter
  • USB power cable (75cm)
  • User guide

Downloads

Instruction manual
For 122.416UK (869KB)
UK Declaration of conformity
For 122.416UK (243KB)
EU Declaration of conformity
For 122.416UK (232KB)
