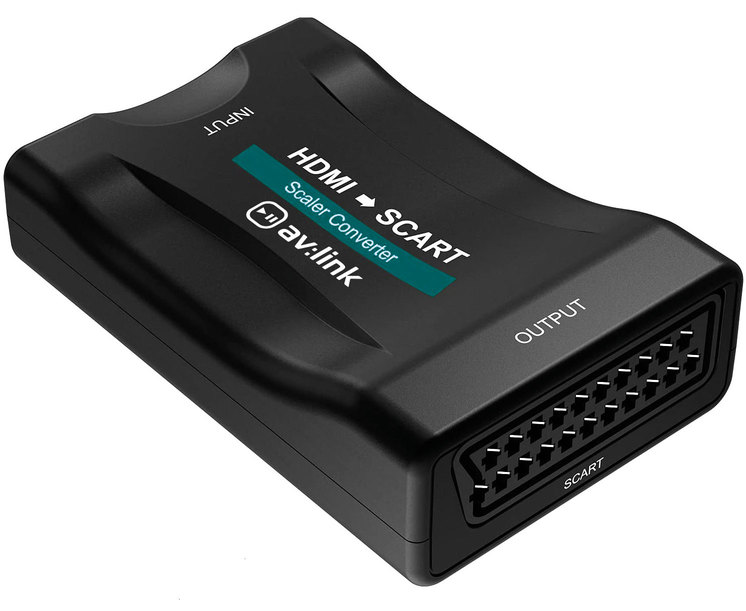

HDMI to Scart Converter

122.417UK

A simple USB powered unit that converts high-definition HDMI video signals for use with older TV's and displays with an analogue Scart interface. Simple to install and operate, this handy little de...

  • Converts high-definition HDMI video signals to analogue Scart signals
  • Simple plug and play installation and instant synchronisation without delay
  • Switchable output for PAL and NTSC display settings
Full description Find retailer
Description Version Packed
122.417UK
HDMI to Scart Converter 		Gift Box

HDMI to Scart Converter

A simple USB powered unit that converts high-definition HDMI video signals for use with older TV's and displays with an analogue Scart interface. Simple to install and operate, this handy little device is ideal for use with Blu-ray players, games consoles, Sky HD boxes, laptops and more.

  • Converts high-definition HDMI video signals to analogue Scart signals
  • Simple plug and play installation and instant synchronisation without delay
  • Switchable output for PAL and NTSC display settings

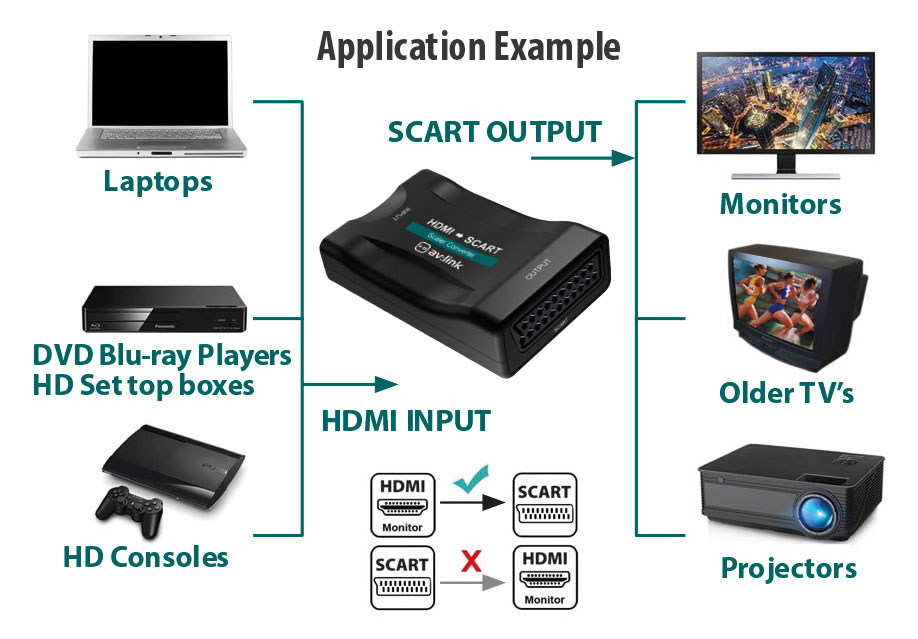

  • ideal for use with Blu-ray players, games consoles, Sky HD boxes, laptops and more
  • USB power lead supplied
  • Input HDMI (up to v1.3 @ 60fps)
  • Output Scart (PAL/NTSC)
  • Max. bandwidth 300MHz
  • Max. baud rate 10.2 Gbps
  • Max. cable length HDMI Input <= 7m; Scart output <=8m
  • Max. working current 600mA
  • Operating temperature range -10°C to 55°C
  • Power : input DC/5V 1A
  • Dimensions 88.5 x 57.5 x 25mm
  • Weight 60g

In the box

The box for this item contains :

  • HDMI to Scart converter
  • USB power cable (75cm)
  • User guide

Downloads

Instruction manual
For 122.417UK (863KB)
UK Declaration of conformity
For 122.417UK (243KB)
EU Declaration of conformity
For 122.417UK (233KB)
