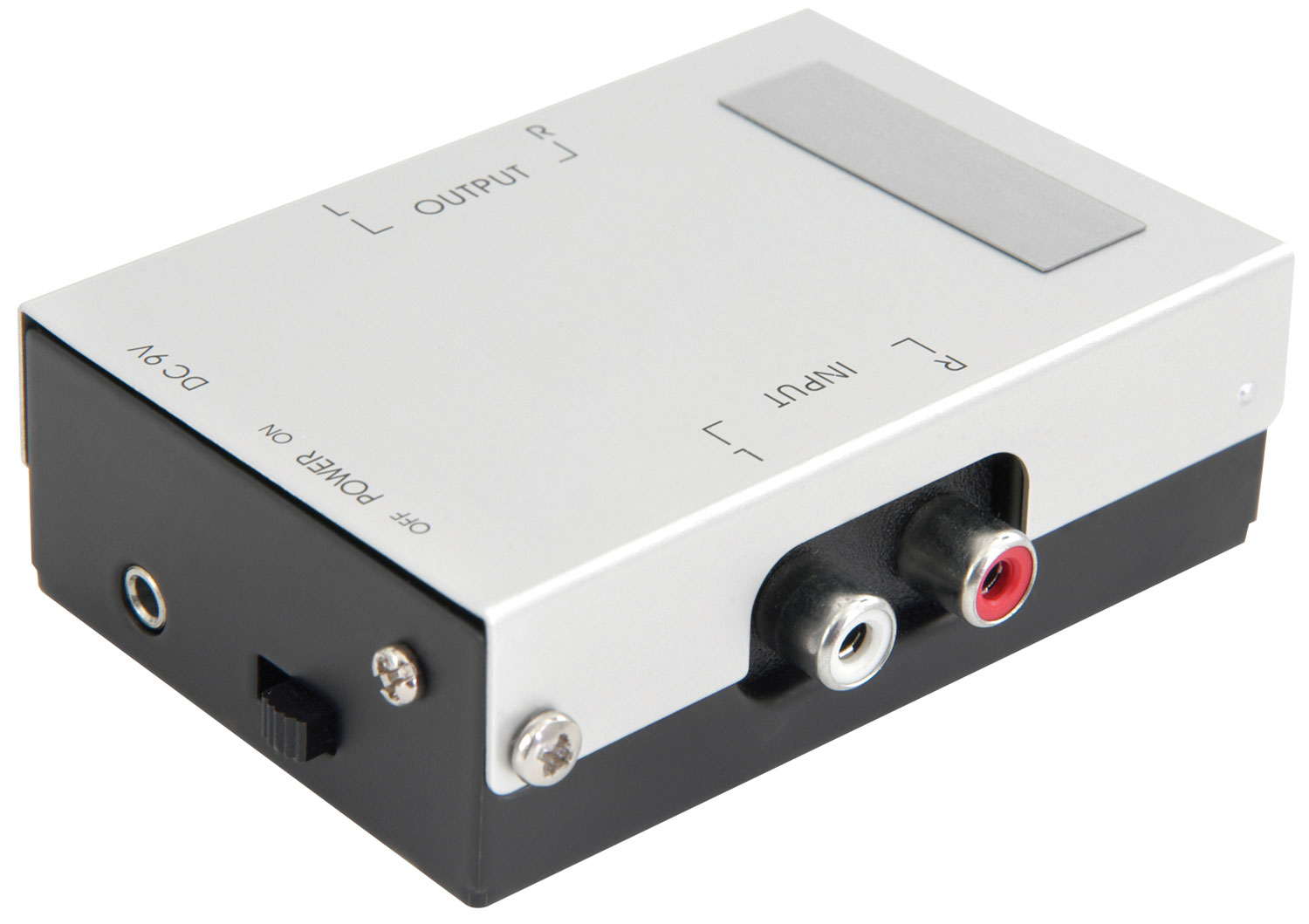

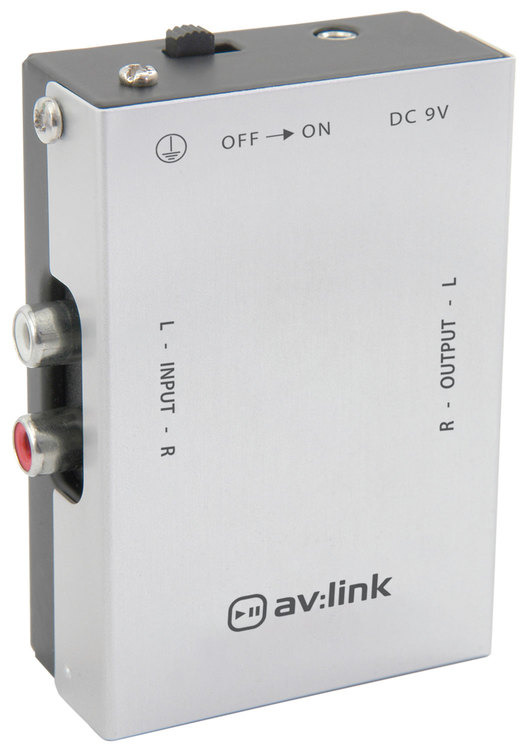

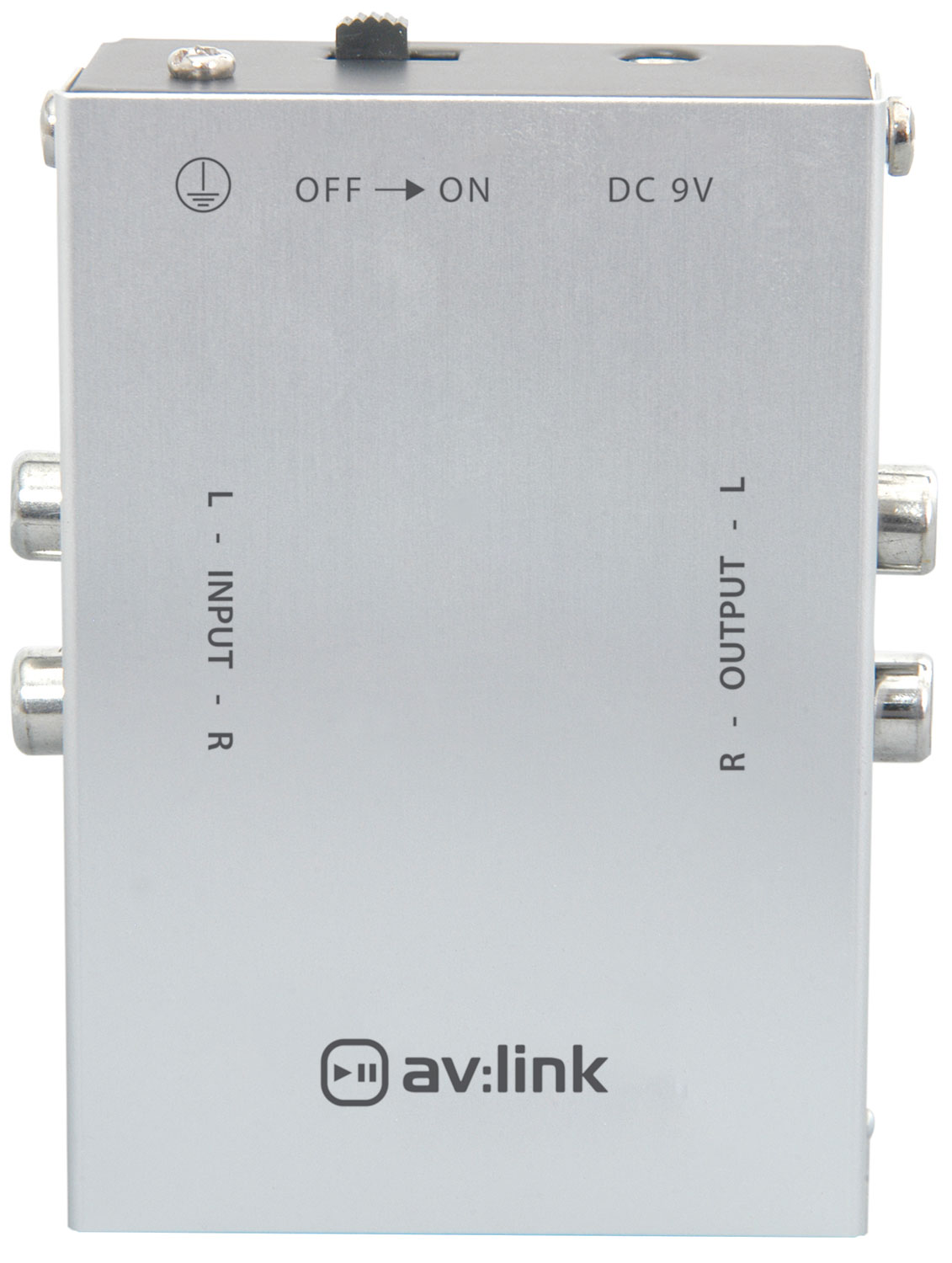

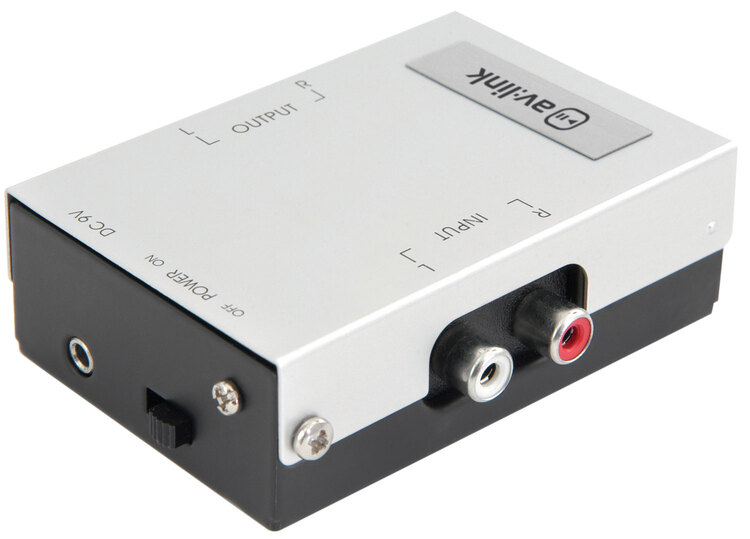

Pre-amplifier for Turntables

128.513UK STP-2

This handy little box will amplify the signal from a turntable, making it suitable for line level (AUX) input.

  • Stereo pre-amplifier for use with turntables fitted with magnetic cartridges
  • Amplifies the signal to match it to the line or CD input of an amplifier
  • On/Off switch fitted
Description Version Packed
128.513UK
(UK version) Pre-amplifier for turntables
Blister

Pre-amplifier for Turntables

This handy little box will amplify the signal from a turntable, making it suitable for line level (AUX) input.

  • Stereo pre-amplifier for use with turntables fitted with magnetic cartridges
  • Amplifies the signal to match it to the line or CD input of an amplifier
  • On/Off switch fitted
  • Mains adaptor included
  • Power supply 9V DC, 100mA
  • Battery (optional) 9V DC (1 x PP3)
  • Equalization RIAA correction
  • Frequency response 30Hz - 20kHz
  • Gain 34dB
  • Input impedance 50k ohms
  • Output impedance 50k ohms
  • Dimensions 30 x 70 x 90mm
  • Weight 250g

Downloads

Instruction manual
For 128.513UK (86KB)
UK Declaration of conformity
For 128.513UK (248KB)
EU Declaration of conformity
For 128.513UK (237KB)
