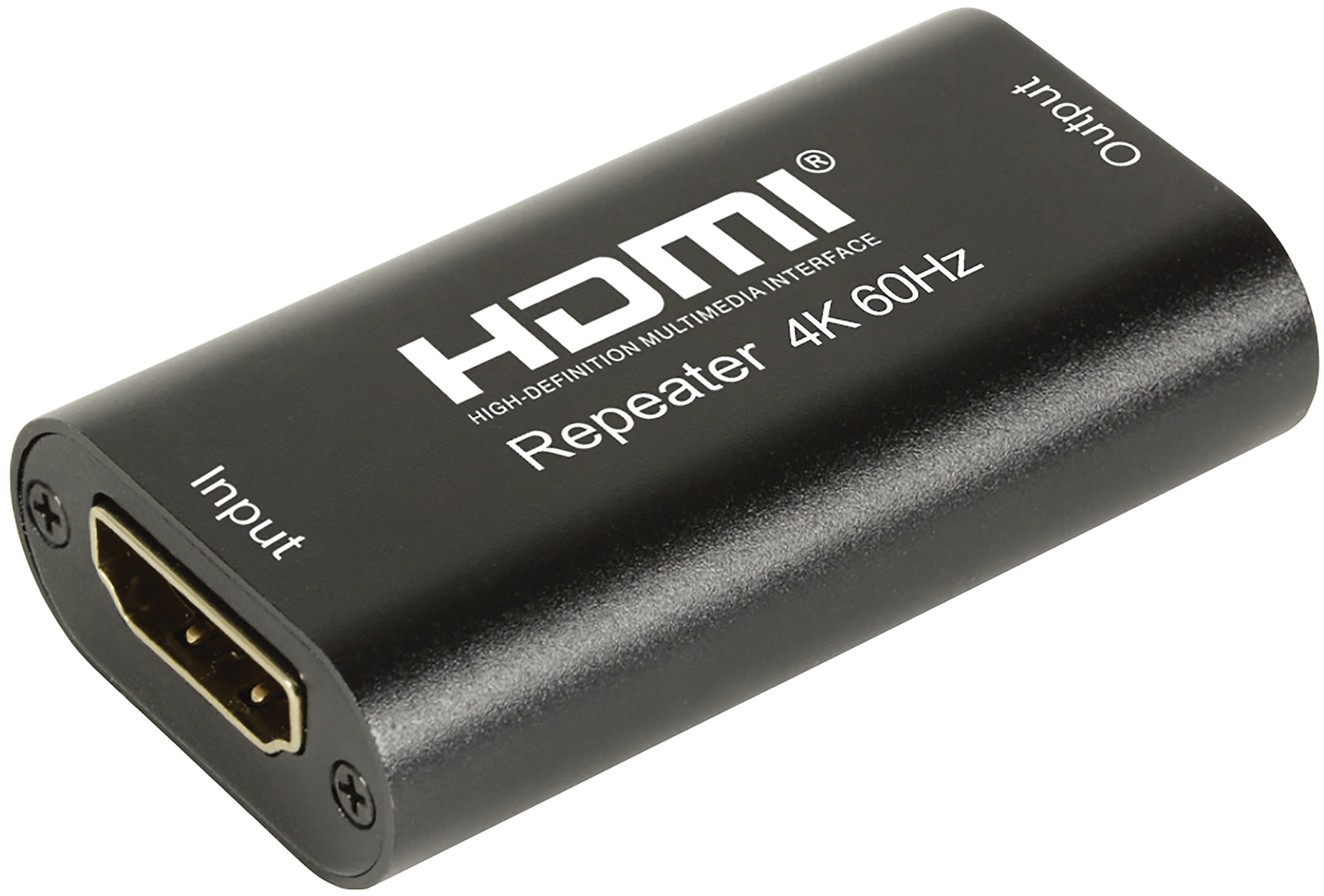

4K HDMI 2.0 Repeater

128.832UK HDR4Kv2

A compact 4K HDMI repeater to connect HDMI cables of up to 40m combined length with minimal signal degradation. Combine up to 10m cable for 4K@60Hz resolution, or up to 40m for 4K@30Hz and FHD reso...

  • Maintains 4K@60Hz resolution without signal loss over combined 10m cable length
  • Maintains 4K@30Hz and FHD resolution without signal loss over combined 40m cable length
  • Easy connection and installation
Description Version Packed
128.832UK
4K HDMI 2.0 Repeater
Gift Box

4K HDMI 2.0 Repeater

A compact 4K HDMI repeater to connect HDMI cables of up to 40m combined length with minimal signal degradation. Combine up to 10m cable for 4K@60Hz resolution, or up to 40m for 4K@30Hz and FHD resolutions. This updated version will support HDMI v2.0 which is compatible with the latest 4K digital TV boxes producing 3840 x 2160 @ 60Hz resolution.

  • Maintains 4K@60Hz resolution without signal loss over combined 10m cable length
  • Maintains 4K@30Hz and FHD resolution without signal loss over combined 40m cable length
  • Easy connection and installation
  • Supports HDMI v2.0b resolutions up to 3840x 2160 @ 60Hz
  • Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
  • No external power source required
  • NOTE: poor quality HDMI cables will affect the maximum resolution and transmission distance
  • HDMI version v2.0b
  • Video resolution Up to 3840 x 2160P @ 60Hz
  • Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
  • HDCP version 2.2
  • Max. bandwidth 600Mhz
  • Max. baud rate 3x 6Gbps
  • Max. working current 300mA
  • Transmission distance 10m 4K@60Hz (5m input/5m output), 40m 4K@30Hz and 1080p (20m input/20m output)
  • Dimensions 50 x 30 x 18mm
  • Weight 21g
