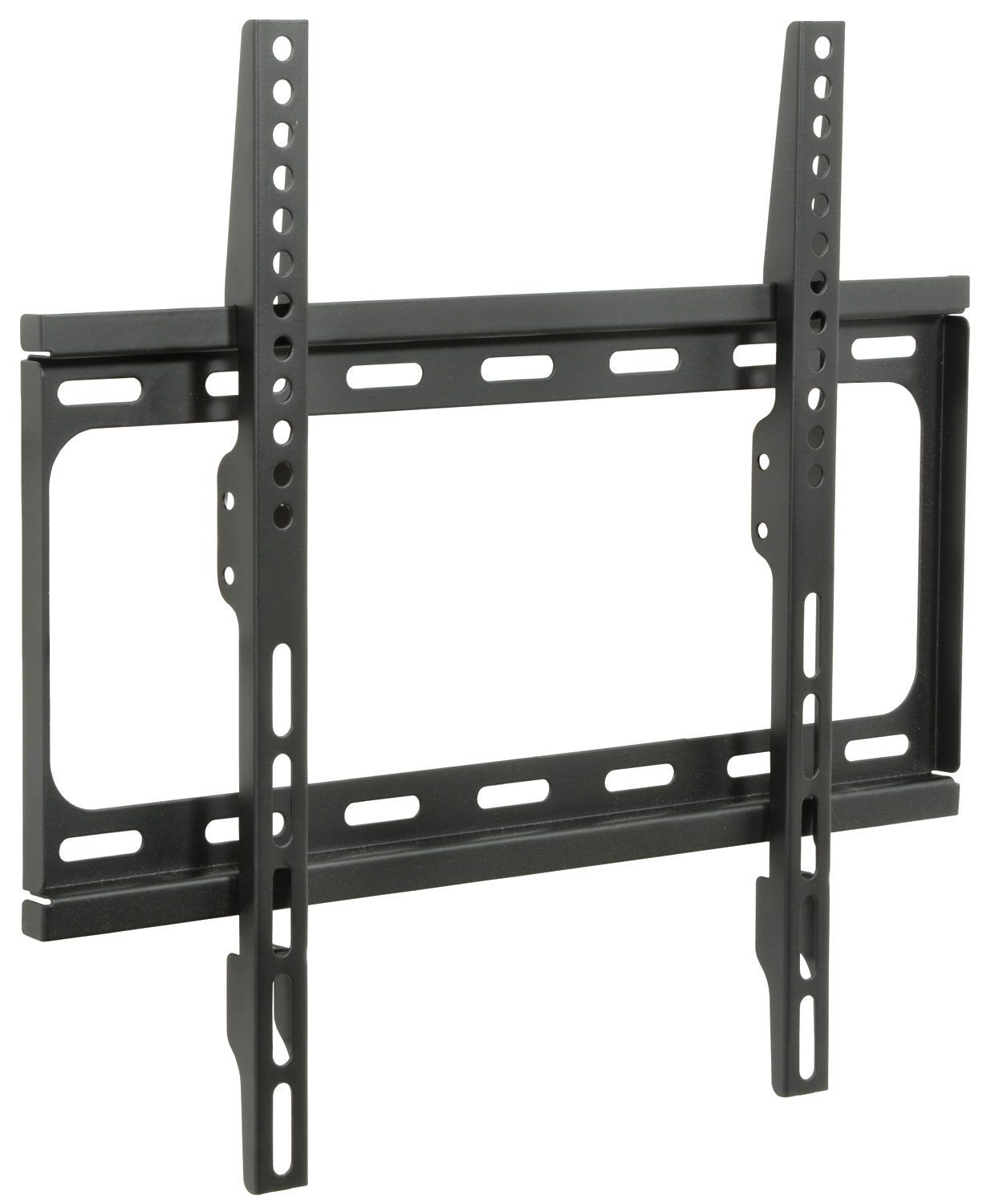

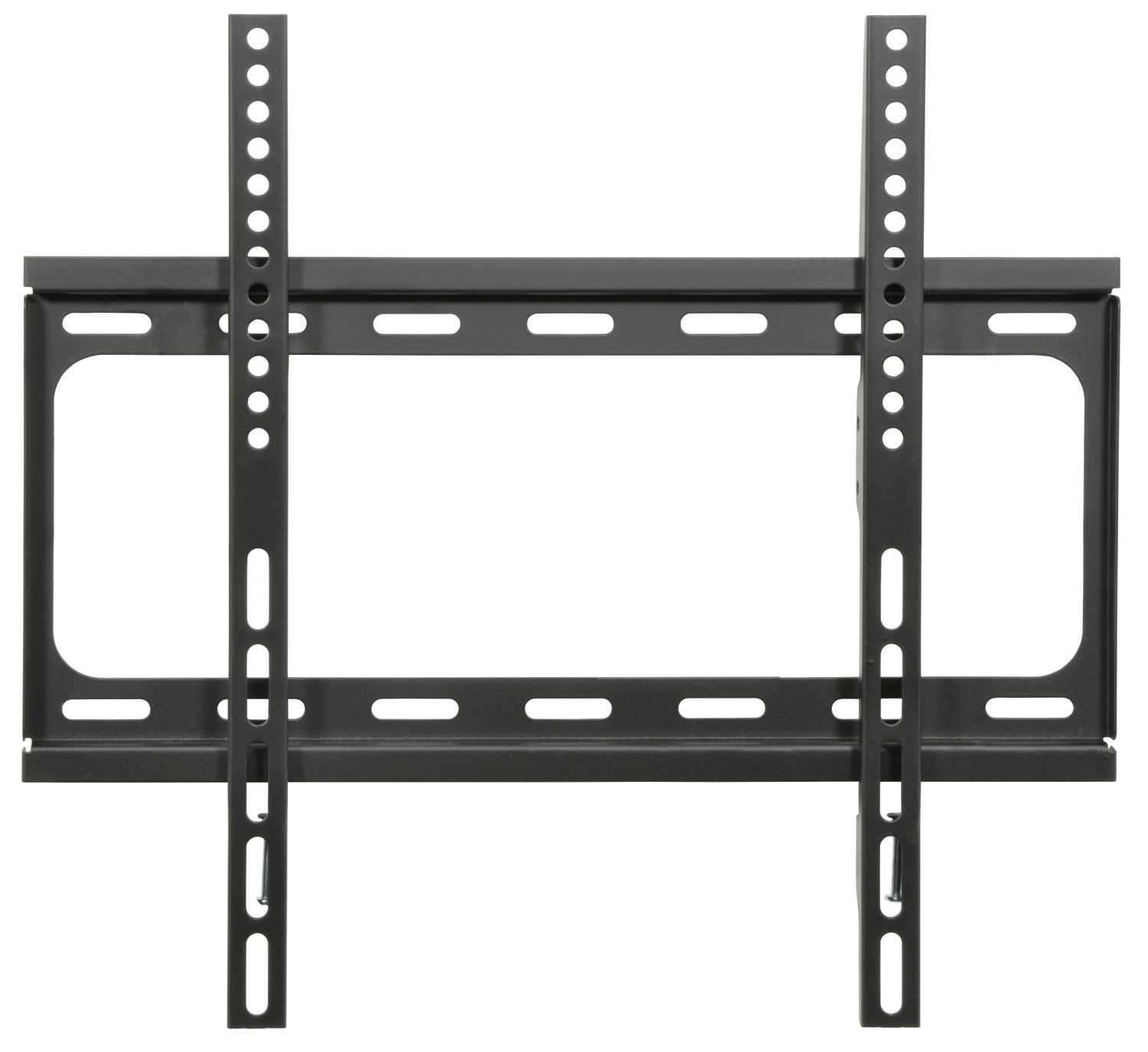

Fixed TV Wall Bracket

129.541UK SF401

An easy to install range of fixed TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes.
  • Low profile design
  • Compatible with VESA mounting patterns
Description Version Packed
129.540UK
Standard TV/monitor fixed wall bracket VESA 200x200 17" - 42"
200x200 Max (17-42") Gift Box
129.541UK
Standard TV/monitor fixed wall bracket VESA 400x400 26" - 55"
400x400 Max (26-55") Gift Box
129.542UK
Standard TV/monitor fixed wall bracket VESA 600x400 32" - 65"
600x400 Max (32-65") Gift Box

Fixed TV Wall Bracket

An easy to install range of fixed TV wall brackets, with low profile design and VESA compatible mounting patterns.

  • Suitable for a wide range of screen sizes.
  • Low profile design
  • Compatible with VESA mounting patterns

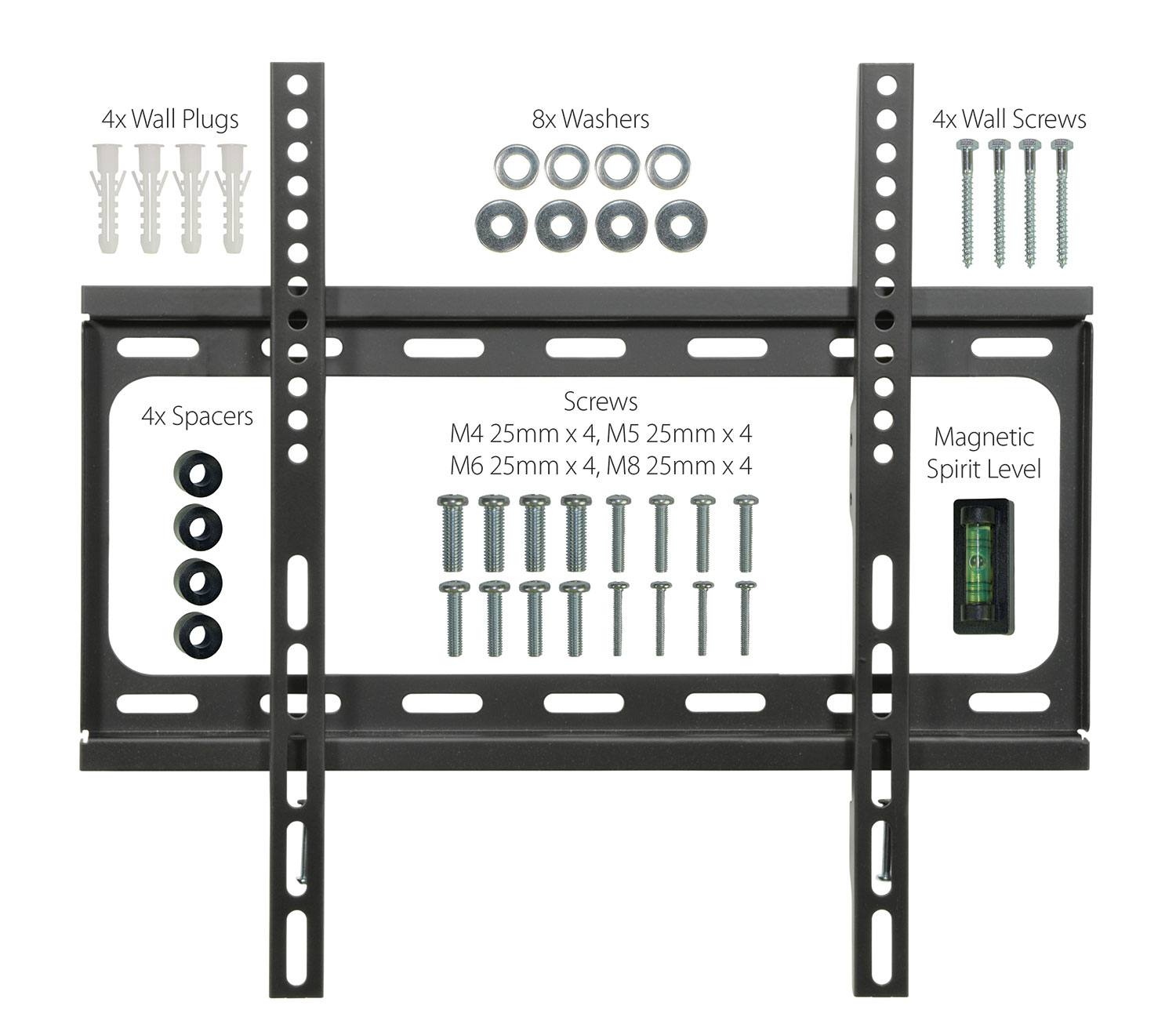

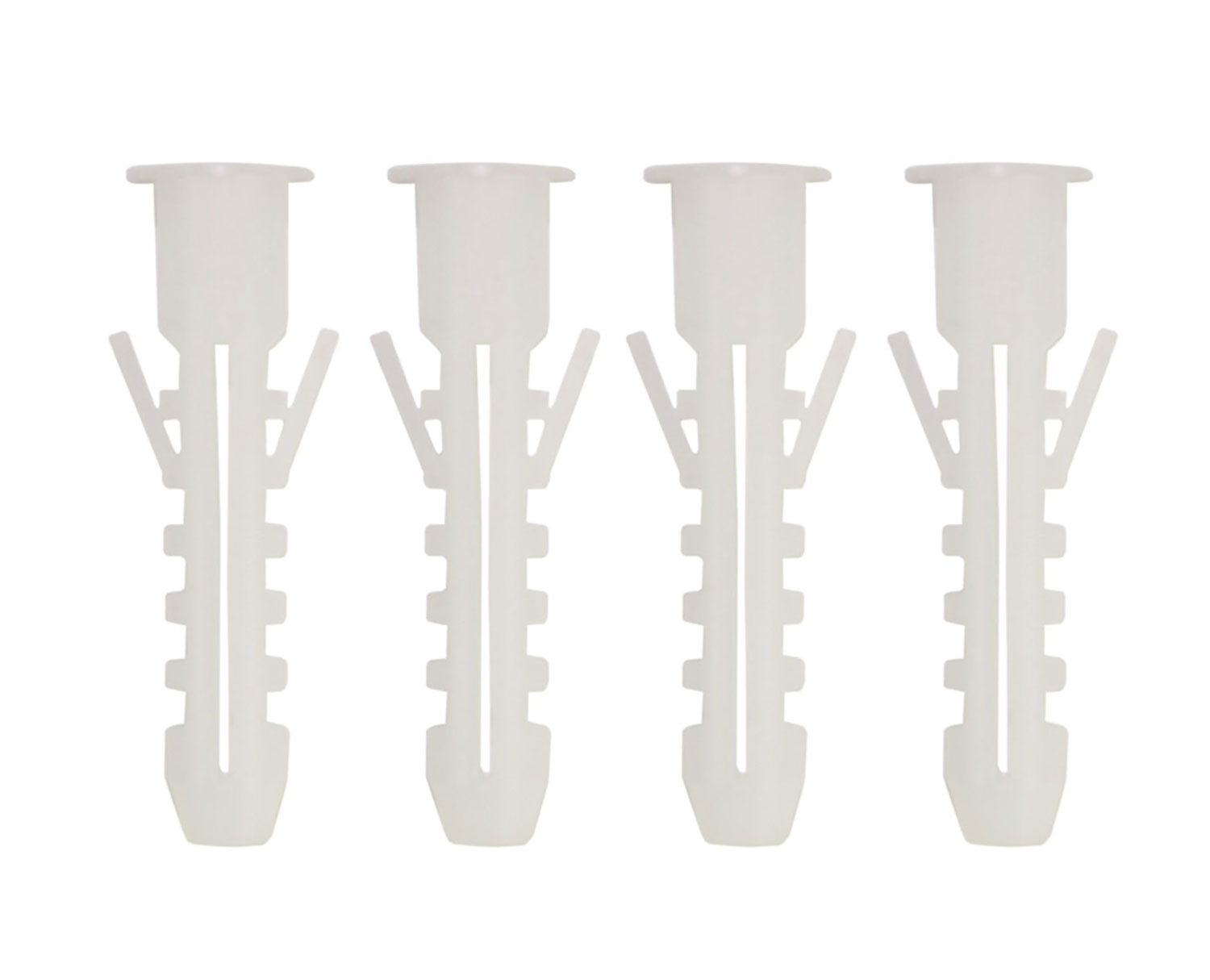

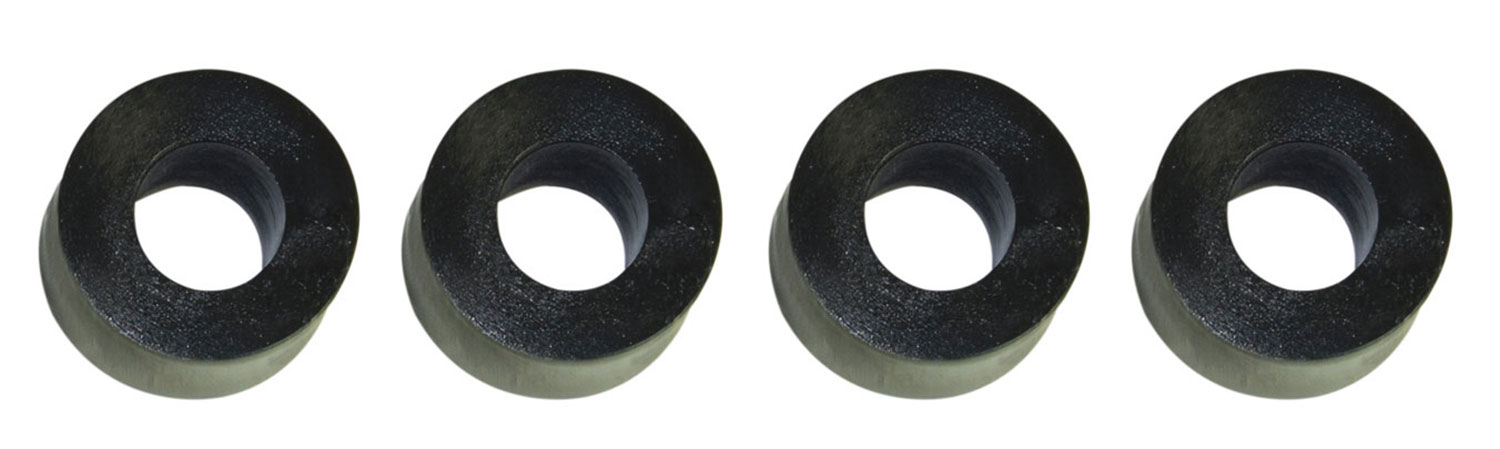

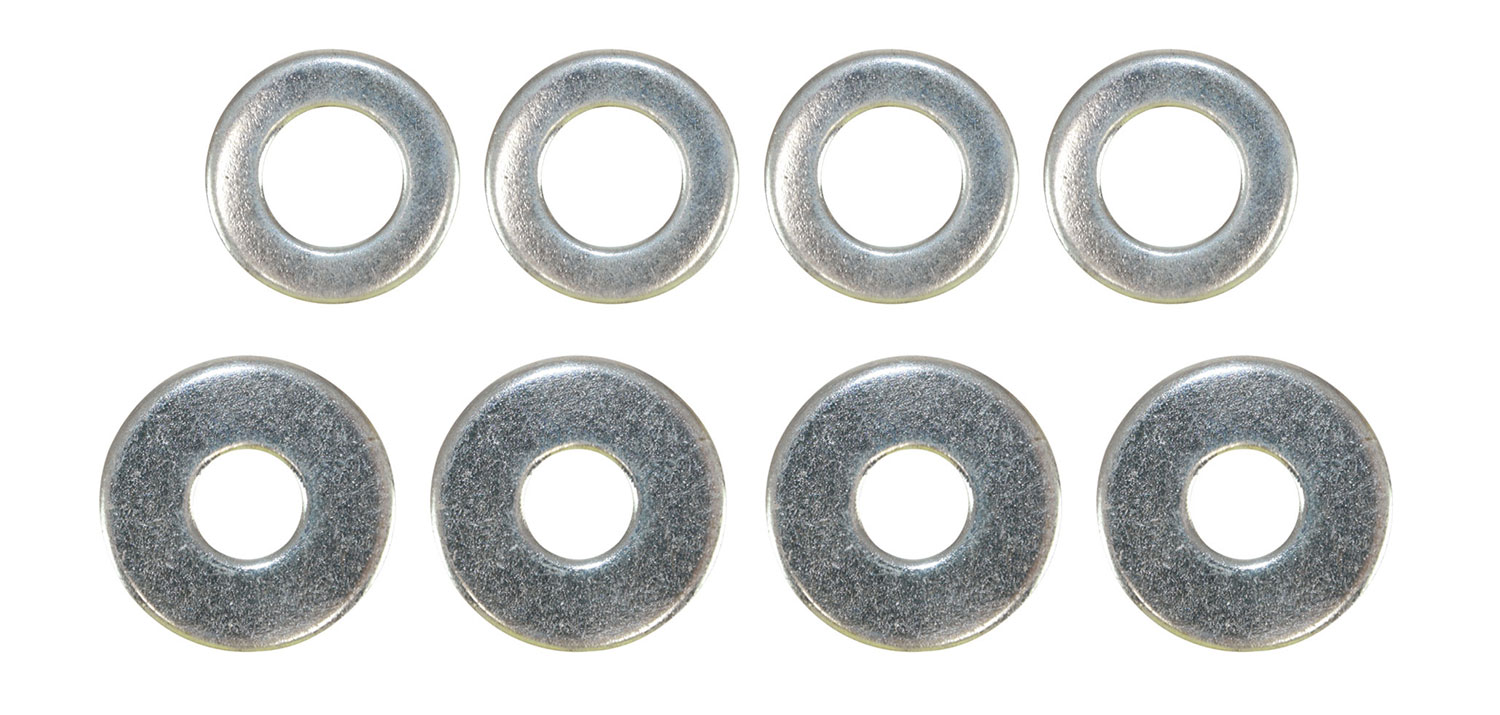

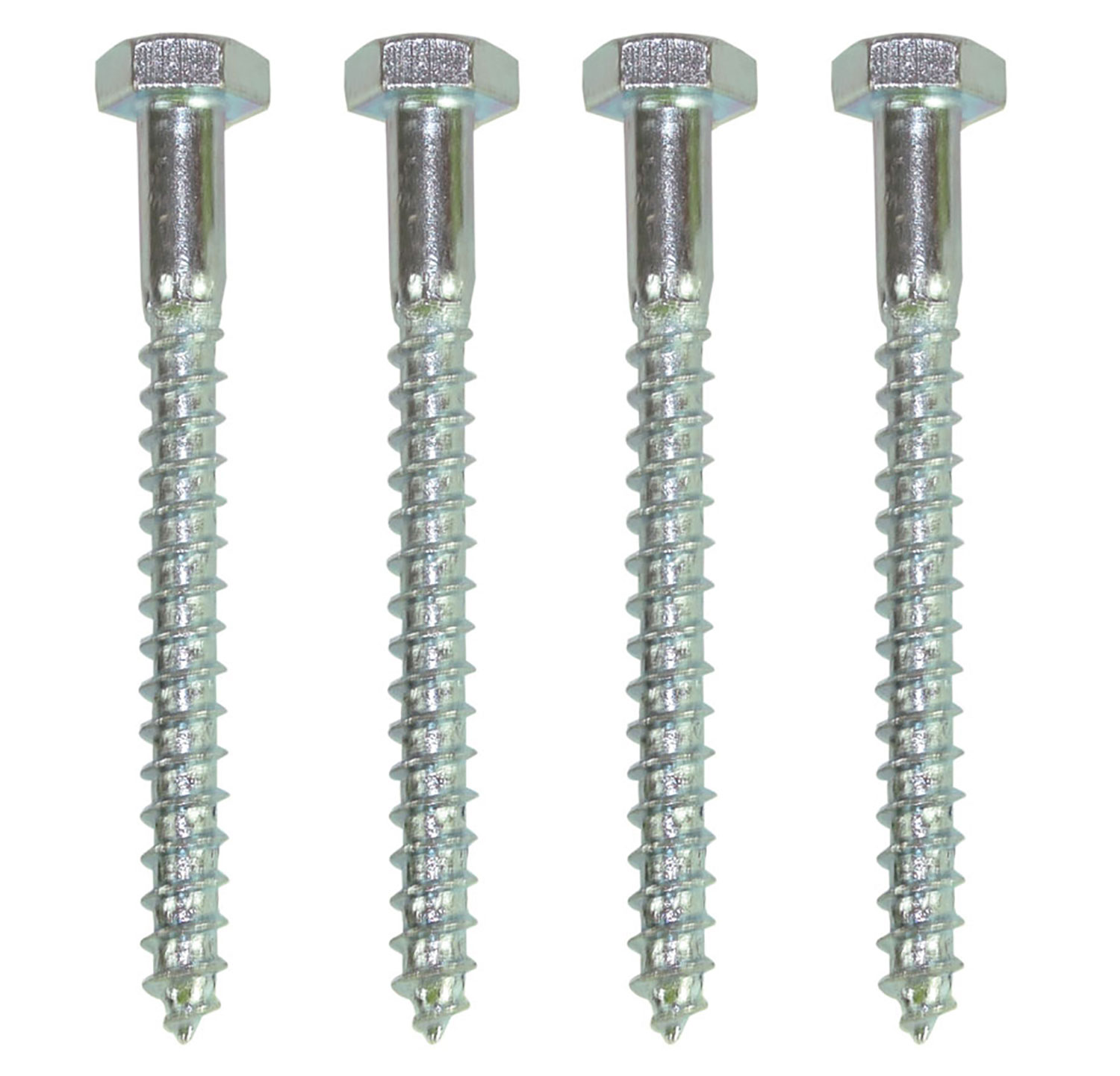

  • Installation hardware included

Specification : Common

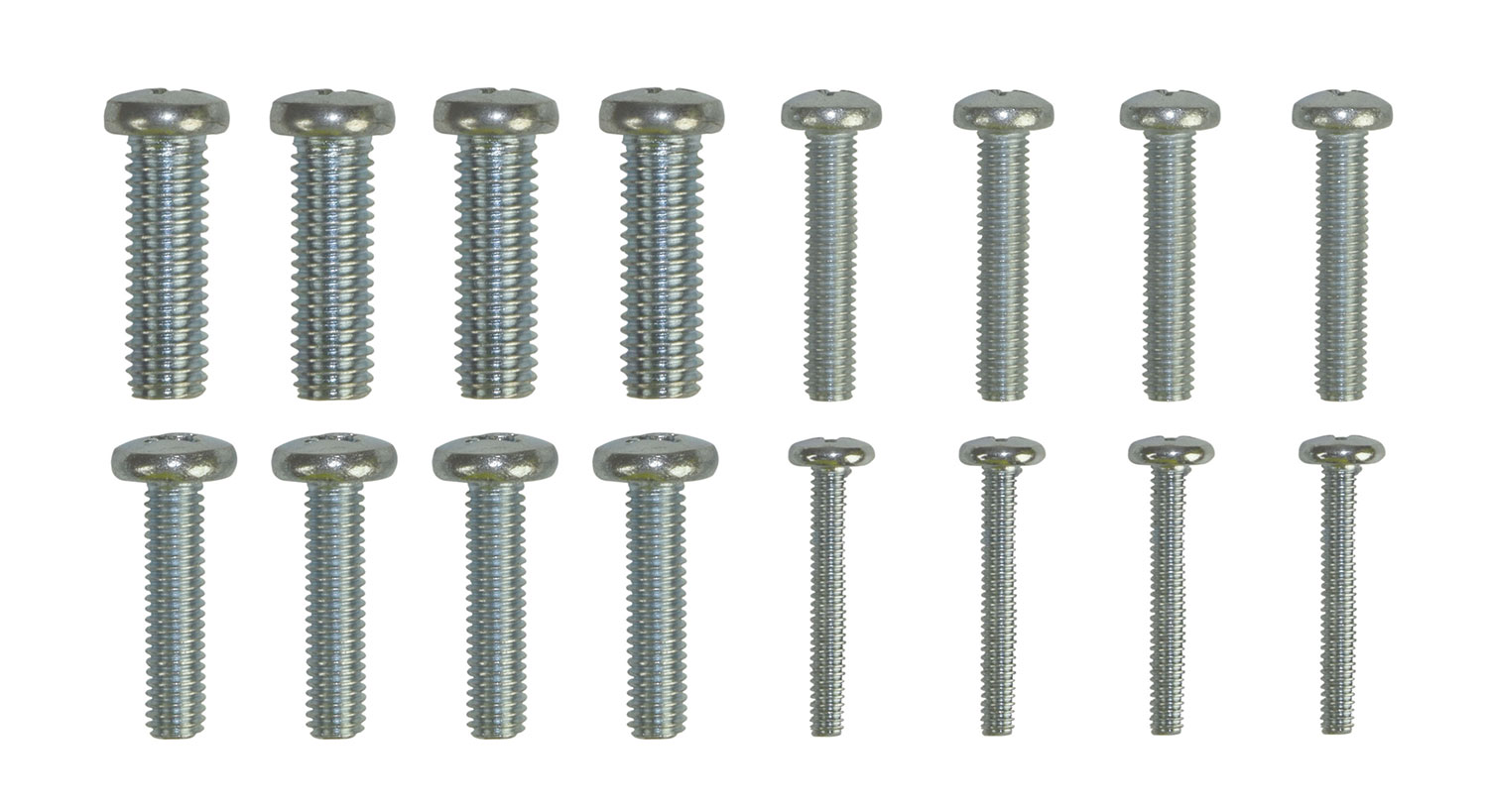

  • TV fixing screws provided 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm

Specification : Versions

  129.540UK 129.541UK 129.542UK
Max. VESA 200 x 200 400 x 400 600 x 400
Max. weight load 20kg 30kg 35kg
Screen size 17" - 42" 26" - 55" 32" - 65"
Distance from wall 25mm 25mm 25mm

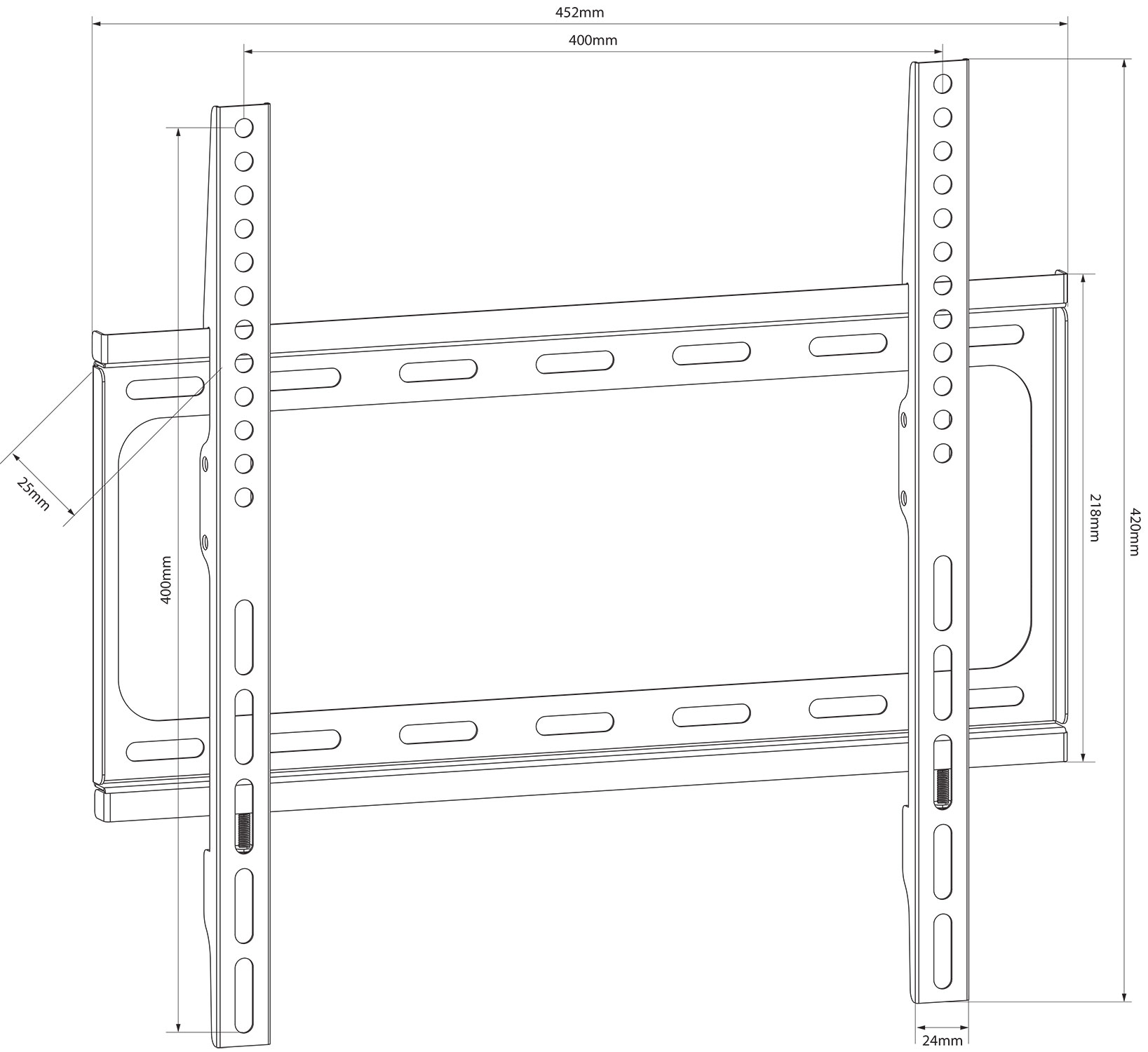

Wall plate dimensions 272 x 192mm 452 x 218mm 647 x 218mm
Bracket dimensions 272 x 221mm 452 x 420mm 647 x 420mm
Weight 610g 1kg 1.2kg

Trade information

  129.540UK 129.541UK 129.542UK
Barcode / EAN 5015972170182 5015972170205 5015972170229
Package type Gift Box Gift Box Gift Box
Package dimensions 291 x 198 x 30mm 470 x 223 x 30mm 666 x 223 x 30mm
Package weight 0.61kg 1.03kg 1.21kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 420 x 325 x 305mm 490 x 325 x 245mm 685 x 325 x 245mm
Carton weight 12.20kg 10.30kg 12.10kg
Carton quantity 20 packages 10 packages 10 packages

Videos

AV:LINK TV Brackets and Projector Brackets Overview

Support

Instruction manual
For 129.543UK (521KB)
Instruction manual
For 129.540UK (2.4MB)
