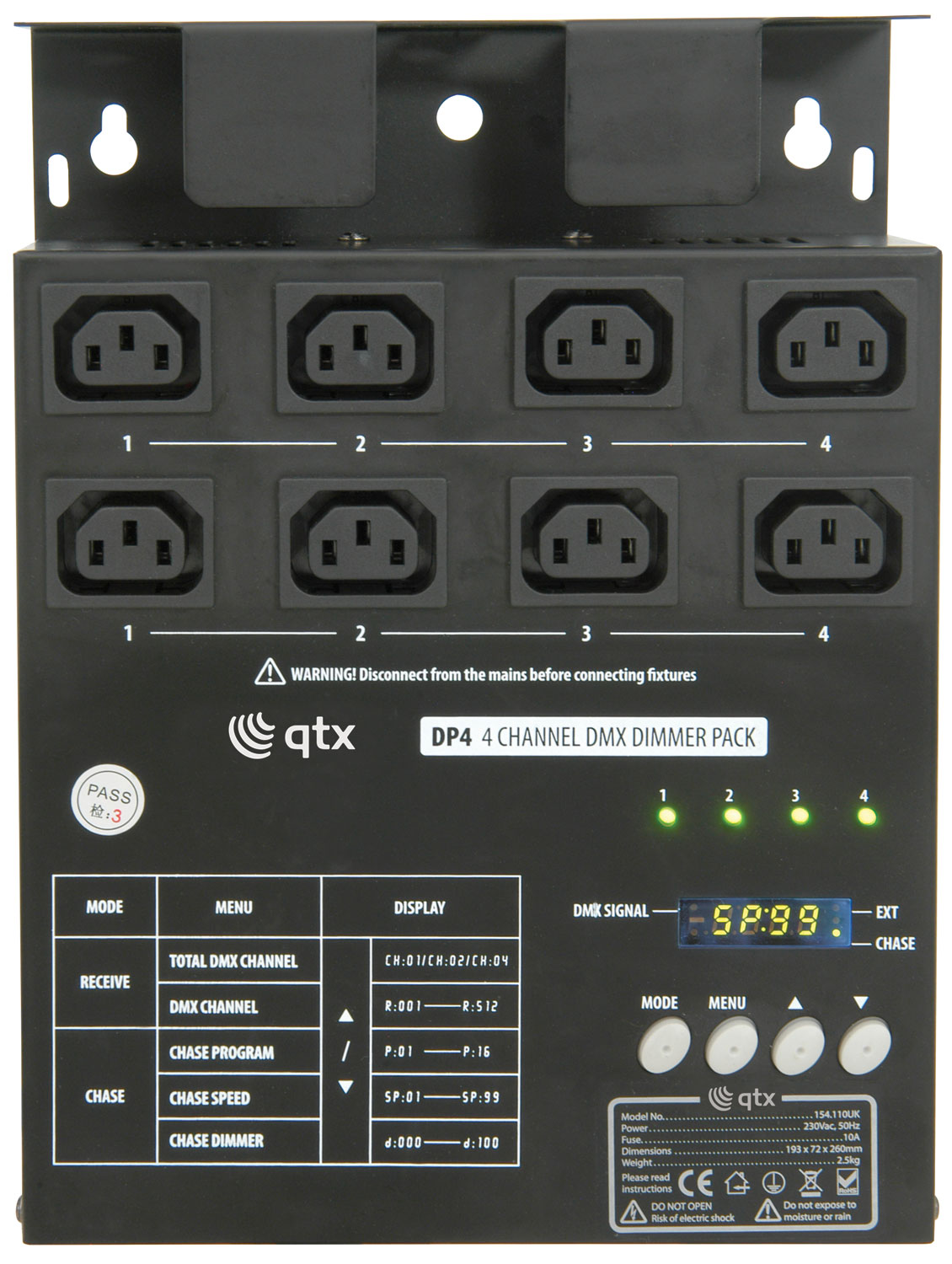

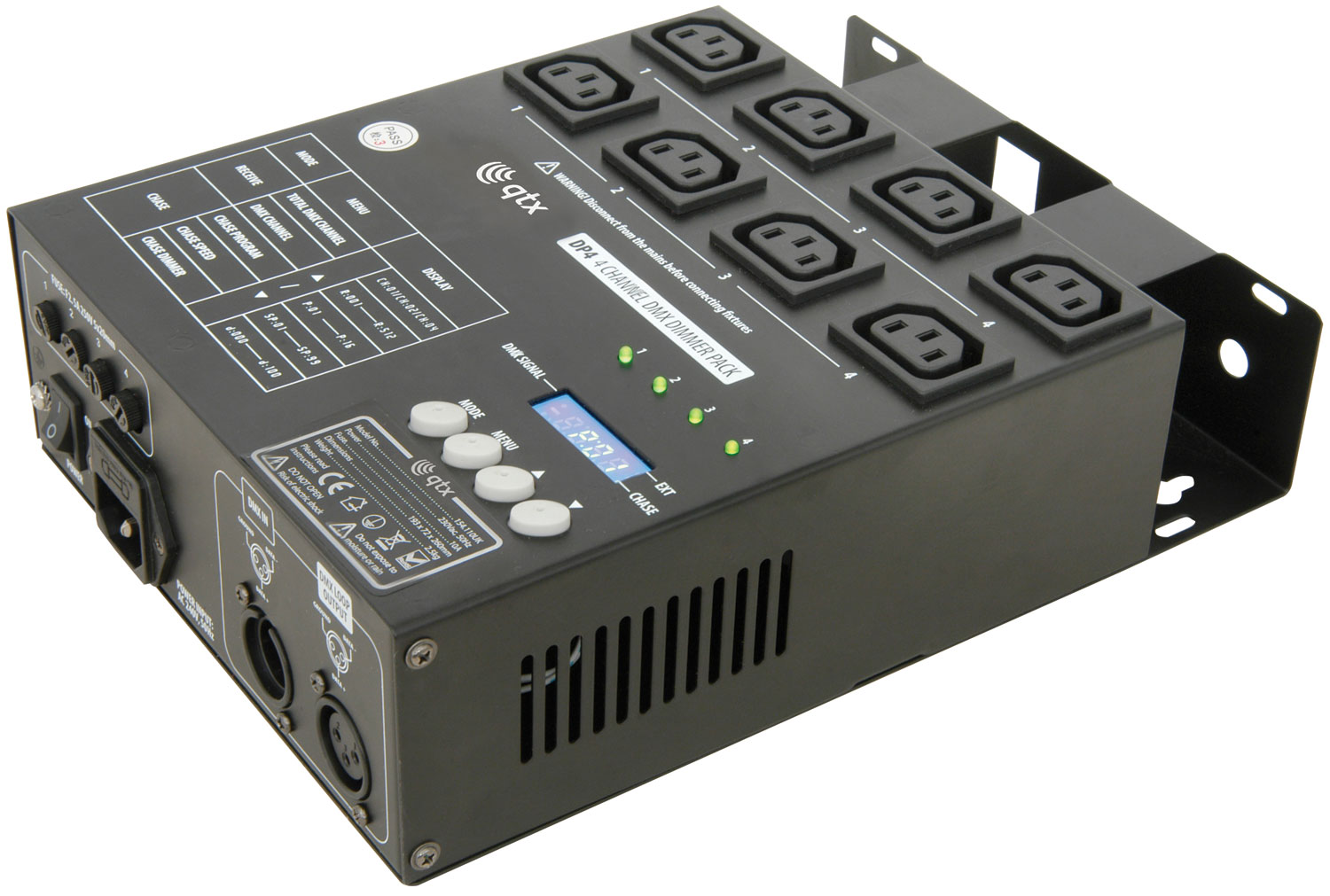

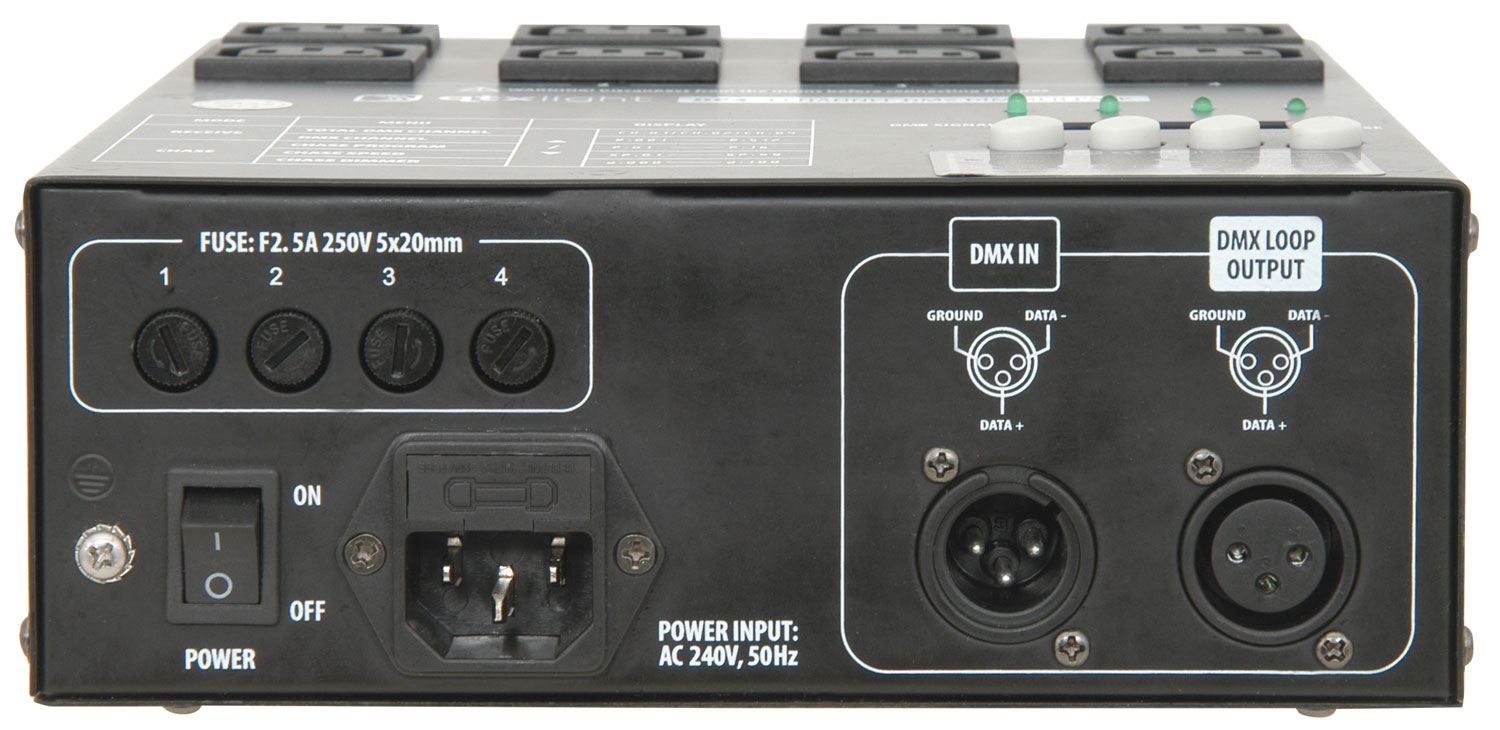

4 Channel DMX Dimmer Pack
154.110UK
DP4
The DP4 4 channel DMX dimmer pack has 4 channels each with 2 IEC power outputs per channel. It has 16 built-in chase programs or can be controlled by 4 channel DMX.
- LED readout display
- 16 built-in chase programs
- 4 channel output
| Description | |
|---|---|
|
154.110UK
DP4 4 Channel DMX dimmer pack |
4 Channel DMX Dimmer Pack
The DP4 4 channel DMX dimmer pack has 4 channels each with 2 IEC power outputs per channel. It has 16 built-in chase programs or can be controlled by 4 channel DMX.
- LED readout display
- 16 built-in chase programs
- 4 channel output
- Pulse feature to keep lamp filaments warm for instant On/Off effect
- Not suitable for LED products (recommend 154.111)
- Master/slave modes
- Wall mountable
Specification
- Power supply 230Vac, 50Hz (IEC)
- Working temperature -5°C to +45°C (Ambient)
- Dimensions 193 x 72 x 260mm
- Weight 2.5kg
Trade information
| 154.110UK | |
|---|---|
| Barcode / EAN | 5015972086148 |
| Package type | Box Printed |
| Package dimensions | 238 x 153 x 324mm |
| Package weight | 2.70kg |
| Package quantity | 1 unit |
| Carton dimensions | 355 x 290 x 530mm |
| Carton weight | 10.80kg |
| Carton quantity | 4 packages |
Support
Instruction manual
For 154.110UK (384KB)
For 154.110UK (384KB)
