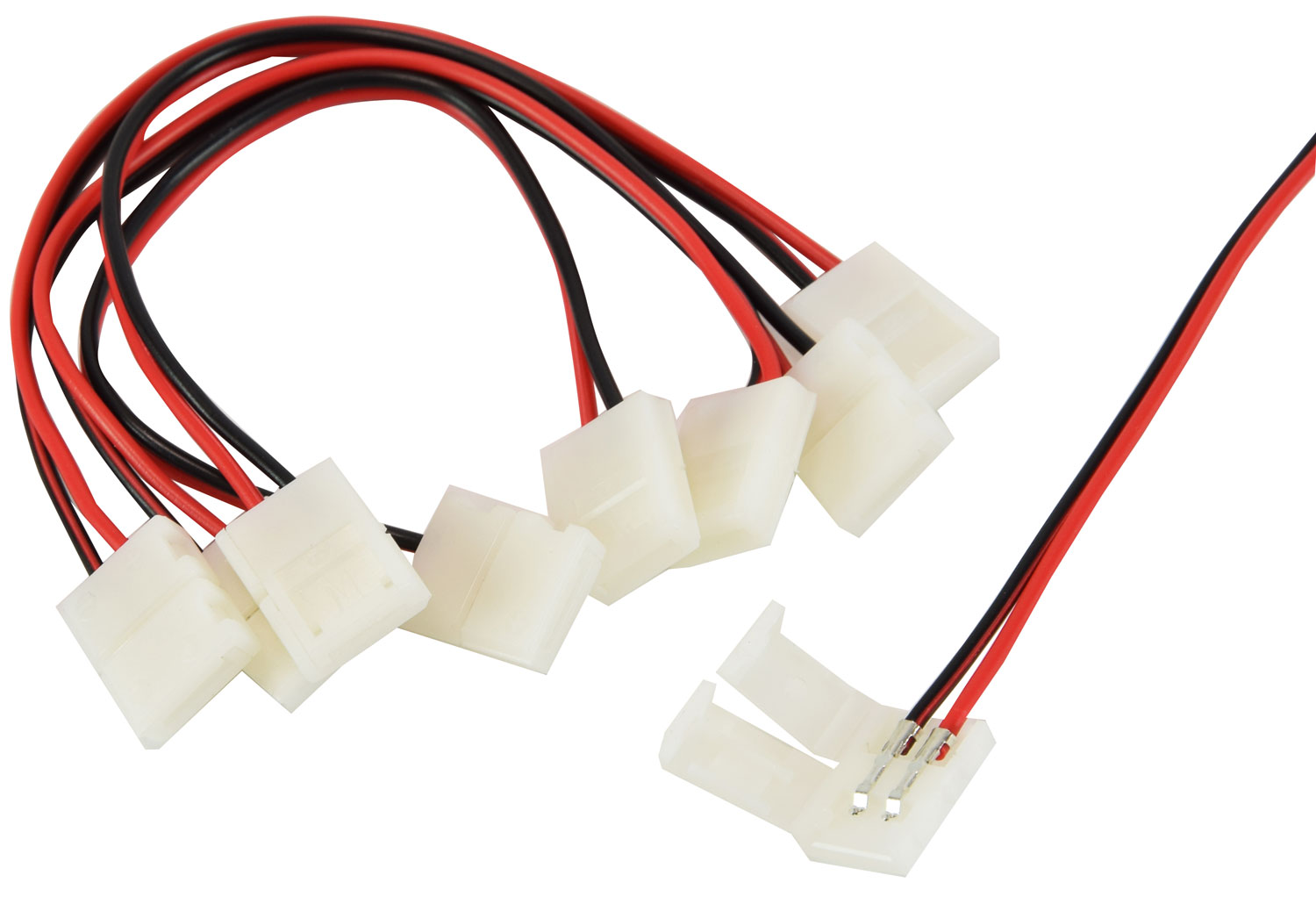

Flexible Links for LED Tape
Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on...
- Solderless connection for LED tapes
Flexible Links for LED Tape
Packs of 5 flexible links comprising 150mm wire with a snap connector at each end for connecting lengths of LED tape to extend runs or negotiate corners. Snap connectors fit onto connection pads on the tape after paring back any silicone or waterproof coating to make an electrical connection without the need for solder. Where needed, these links can also be cut in half to provide bare wire connection to power supplies with screw terminals. A quick and mess-free solution for in-line connection in LED tape installations.
- Solderless connection for LED tapes
- IP rating IP20
- Wire length 150mm
Versions
| 156.147UK | 156.148UK | 156.149UK | 156.150UK | |
|---|---|---|---|---|
| Tape version | 8mm single colour | 10mm RGB | 10mm single colour | 12mm RGB |
| Cores | 2 (red + black) | 4 (blue, red, green, black) | 2 (red + black) | 4 (blue, red, green, black) |
| Weight (each) | 3g | 5g | 3g | 5g |
| Dimensions (each) | 165 x 13 x 5mm | 165 x 15 x 5mm | 165 x 15 x 5mm | 165 x 17 x 5mm |
In the box
The box for this item contains :
- 5 x 150mm wires with snap connectors
Downloads
For 156.147UK (242KB)
For 156.147UK (232KB)
