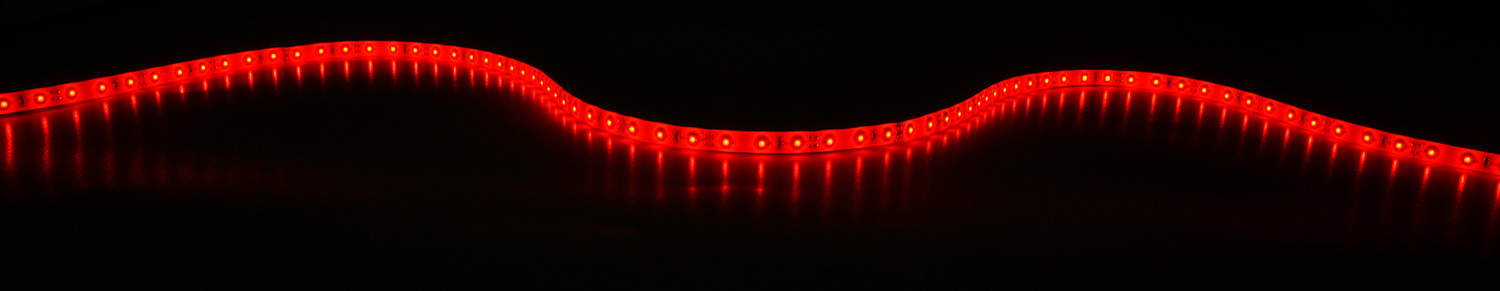

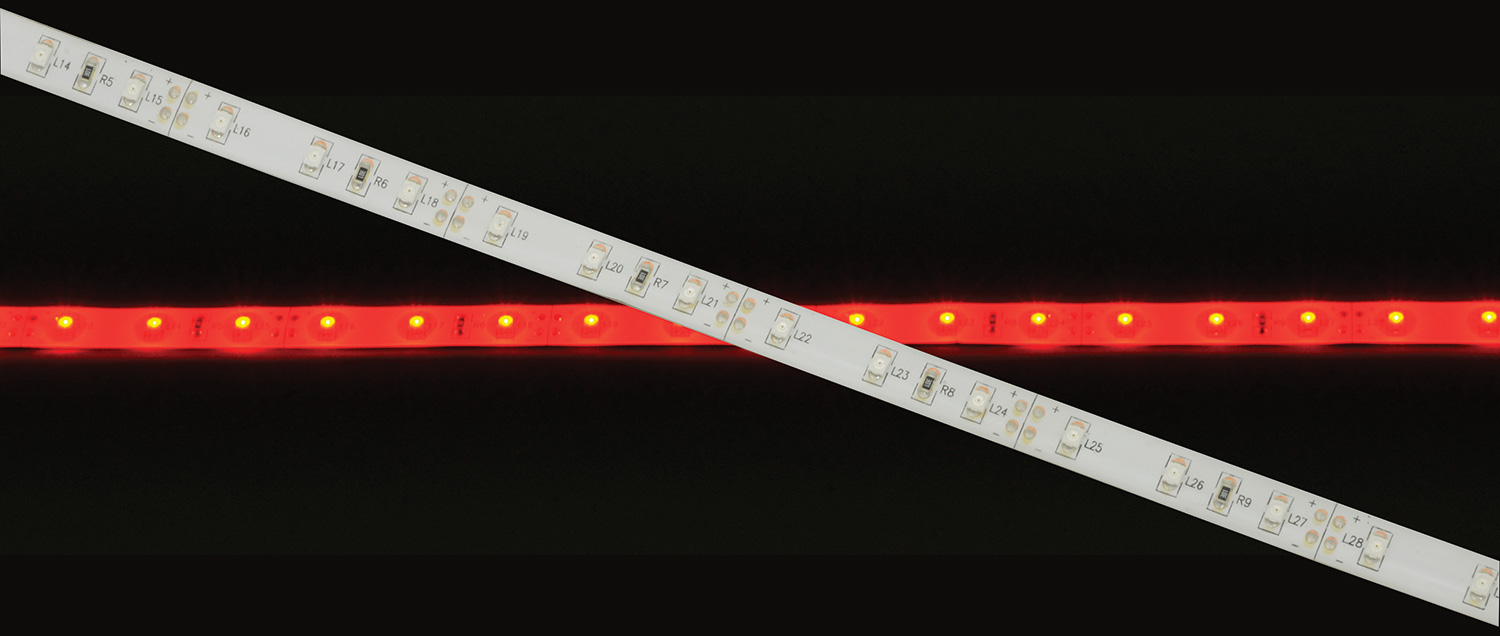

12V Single Colour LED Tape - 5m Reel

156.705UK LT12560-RD

A range of IP65 single colour, super-bright LED tapes; supplied on 5m reels with a choice of 7 different colours, each with an adhesive back. The tape is easy to setup and quick to install, the low...

  • Flexible and lightweight
  • Low voltage (12Vdc) and low power consumption
  • 60 ultra bright LEDs per metre
Description Version Packed
156.715UK
12V SMD2835 Tape 5m - Cool White
Cool White 6000K Bag Antistatic
156.712UK
12V SMD2835 Tape 5m - Natural White
Natural White 4000K Bag Antistatic
156.716UK
12V SMD2835 Tape 5m - Warm White
Warm White 3000K Bag Antistatic
156.705UK
12V LED Tape 5m - Red
Red Bag Antistatic
156.711UK
12V LED Tape 5m - Blue
Blue Bag Antistatic
156.714UK
12V LED Tape 5m - Yellow
Yellow Bag Antistatic

Accessories

Description Version Packed
156.141UK
10mm single colour LED tape L connector - pack of 5
10mm single L piece Bag
156.143UK
10mm single colour LED tape T connector - pack of 5
10mm single T piece Bag
156.145UK
10mm single colour LED tape X connector - pack of 5
10mm single X piece Bag
153.795UK
Single colour LED tape controller with DC jacks
Bag
153.796UK
RF 1-Color LED controller with DC jacks
Bag

12V Single Colour LED Tape - 5m Reel

A range of IP65 single colour, super-bright LED tapes; supplied on 5m reels with a choice of 7 different colours, each with an adhesive back. The tape is easy to setup and quick to install, the low voltage supply and low power consumption makes them suitable for a wide variety of applications from homes to vehicles, shops to bars and even nightclubs. The LEDs will last up to 50,000 hours and are covered with an epoxy coating to protect the tape from general wear and tear as well as being water resistant, this makes cleaning an easy task.

  • Flexible and lightweight
  • Low voltage (12Vdc) and low power consumption
  • 60 ultra bright LEDs per metre
  • IP65 rated
  • Can be cut to desired length (5cm intervals)
  • Self-adhesive backing for easy installation
  • Supplied with easy-to-use connection accessories

Specification : Common

  • Voltage 12Vdc
  • Number of LEDs 60/m
  • Beam angle 140°
  • Cut intervals 5cm
  • Reel length 5m
  • LED : spacing 16mm
  • IP rating IP65
  • Current 400mA/m
  • Power consumption per metre 4.8W/m
  • Cross-section 10.5 x 2.55mm
  • Weight 210g

Specification : Versions

  156.715UK 156.712UK 156.716UK 156.705UK 156.711UK 156.714UK
LED : type SMD2835 SMD2835 SMD2835 SMD3528 SMD3528 SMD3528
Colour Cool white (6000K) Natural white (4000K) Warm white (3000K) Red Blue Yellow
Luminous flux (Lumens per metre) 720lm/m 720lm/m 720lm/m 60lm/m 30lm/m 45lm/m
Light intensity per LED (millicandelas) 3996mcd 3996mcd 3996mcd 600mcd 500mcd 600mcd

Trade information

  156.715UK 156.712UK 156.716UK 156.705UK 156.711UK 156.714UK
Barcode / EAN 5015972180327 5015972186855 5015972180341 5015972147504 5015972147566 5015972147580
Package type Bag Antistatic Bag Antistatic Bag Antistatic Bag Antistatic Bag Antistatic Bag Antistatic
Package dimensions 280 x 230 x 20mm 280 x 230 x 20mm 280 x 230 x 20mm 230 x 280 x 20mm 230 x 280 x 20mm 230 x 280 x 20mm
Package weight 0.21kg 0.21kg 0.21kg 0.26kg 0.25kg 0.21kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 640 x 220 x 210mm 640 x 220 x 210mm 640 x 220 x 210mm 480 x 245 x 415mm 480 x 245 x 415mm 480 x 245 x 415mm
Carton weight 11.00kg 10.50kg 10.50kg 13.00kg 12.50kg 1.05kg
Carton quantity 50 packages 50 packages 50 packages 50 packages 50 packages 50 packages
