Bendable LED Tape Profile

156.843UK AB1-1806

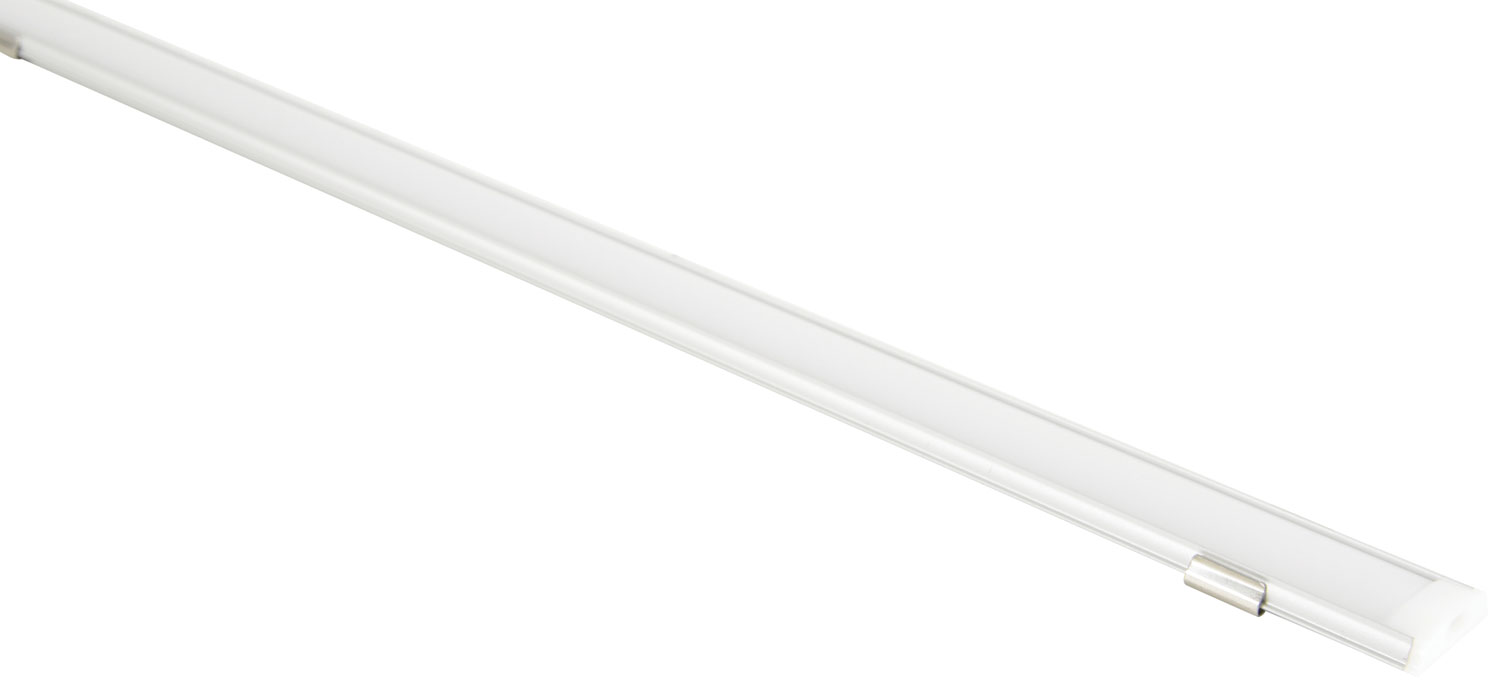

Extruded aluminium profile with arched push-fit diffuser, which is bendable to a radius as small as 50mm. Supplied with end caps and mounting clips to create a tailored LED tape installation along ...

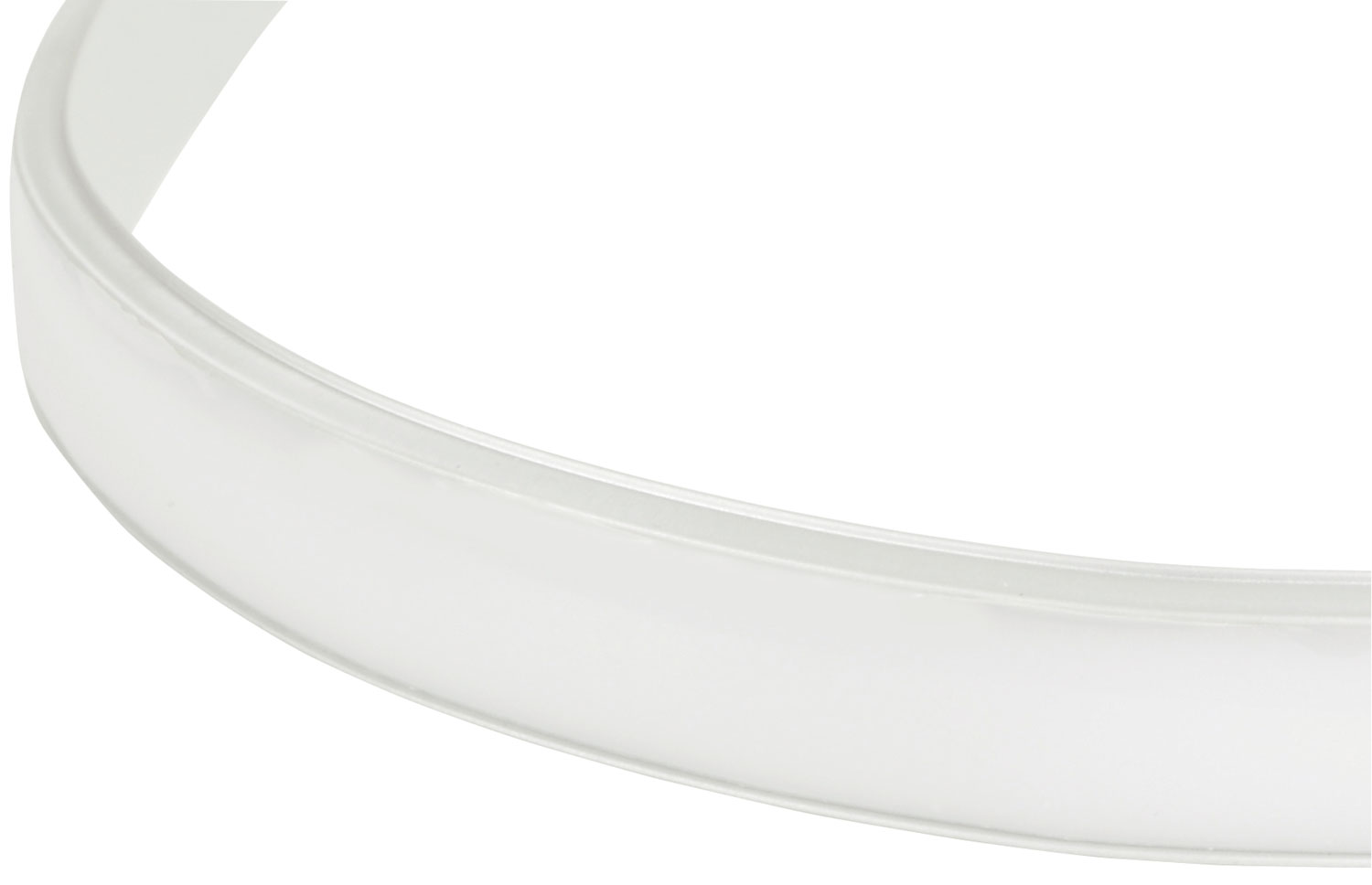

  • Bendable to as little as 50mm radius

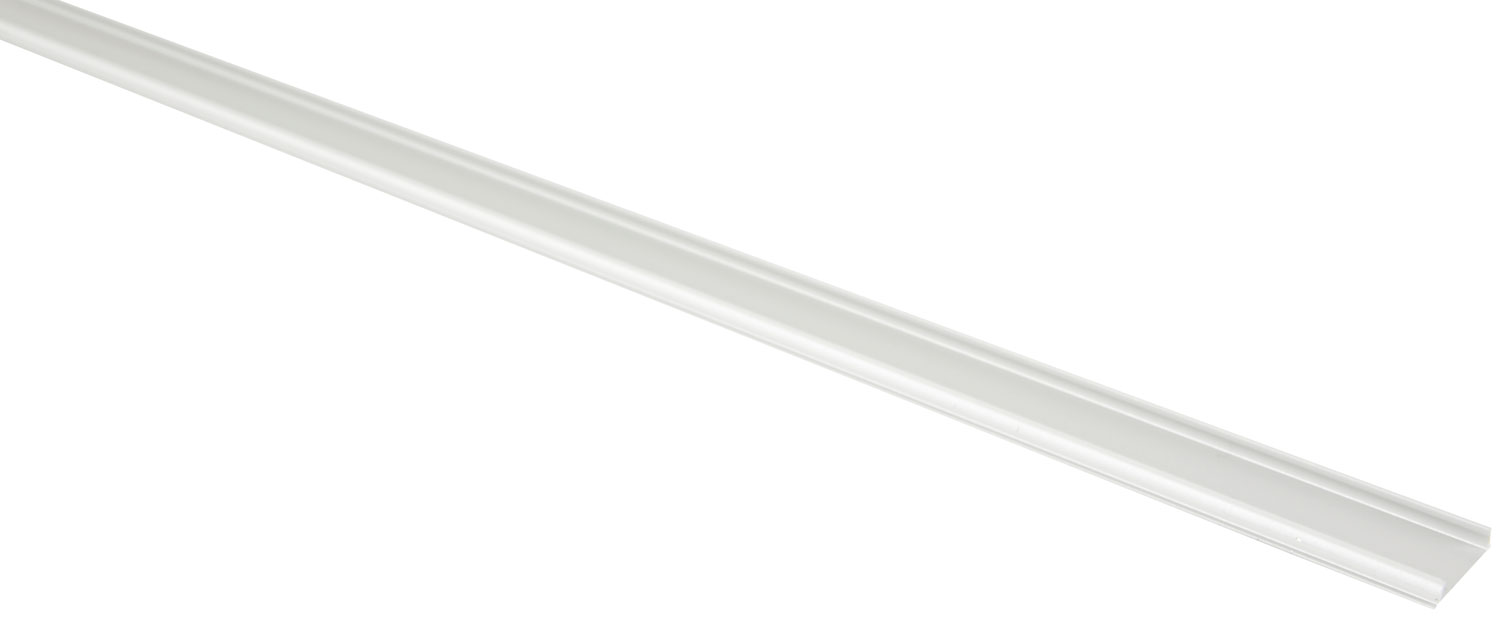

  • Push fit opaque diffuser
  • Supplied with mounting clips and end caps
Description Version Packed
156.843UK
Aluminium LED Profile Bendable >100mmØ 1m
1m Tube
156.853UK
Aluminium LED Profile Bendable >100mmØ 2m
2m Tube

Bendable LED Tape Profile

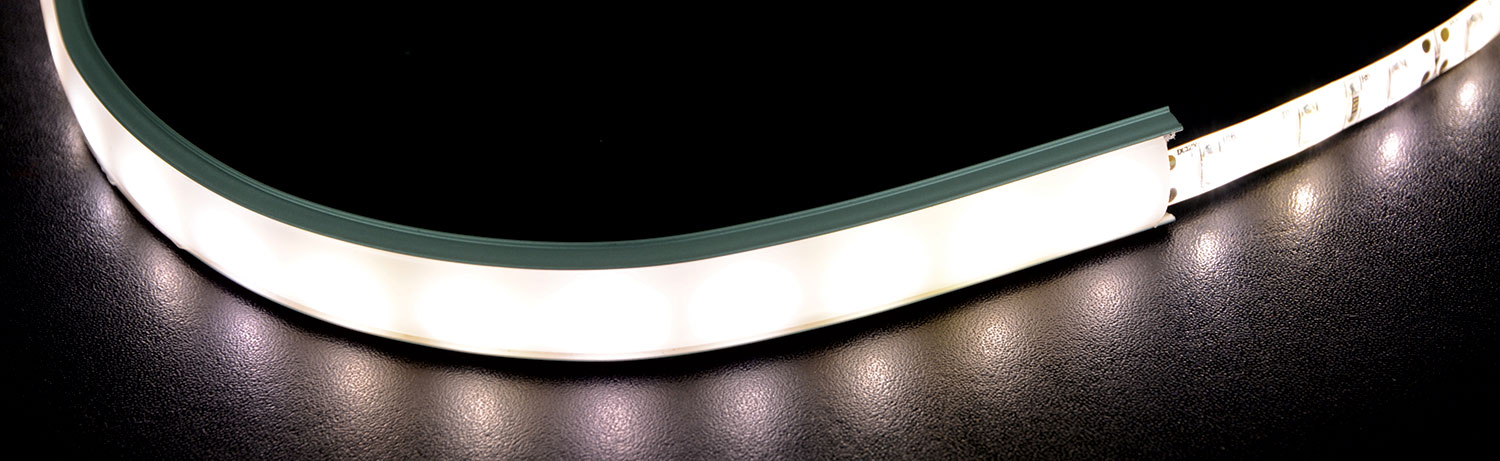

Extruded aluminium profile with arched push-fit diffuser, which is bendable to a radius as small as 50mm. Supplied with end caps and mounting clips to create a tailored LED tape installation along straight or curved edges and surfaces.

  • Bendable to as little as 50mm radius
  • Push fit opaque diffuser
  • Supplied with mounting clips and end caps

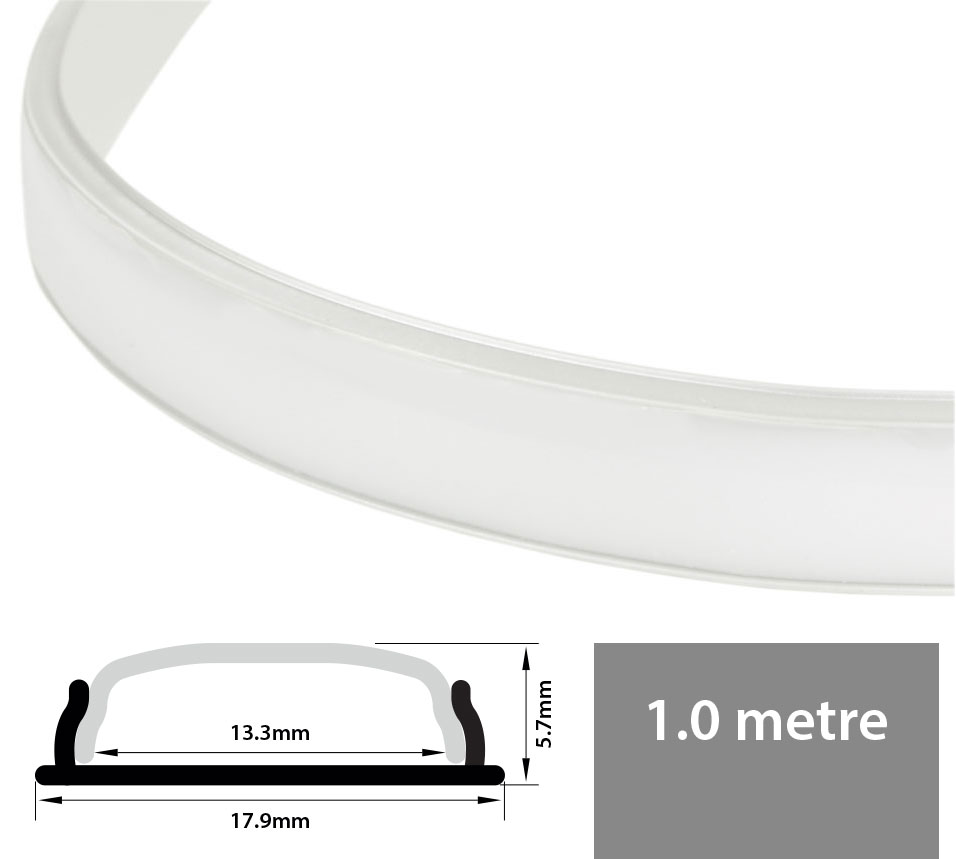

Specification : Common

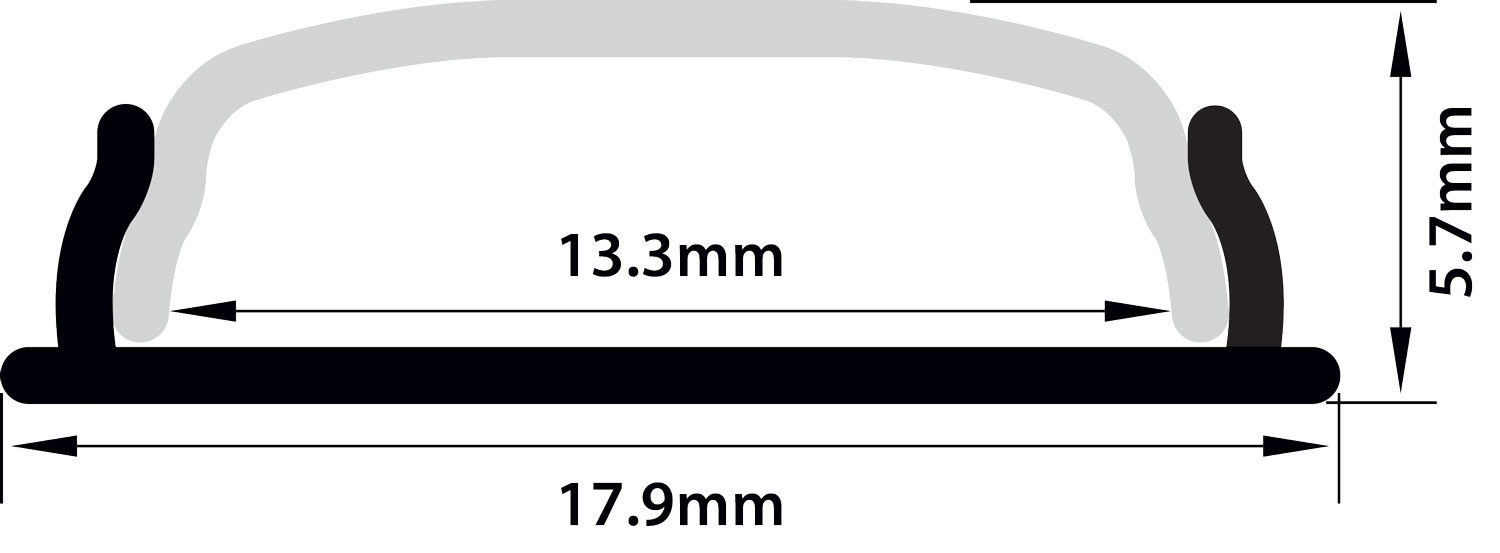

  • External cross-section 18 x 6mm
  • Internal cross-section 15 x 4mm
  • Minimum bending radius 50mm
  • Diffuser visible width 15mm

Specification : Versions

  156.843UK 156.853UK
Length 1m 2m

Trade information

  156.843UK 156.853UK
Barcode / EAN 5015972192160 5015972192177
Package type Tube Tube
Package dimensions 27 x 1020 x 27mm 27 x 2080 x 27mm
Package weight 0.16kg 0.32kg
Package quantity 1 unit 1 unit
Carton dimensions 365 x 1120 x 295mm 295 x 2120 x 190mm
Carton weight 14.00kg 14.00kg
Carton quantity 50 packages 25 packages

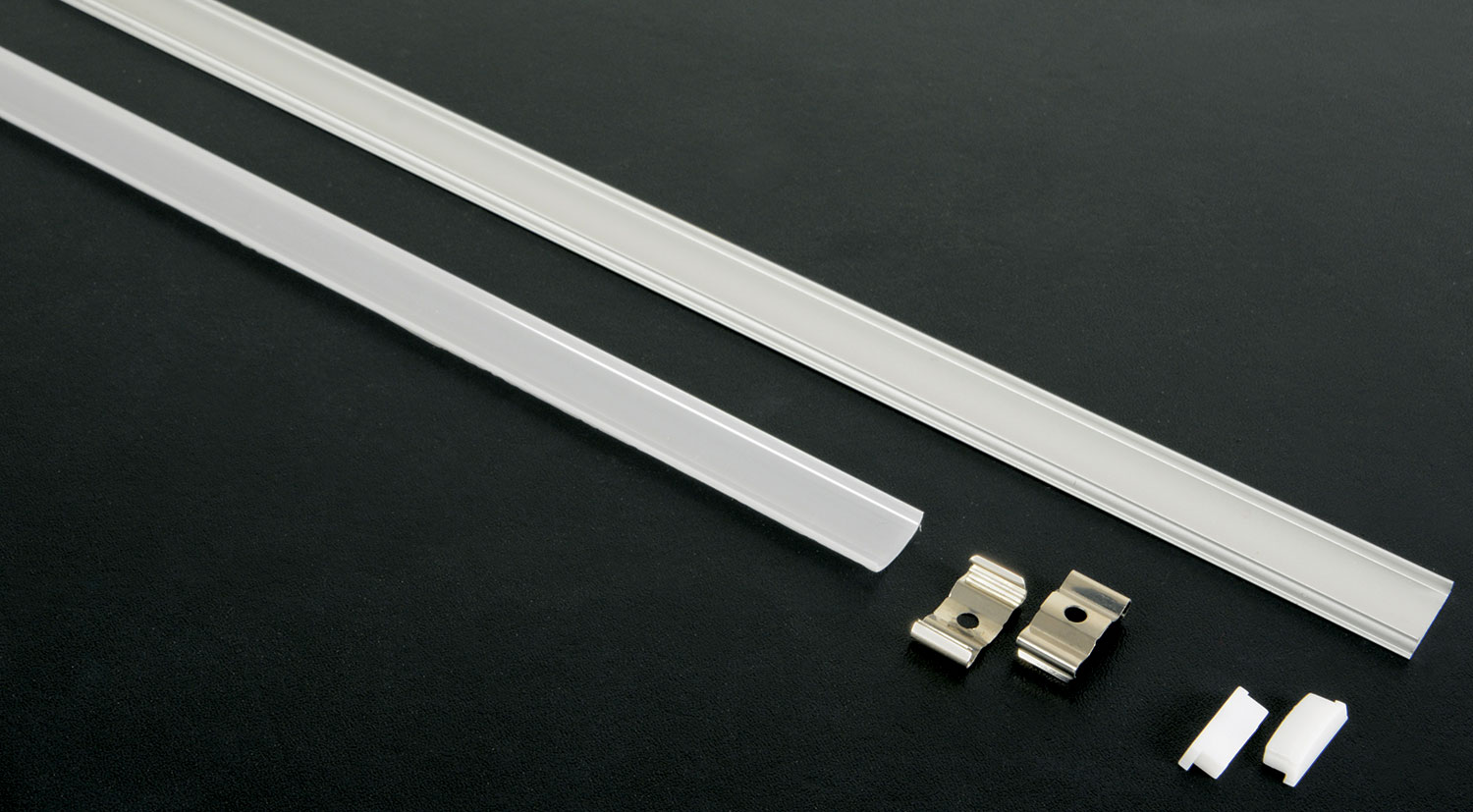

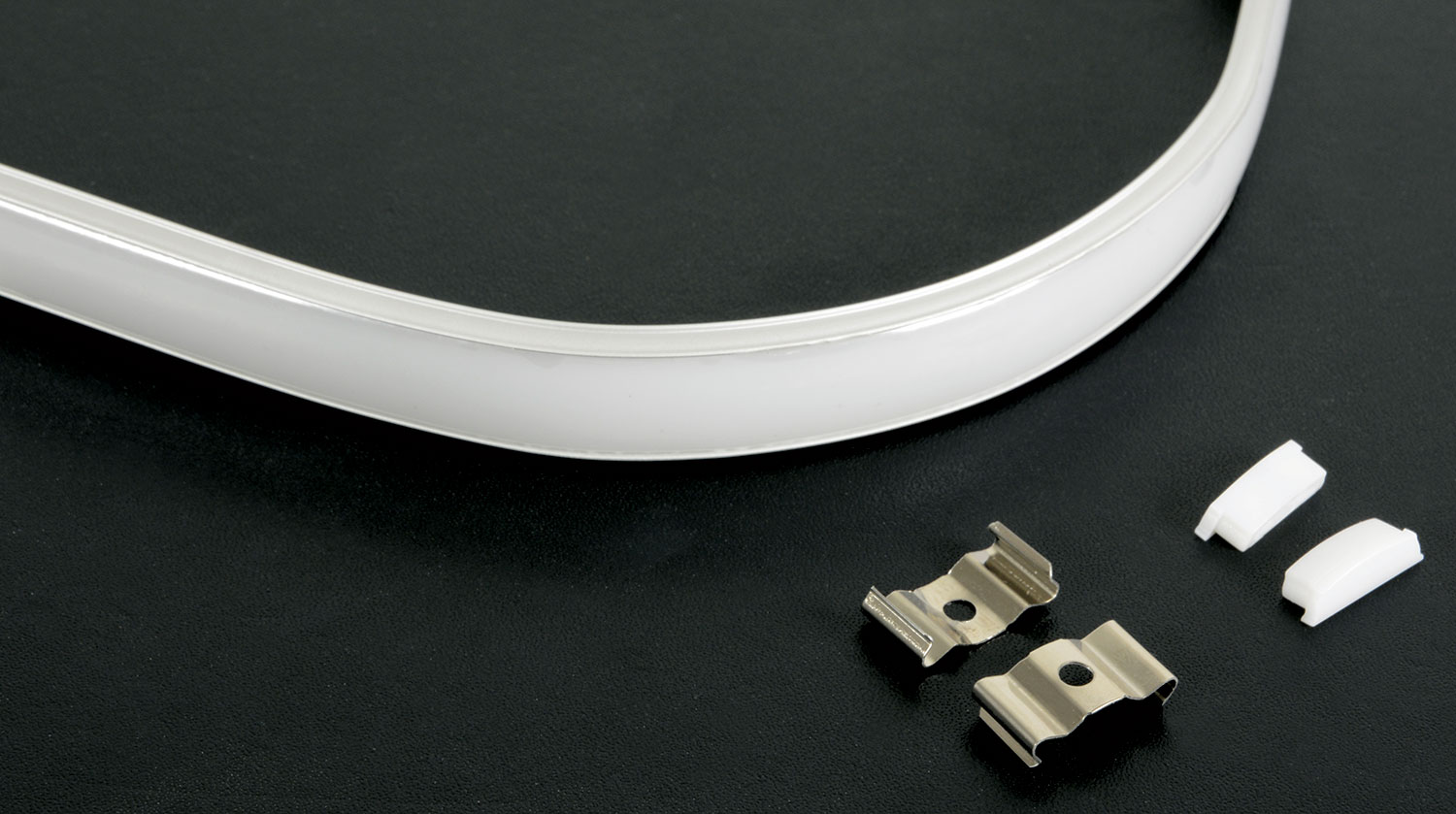

In the box

The box for this item contains :

  • Aluminium extrusion
  • Push fit diffuser
  • End caps
  • Mounting clips
