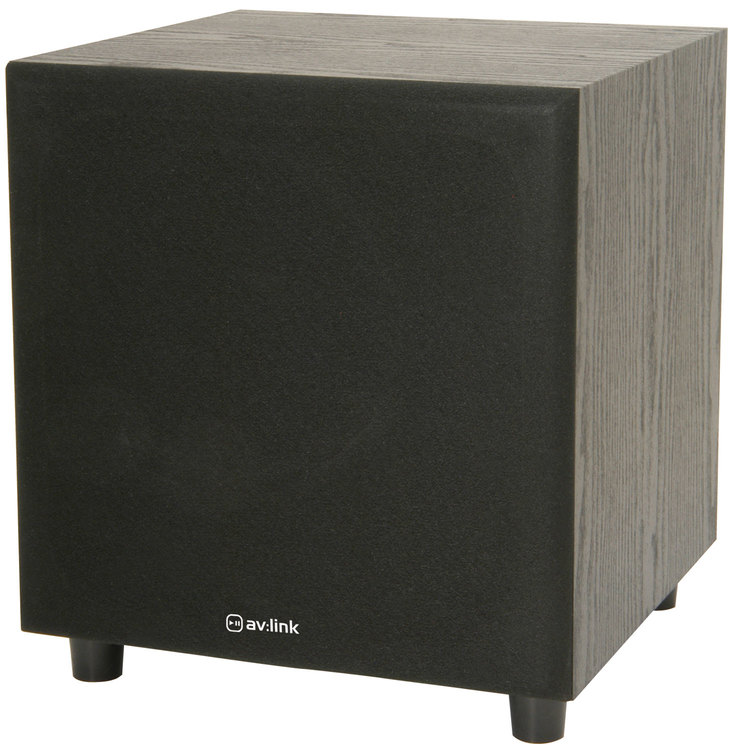

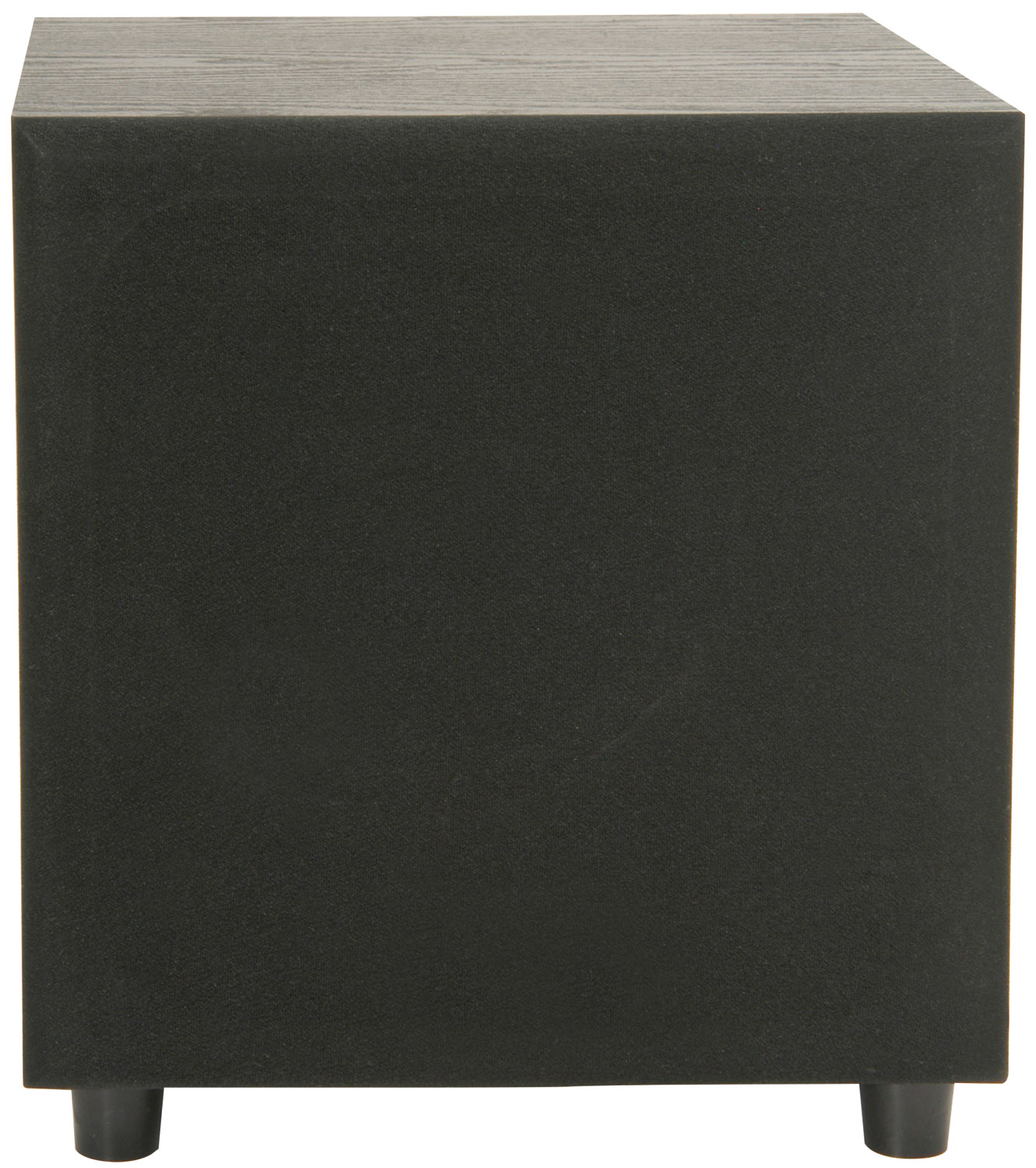

Active Subwoofer Cabinet

170.190UK M8S

Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top...

  • Integral amplifier with variable crossover
  • Auto off function conserves energy
  • Speaker level or line level inputs
Full description Find retailer
Description Version Packed
170.190UK
M8S active sub cabinet 8in 100W 		Box Printed

Active Subwoofer Cabinet

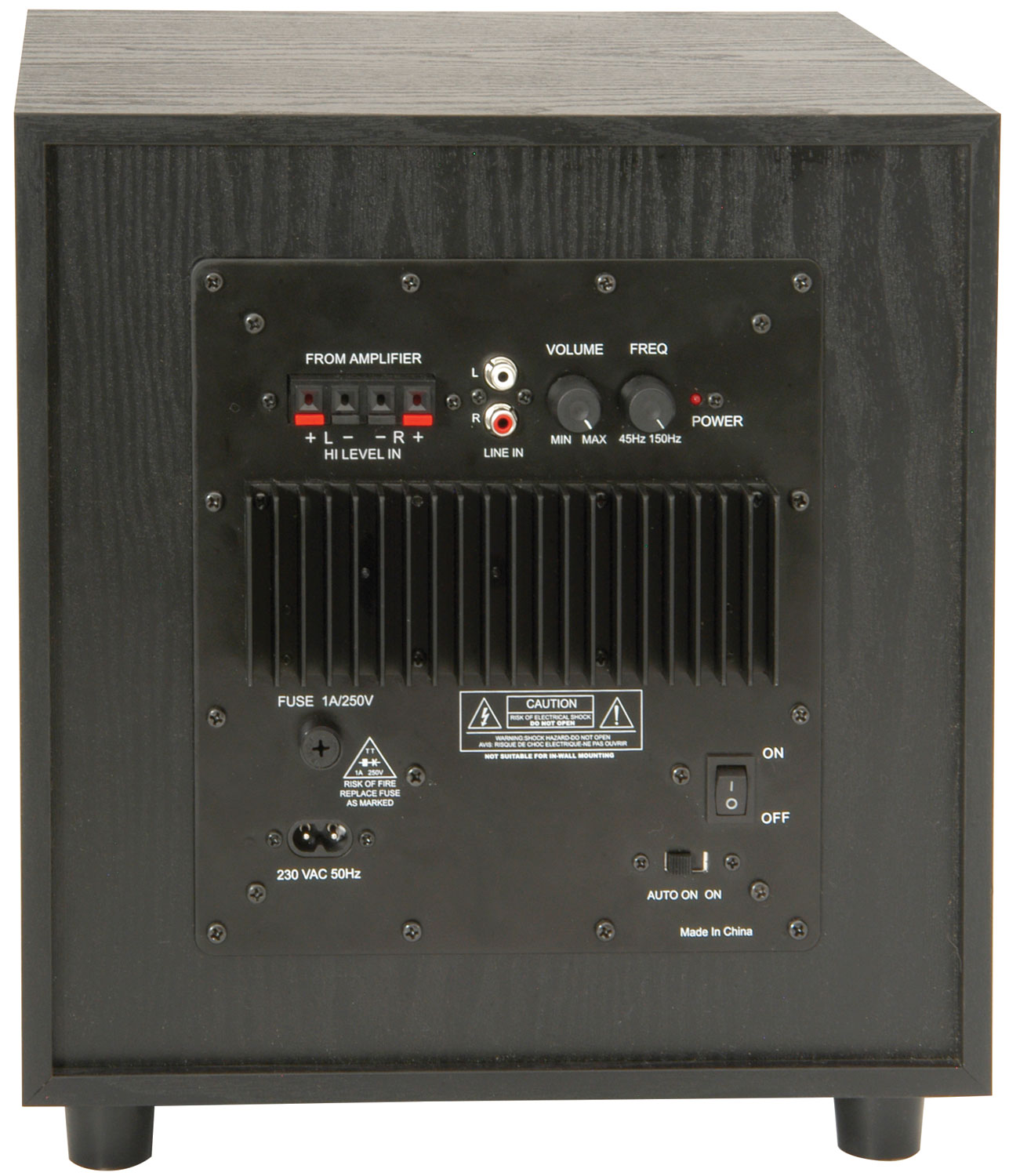

Active sub cabinet with 8" (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. "Auto Off" function deactivates the amplifier when no incoming signal is detected to conserve energy.

  • Integral amplifier with variable crossover
  • Auto off function conserves energy
  • Speaker level or line level inputs

Specification

  • Power supply 220-250Vac, 50/60Hz (Fig 8)

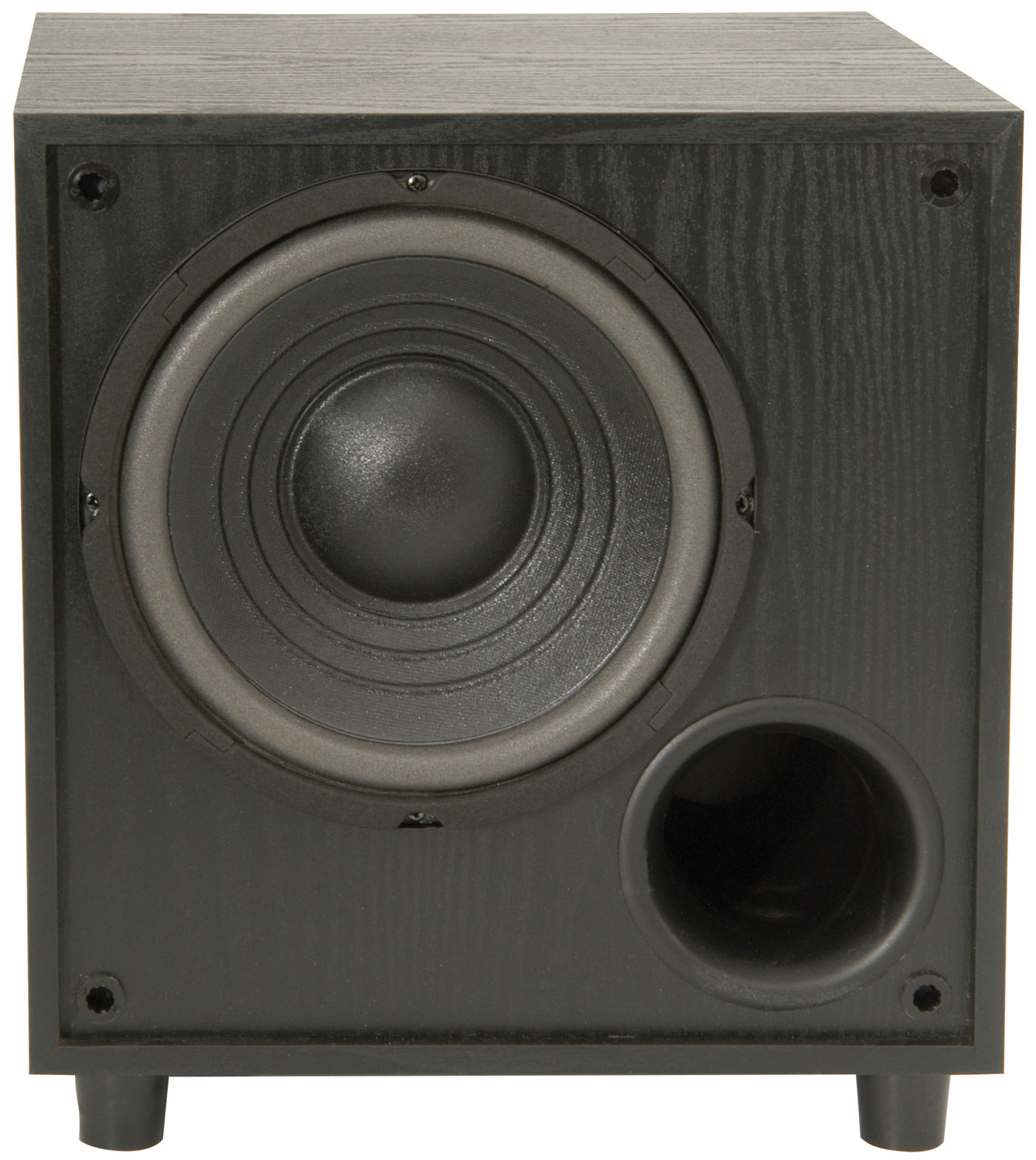

  • Driver 20cm (8") reinforced cone
  • Connections Speaker level input terminals, RCA line level in
  • Cut-off frequency 45 - 150Hz
  • Rated output power 100W
  • Peak output 200W
  • Frequency response 50 - 250Hz
  • Dimensions 300 x 330 x 300mm
  • Weight 7.44kg

Trade information

  170.190UK
Barcode / EAN 5015972118498
Package type Box Printed
Package dimensions 330 x 400 x 360mm
Package weight 7.44kg
Package quantity 1 unit
Carton dimensions 330 x 400 x 360mm
Carton weight 7.44kg
Carton quantity 1 package
Pack plastic weight 0.16kg

Support

Instruction manual
For 170.190UK (335KB)
