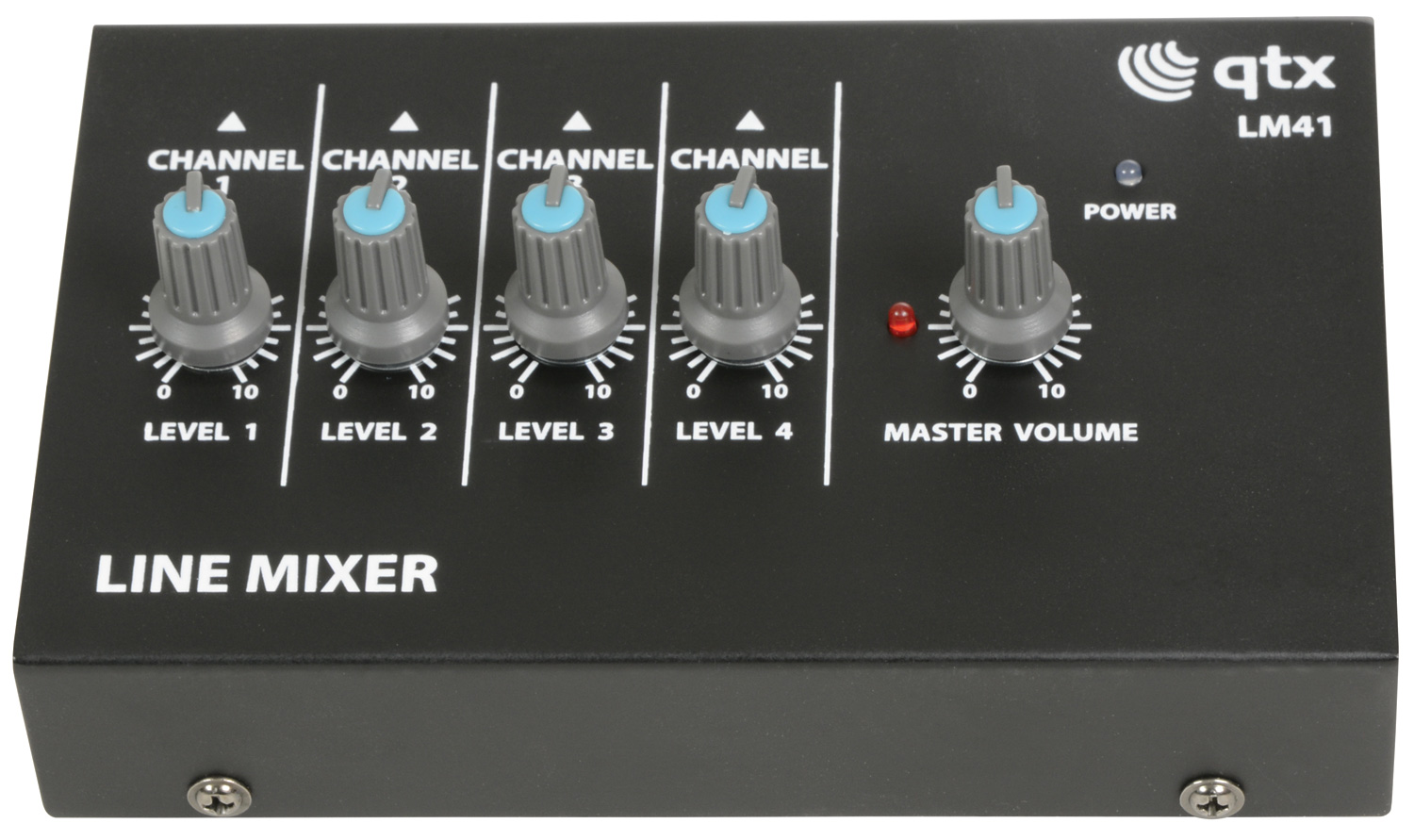

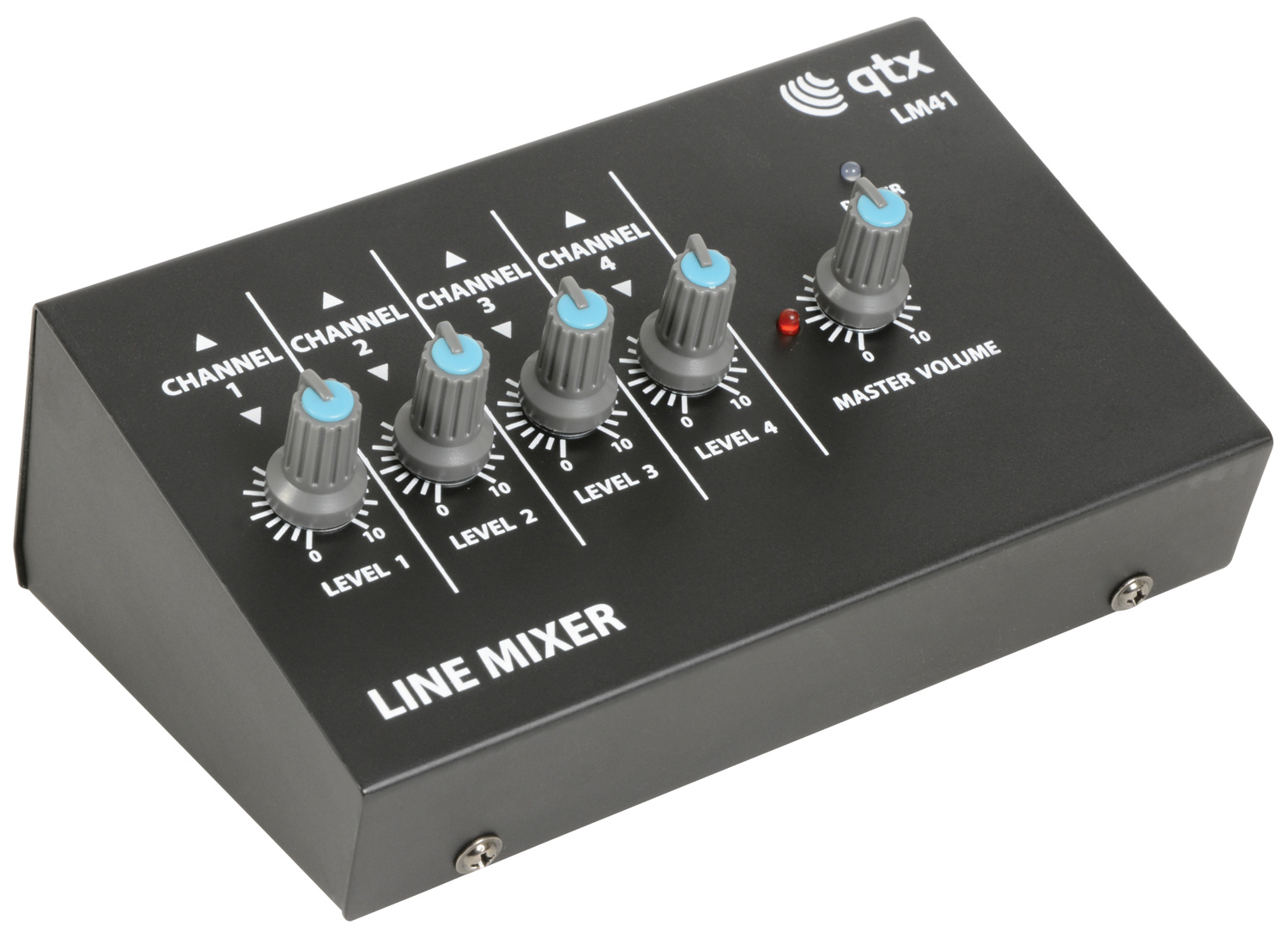

Mini Line Level Mixers

170.204UK LM41

Compact mixers with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Available as either 4 mono or 4 stereo version with separate volume ...

  • Compact format
  • Battery or power adaptor operation
  • Ideal as a sub-mixer for instruments
Description Version Packed
170.204UK
4 Mono Channel Line Level & Instrument Mixer
4 mono jack Box Label BW
170.205UK
4 Stereo Channel Line Level & Instrument Mixer
4 stereo jack Box Label BW

Mini Line Level Mixers

Compact mixers with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Available as either 4 mono or 4 stereo version with separate volume controls for each input and master output. Powered by 1 x 9V battery or optional 12Vdc adaptor

  • Available in mono or stereo versions
  • Optional 12Vdc power input
  • Supplied with 9V battery
  • Battery 9V battery (PP3 supplied)
  • Power adaptor 12Vdc, 200mA (optional)
  • Output level +4dB (+8dB max.)
  • Input impedance 20k Ohms
  • Output impedance 600 Ohms
  • Dimensions 150 x 108 x 64mm

Versions

  170.204UK 170.205UK

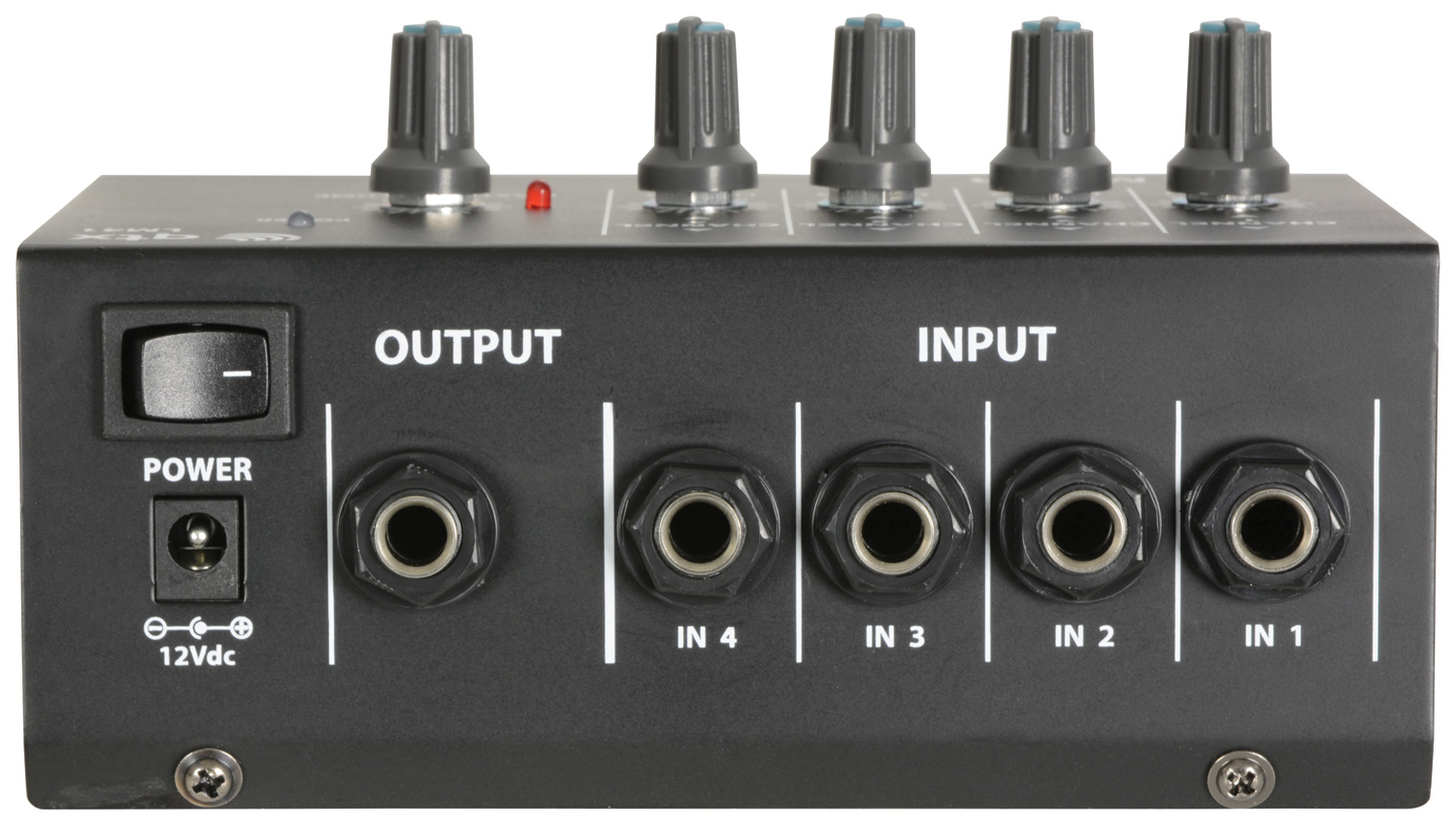

Inputs 4 x 6.3mm jack 8 x 6.3mm jack
Outputs 1 x 6.3mm jack 2 x 6.3mm jack
Weight 533g (no battery) 621g (no battery)

Support : articles

Equalization (EQ)

Equalization is the adjustment of bands of frequencies in an audio signal to change the tone of the sound it produces.

Thursday, 12th March 2020

In the box

The box for this item contains :

  • Mini line or instrument mixer
  • 9V PP3 battery

Downloads

Instruction manual
For 170.204UK (102KB)
UK Declaration of conformity
For 170.204UK (245KB)
EU Declaration of conformity
For 170.204UK (236KB)
