CSP Series Compact Powered Mixers with DSP
170.841UK
CSP-408
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilita...
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
CSP Series Compact Powered Mixers with DSP

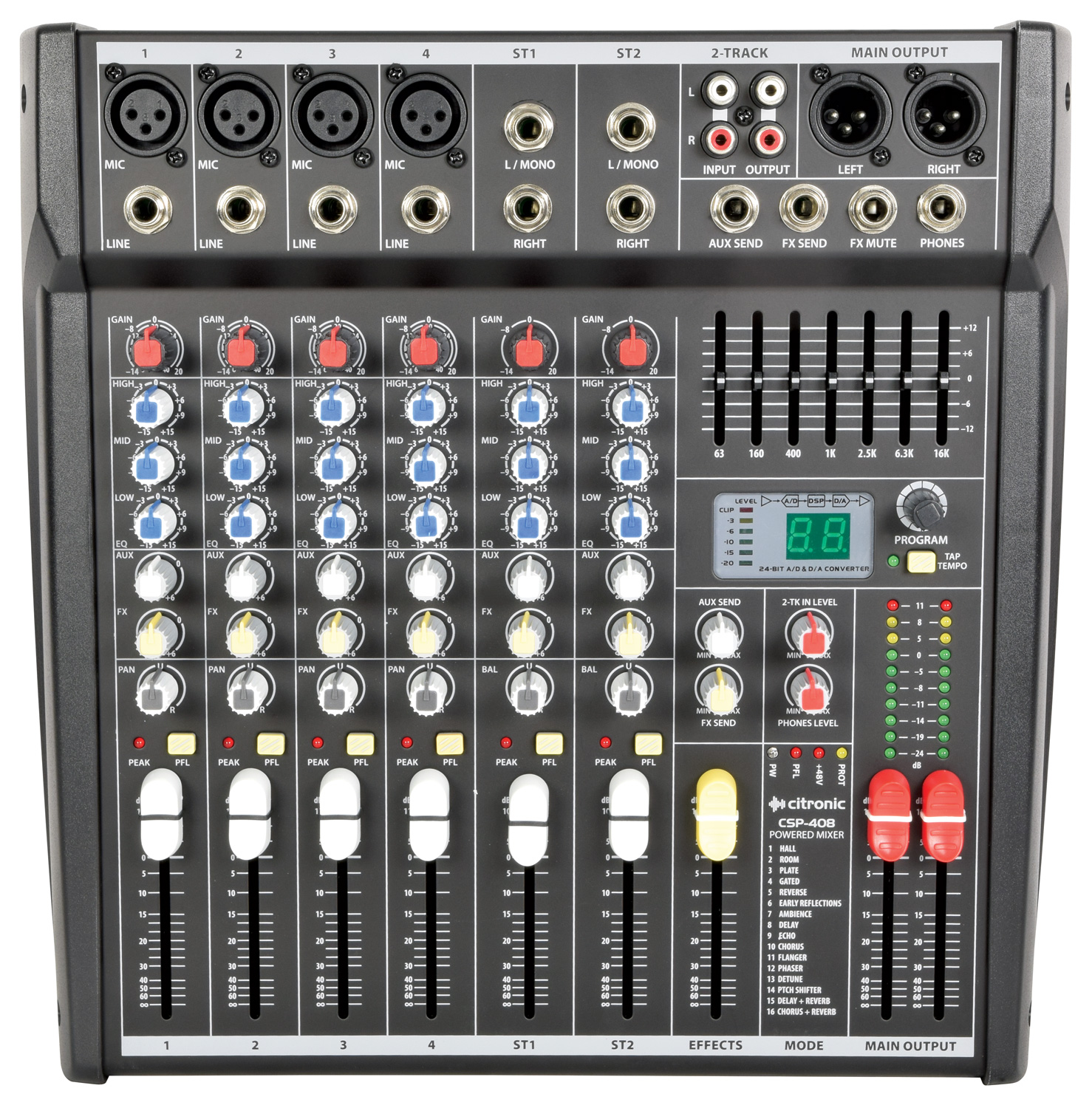

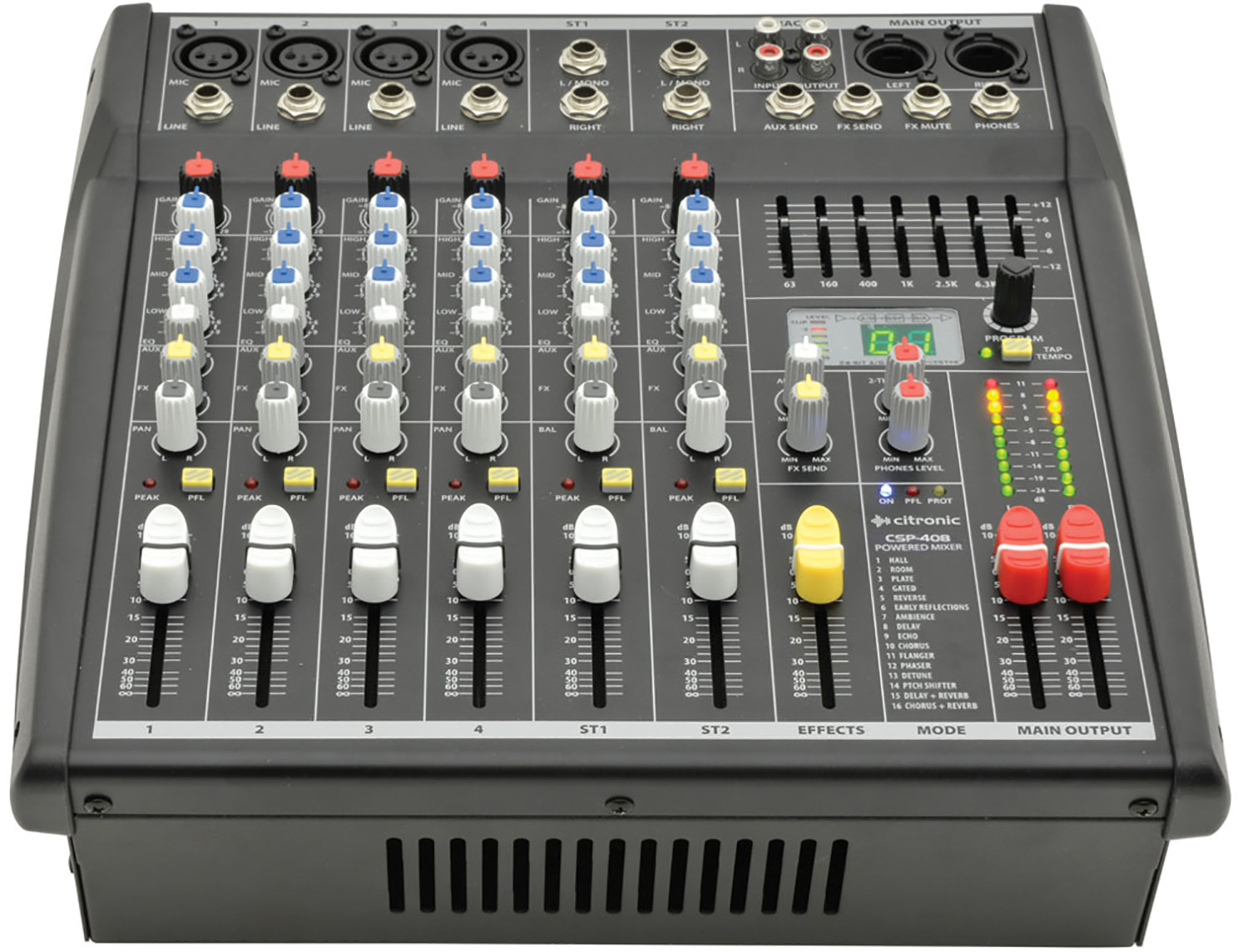

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
- 19" rack-mounting ears available: 170.846-7-8UK
Specification : Common
- Power supply 230Vac 50Hz (IEC)
- Phantom power +48V (XLR inputs)
- Input level +24dBu
- Output level : line +26dBu
- Frequency response 20Hz-30kHz (0.5dB)
- CMRR >74dB (mic 1kHz)
- THD +N <0.01% (channel to main out)
- Crosstalk >85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
- EQ: high 12kHz ±15dB shelving
- EQ: mid 2.5kHz ±15dB band pass
- EQ: low 80Hz ±15dB shelving
- Input impedance : mic (balanced) 2k Ohms
- Input impedance : line (balanced) 10k Ohms
- Sensitivity : mic -60 to +14dBu
- Sensitivity : line -40 to +14dBu
- 2-track 2 x RCA in & out (-2dBu)
- Effects 16 program DSP (24-bit sigma-delta, 40khz)
- Output impedance <75 Ohms
- Headphone output 6.3mm jack, 30-600 Ohms

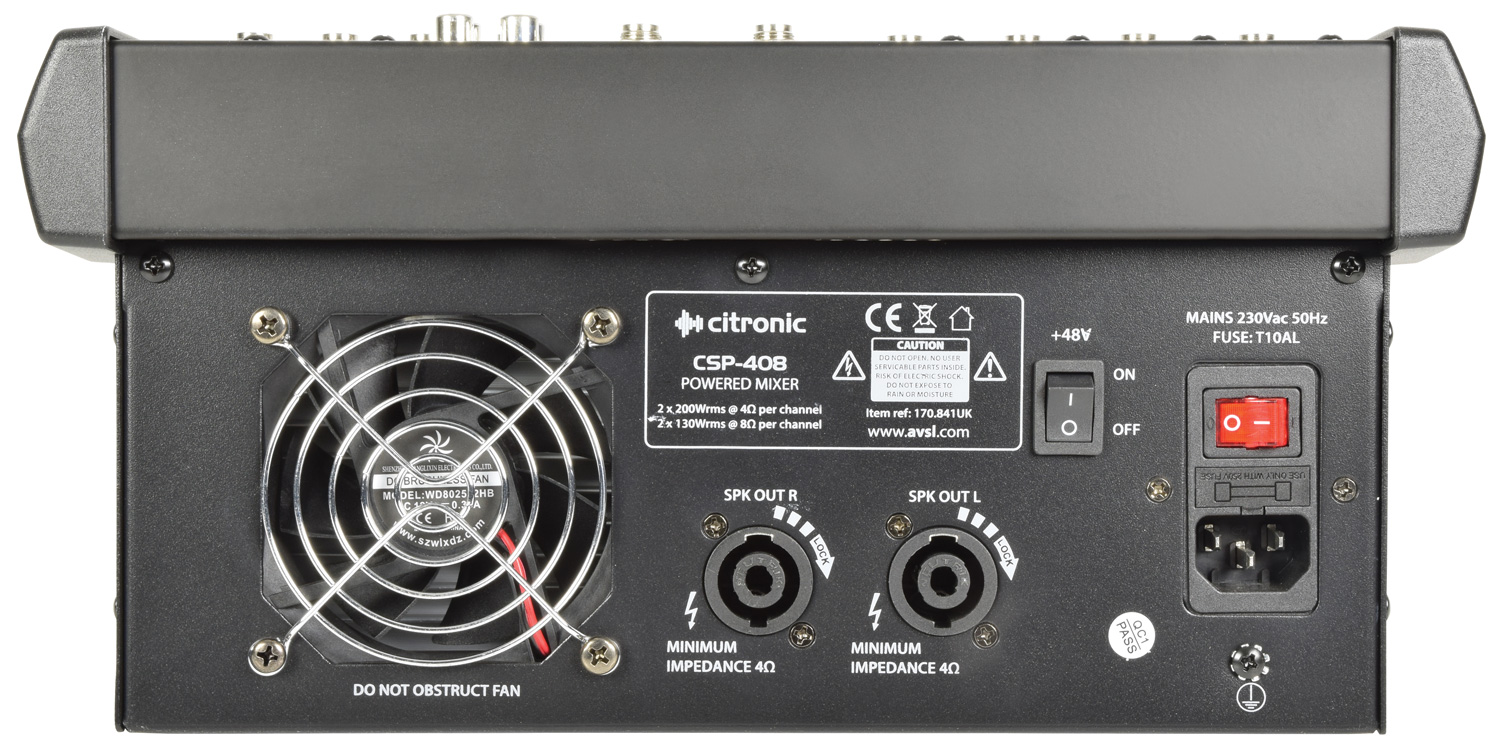

- Speaker : outputs L+R SPK connectors
Specification : Versions
| 170.841UK | 170.843UK | 170.845UK | |
|---|---|---|---|
| Power consumption | 600W | 600W | 1000W |
| Fuse | T10A (5 x 20mm, 250V) | T10A (5 x 20mm, 250V) | T15A (5 x 20mm, 250V) |
| Output power @ 4 Ohms | 2 x 200Wrms | 2 x 200Wrms | 2 x 350Wrms |
| Output power : 8 Ohms | 2 x 130Wrms | 2 x 130Wrms | 2 x 230Wrms |
| Inputs : mic/line | 4 x balanced XLRF/TRS jack | 6 x balanced XLRF/TRS jack | 10 x balanced XLRF/TRS jack |

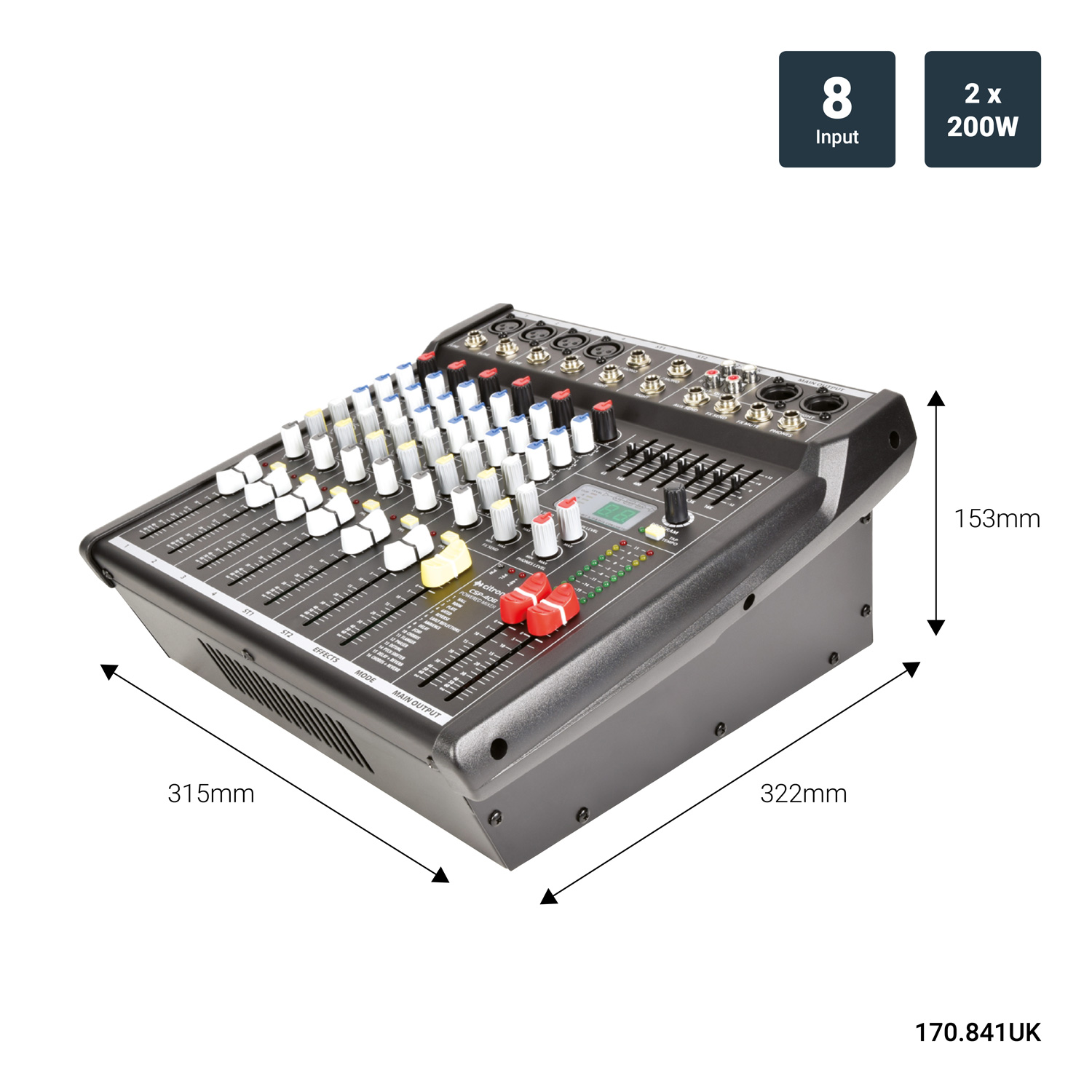

| Dimensions | 315 x 322 x 153mm | 369 x 322 x 153mm | 477 x 322 x 153mm |
| Weight | 6.80kg | 7.35kg | 10.40kg |
Trade information
| 170.841UK | 170.843UK | 170.845UK | |
|---|---|---|---|
| Barcode / EAN | 5015972196175 | 5015972196182 | 5015972196199 |
| Package type | Box Printed | Box Printed | Box Printed |
| Package dimensions | 360 x 380 x 210mm | 380 x 415 x 210mm | 380 x 525 x 210mm |
| Package weight | 7.20kg | 8.35kg | 11.27kg |
| Package quantity | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 395 x 450 x 375mm | 430 x 450 x 395mm | 150 x 540 x 395mm |
| Carton weight | 15.00kg | 20.00kg | 26.10kg |
| Carton quantity | 2 packages | 2 packages | 2 packages |
| Pack plastic weight | 0.13kg | 0.13kg | 0.13kg |
In the box
The box for this item contains :
- CSP-series powered mixer
- IEC power lead(s)
