CSL Series Compact Mixing Consoles with DSP

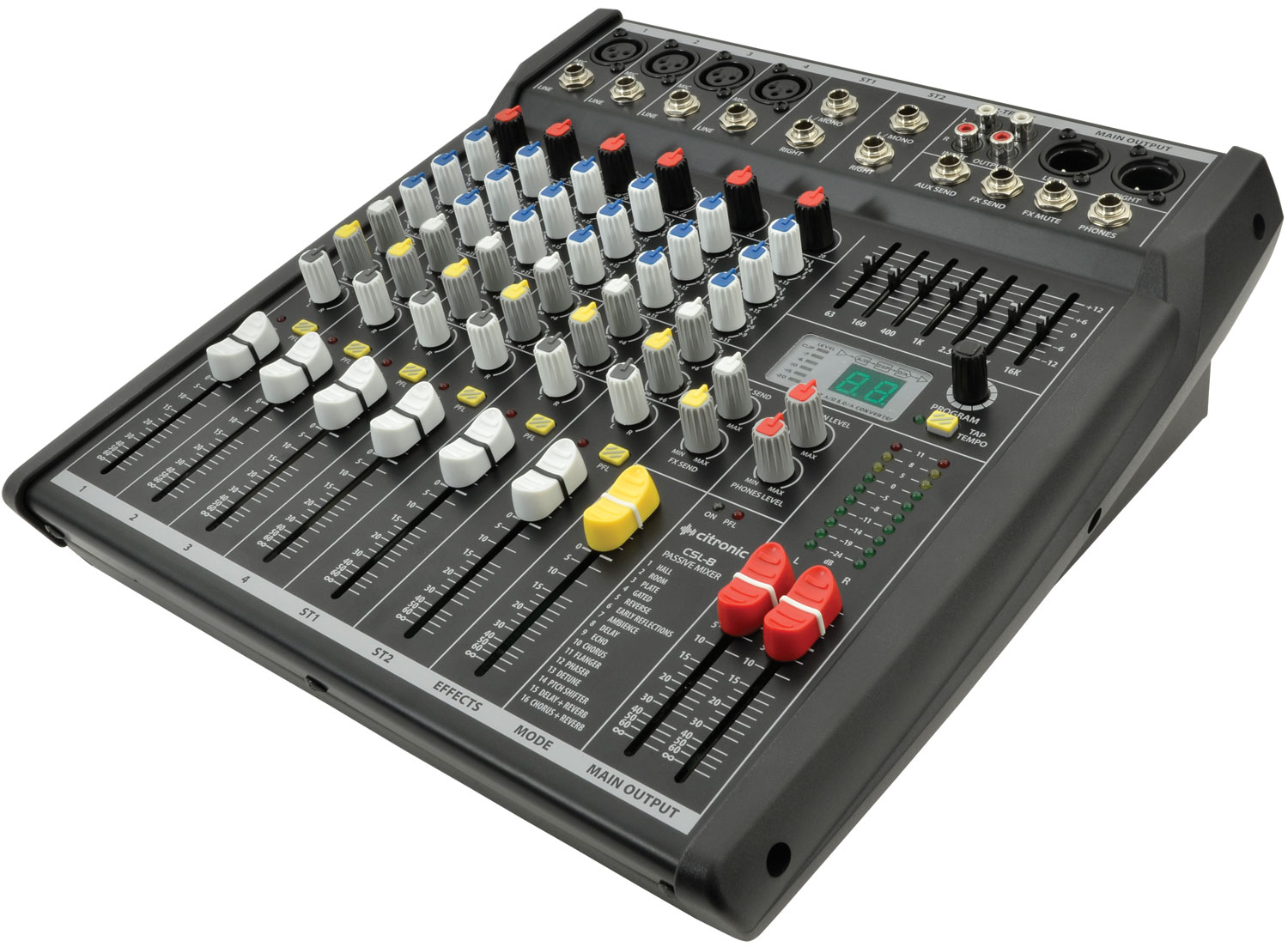

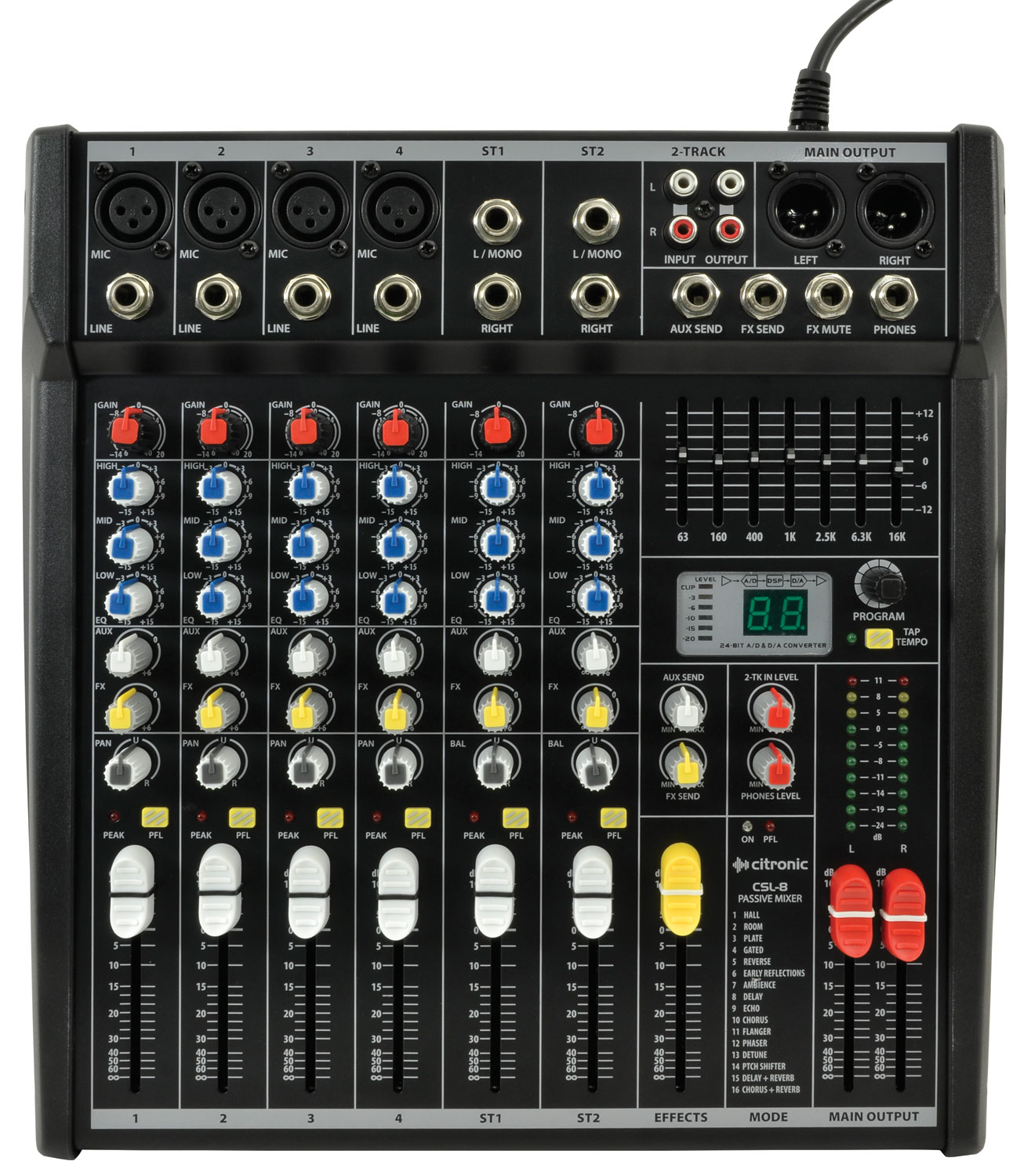

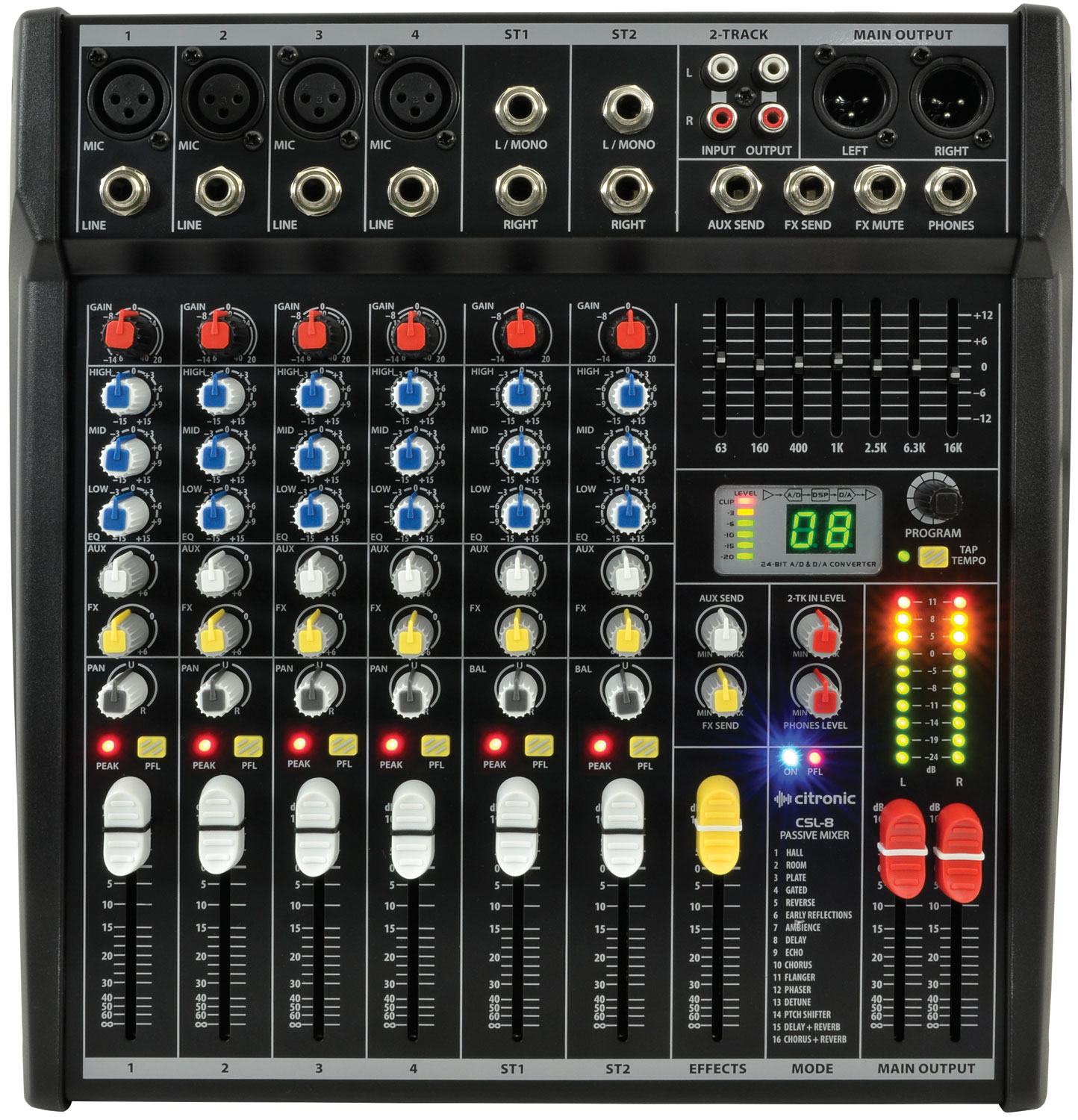

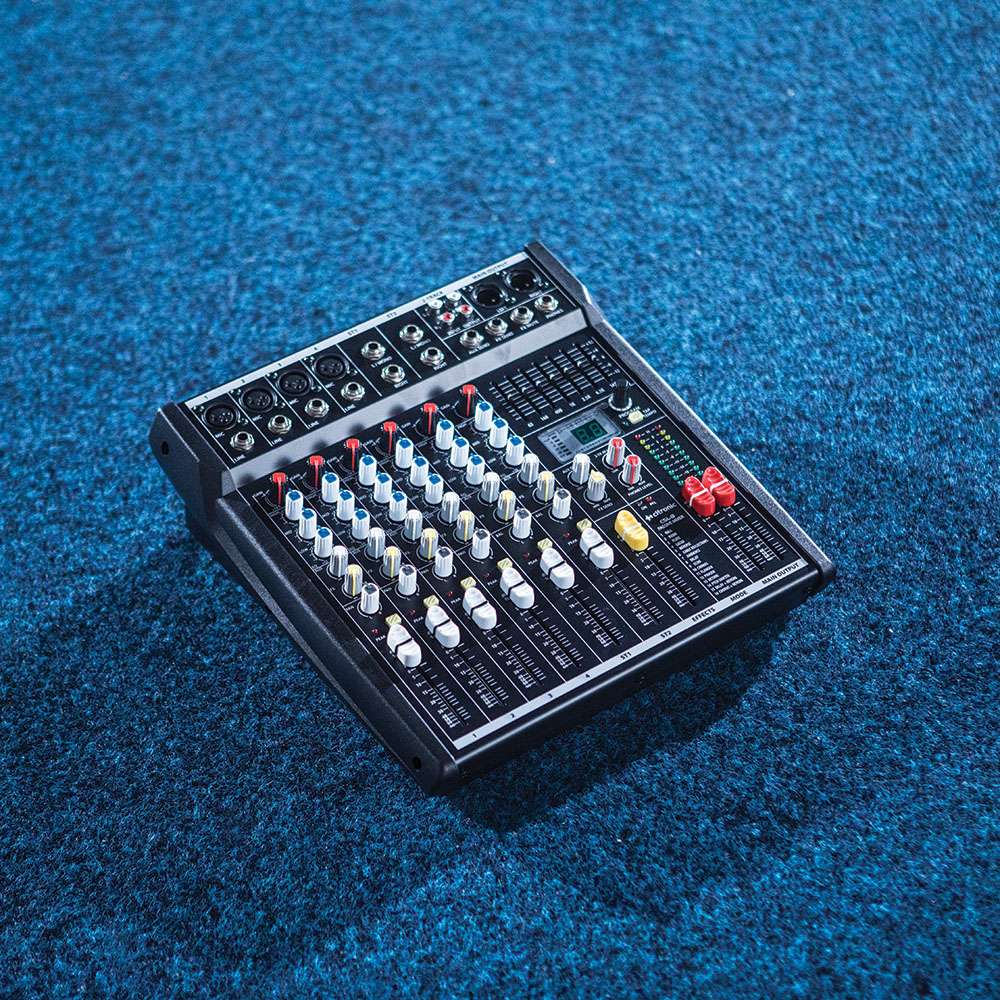

170.851UK CSL-8

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic E...

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
Description Version Packed
170.851UK
CSL-8 Mixing Console 8 input
8 input Box Printed
170.853UK
CSL-10 Mixing Console 10 input
10 input Box Printed
170.855UK
CSL-14 Mixing Console 14 input
14 input Box Printed

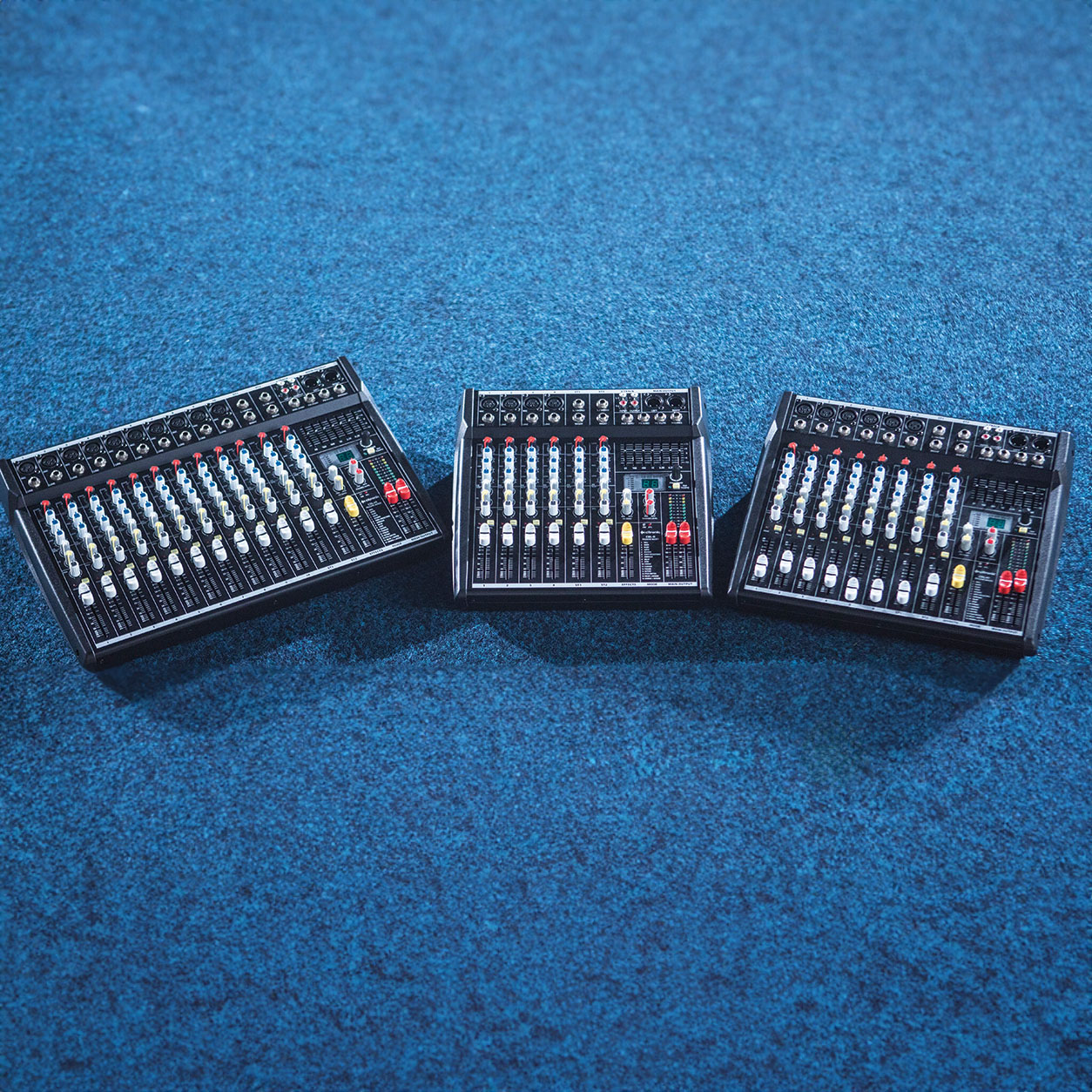

CSL Series Compact Mixing Consoles with DSP

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • IEC mains powered
  • Balanced main outputs

Specification : Common

  • Power supply 230Vac, 50Hz (IEC)
  • Phantom power +48V (XLR inputs)
  • Power consumption 25W
  • Fuse T1AL
  • Input level +24dBu
  • Output level : line +26dBu
  • Frequency response 20Hz-30kHz (0.5dB)
  • CMRR >74dB (mic 1kHz)
  • THD +N <0.01% (channel to main out)
  • Crosstalk >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
  • EQ: high 12kHz ±15dB shelving
  • EQ: mid 2.5kHz ±15dB band pass
  • EQ: low 80Hz ±15dB shelving
  • Input impedance : mic (balanced) 2k Ohms
  • Input impedance : line (balanced) 10k Ohms
  • Sensitivity : mic -60 to +14dBu
  • Sensitivity : line -40 to +14dBu
  • 2-track 2 x RCA in & out (-2dBu)
  • Effects 16 program DSP (24-bit sigma-delta, 40kHz)
  • Output impedance <75 Ohms
  • Headphone output 6.3mm jack, 30-600 Ohms

Specification : Versions

  170.851UK 170.853UK 170.855UK
Inputs : mic/line 4 x balanced XLRF/TRS jack 6 x balanced XLRF/TRS jack 10 x balanced XLRF/TRS jack
Dimensions 310 x 320 x 107mm 360 x 320 x 107mm 475 x 320 x 107mm
Weight 3.0kg 3.5kg 4.5kg

Trade information

  170.851UK 170.853UK 170.855UK
Barcode / EAN 5015972196205 5015972196212 5015972196229
Package type Box Printed Box Printed Box Printed
Package dimensions 325 x 380 x 150mm 380 x 480 x 150mm 380 x 480 x 150mm
Package weight 6.96kg 4.00kg 4.96kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 390 x 415 x 385mm 390 x 495 x 310mm 415 x 545 x 390mm
Carton weight 9.37kg 8.00kg 12.77kg
Carton quantity 2 packages 2 packages 2 packages
Pack plastic weight 0.13kg 0.13kg 0.13kg

In the box

The box for this item contains :

  • CSL-series mixing console
  • IEC power lead(s)
