U-MIC USB Dual Handheld UHF Wireless System

171.800UK U-MIC-863.2+864.8

Compact and easy to set up UHF wireless microphone set with 2 handheld transmitters and single USB receiver. The receiver simply plugs into a USB power supply or USB port for power and outputs a mi...

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs
  • Both microphones mixed to a single output
Full description Find retailer
Description Version Packed
171.800UK
U-MIC Dual Handheld UHF System 863.2+864.8MHz 		Box Label

U-MIC USB Dual Handheld UHF Wireless System

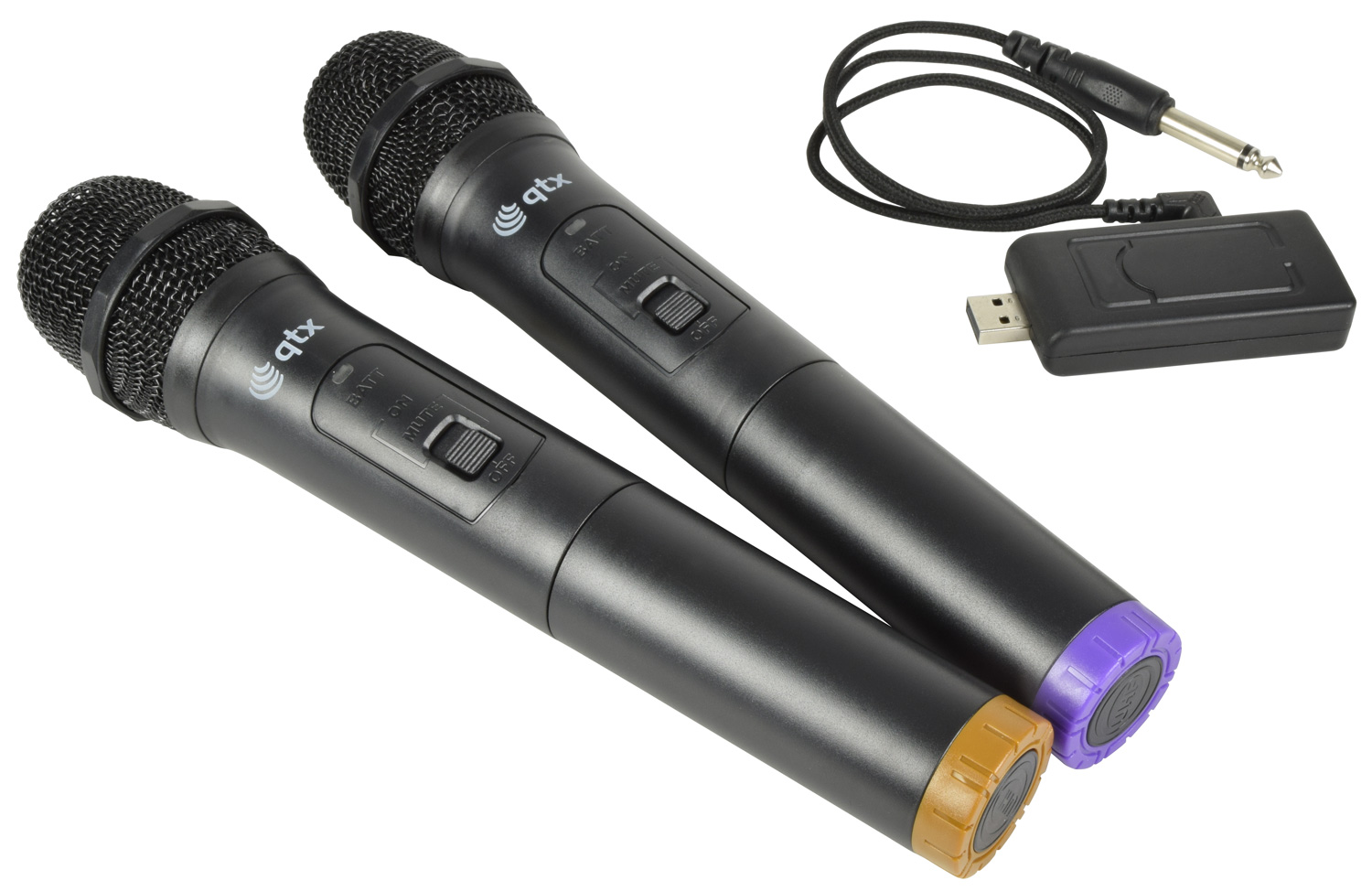

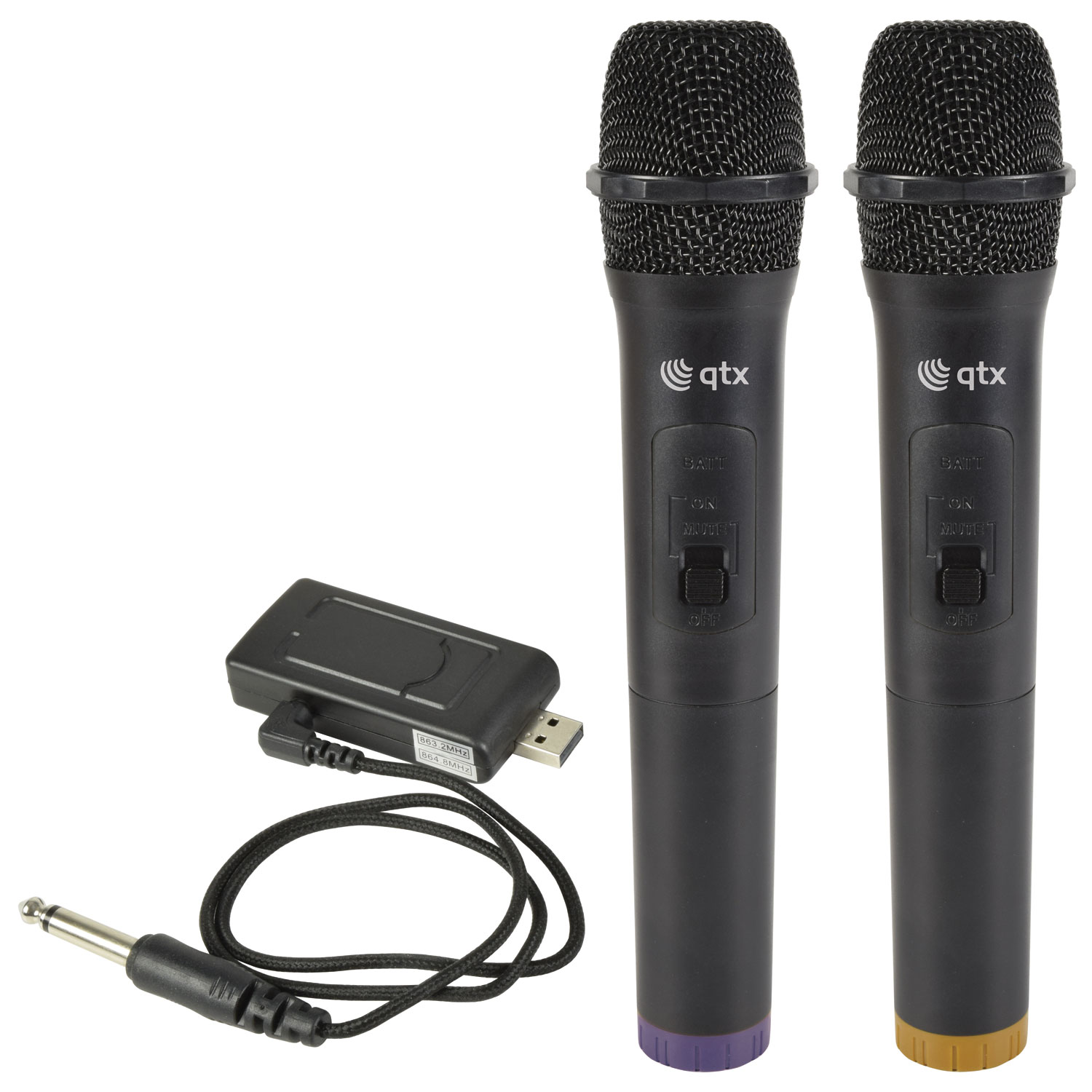

Compact and easy to set up UHF wireless microphone set with 2 handheld transmitters and single USB receiver. The receiver simply plugs into a USB power supply or USB port for power and outputs a mix of both microphones to a 3.5mm jack socket. A plug-through USB connection is provided on the receiver to allow the USB port to continue to be used for connection to media or other USB devices (e.g. for a USB flash mp3 player port). The handheld transmitters are powered by 2 x AA batteries each and operate on 2 UK/EU licence-free UHF frequencies. This system avoids the need for a free-standing or rack-mounted receiver and can operate from a standard USB power supply for ultimate convenience. A cost-effective and easy-to-use solution for 2-person presentations, conferences and vocal performers.

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs
  • Both microphones mixed to a single output
  • Power supply USB 5V, 1A (receiver), 2 x AA batteries (each transmitter)
  • Carrier frequencies 863.2MHz + 864.8MHz
  • Frequency response 50Hz - 15kHz
  • Capsule Dynamic cardioid (each handheld)
  • Output connection 3.5mm mono jack
  • Wireless range Up to 50m
  • Dimensions : transmitter 240 x 50mmØ (each)
  • Weight : transmitter 178g (each - no battery)
  • Dimensions : receiver 80 x 34 x 15mm
  • Weight : receiver 25g

In the box

The box for this item contains :

  • 2 x handheld UHF microphone transmitters
  • 1 x USB plug-through receiver
  • 1 x 3.5mm to 6.3mm jack lead
  • 4 x AA batteries

Downloads

Instruction manual
For 171.800UK (167KB)
UK Declaration of conformity
For 171.800UK (246KB)
EU Declaration of conformity
For 171.800UK (239KB)
