Handheld Compact VHF Wireless System

171.801UK VH45B

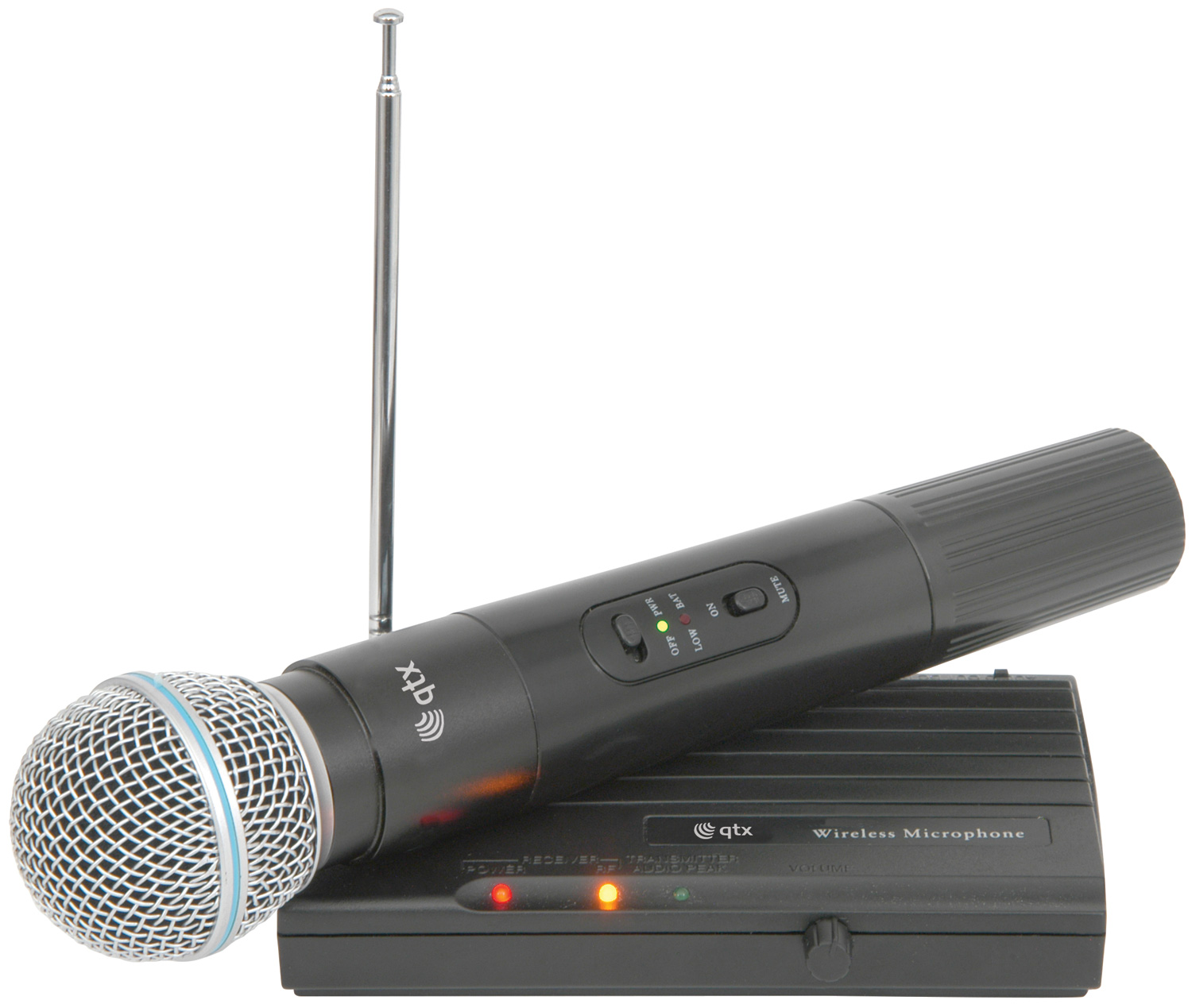

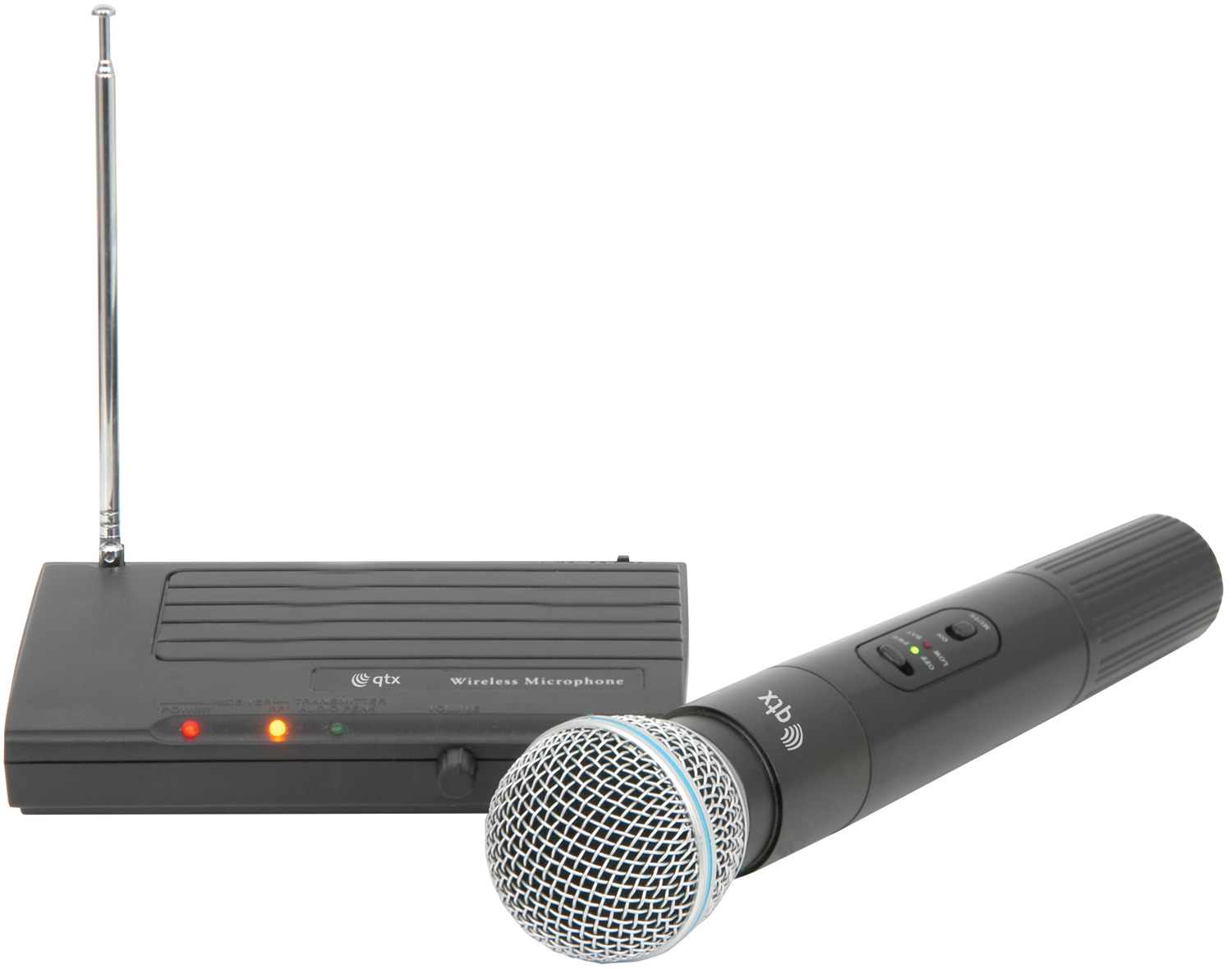

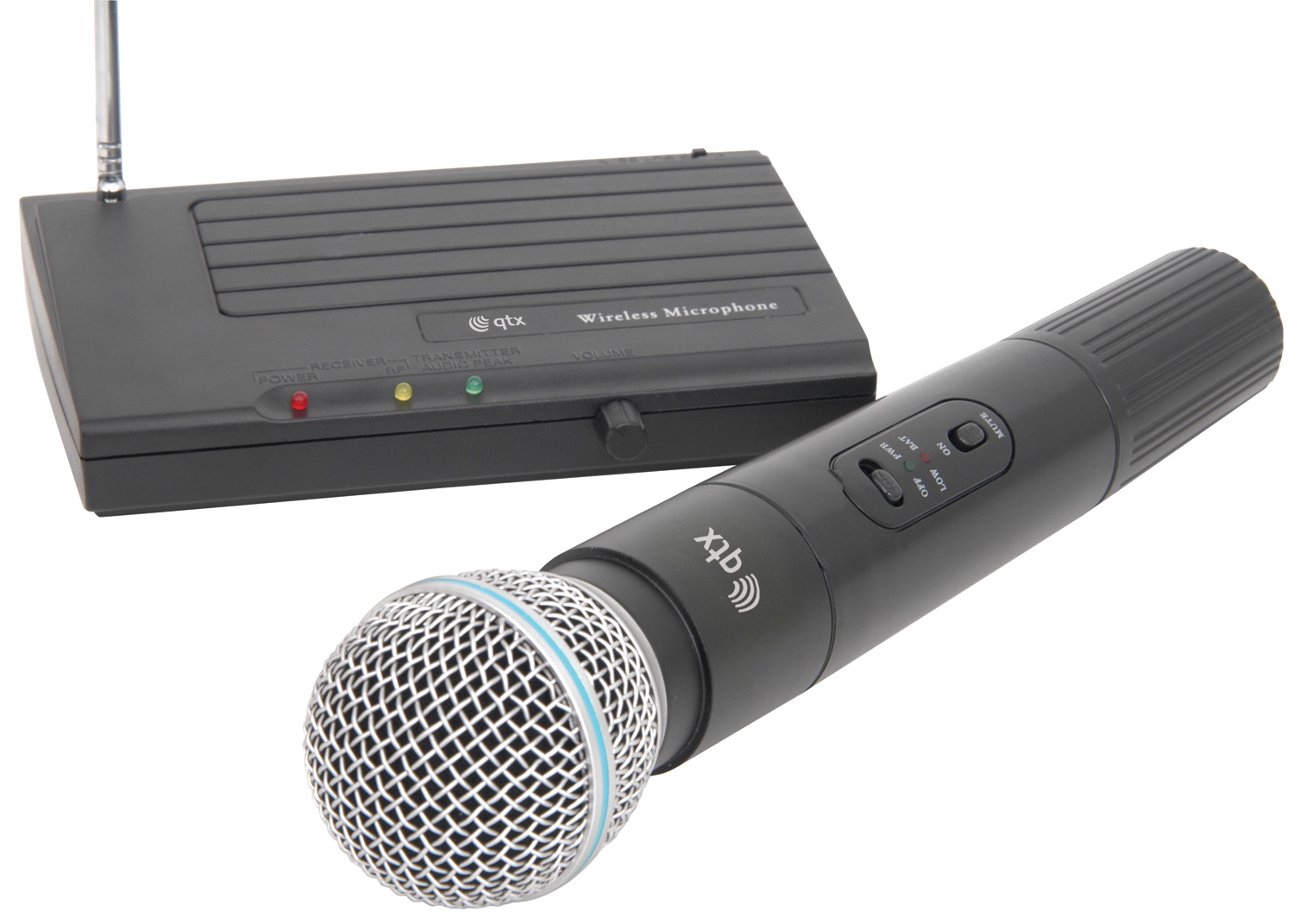

Handheld VHF wireless microphone with desktop receiver, supplied with power supply, batteries and signal lead.

  • On/Off and mute controls on handheld unit
  • Compact desktop receiver
  • Up to 50m range
Full description Find retailer
Description Version Packed
171.801UK
VHF handheld compact wireless system - 174.5MHz 		Box Label

Handheld Compact VHF Wireless System

Handheld VHF wireless microphone with desktop receiver, supplied with power supply, batteries and signal lead.

  • On/Off and mute controls on handheld unit
  • Compact desktop receiver
  • Up to 50m range
  • Batteries and jack lead supplied
  • Power supply : receiver 9 - 15Vdc 200mA (supplied)
  • Battery : transmitter 9V PP3 (supplied)
  • Operating frequency 174.5MHz
  • Maximum range 50.0m

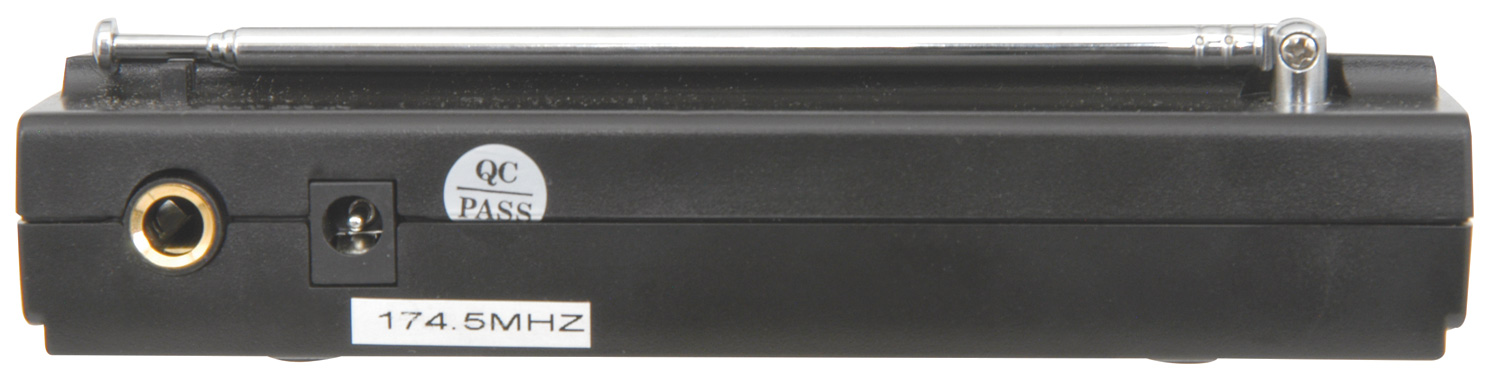

  • Output connection 6.3mm jack
  • S/N ratio >85dB
  • THD <0.2%
  • Dimensions : transmitter 250 x 50mmØ
  • Dimensions : receiver 150 x 110 x 35mm
  • Weight : transmitter 280g
  • Weight : receiver 190g

In the box

The box for this item contains :

  • VHF handheld transmitter
  • VHF desktop receiver
  • Mains power adaptor
  • PP3 battery
  • 6.3mm jack lead

Downloads

Instruction manual
For 171.801UK (128KB)
UK Declaration of conformity
For 171.801UK (249KB)
EU Declaration of conformity
For 171.801UK (239KB)
