U-MIC Lavalier UHF Wireless Microphone Systems

171.815UK U-MIC-864.8-L

Compact and easy to set up UHF wireless microphone set with a lavalier microphone, beltpack transmitter and USB receiver. The receiver simply plugs into a USB power supply or USB port for power and...

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs
Description Version Packed
171.814UK
U-MIC Lavalier UHF Microphone System 863.2MHz
863.2MHz Gift Box
171.815UK
U-MIC Lavalier UHF Microphone System 864.8MHz
864.8MHz Gift Box

U-MIC Lavalier UHF Wireless Microphone Systems

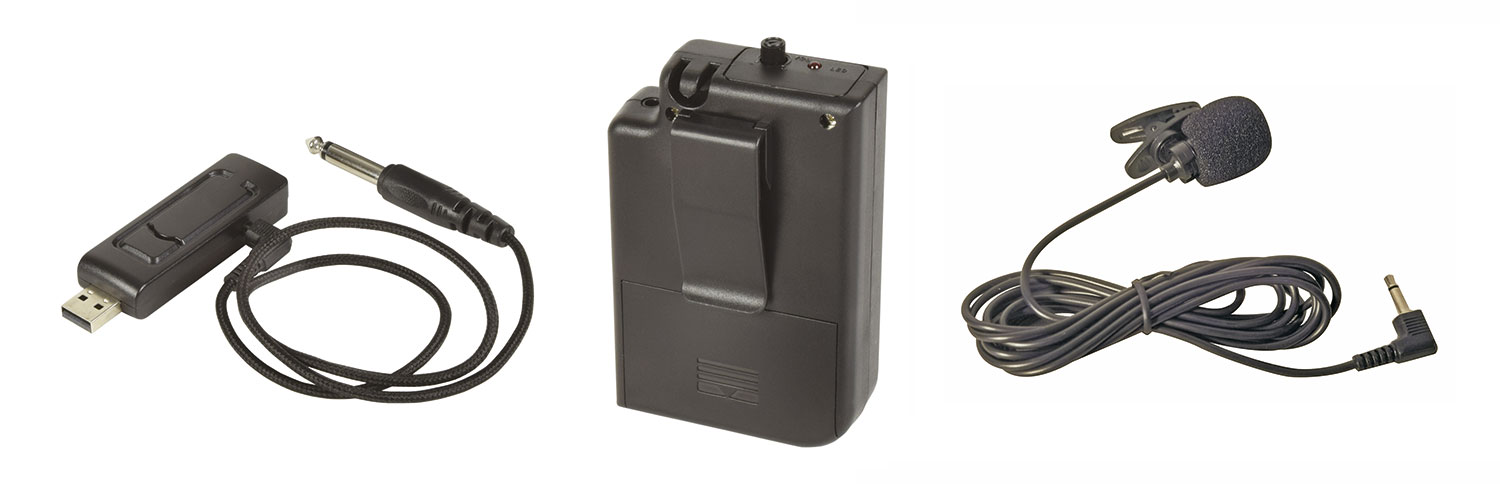

Compact and easy to set up UHF wireless microphone set with a lavalier microphone, beltpack transmitter and USB receiver. The receiver simply plugs into a USB power supply or USB port for power and outputs to a 3.5mm jack socket. A plug-through USB connection is provided on the receiver to allow the USB port to continue to be used for connection to media or other USB devices (e.g. for a USB flash mp3 player port). The beltpack transmitter is powered by 2 x AA batteries and operates in one of 2 UK/EU licence-free UHF frequencies. This system avoids the need for a free-standing or rack-mounted receiver and can operate from a standard USB power supply for ultimate convenience.

  • 3.5mm to 6.3mm jack lead included
  • Plug-through USB connection for flash drive inputs

Specification : Common

  • Power supply USB 5V, 1A (receiver), 2 x AA batteries (transmitter)
  • Frequency response 50Hz - 15kHz
  • Output connection 3.5mm mono jack
  • Wireless range Up to 50m
  • Connector : mic input 3.5mm mono jack
  • Dimensions : transmitter 105 x 65 x 30mm
  • Weight : transmitter 67g (no battery)
  • Dimensions : lavalier microphone 27 x 12mmØ
  • Weight : lavalier microphone 20g
  • Dimensions : receiver 80 x 23 x 13mm
  • Weight : receiver 17g

Specification : Versions

  171.814UK 171.815UK
Carrier frequency 863.2MHz 864.8MHz

Trade information

  171.814UK 171.815UK
Barcode / EAN 5015972218013 5015972218020
Package type Gift Box Gift Box
Package dimensions 95 x 270 x 58mm 95 x 270 x 58mm
Package weight 0.14kg 0.14kg
Package quantity 1 unit 1 unit
Carton dimensions 290 x 510 x 270mm 290 x 510 x 270mm
Carton weight 3.80kg 3.80kg
Carton quantity 20 packages 20 packages

In the box

The box for this item contains :

  • Lavalier microphone
  • Beltpack transmitter
  • USB receiver
  • 3.5mm to 6.3mm jack lead
  • 2 x AA batteries

Support

Instruction manual
For 171.814UK (131KB)
Instruction manual
For 171.815UK (131KB)
