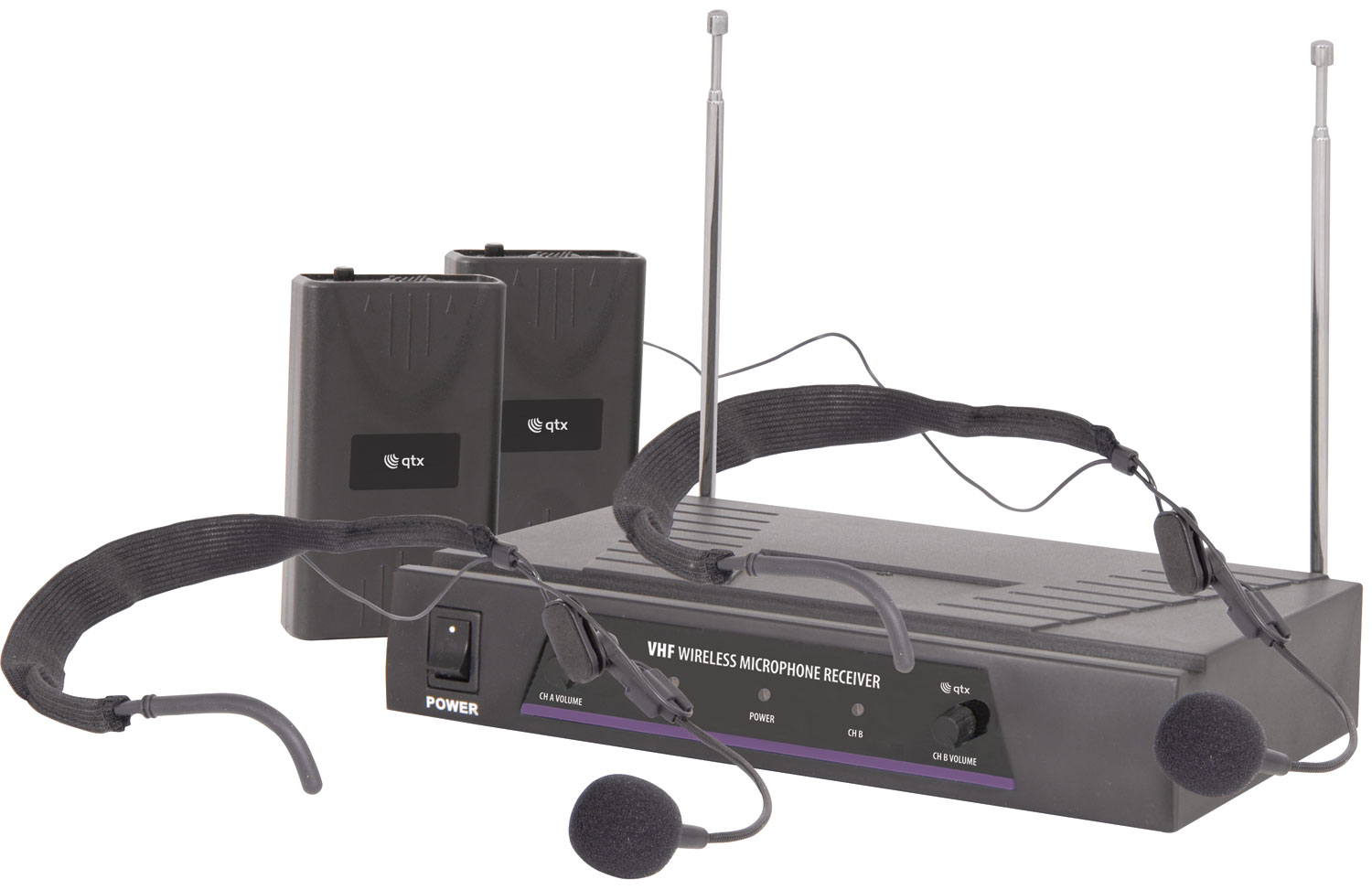

Dual Neckband Microphone VHF Wireless System
171.819UK
VN2
A dual channel VHF wireless microphone system with a half-width 1U receiver, 2 beltpack transmitters and 2 neckband headset microphones.
- Up to 50m range
- Supplied with batteries and jack lead
- Note: Maximum of 2 VHF frequencies can be operated in combination
Dual Neckband Microphone VHF Wireless System
A dual channel VHF wireless microphone system with a half-width 1U receiver, 2 beltpack transmitters and 2 neckband headset microphones.
- Up to 50m range
- Supplied with batteries and jack lead
- Note: Maximum of 2 VHF frequencies can be operated in combination
Specification : Common
- Power supply : receiver 10Vac 250mA (supplied)
- Batteries : beltpack transmitters 9V, PP3 each (supplied)
- Maximum range 50.0m
- Output connections XLR, 6.3mm jack
- S/N ratio >85dB
- THD <0.2%
- Dimensions : beltpack transmitter 205 x 68 x 25mm (ex. antenna)
- Dimensions : receiver 45 x 210 x 180mm
- Weight : beltpack transmitter 76g (no battery)
- Weight : receiver 573g
Specification : Versions
| 171.818UK | 171.819UK | |
|---|---|---|
| Operating frequencies | 173.8 + 174.8MHz | 174.1 + 175.0MHz |
Trade information
| 171.818UK | 171.819UK | |
|---|---|---|
| Barcode / EAN | 5015972089699 | 5015972089705 |
| Package type | ABS Case | ABS Case |
| Package dimensions | 320 x 430 x 100mm | 320 x 430 x 100mm |
| Package weight | 1.82kg | 1.82kg |
| Package quantity | 1 unit | 1 unit |
| Carton dimensions | 325 x 445 x 520mm | 325 x 445 x 520mm |
| Carton weight | 11.00kg | 11.00kg |
| Carton quantity | 5 packages | 5 packages |
| Pack plastic weight | 0.01kg | - |
Support
Instruction manual
For 171.818UK (315KB)
For 171.818UK (315KB)
Instruction manual
For 171.819UK (315KB)
For 171.819UK (315KB)
