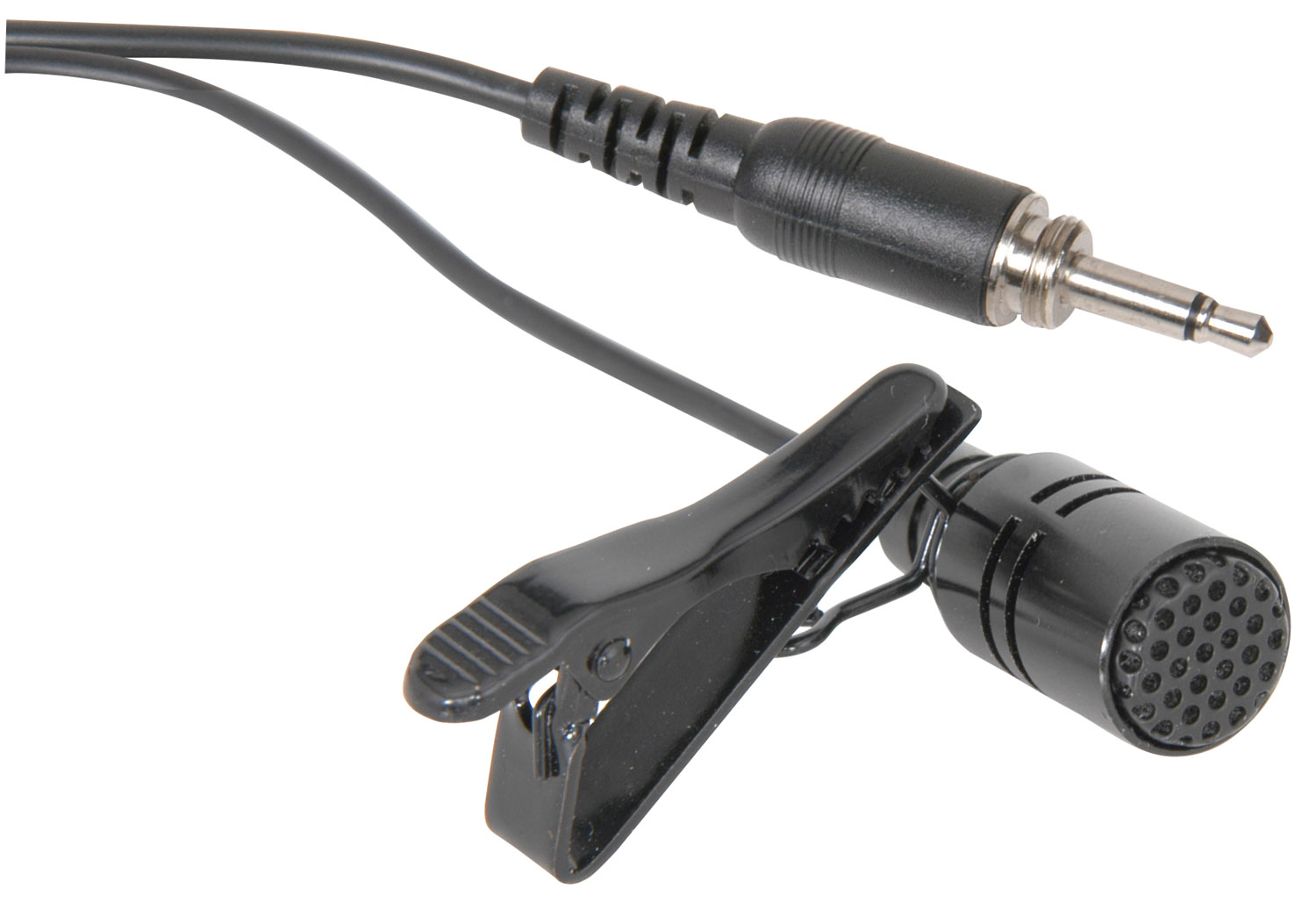

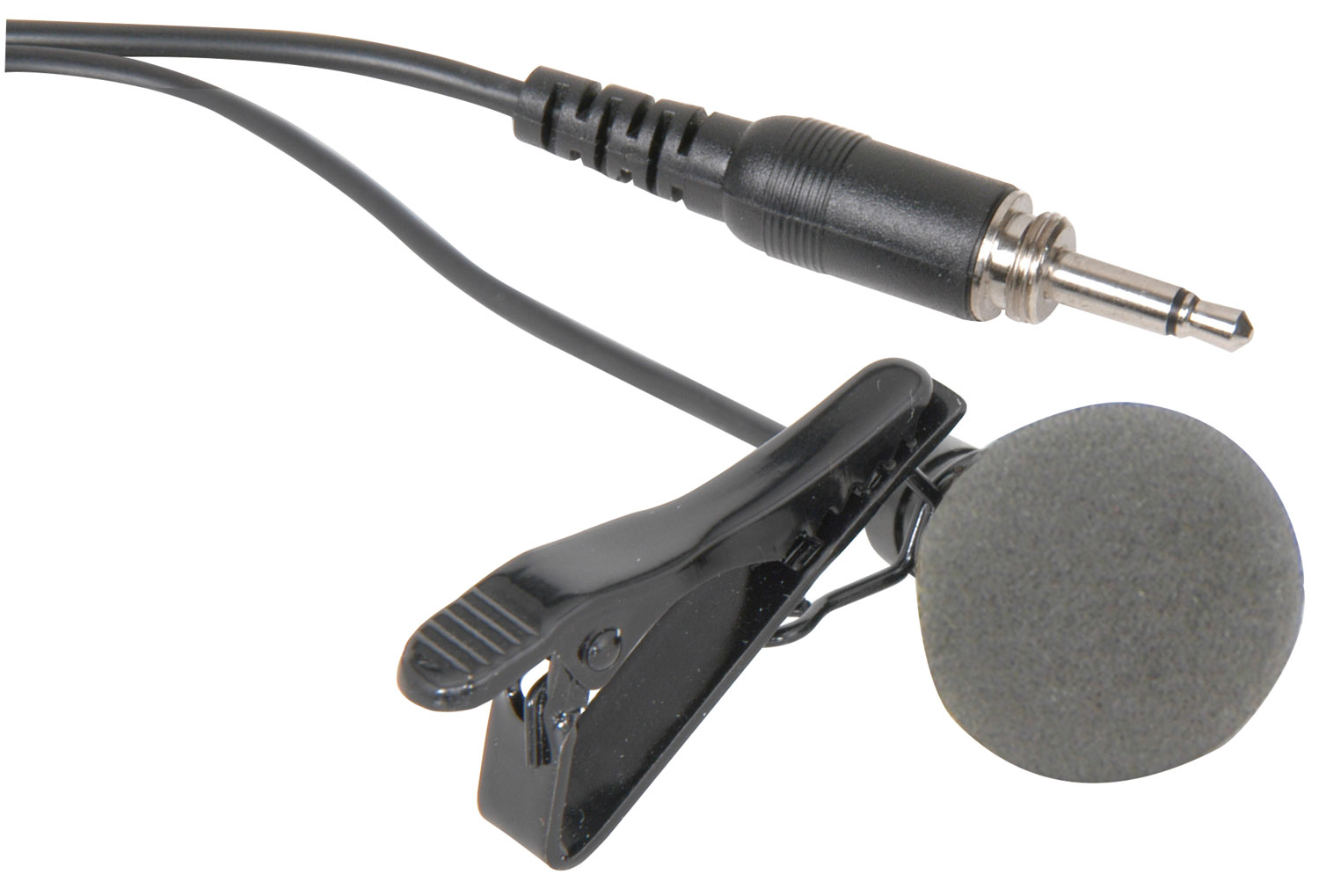

Lavalier Tie-clip Microphones for Wireless Systems
171.855UK
LM-35
Lavalier tie-clip microphones for use with VHF and UHF beltpack transmitters.
- Threaded 3.5mm mono jack connector
- Suitable for Chord, Citronic and QTX beltpack transmitters
- Compatible with most laptop mic inputs
Lavalier Tie-clip Microphones for Wireless Systems
Lavalier tie-clip microphones for use with VHF and UHF beltpack transmitters.
- Threaded 3.5mm mono jack connector
- Suitable for Chord, Citronic and QTX beltpack transmitters
- Compatible with most laptop mic inputs
Specification : Common
- Connector 3.5mm mono jack - threaded
Specification : Versions
| 171.855UK | 171.967UK | 171.968UK | 171.969UK | |
|---|---|---|---|---|
| Power supply | 3Vdc | 2-10Vdc | 2-10Vdc | 1-10Vdc |
| Colour | Black | Beige | Black | Black |
| Material | Metal & plastic | Metal & plastic | Plastic | Metal |
| Transducer type | Cardioid condenser | Omni-directional condenser | Cardioid condenser | Cardioid condenser |
| Microphone : dimensions | 27 x 12mmØ | 13 x 7mmØ | 23 x 12mmØ | 25 x 11mmØ |
| Weight | 20g | 11g | 15g | 20g |
Trade information
| 171.855UK | 171.967UK | 171.968UK | 171.969UK | |
|---|---|---|---|---|
| Barcode / EAN | 5015972094990 | 5015972163191 | 5015972163214 | 5015972163238 |
| Tariff code | 8518100090 | 8518100090 | 8518100090 | 8518100090 |
| Country of Origin | CN | CN | CN | CN |
| Package type | Box Label BW | Box Label BW | Box Label BW | Box Label BW |
| Package dimensions | 90 x 150 x 20mm | 180 x 130 x 35mm | 180 x 130 x 35mm | 180 x 130 x 35mm |
| Package weight | 0.08kg | 0.01kg | 0.02kg | 0.02kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 460 x 570 x 460mm | 325 x 445 x 520mm | 325 x 445 x 520mm | 325 x 445 x 520mm |
| Carton weight | 7.70kg | 1.10kg | 1.50kg | 2.00kg |
| Carton quantity | 100 packages | 100 packages | 100 packages | 100 packages |
| Pack plastic weight | 0.00kg | 0.00kg | 0.00kg | - |
