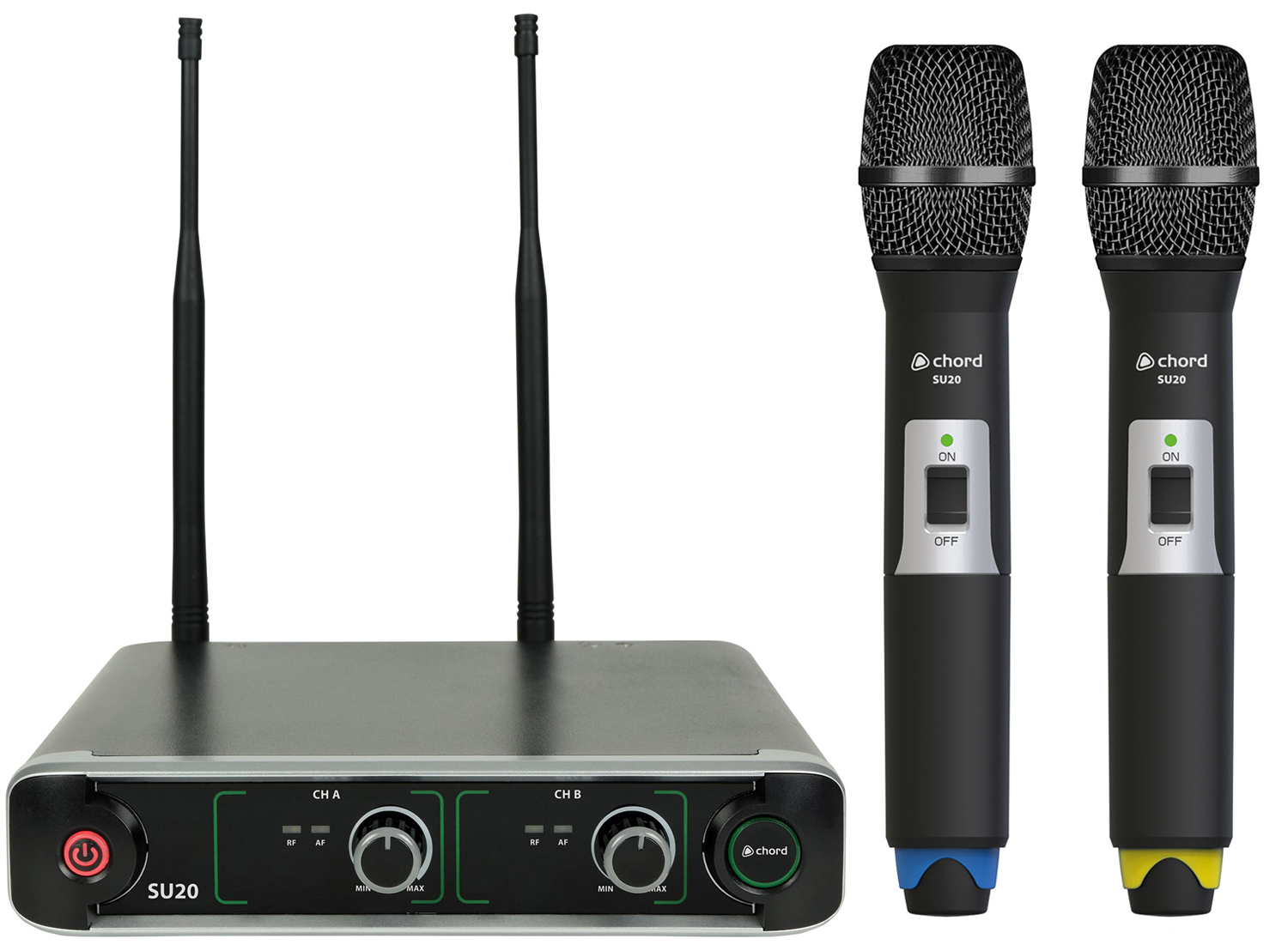

SU20 Compact Dual UHF Microphone Sets

171.908UK SU20-H-BY

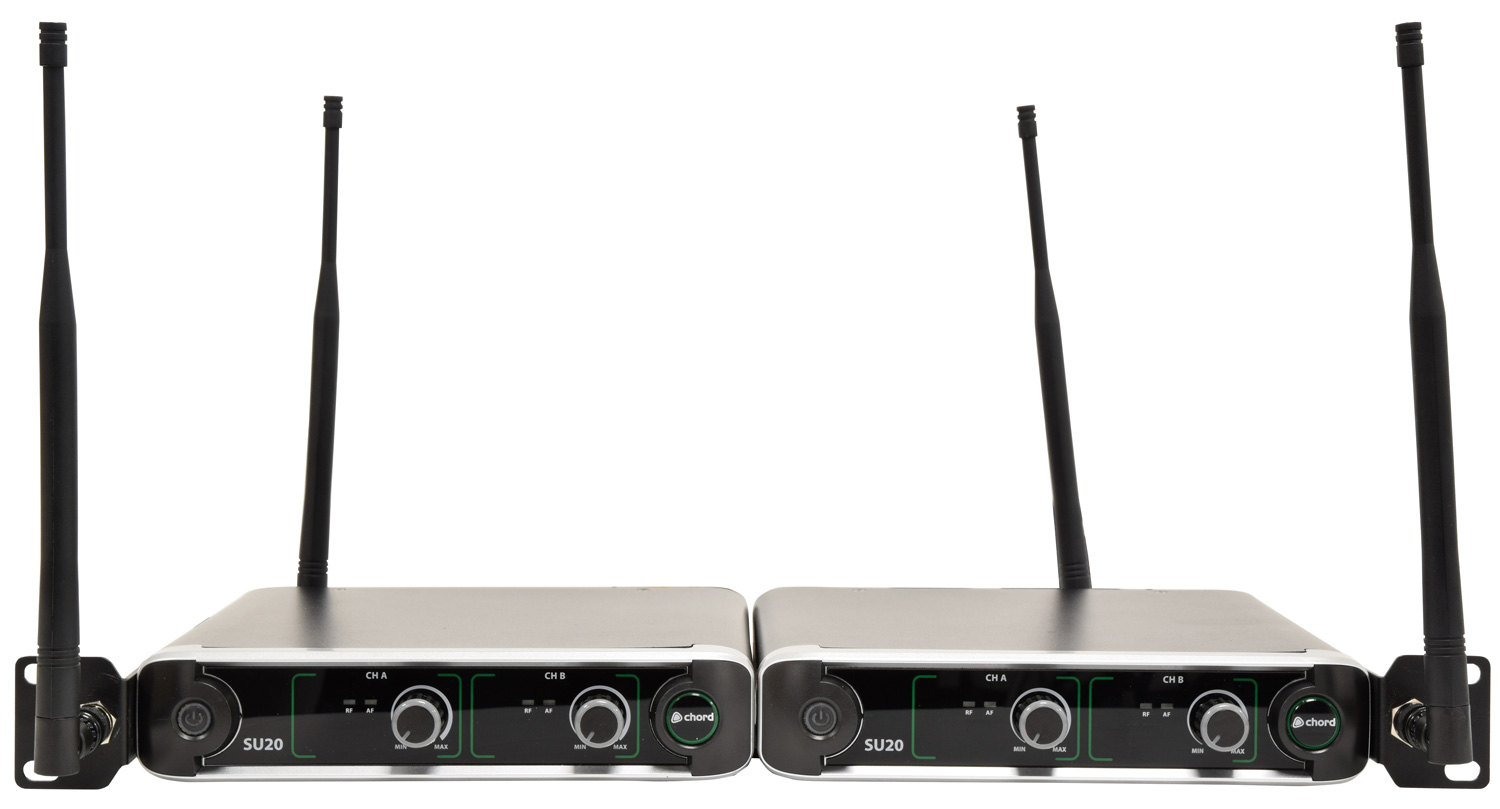

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or f...

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Front or rear mountable antennas
Full description Find retailer
Description Version Packed
171.907UK
SU20 Dual UHF Handheld Microphone Set Red + Green 		Handhld 863.42+864.3 Box Label
171.908UK
SU20 Dual UHF Handheld Microphone Set Blue + Yellow 		Handheld 864.8+863.1 Box Label
171.909UK
SU20 Dual UHF Combo Microphone Set Red + Green 		Combo 863.42+864.3 Box Label
171.917UK
SU20 Dual UHF Beltpack Microphone Set Red + Green 		Beltpak 863.42+864.3 Box Label
171.918UK
SU20 Dual UHF Beltpack Microphone Set Blue + Yellow 		Beltpack 864.8+863.1 Box Label

Accessories

Description Version Packed
171.954UK
NU4 Handheld Microphone Transmitter Yellow 863.1MHz 		Yellow 863.1MHz Box Label
171.955UK
NU4 Handheld Microphone Transmitter Red 864.8MHz 		Red 864.8MHz Box Label

SU20 Compact Dual UHF Microphone Sets

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Front or rear mountable antennas
  • Compact half-rack receiver
  • Supplied with power adaptor and 4 x AA batteries
  • Power supply 14Vdc 350mA (adaptor supplied)
  • Antenna connection BNC
  • Batteries 4 x AA (2 per transmitter) included
  • Range 60m
  • Microphone : polar pattern Cardioid (handheld, neckband or lavalier)

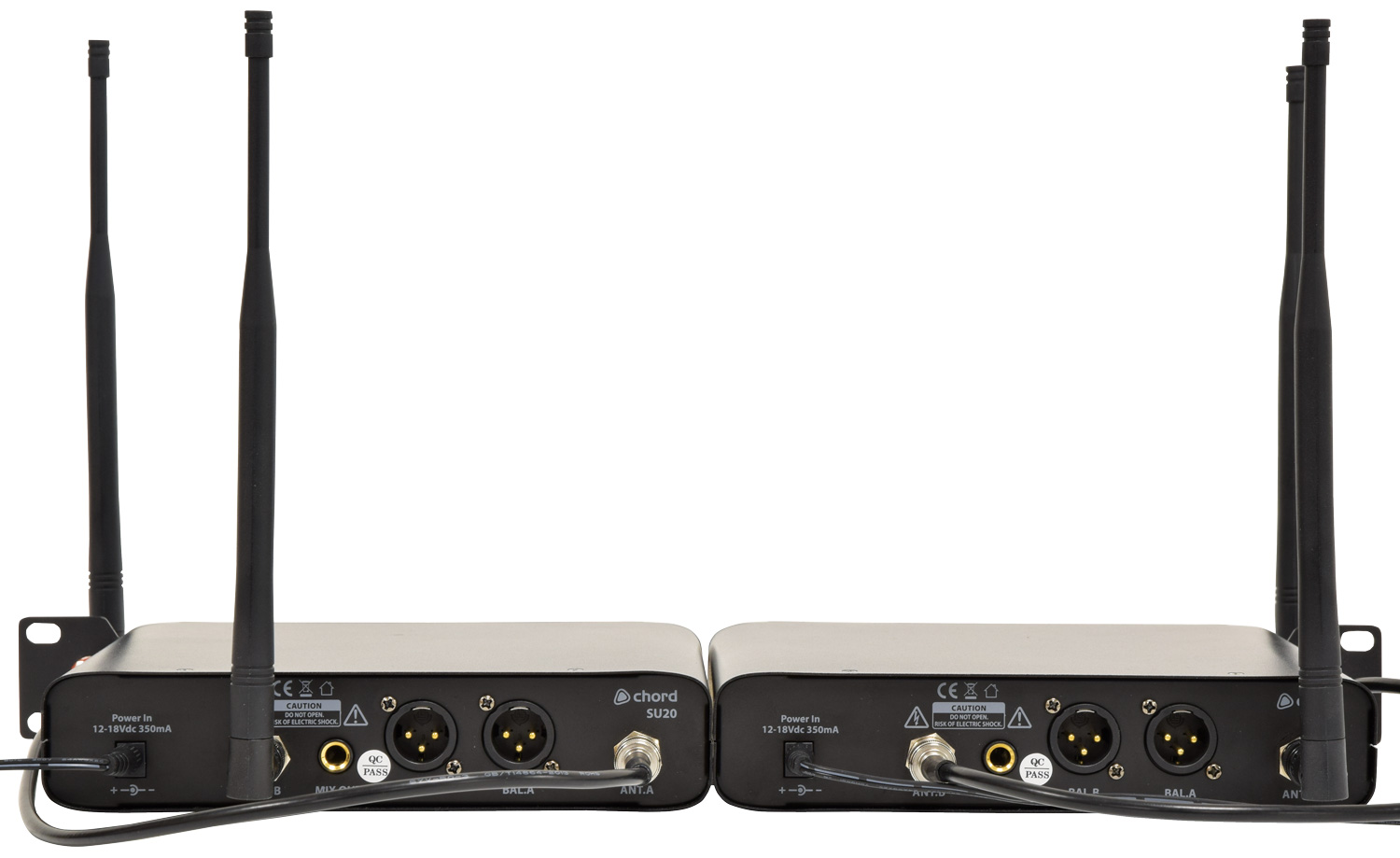

  • Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Frequency response 50Hz - 18kHz (±3dB)
  • S/N ratio >80dB
  • THD <0.5% @ 1kHz
  • Dimensions : receiver 203 x 187 x 42mm
  • Weight : receiver 845g

Versions

  171.907UK 171.908UK 171.909UK 171.917UK 171.918UK
Dimensions : handheld transmitter 250 x 47mmØ 250 x 47mmØ 250 x 47mmØ N/A N/A
Weight : handheld transmitter 231g (no battery) 231g (no battery) 231g (no battery) N/A N/A
Dimensions : beltpack transmitter N/A N/A 110 x 676 x 24mm 110 x 676 x 24mm 110 x 676 x 24mm
Weight : beltpack transmitter N/A N/A 74g (no battery) 74g (no battery) 74g (no battery)
Carrier frequencies 863.42MHz (Red) + 864.3MHz (Green) 864.8MHz (Blue) + 863.1MHz (Yellow) 863.42MHz (Red) + 864.3MHz (Green) 863.42MHz (Red) + 864.3MHz (Green) 864.8MHz (Blue) + 863.1MHz (Yellow)

In the box

The box for this item contains :

  • SU20 half-rack dual UHF receiver
  • 1 x short rack ear
  • 1 x long rack ear

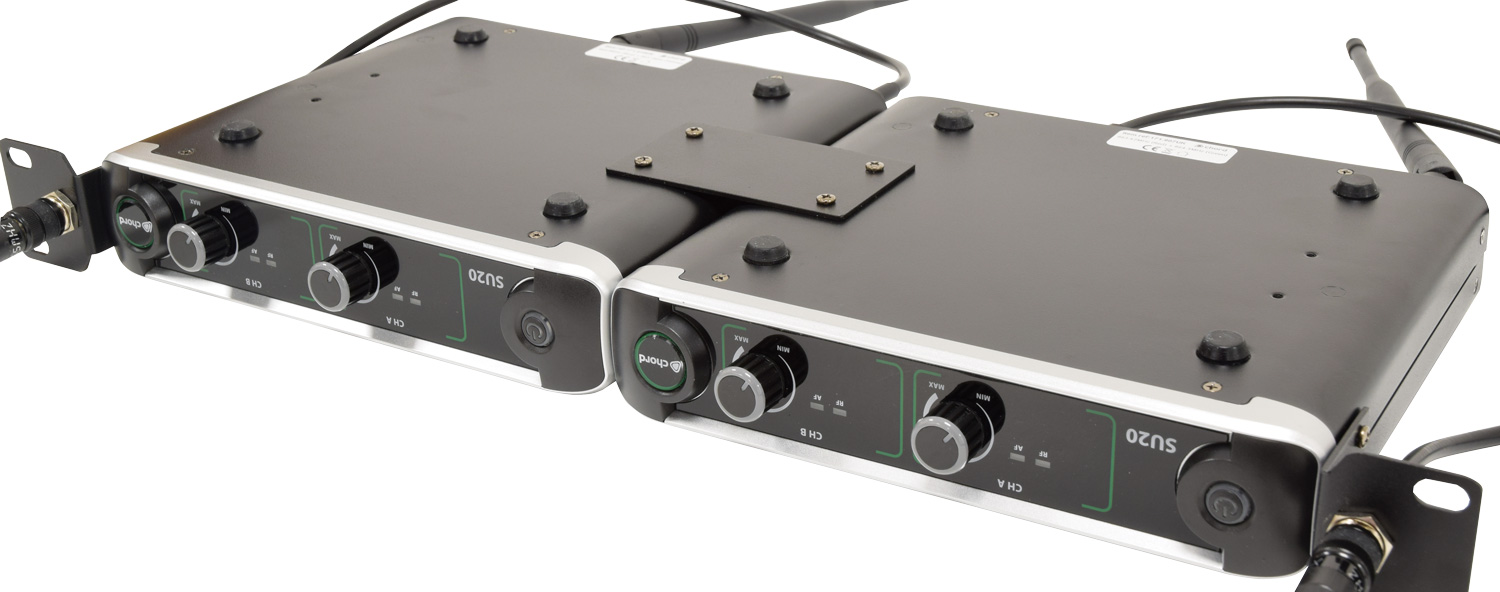

  • 1 x coupling plate for 2 receivers
  • 2 x BNC antennas
  • 2 x BNC antenna extension leads
  • 2 x handheld transmitters or beltpacks with neckband & lavalier mics
  • 14Vdc 350mA power adaptor
  • 6.3mm jack lead

Downloads

Instruction manual
For 171.908UK (296KB)
UK Declaration of conformity
For 171.908UK (247KB)
EU Declaration of conformity
For 171.908UK (240KB)
