SU20 Compact Dual UHF Microphone Sets

171.918UK SU20-B-BY

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or f...

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Compact half-rack receiver
Full description Find retailer
Description Version Packed
171.907UK
SU20 Dual UHF Handheld Microphone Set Red + Green 		Handhld 863.42+864.3 Gift Box
171.908UK
SU20 Dual UHF Handheld Microphone Set Blue + Yellow 		Handheld 864.8+863.1 Gift Box
171.917UK
SU20 Dual UHF Beltpack Microphone Set Red + Green 		Beltpak 863.42+864.3 Gift Box
171.918UK
SU20 Dual UHF Beltpack Microphone Set Blue + Yellow 		Beltpack 864.8+863.1 Gift Box
171.909UK
SU20 Dual UHF Combo Microphone Set Red + Green 		Combo 863.42+864.3 Gift Box

Accessories

Description Version Packed
171.958UK
NU4 Beltpack Transmitter Yellow 863.1MHz 		Yellow 863.1MHz Box Plain
171.959UK
NU4 Beltpack Transmitter Red 864.8Hz 		Red 864.8MHz Box Plain

SU20 Compact Dual UHF Microphone Sets

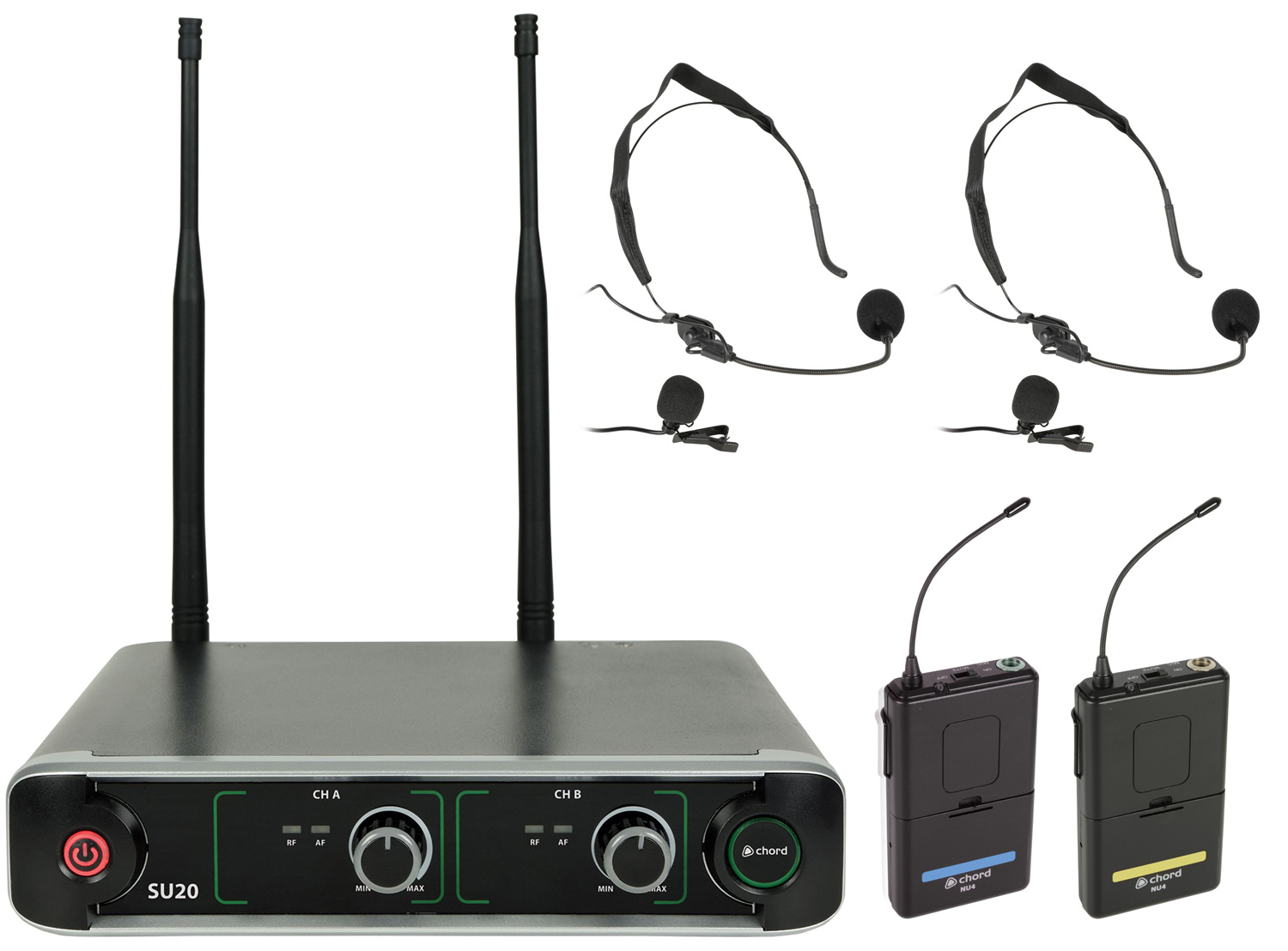

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Compact half-rack receiver
  • Front or rear mountable antennas
  • Supplied with power adaptor and 4 x AA batteries

Specification : Common

  • Power supply 14Vdc 350mA (adaptor supplied)
  • Antenna connection BNC
  • Batteries 4 x AA (2 per transmitter) included
  • Range 60m
  • Microphone : polar pattern Cardioid (handheld, neckband or lavalier)

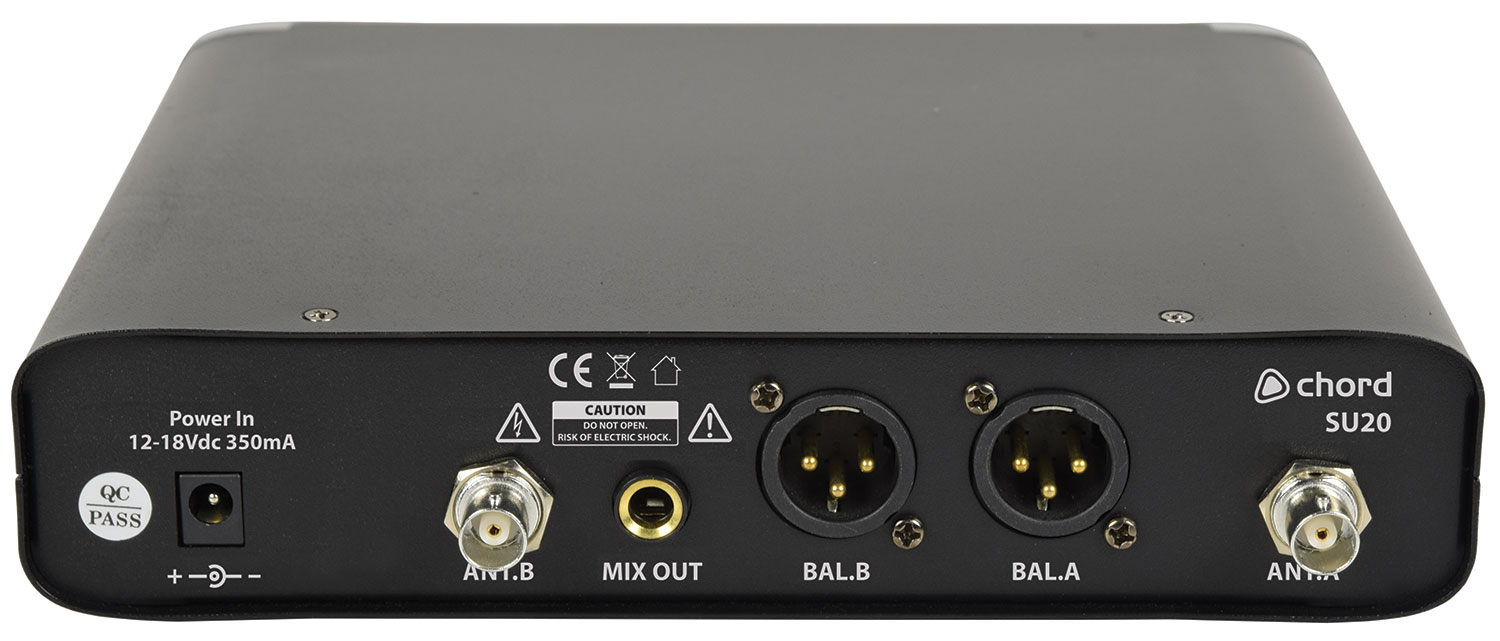

  • Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Frequency response 50Hz - 18kHz (±3dB)
  • S/N ratio >80dB
  • THD <0.5% @ 1kHz
  • Dimensions : receiver 203 x 187 x 42mm
  • Weight : receiver 845g

Specification : Versions

  171.907UK 171.908UK 171.917UK 171.918UK 171.909UK
Dimensions : handheld transmitter 250 x 47mmØ 250 x 47mmØ N/A N/A 250 x 47mmØ
Weight : handheld transmitter 231g (no battery) 231g (no battery) N/A N/A 231g (no battery)
Dimensions : beltpack transmitter N/A N/A 110 x 676 x 24mm 110 x 676 x 24mm 110 x 676 x 24mm
Weight : beltpack transmitter N/A N/A 74g (no battery) 74g (no battery) 74g (no battery)
Carrier frequencies 863.42MHz (Red) + 864.3MHz (Green) 864.8MHz (Blue) + 863.1MHz (Yellow) 863.42MHz (Red) + 864.3MHz (Green) 864.8MHz (Blue) + 863.1MHz (Yellow) 863.42MHz (Red) + 864.3MHz (Green)

Trade information

  171.907UK 171.908UK 171.917UK 171.918UK 171.909UK
Barcode / EAN 5015972215982 5015972215999 5015972216002 5015972216019 5015972217696
Package type Gift Box Gift Box Gift Box Gift Box Gift Box
Package dimensions 312 x 380 x 72mm 312 x 380 x 72mm 312 x 380 x 72mm 312 x 380 x 72mm 312 x 380 x 72mm
Package weight 1.65kg 1.65kg 1.65kg 1.65kg 1.98kg
Package quantity 1 unit 1 unit 1 unit 1 unit 1 unit
Carton dimensions 450 x 645 x 420mm 450 x 645 x 420mm 450 x 645 x 420mm 450 x 645 x 420mm 380 x 410 x 330mm
Carton weight 17.00kg 17.00kg 17.00kg 17.00kg 12.00kg
Carton quantity 10 packages 10 packages 10 packages 10 packages 10 packages

In the box

The box for this item contains :

  • SU20 half-rack dual UHF receiver

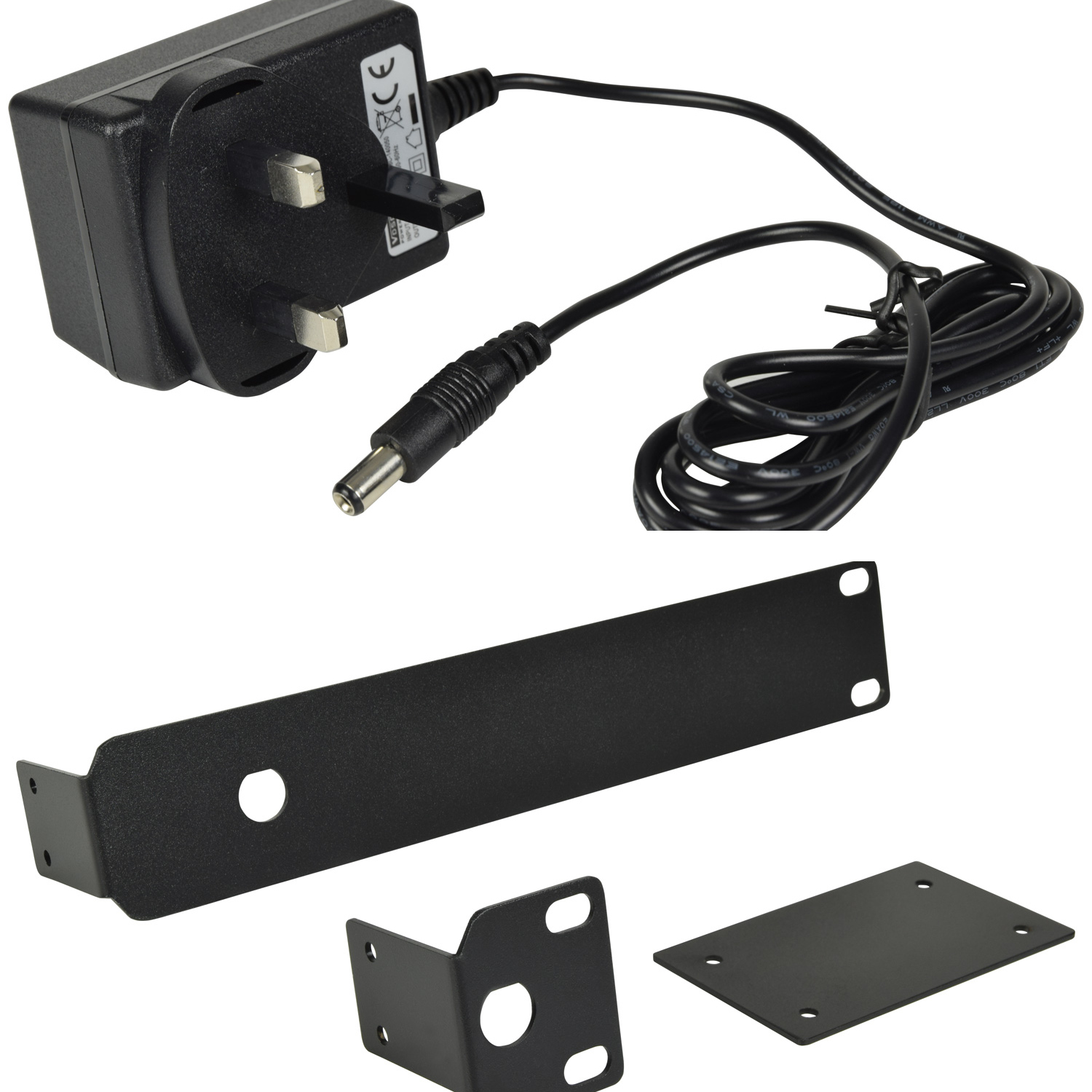

  • 1 x short rack ear
  • 1 x long rack ear

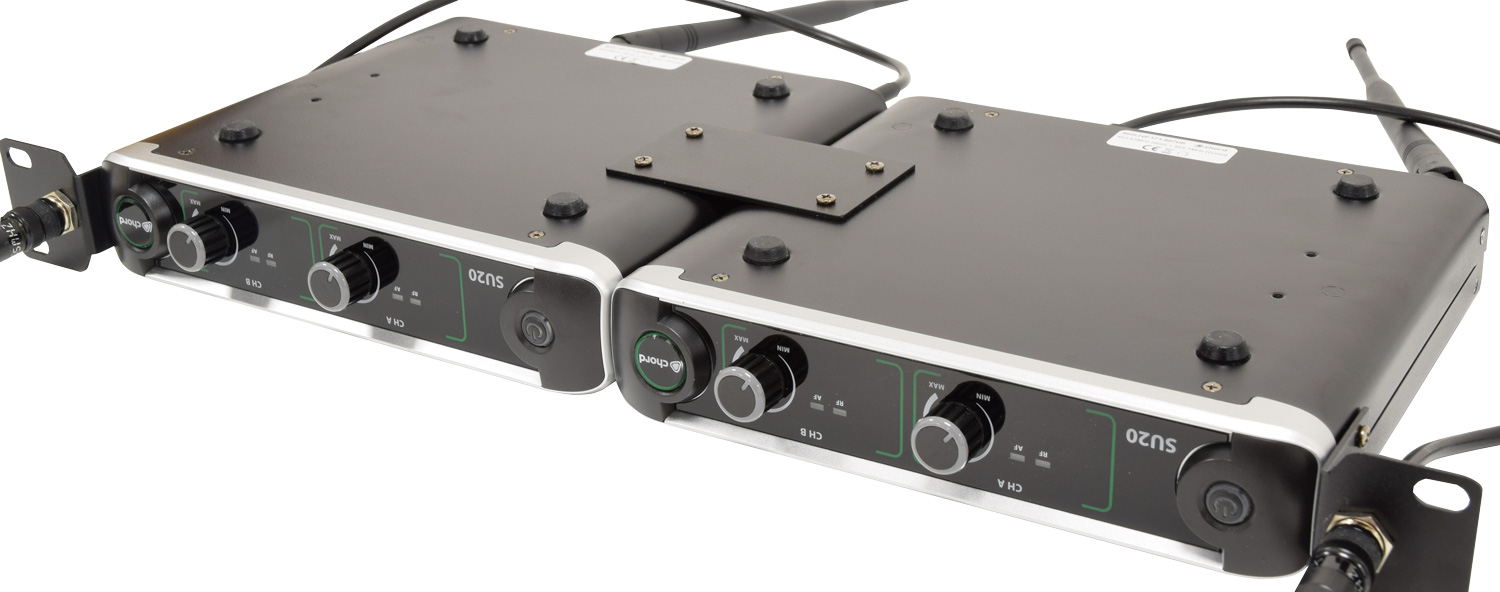

  • 1 x coupling plate for 2 receivers
  • 2 x BNC antennas
  • 2 x BNC antenna extension leads
  • 2 x handheld transmitters or beltpacks with neckband & lavalier mics
  • 14Vdc 350mA power adaptor

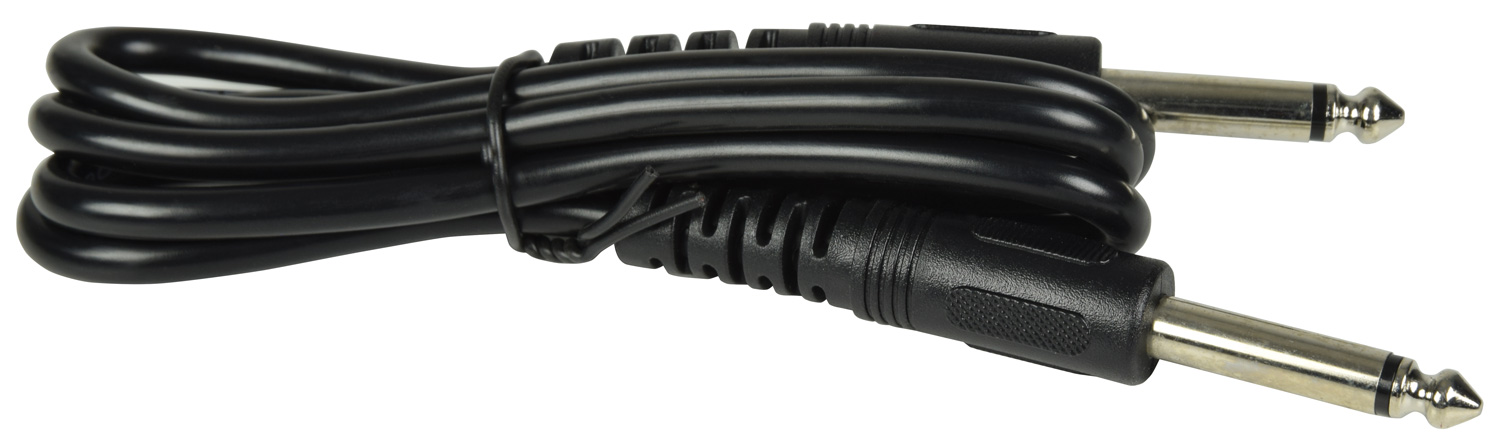

  • 6.3mm jack lead

Support

Instruction manual
For 171.909UK (295KB)
Instruction manual
For 171.907UK (295KB)
Instruction manual
For 171.908UK (295KB)
Instruction manual
For 171.917UK (295KB)
Instruction manual
For 171.918UK (295KB)
