JTC Drum + Loop PRO Dual Pedal

173.339UK JTC-PRO

JTC Pro is an advanced drum & loop pedal with simplified controls, built into a dual switch stomp box pedal with 6 hours of recording capability and 256 loop track memories. Audio recording quality...

  • 6 hour, 256 track audio memory for loops & tracks
  • 2 start modes, 3 stop modes
  • One-shot play mode for backing tracks
Description Version Packed
173.339UK
JTC Drum+Loop PRO Dual Pedal
JTC-PRO Gift Box

Accessories

Description Version Packed
173.290UK
Pedal Power Adaptor 9Vdc 500mA
9Vdc 500mA Box Label

JTC Drum + Loop PRO Dual Pedal

JTC Pro is an advanced drum & loop pedal with simplified controls, built into a dual switch stomp box pedal with 6 hours of recording capability and 256 loop track memories. Audio recording quality is 24-bit with a 44.1 kHz sample rate. A fully functional built-in drum machine section can be controlled on-the-fly by tapping tempo and punching in fills on demand using the 2 footswitches. A USB interface is included for firmware updates and can even load pre-recorded audio files to be used as backing tracks. Selectable playback modes and output options make this pedal an indispensable accompaniment tool for solo and duo performers.

  • 6 hour, 256 track audio memory for loops & tracks
  • 2 start modes, 3 stop modes
  • One-shot play mode for backing tracks
  • Fully functional drum machine with real-time control
  • Requires 9Vdc power adaptor (e.g. 173.290UK)
  • Power supply 9Vdc adaptor (not supplied)
  • Power connection DC5521 jack, negative centre
  • Sample rate 24-bit 44.1kHz
  • PC Com port Micro USB

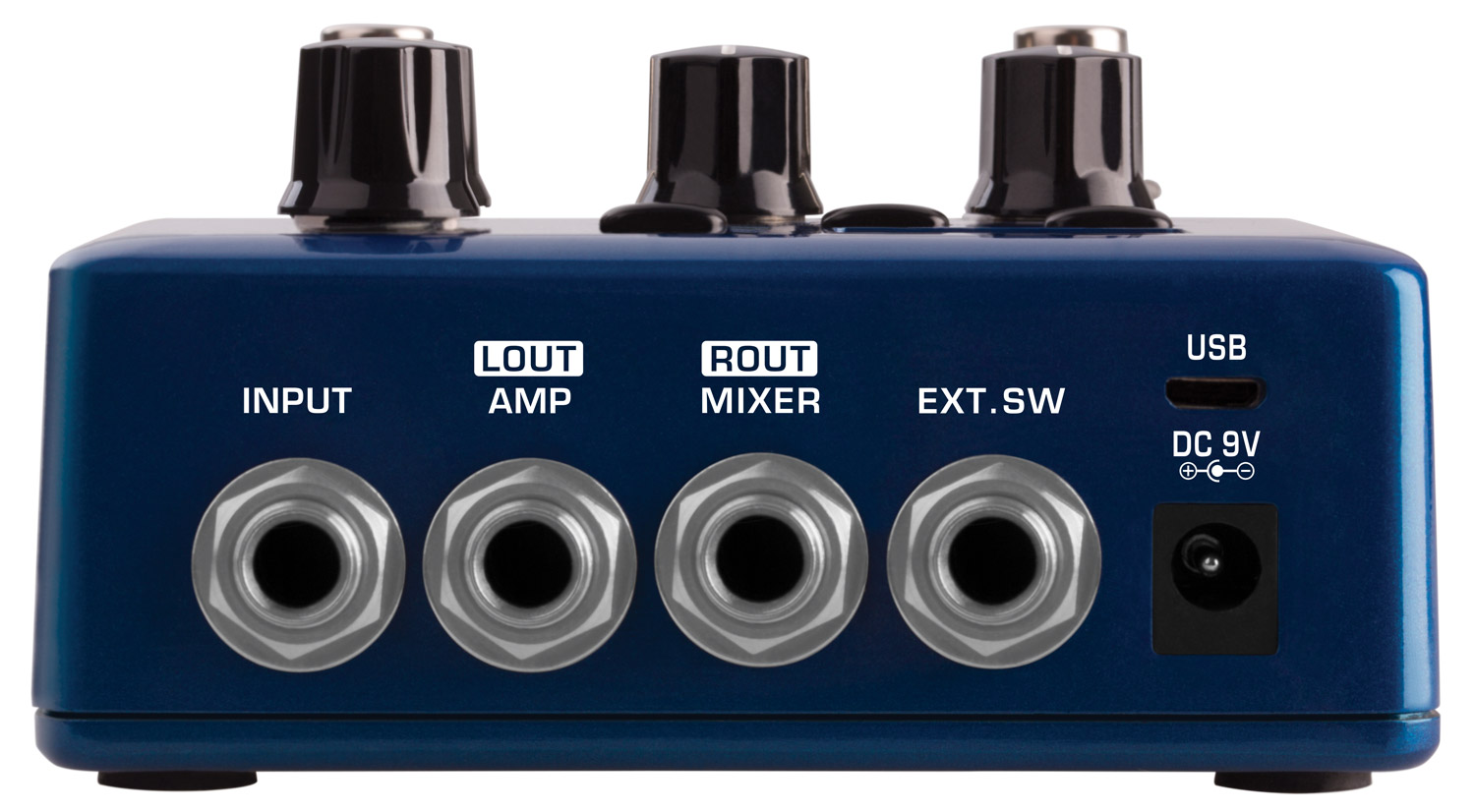

  • Inputs Guitar 6.3mm jack & ext. switch 6.3mm jack
  • Outputs L + R 6.3mm jack (or Amp + Mixer)
  • Storage capacity 6 hours audio (256 memories)
  • Dimensions 115 x 105 x 58mm
  • Weight 445g

In the box

The box for this item contains :

  • JTC Drum & Loop PRO pedal

Downloads

Instruction manual
For 173.339UK (5.5MB)
UK Declaration of conformity
For 173.339UK (246KB)
EU Declaration of conformity
For 173.339UK (237KB)
