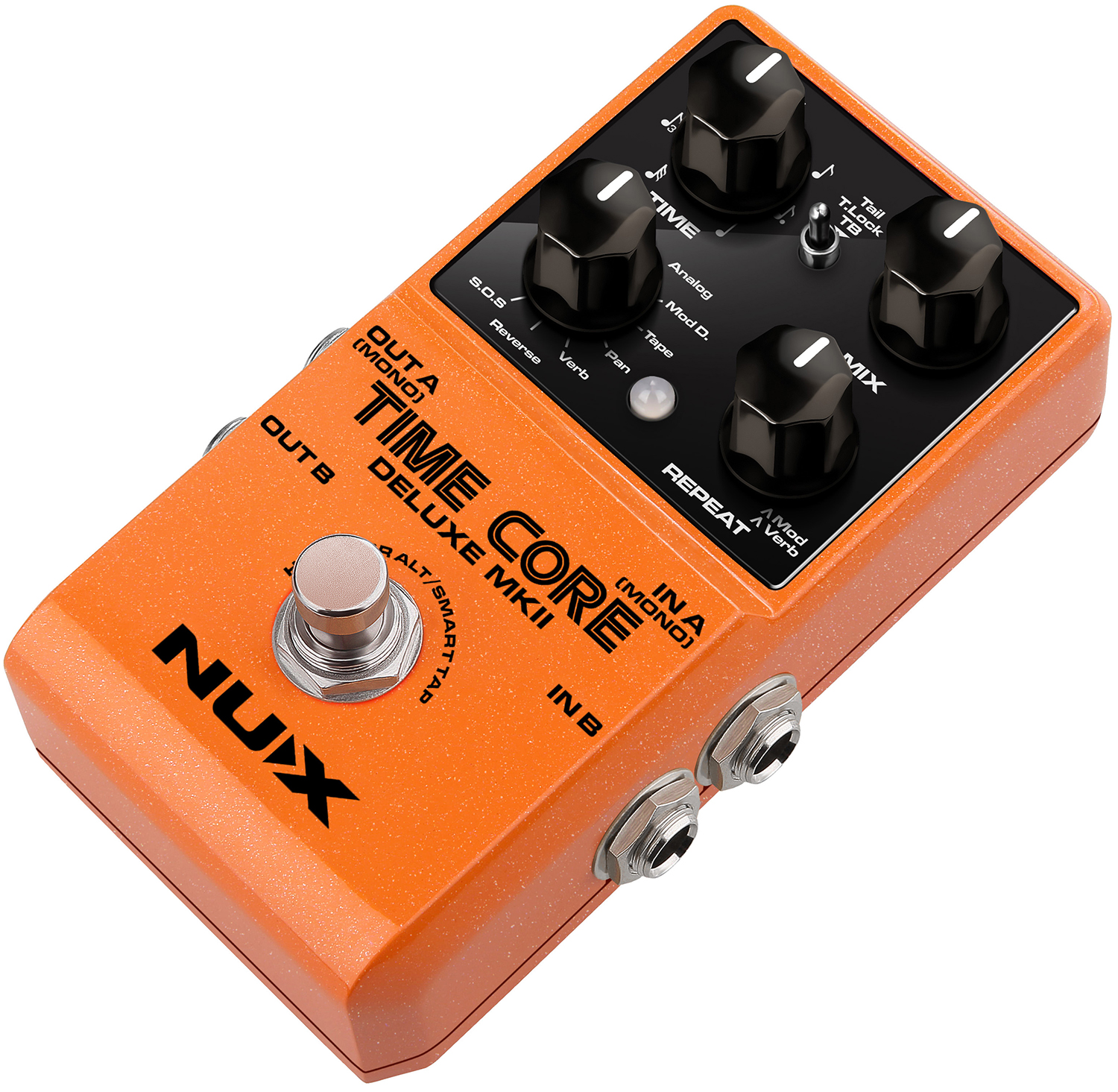

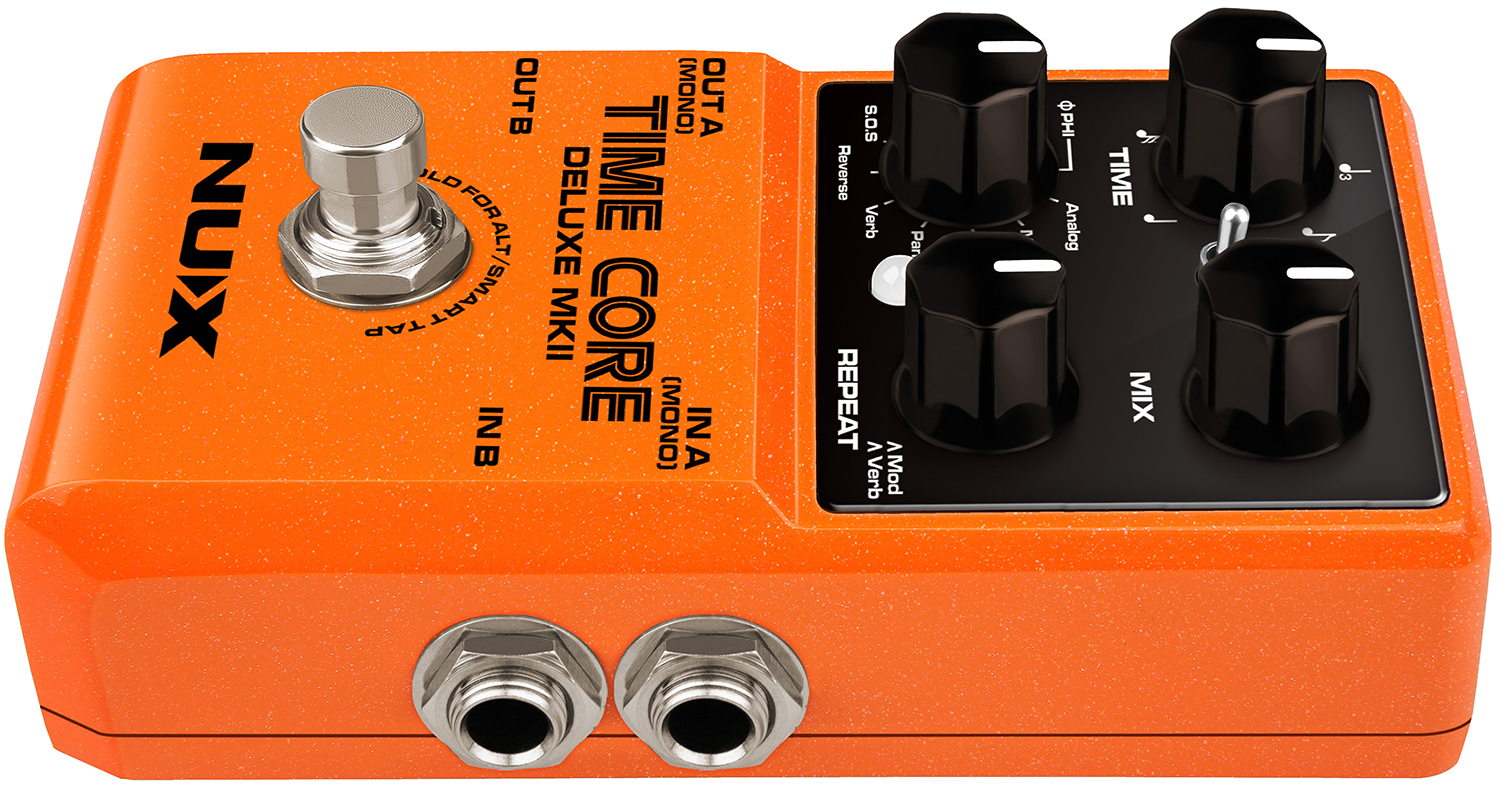

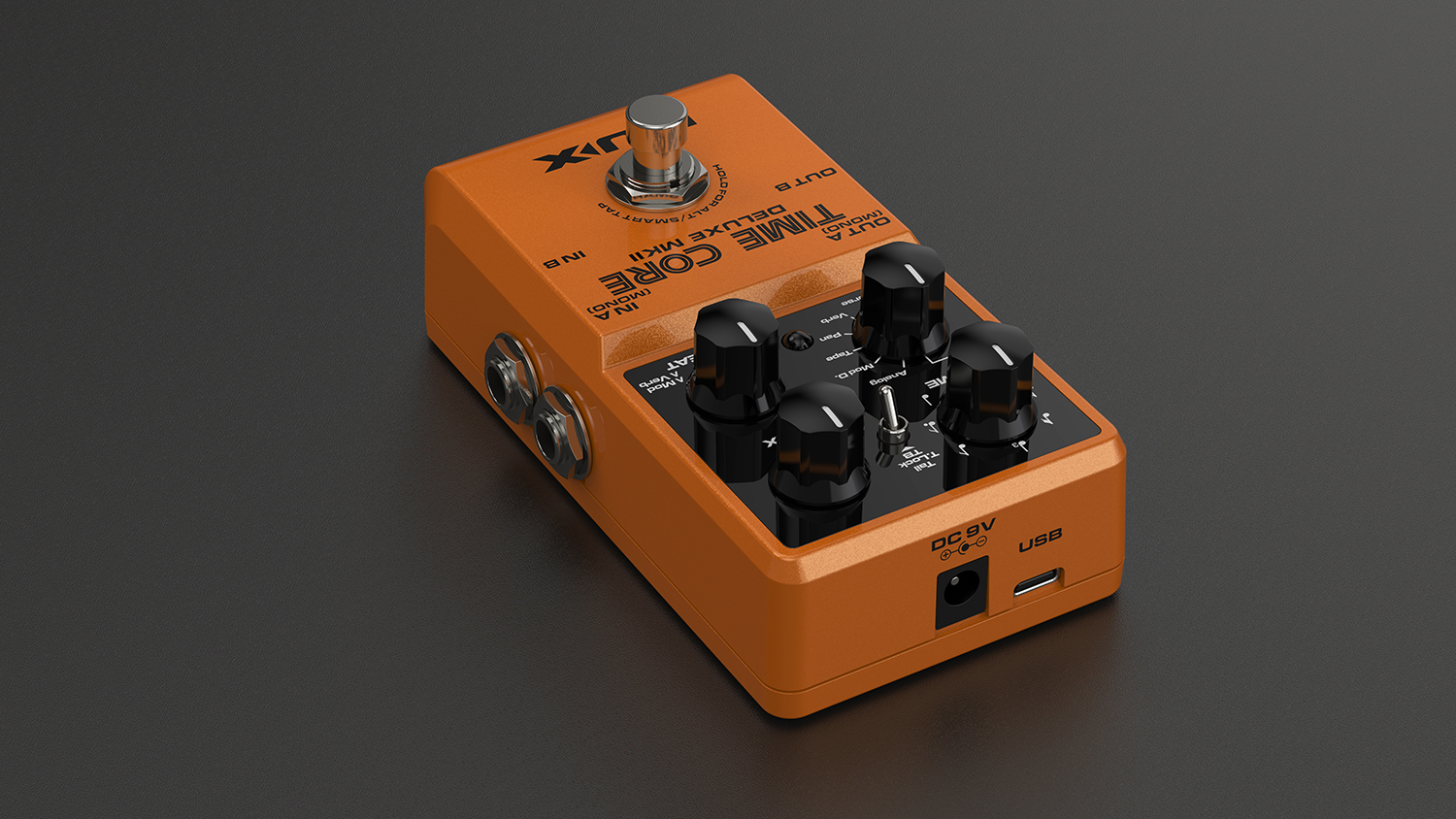

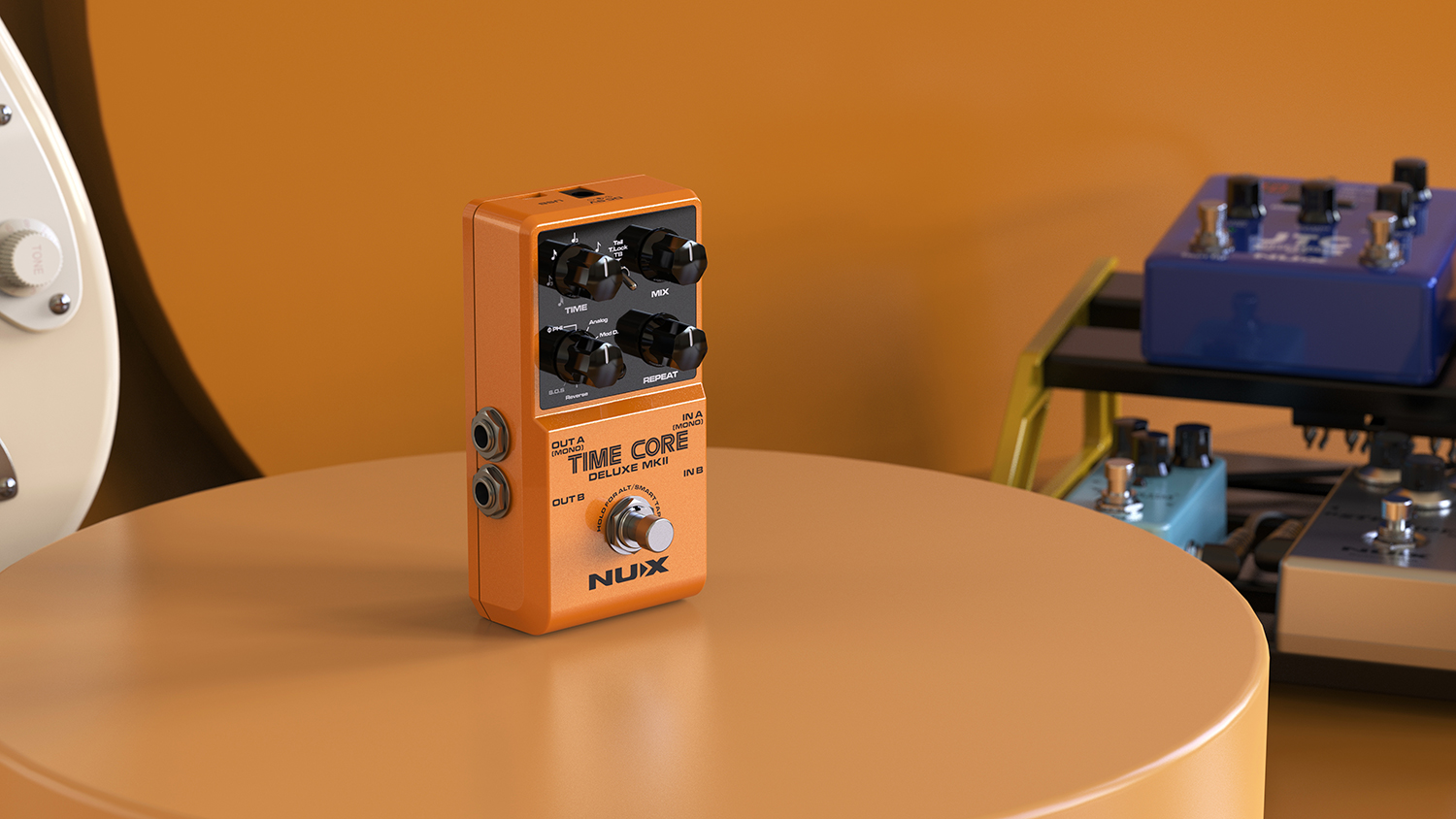

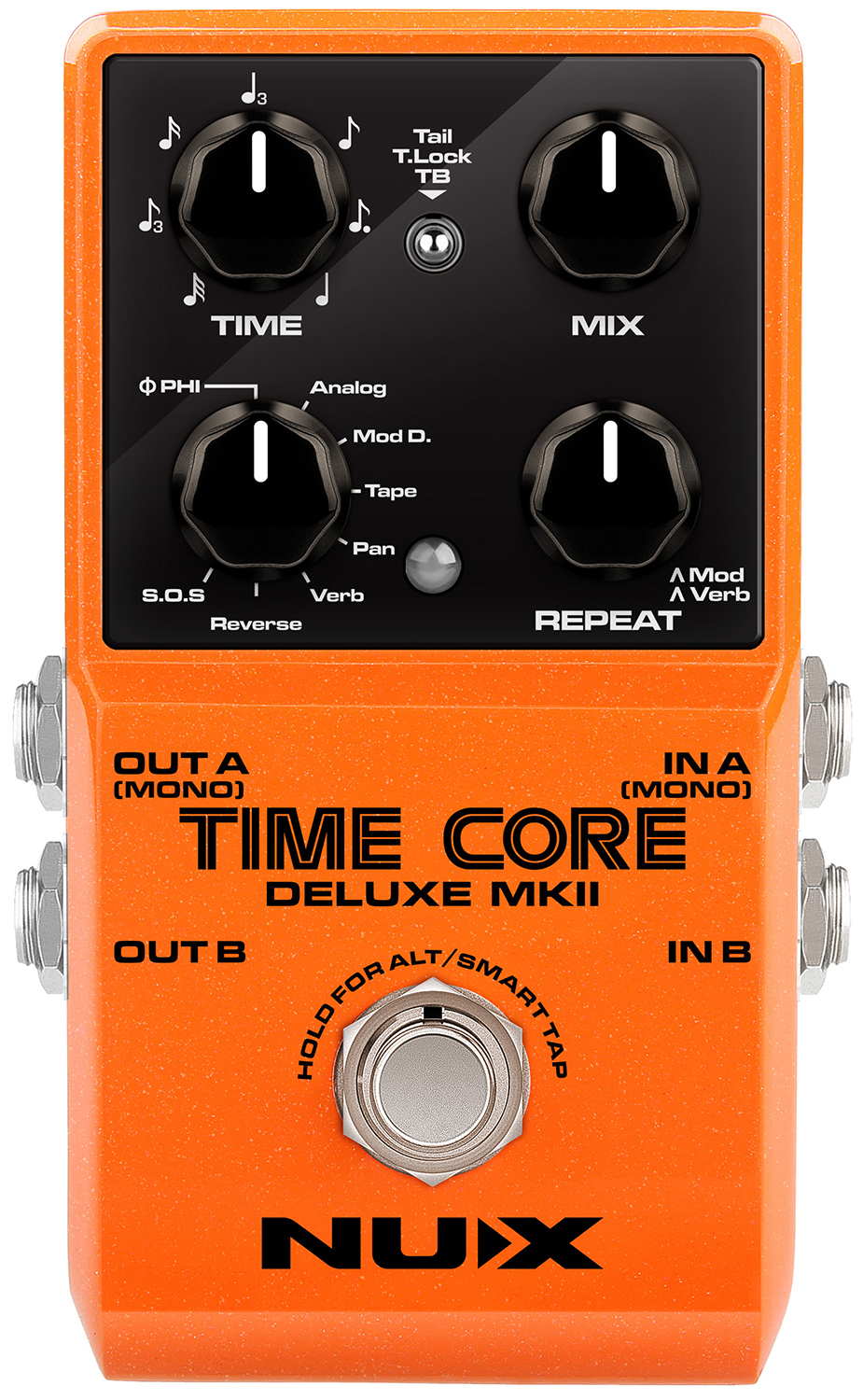

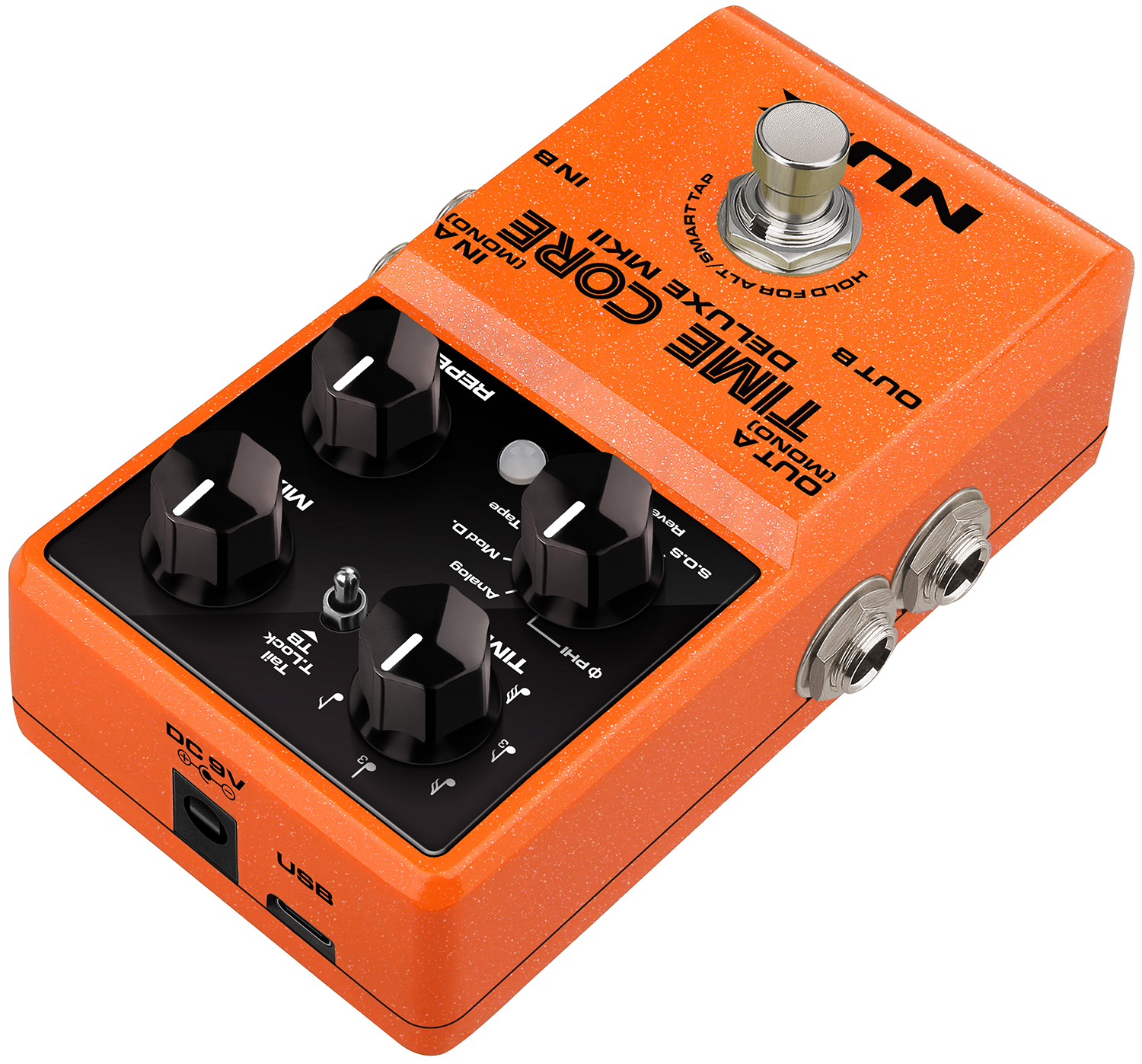

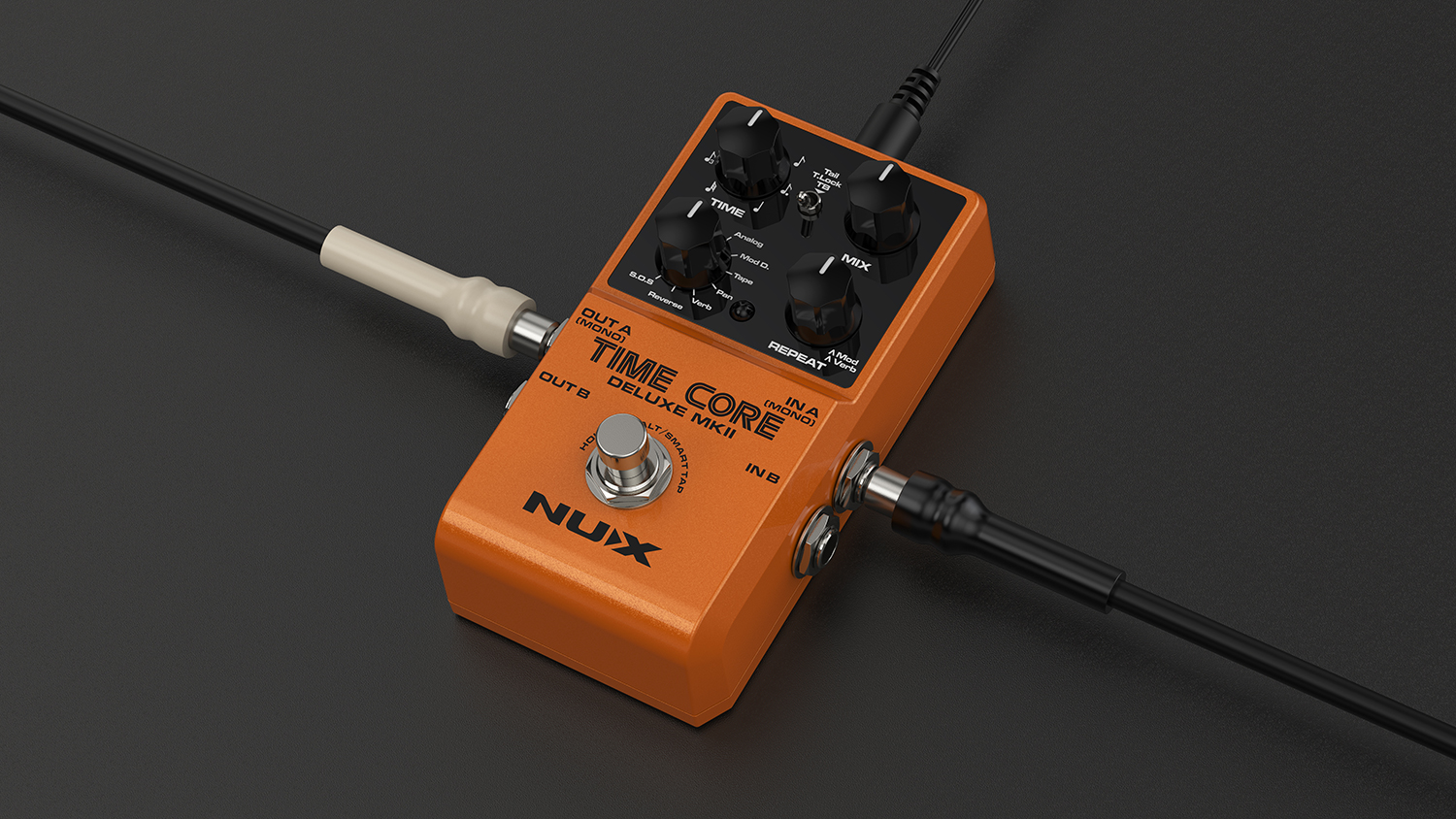

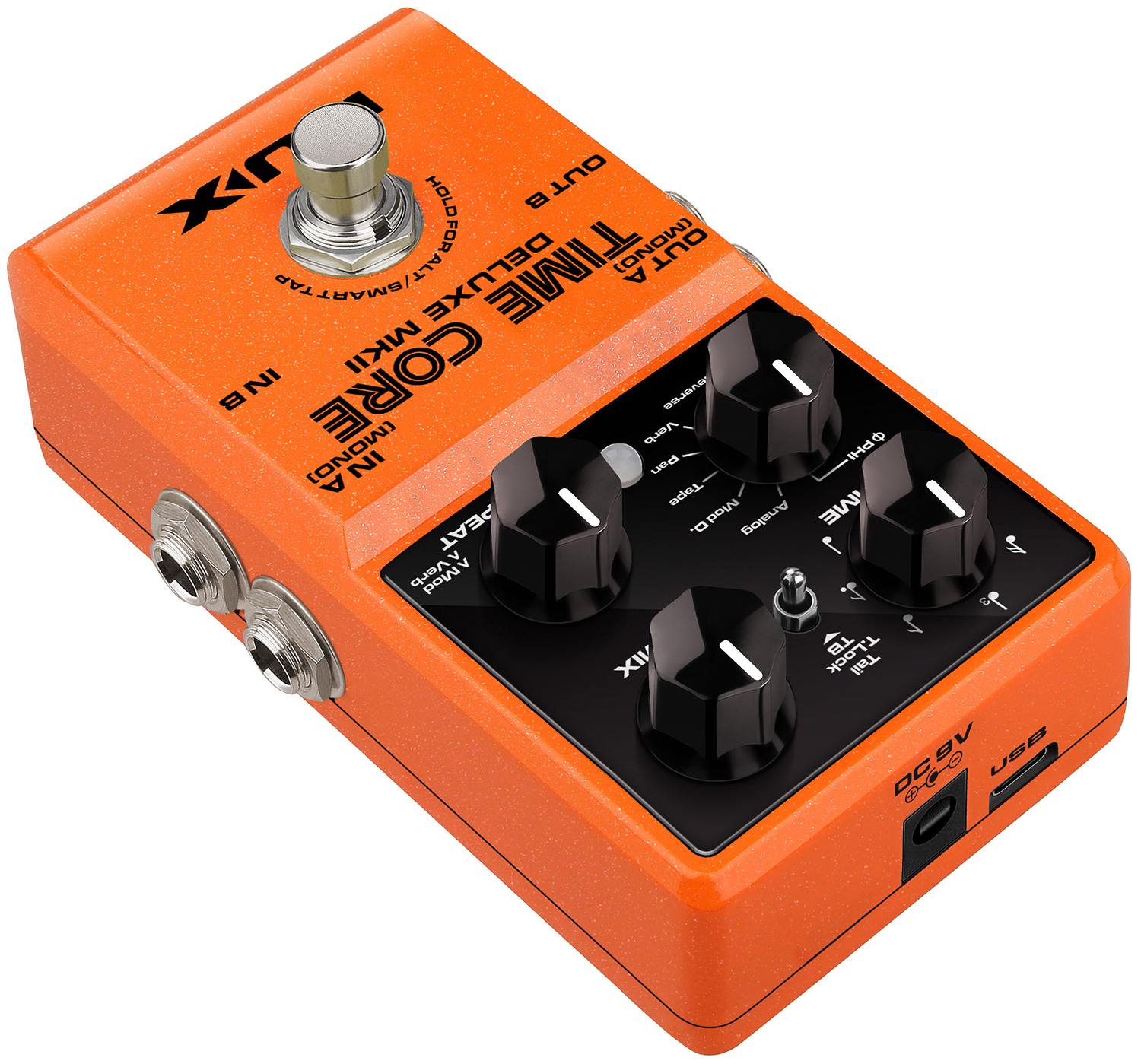

Time Core Deluxe mkII Pedal

173.471UK TIMECOREDLX-MKII

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up...

  • Full stereo or mono signal path
  • True or buffered bypass options
  • 7 distinct delay types
Description Version Packed
173.471UK
Time Core Deluxe mkII Pedal
Time Core Deluxe mk2 Gift Box

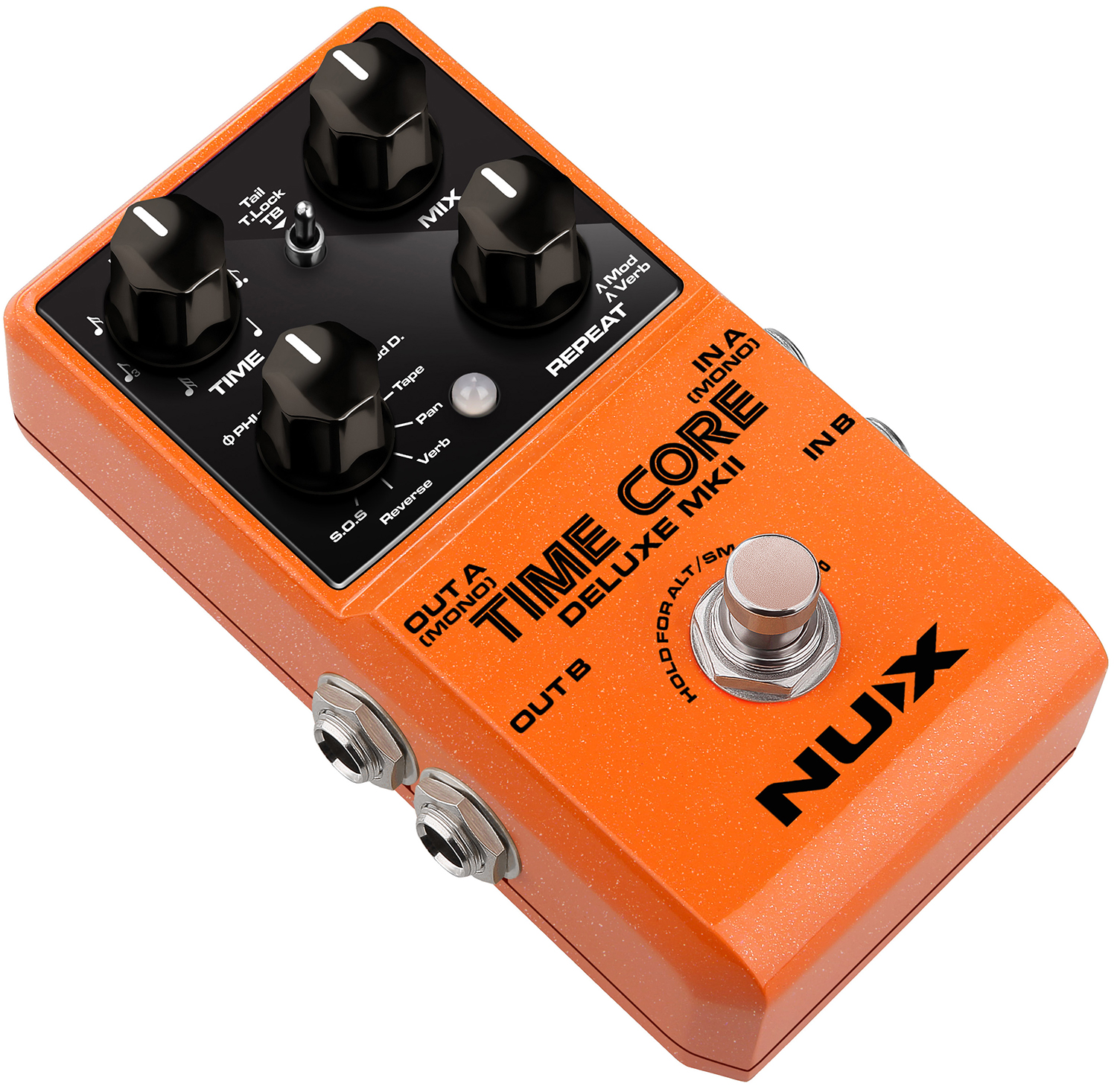

Time Core Deluxe mkII Pedal

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

  • Full stereo or mono signal path
  • True or buffered bypass options
  • 7 distinct delay types
  • 40 second looper function
  • USB-C port for firmware updates
  • Power supply 9Vdc (power adaptor required)
  • DC input connection DC5521 jack (for optional adaptor - pin-negative)
  • Current consumption <120mA

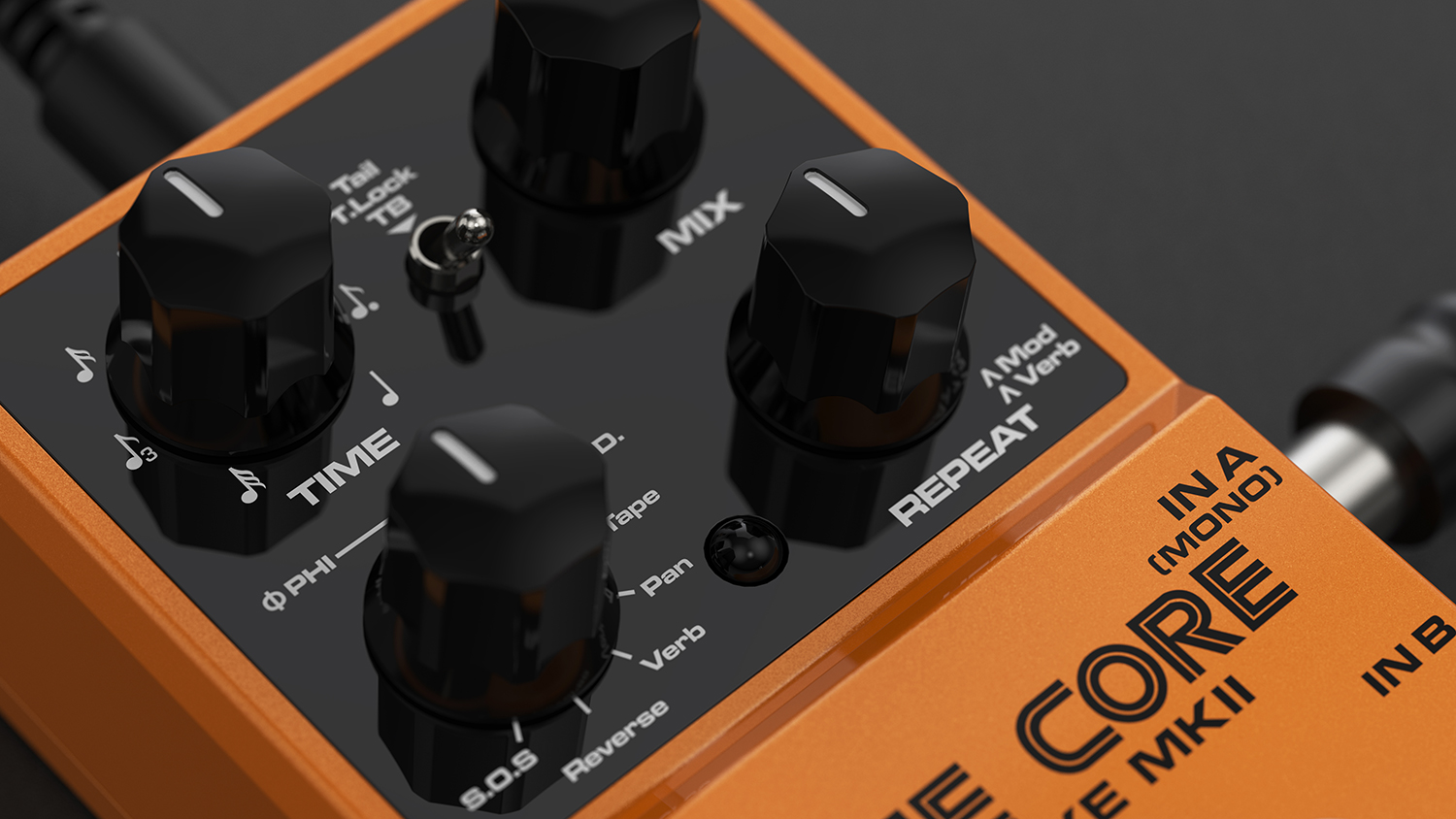

  • Controls Time, Mix, Repeat, Delay type
  • Recording mode 40 second sound-on-sound looper
  • Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay

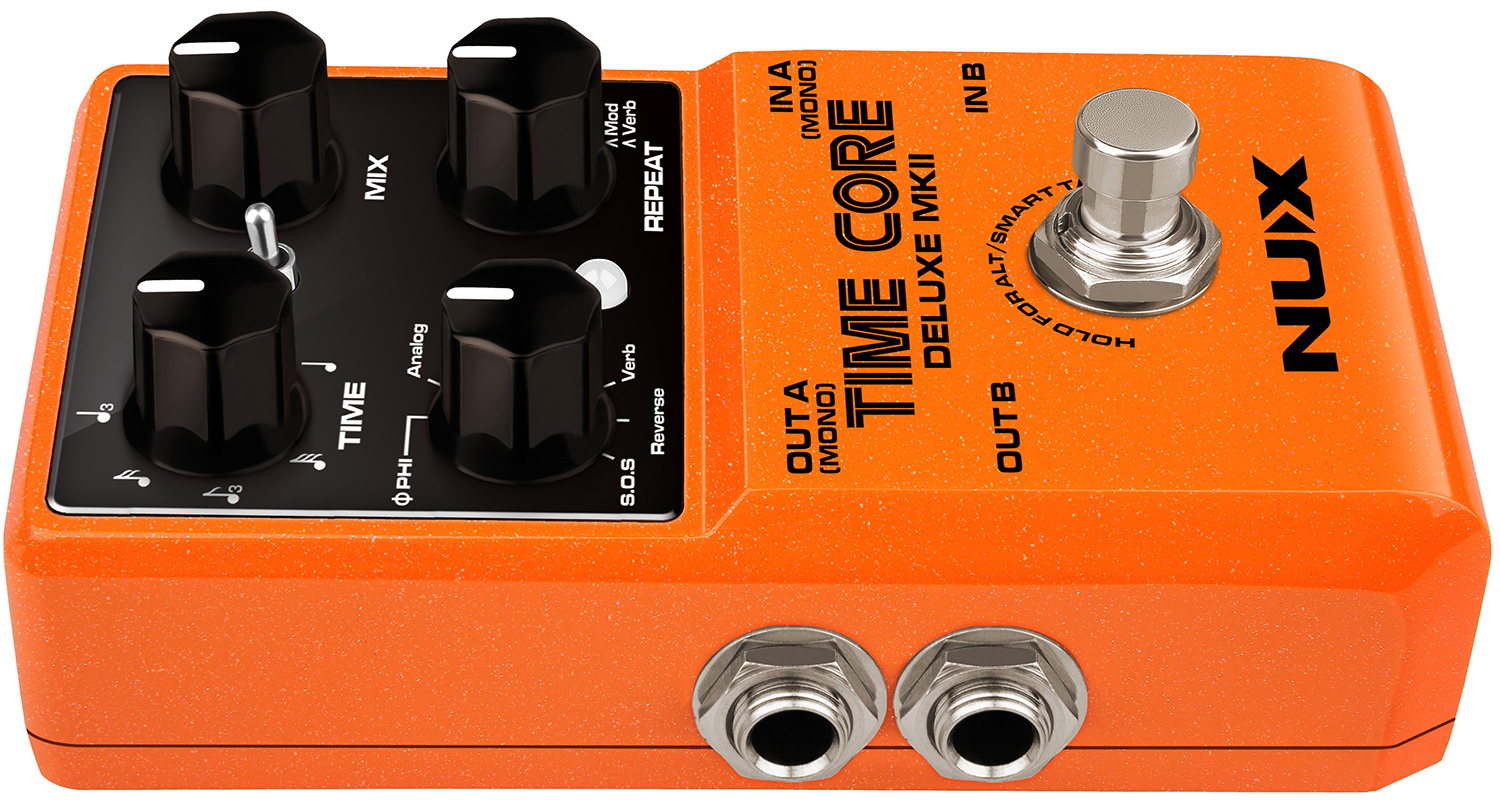

  • Inputs L+R 6.3mm mono jack
  • Outputs L+R 6.3mm mono jack
  • Sampling format 48kHz, 24-bit
  • Input impedance 1M ohm
  • Output impedance 1k ohm
  • Dynamic range 104dB
  • Dimensions 122 x 72 x 47mm
  • Weight 270g

In the box

The box for this item contains :

  • Time Core Deluxe MkII pedal

Videos

NUX EFX CORE SERIES RANGE | Core Series Stomp Boxes

Downloads

Instruction manual
For 173.471UK (10.5MB)
UK Declaration of conformity
For 173.471UK (244KB)
EU Declaration of conformity
For 173.471UK (234KB)
