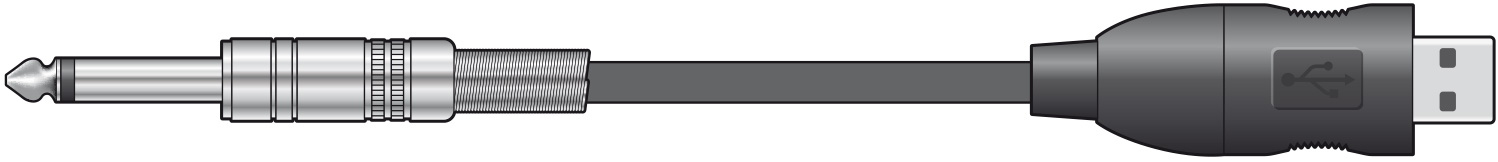

Jack to USB Converter Lead

173.615UK JACK-USB2

Analogue to digital conversion lead with 6.3mm jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac...

  • Plug-and-play solution
  • USB bus powered
  • Compatible with Windows 2000/XP/7/8 or Mac OS X 10.1 and above
Description Version Packed
173.615UK
Mono 6.3mm Jack to USB converter lead
Box Label BW

Jack to USB Converter Lead

Analogue to digital conversion lead with 6.3mm jack connector at one end and USB type A connector at the other, for connecting a line input, instrument or dynamic microphone directly to a PC or Mac computer. An easy and efficient solution for digital recording of vocal lines, instruments and podcasts.

  • Plug-and-play solution
  • USB bus powered
  • Compatible with Windows 2000/XP/7/8 or Mac OS X 10.1 and above
  • Up to 48kHz A/D conversion

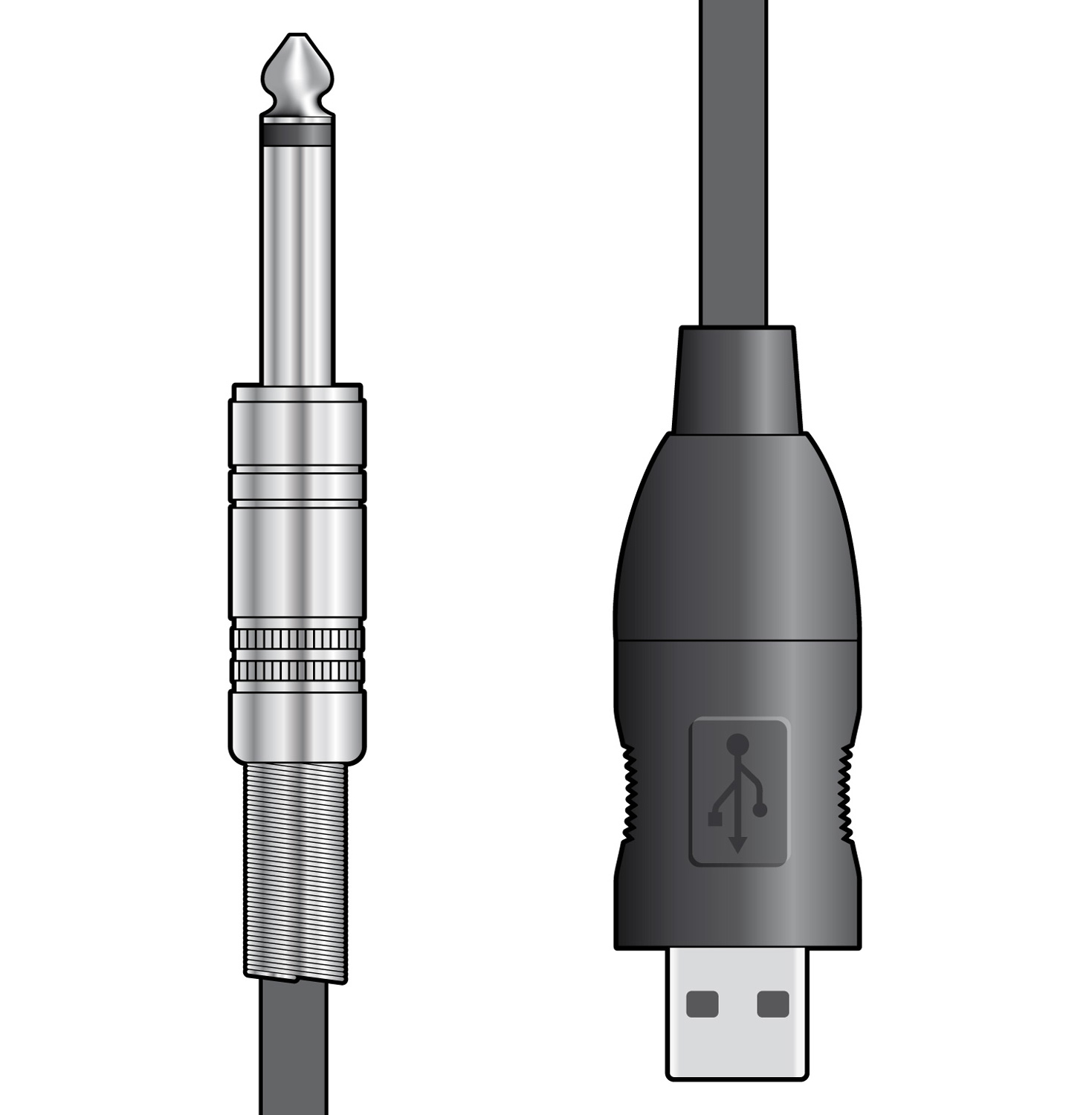

  • Connectors 6.3mm mono jack - USB type A

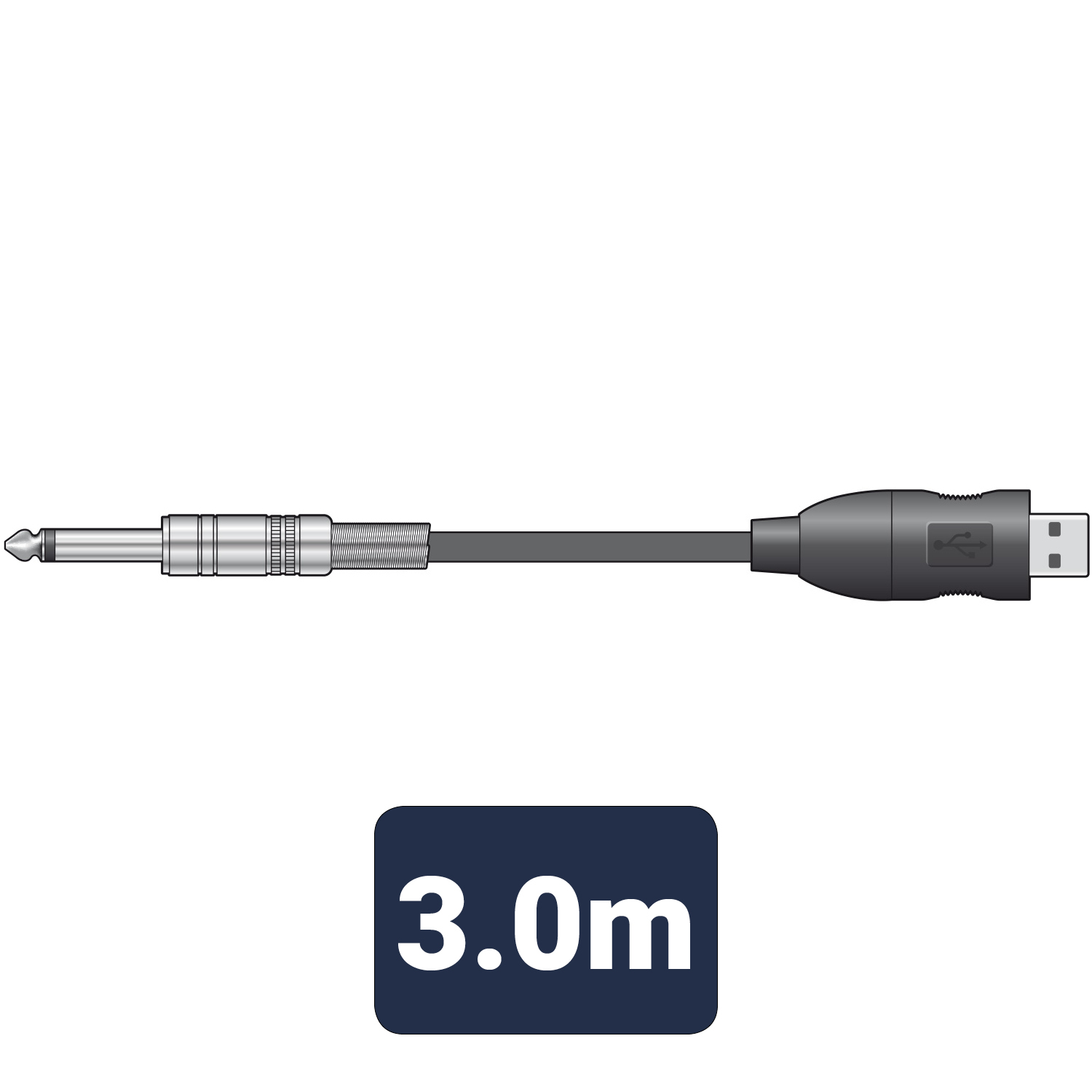

  • Lead length 3.0m
  • Input impedance 1M Ohms
  • Sampling format 16bit @ 48/44.1kHz
  • Input level 0-2.8Vpp
  • THD +N -76dB (-3dBr)
  • S/N ratio 83dB
  • Dynamic range 80dB
  • Frequency response 20Hz-19kHz (@48kHz)
  • Gain +20dB
  • Weight 153g

In the box

The box for this item contains :

  • Jack to USB converter lead
