CM25 Studio Condenser Microphone

173.629UK CM25

Large diaphragm condenser microphone with cardioid polar response pattern for accurate reproduction of vocals and instruments in a recording or broadcast studio. All metal construction with a bespo...

  • Powered by 30-48V phantom power
  • Illuminated badge on pickup side
  • Cast zinc alloy body
Full description Find retailer
Description Version Packed
173.629UK
CM25 Studio Condenser Microphone 		CM25 Sleeve

CM25 Studio Condenser Microphone

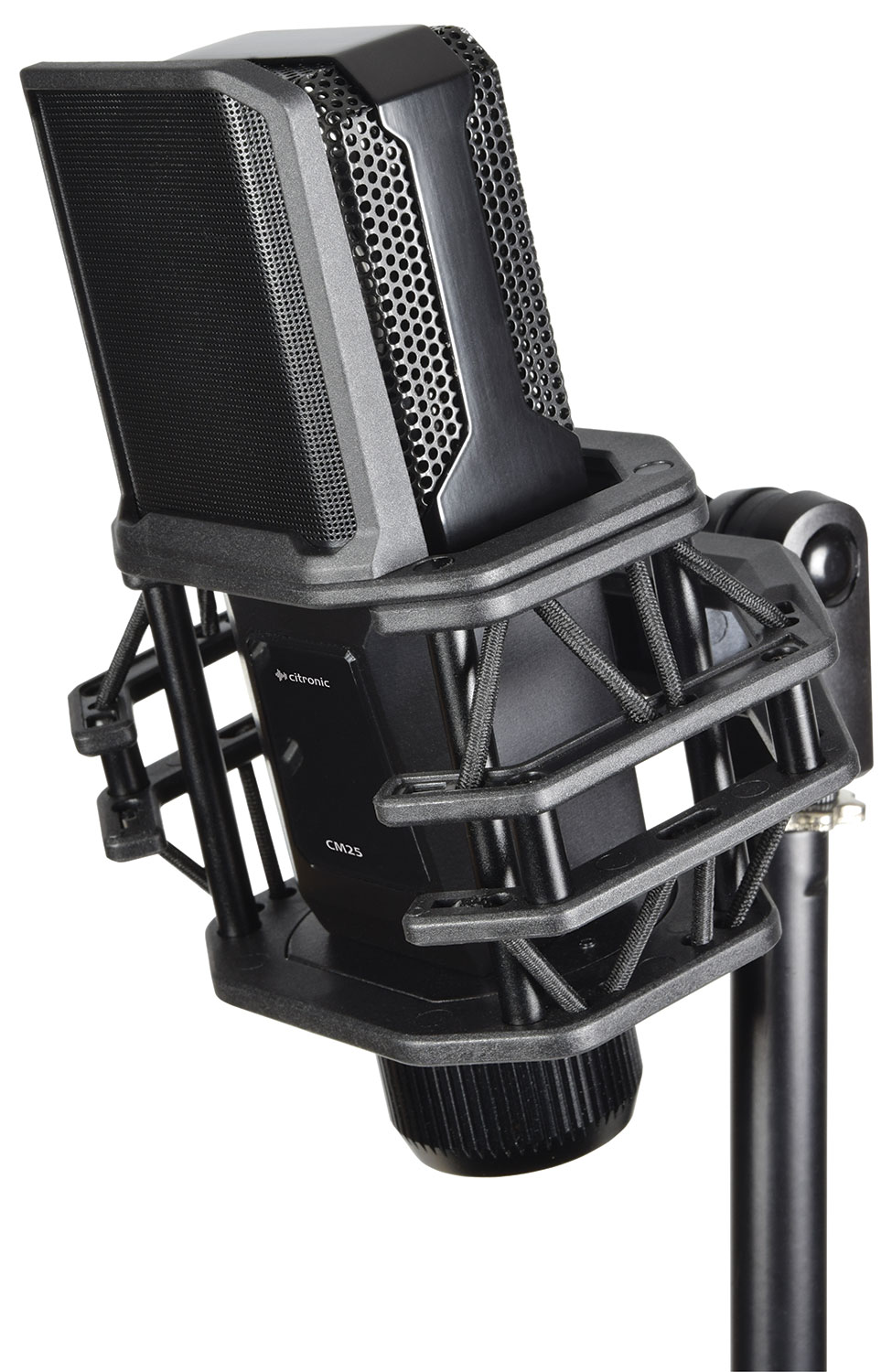

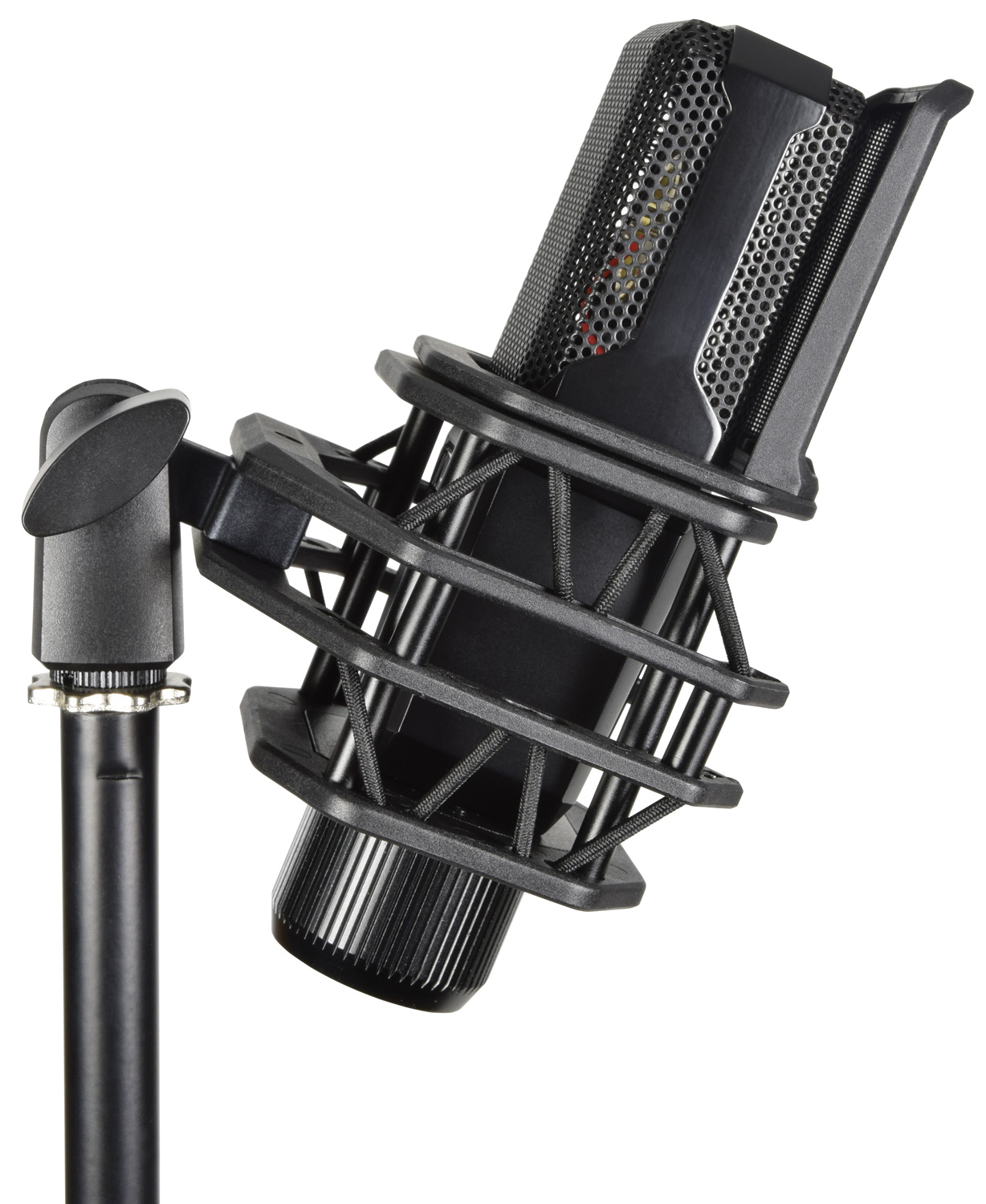

Large diaphragm condenser microphone with cardioid polar response pattern for accurate reproduction of vocals and instruments in a recording or broadcast studio. All metal construction with a bespoke shock-mount and magnetic pop-shield included, ready to mount to a standard microphone stand or boom arm. Connection via XLR for high quality balanced audio output and phantom power from a mixing console or dedicated phantom power supply. Supplied with a 3m balanced XLR lead in a fitted aluminium transit case.

  • Powered by 30-48V phantom power
  • Illuminated badge on pickup side
  • Cast zinc alloy body
  • Supplied with shock-mount, pop shield & XLR lead
  • Supplied in an aluminium case
  • Power supply 30 - 48V phantom power (via XLR)
  • Polar pattern Cardioid
  • Construction Zinc alloy body and steel grille
  • Capsule 25mmØ nickel sputtered diaphragm
  • Sensitivity -42dB (1kHz, 0dB = 1V/Pa)
  • Output impedance 2.2k Ohm
  • S/N ratio 68dB (A-weighted)
  • SPL max. 120dB (1kHz)
  • Lead length 3m
  • Dimensions 152 x 53 x 39mm
  • Weight 328g

Support : articles

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.

Friday, 3rd March 2017

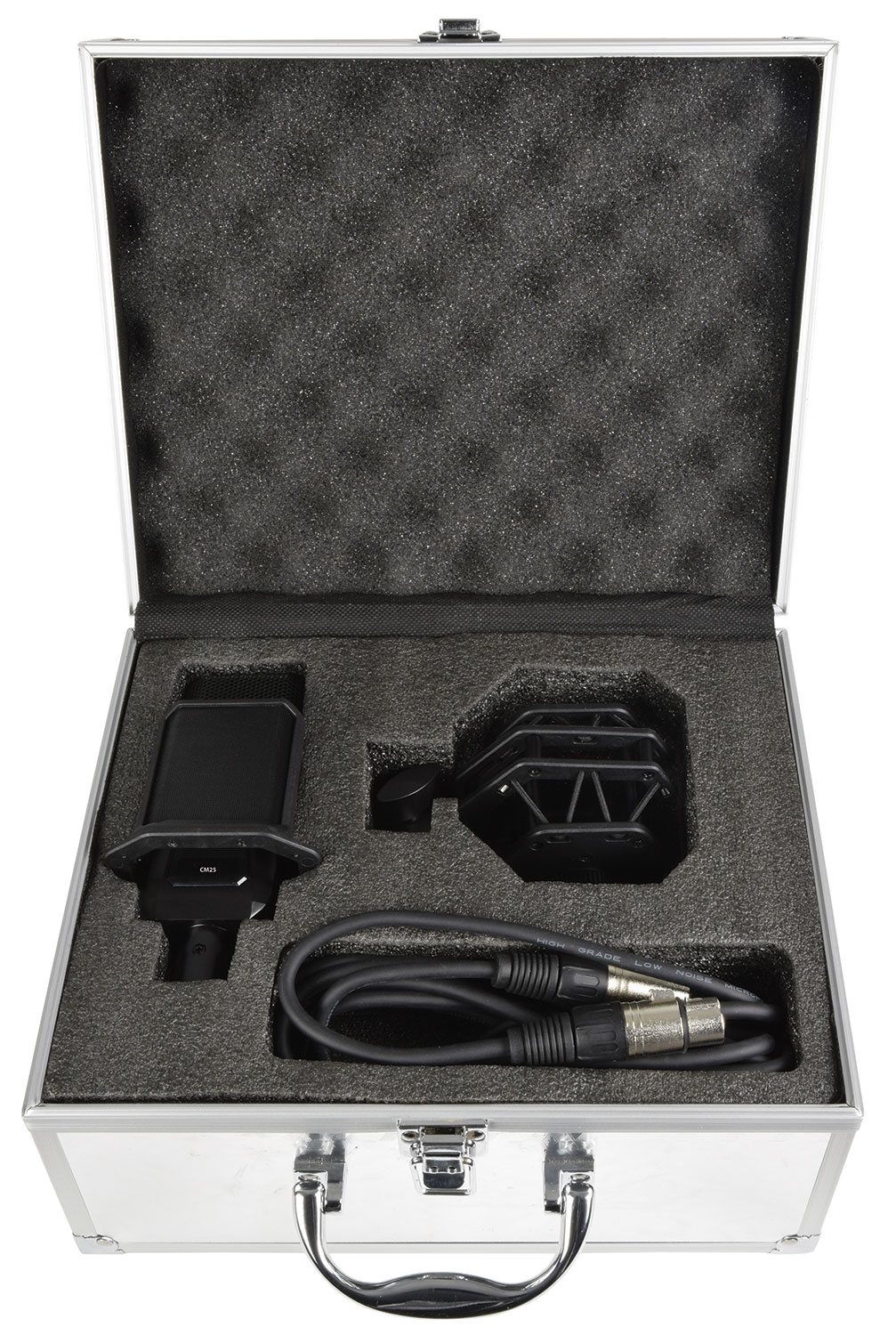

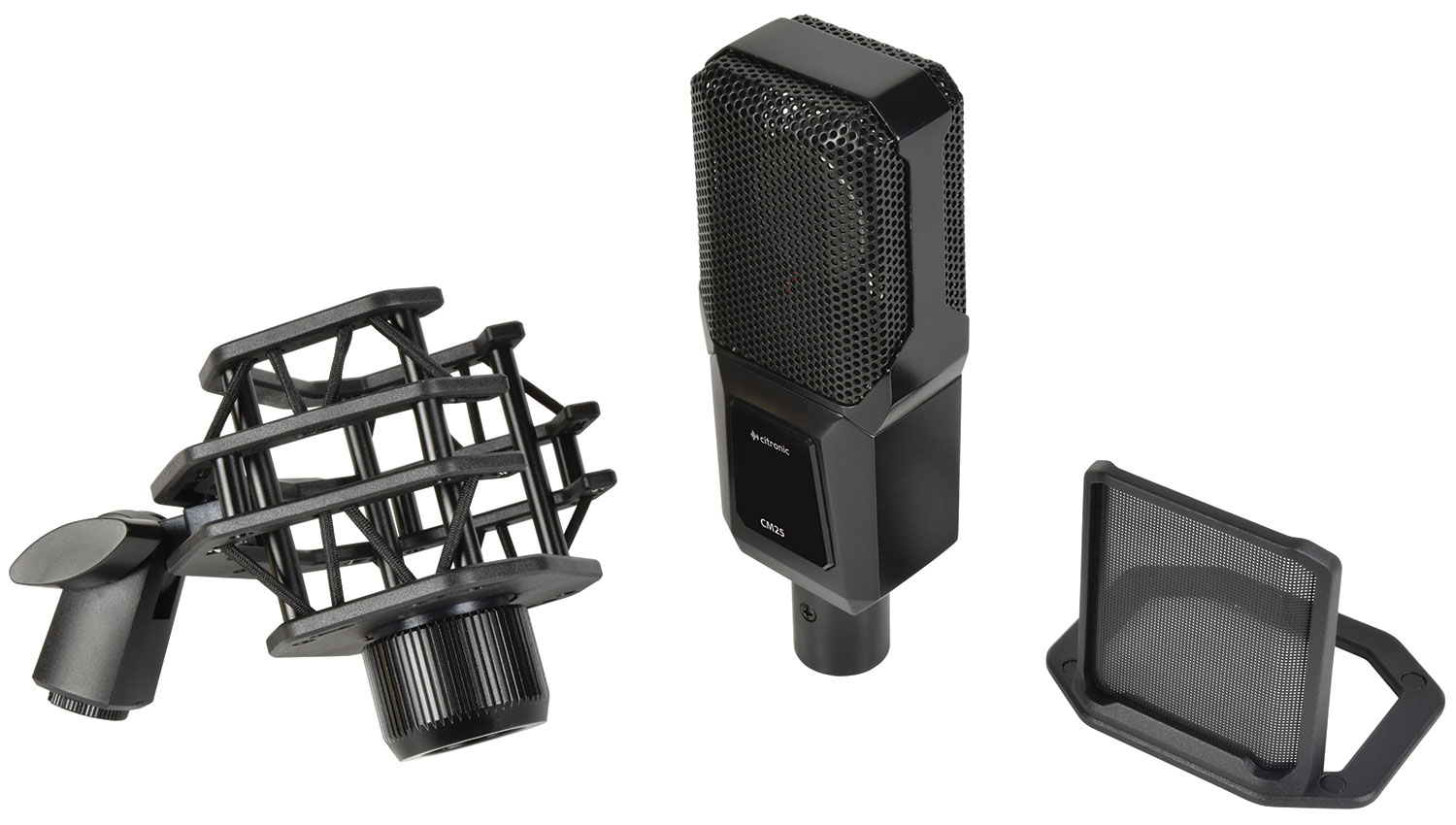

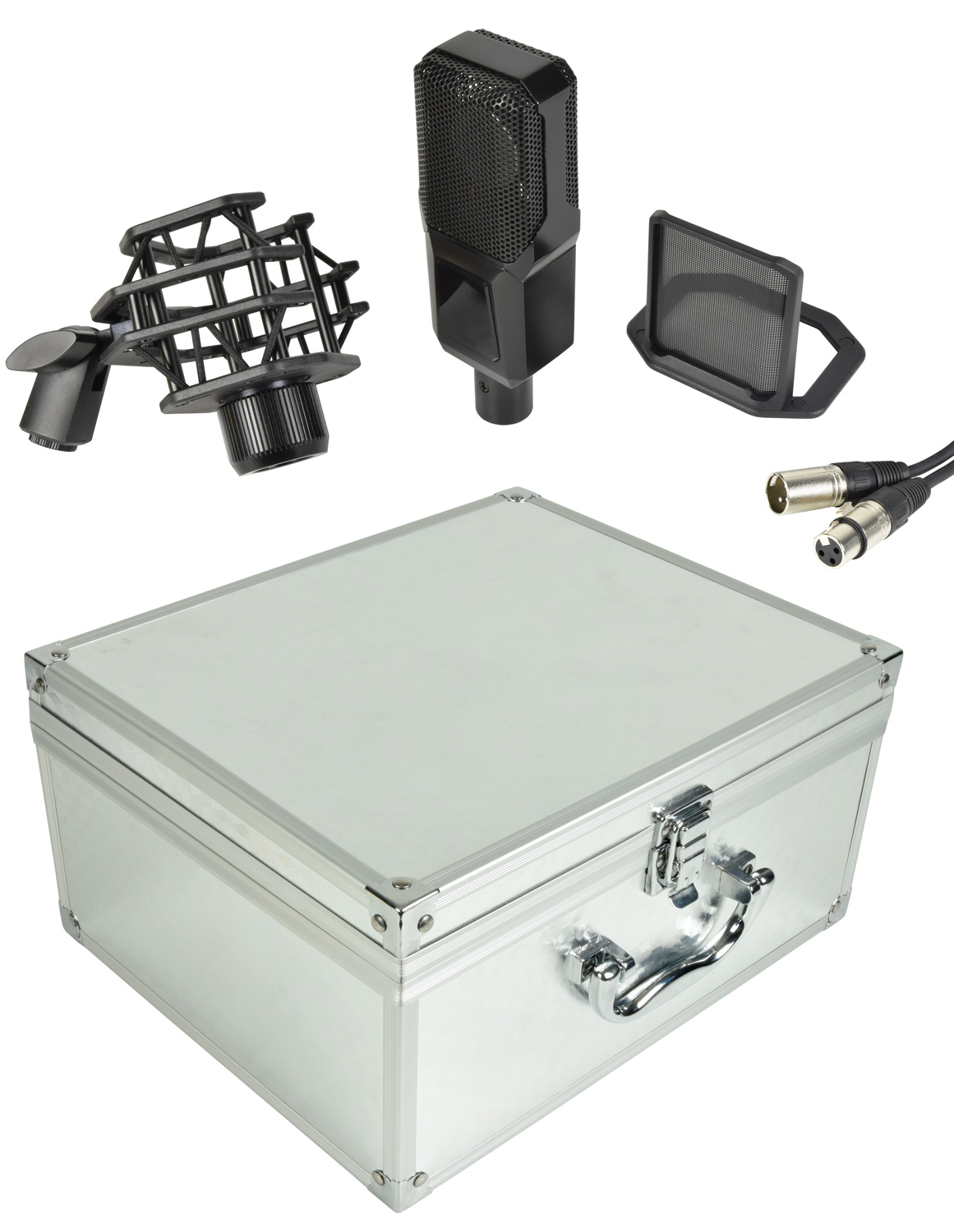

In the box

The box for this item contains :

  • CM25 condenser microphone
  • Fitted shock-mount cradle
  • Magnetic pop shield

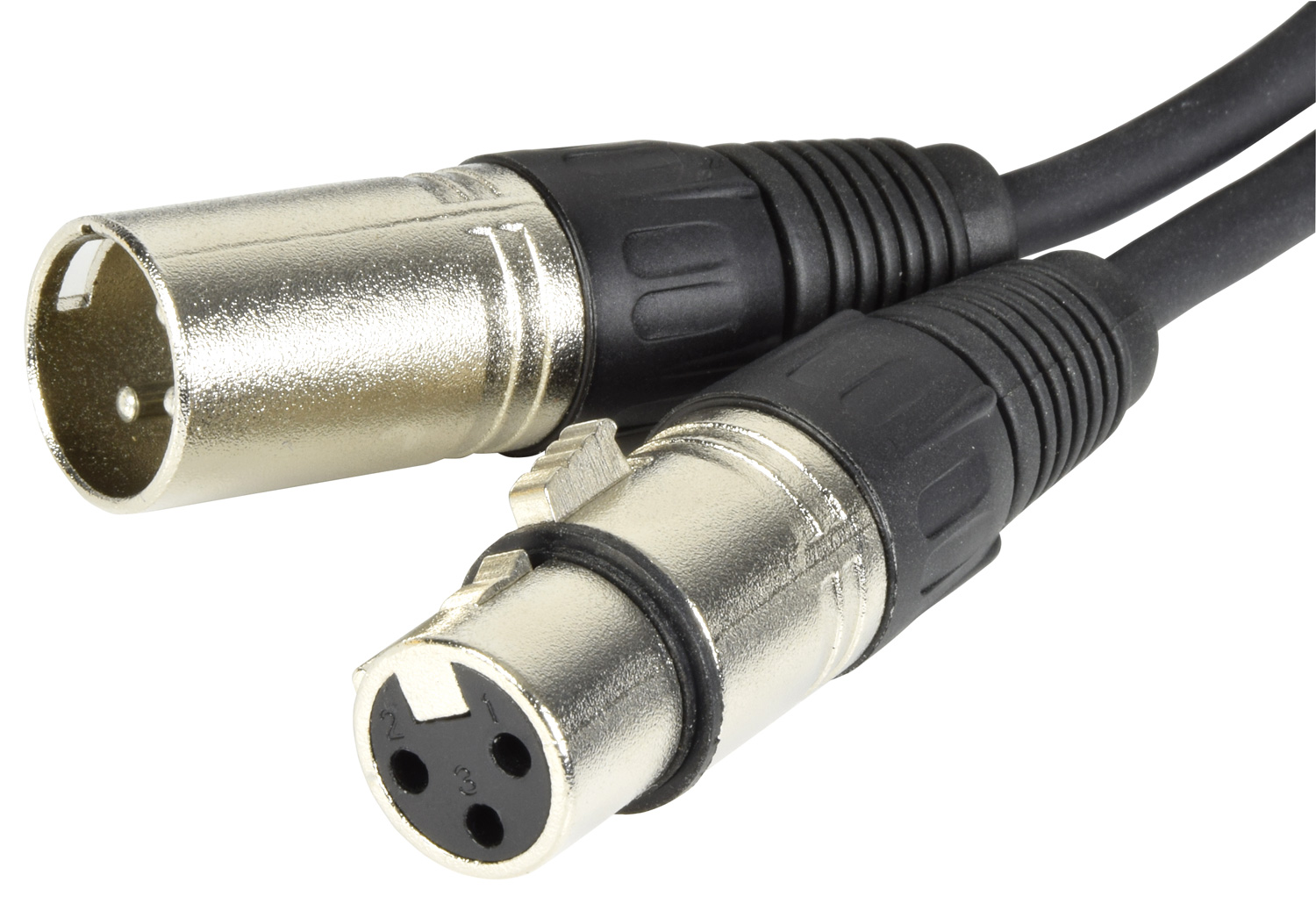

  • 3m balanced XLR lead
  • Aluminium transit case

Downloads

UK Declaration of conformity
For 173.629UK (241KB)
EU Declaration of conformity
For 173.629UK (231KB)
