X-PAD Portable Audio Device

173.640UK X-PAD

Fully portable audio interface and microphone processor for on-the-go podcasting and recording sessions. The X-PAD brings professional audio processing to a compact and convenient handheld device, ...

  • Preset vocal effects and Auto-Tune
  • USB-C link to smart phone or laptop
  • Bluetooth connection for playback
Description Version Packed
173.640UK
X-PAD Portable Audio Device
X-PAD Box Label BW

X-PAD Portable Audio Device

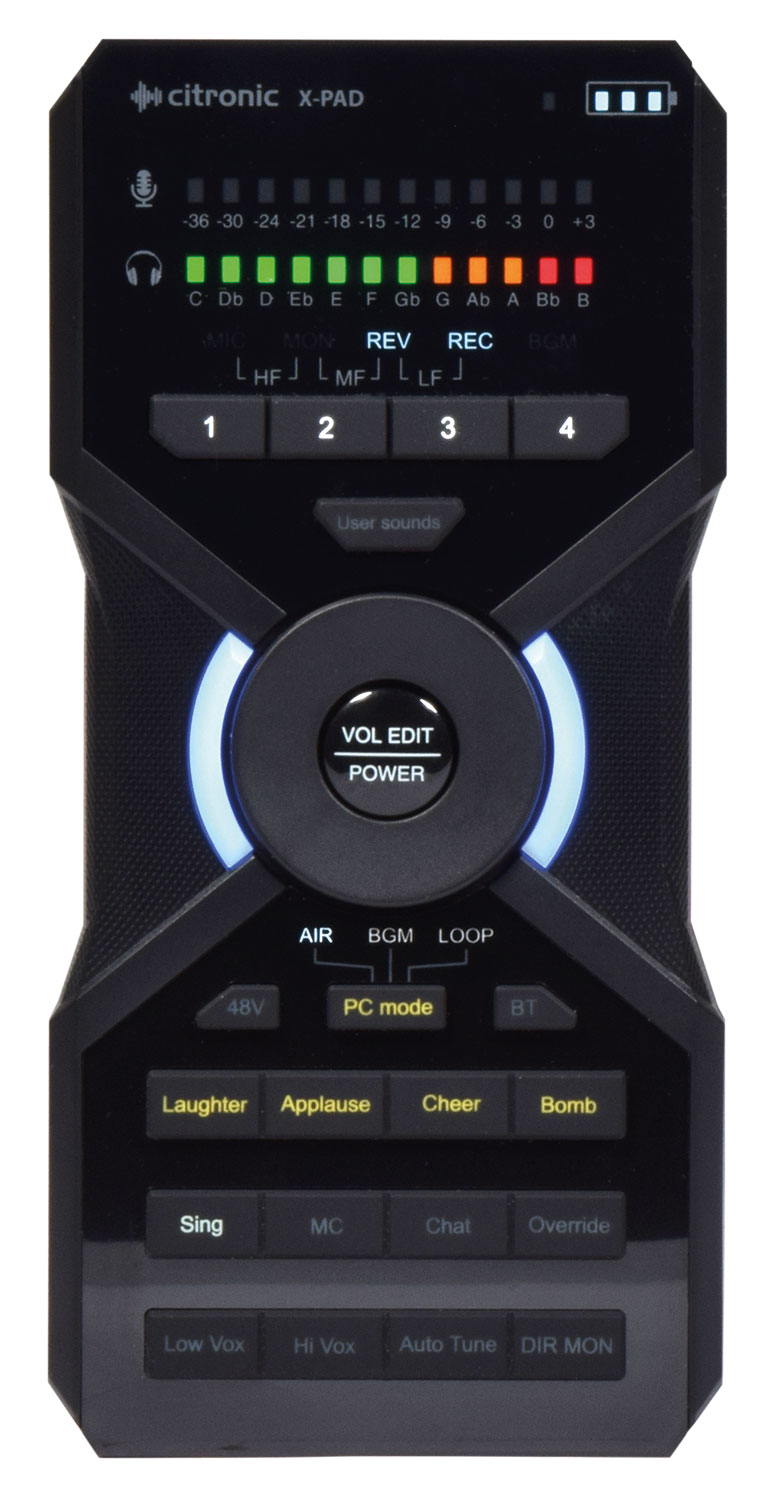

Fully portable audio interface and microphone processor for on-the-go podcasting and recording sessions. The X-PAD brings professional audio processing to a compact and convenient handheld device, cutting the need for bulky equipment out of the creative process. USB-C connection to a smart phone or laptop computer provides a full audio workstation with duplex recording and playback. Microphone input with phantom power option, digital reverb, pitch change and auto-tune processing. Multiple output connections for playback and monitoring via headphones or active speakers. Preset sound effects and user memory for soundbites and loops. All operation is from an internal Li-ion battery, rechargeable via USB. An indispensable companion for podcasts, singing demos and recording on location.

  • Preset vocal effects and Auto-Tune
  • USB-C link to smart phone or laptop
  • Bluetooth connection for playback
  • Rechargeable via dedicated USB-C socket
  • Preset and user-recorded sound effects

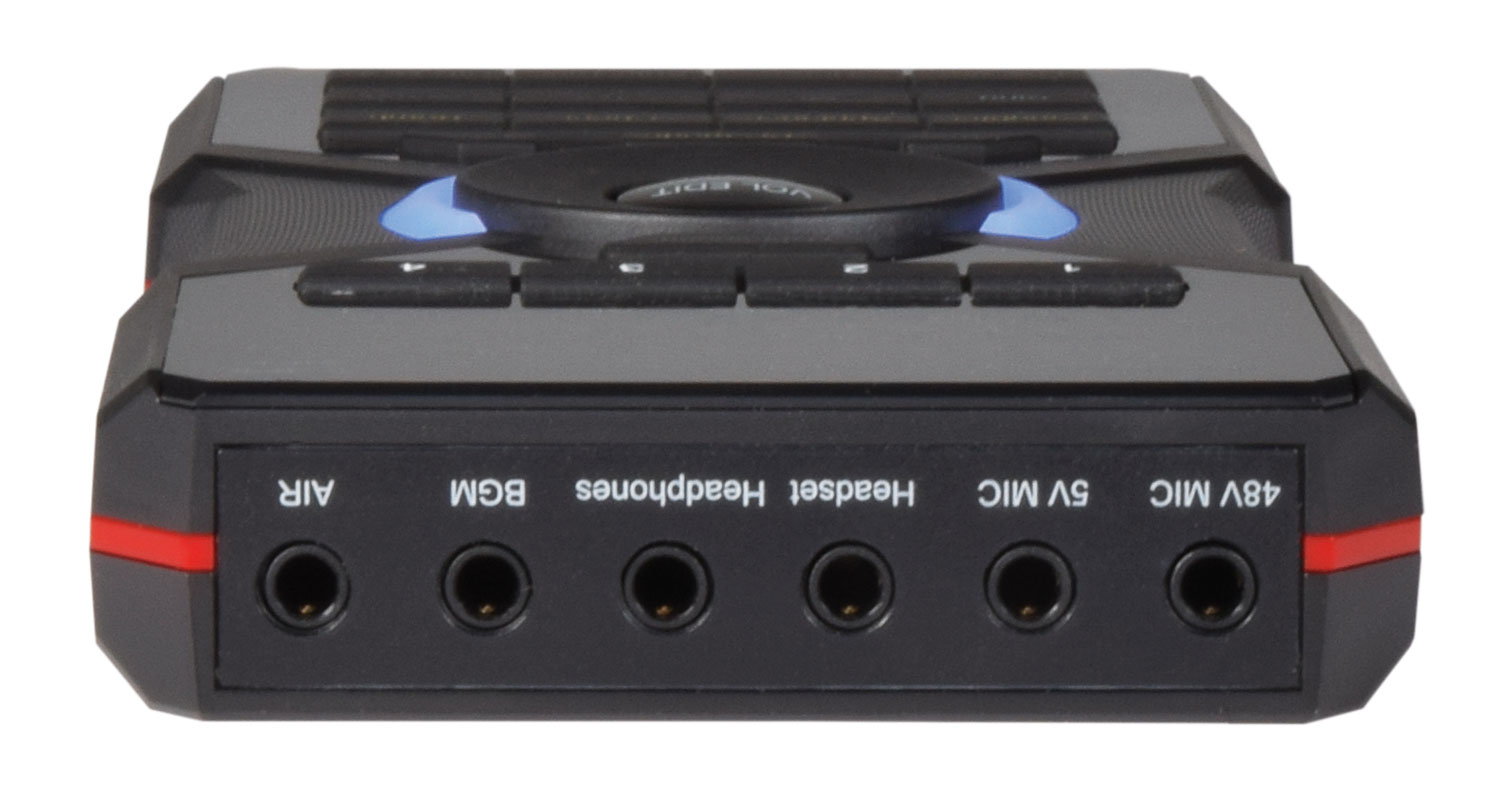

  • 3.5mm sockets for microphones, headset, phones, BGM and AIR
  • Inputs with 5V or 48V phantom power
  • Power source 3000mAh Li-ion battery or USB 5Vdc 2A

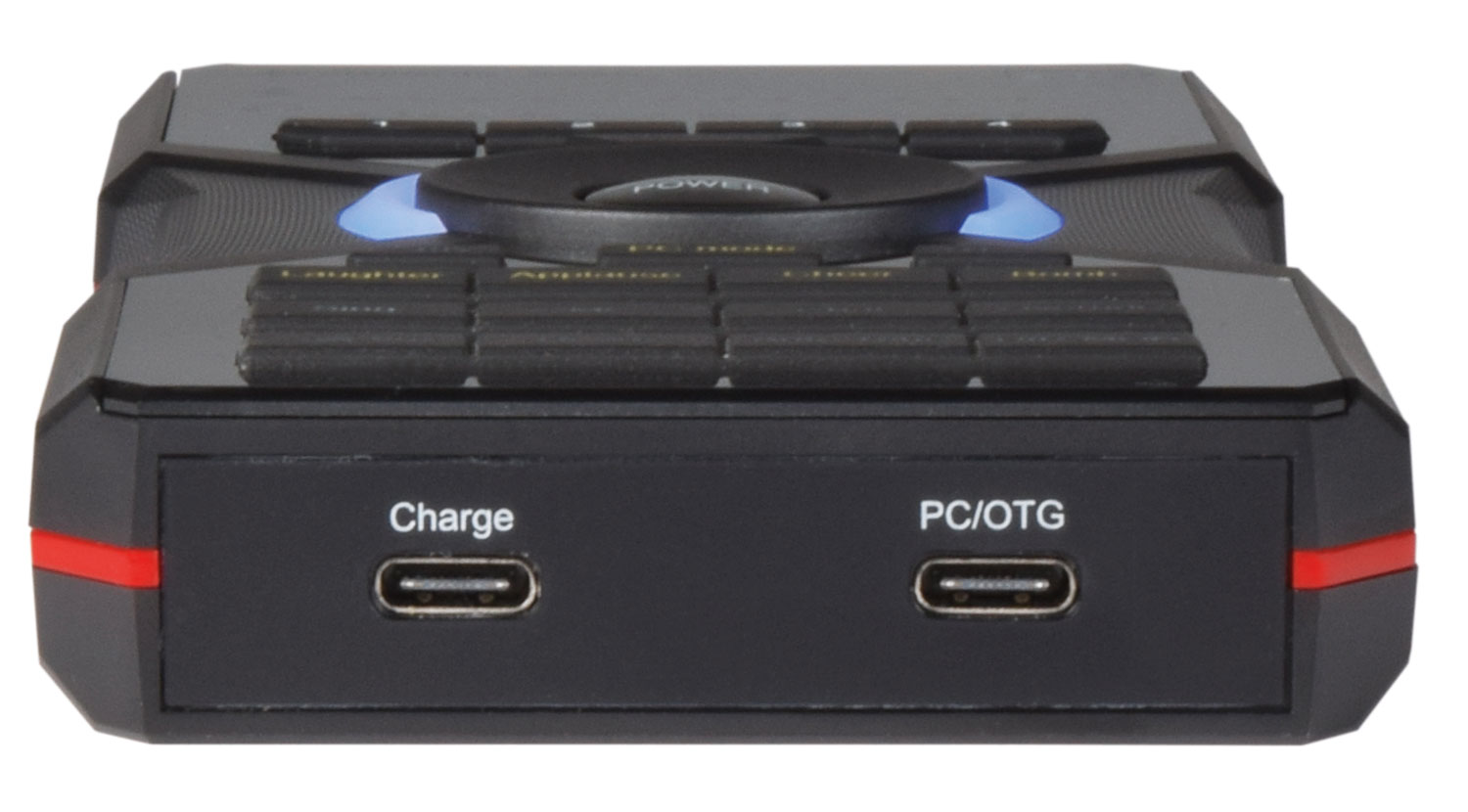

  • USB USB-C (PC/OTG - audio v.1.1) + USB-C (charge)
  • DSP sample rate 48kHz, 16-bit (S/N 98dB)
  • Microphone : inputs 3 x 3.5mm jack (Mic.1, Mic.2, headset)
  • Input impedance : mic 2.2k Ohms (Mic.1), 10k Ohms (Mic.2 & headset mic)
  • Sensitivity : mic -36dB (Mic.1), -26dB (Mic.2 & headset mic)
  • Sensitivity : line -2dB
  • Phantom power +48V (Mic.1), +5Vdc (Mic.2 & headset mic)
  • Frequency response 100Hz-16kHz (mic), 20Hz-20kHz (line in) ±1dB
  • S/N ratio ?90dB (mic), ?96dB (line in)
  • Dynamic range ?92dB (mic), ?98dB (line in)
  • THD ?0.05% (mic), ?0.02% (line in) @1kHz
  • Line input 3.5mm stereo BGM input
  • Gain Line in 12dB max.
  • Smart phone audio connection 3.5mm TRRS jack (or via USB-C)
  • Headphone : connector 3.5mm stereo jack
  • Headphone : impedance 16-300 Ohms
  • Headphone : power 100mW @16 Ohms (1kHz, ?0.1% THD)
  • Dimensions 162 x 78 x 21mm
  • Weight 280g

In the box

The box for this item contains :

  • X-PAD handheld portable audio device
  • USB-C OTG (on-the-go) lead

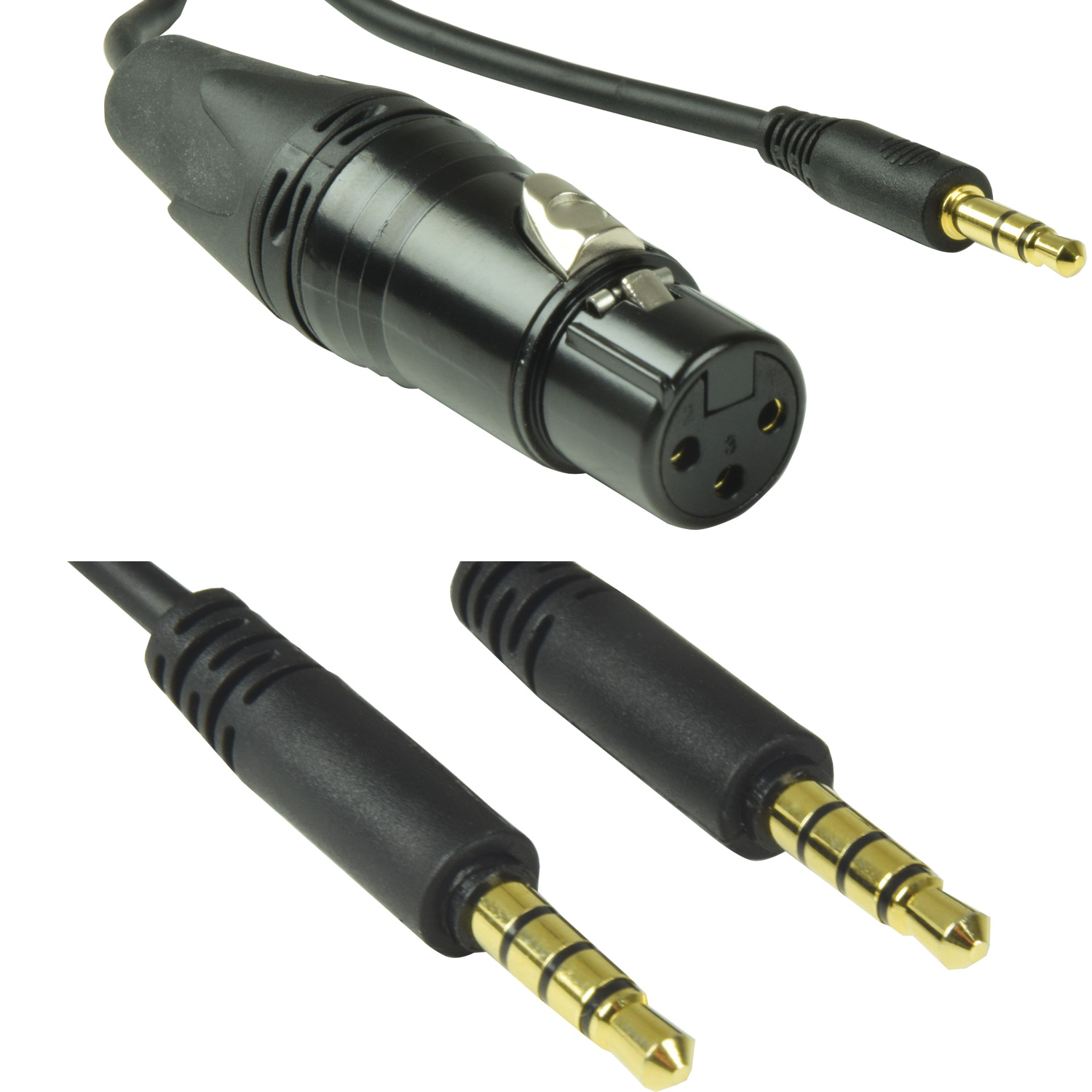

  • XLR to 3.5mm TRS jack microphone lead
  • 3.5mm stereo jack lead

Downloads

Instruction manual
For 173.640UK (325KB)
UK Declaration of conformity
For 173.640UK (249KB)
EU Declaration of conformity
For 173.640UK (239KB)
