PT-12 Large Screen Pedal Tuner

174.248UK PT-12

A pedal based digital chromatic tuner with extra large backlit LCD display for easy visibilty at floor level. Large note symbols and a colour changing backlight make the tuning process easy and int...

  • Extra large backlit LCD display
  • True bypass operation
  • Virtual needle display and colour changing backlight
Description Version Packed
174.248UK
PT-12 Large Screen Pedal Tuner
PT-12 Gift Box

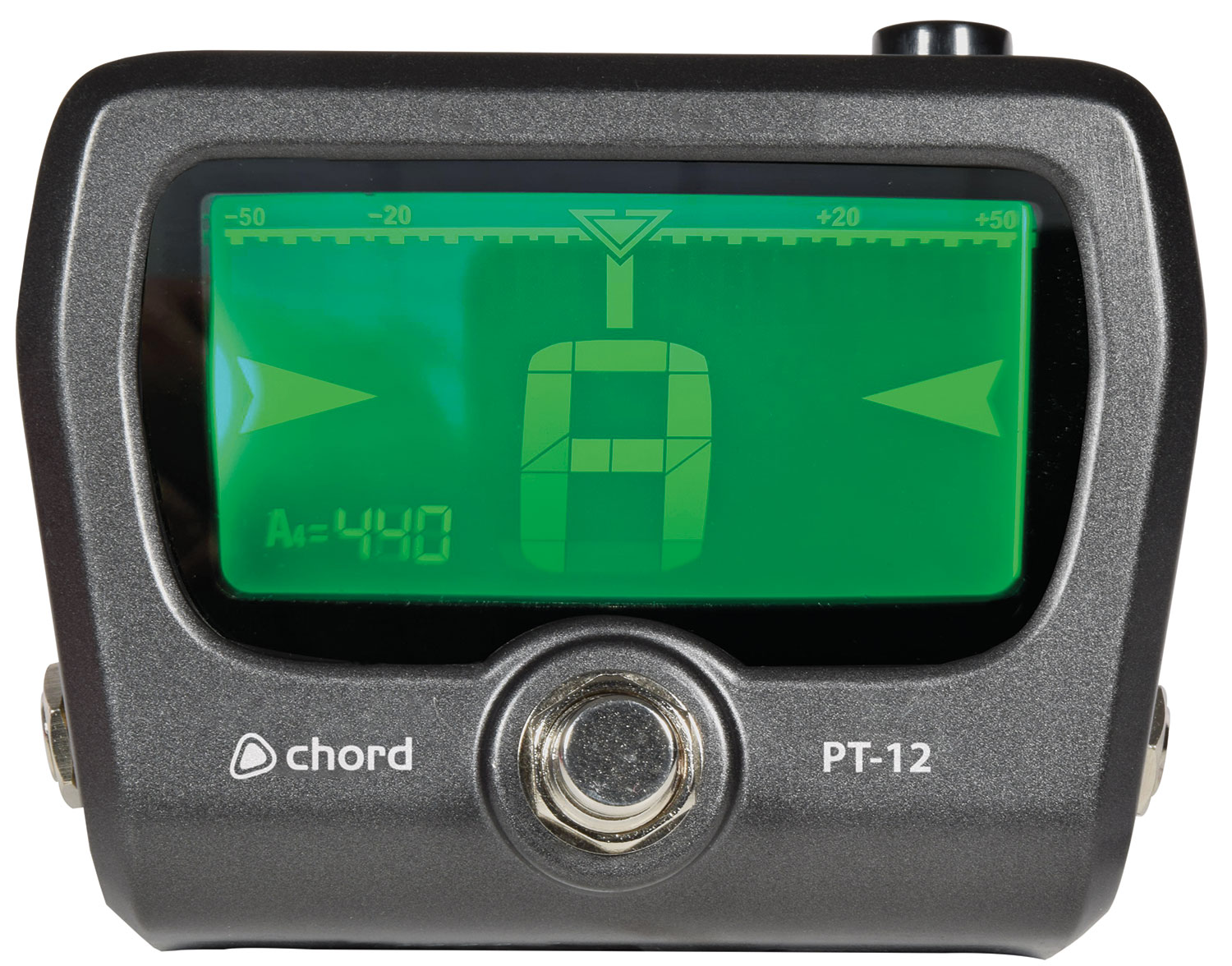

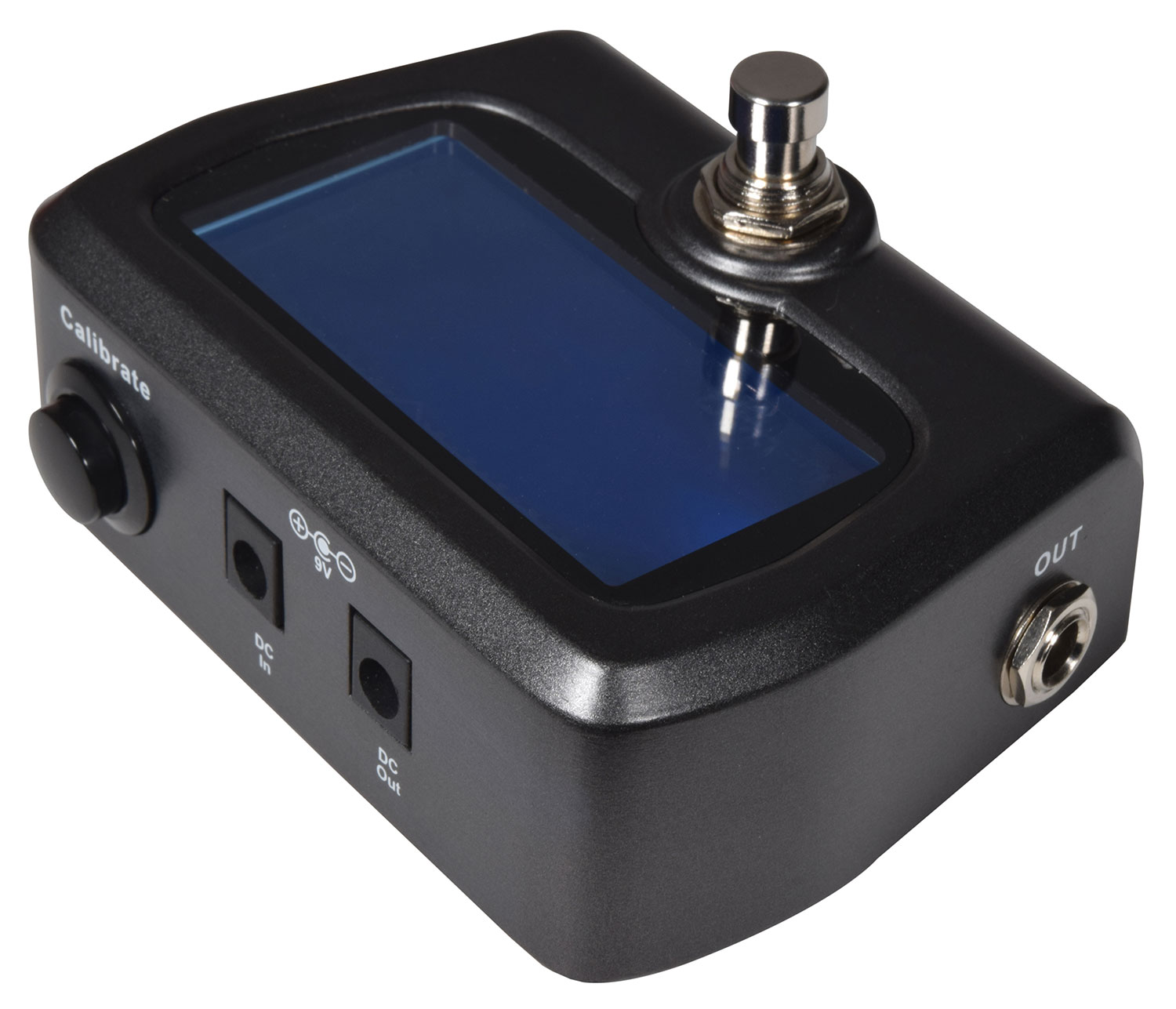

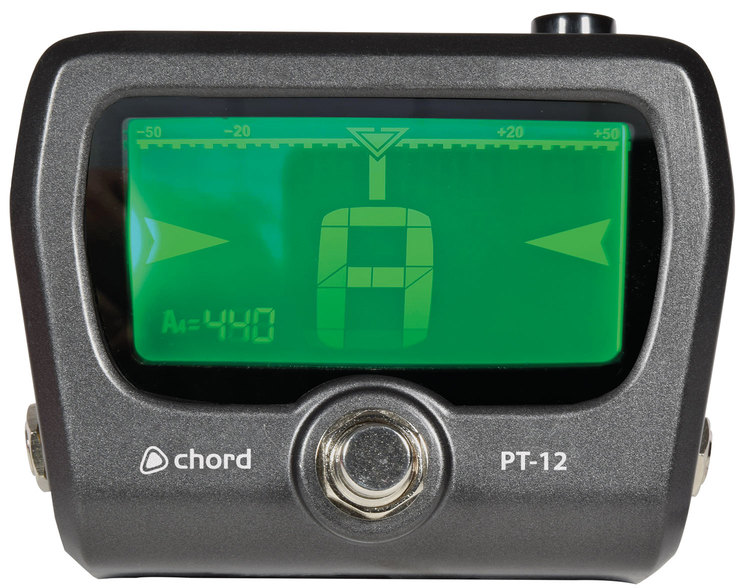

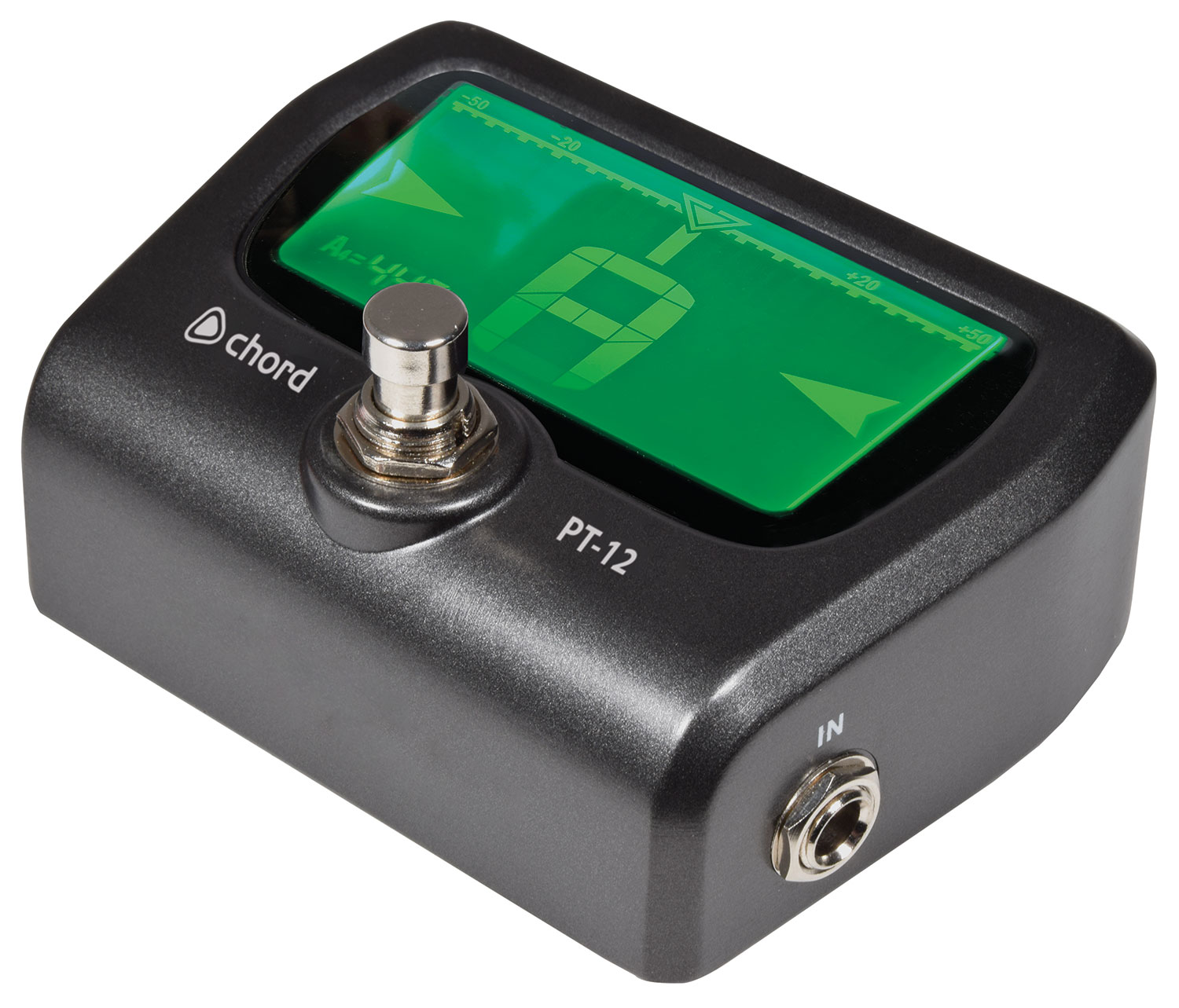

PT-12 Large Screen Pedal Tuner

A pedal based digital chromatic tuner with extra large backlit LCD display for easy visibilty at floor level. Large note symbols and a colour changing backlight make the tuning process easy and intuitive. Pressing the footswitch activates the tuner and mutes the output. Tuning calibration is set by a rear mounted push button. Battery powered or external 9Vdc operation with pass-through DC jack for convenience. An essential addition for multi-pedal setups.

  • Extra large backlit LCD display
  • True bypass operation
  • Virtual needle display and colour changing backlight
  • Power supply 9V PP3 battery (supplied) or optional 9Vdc adaptor

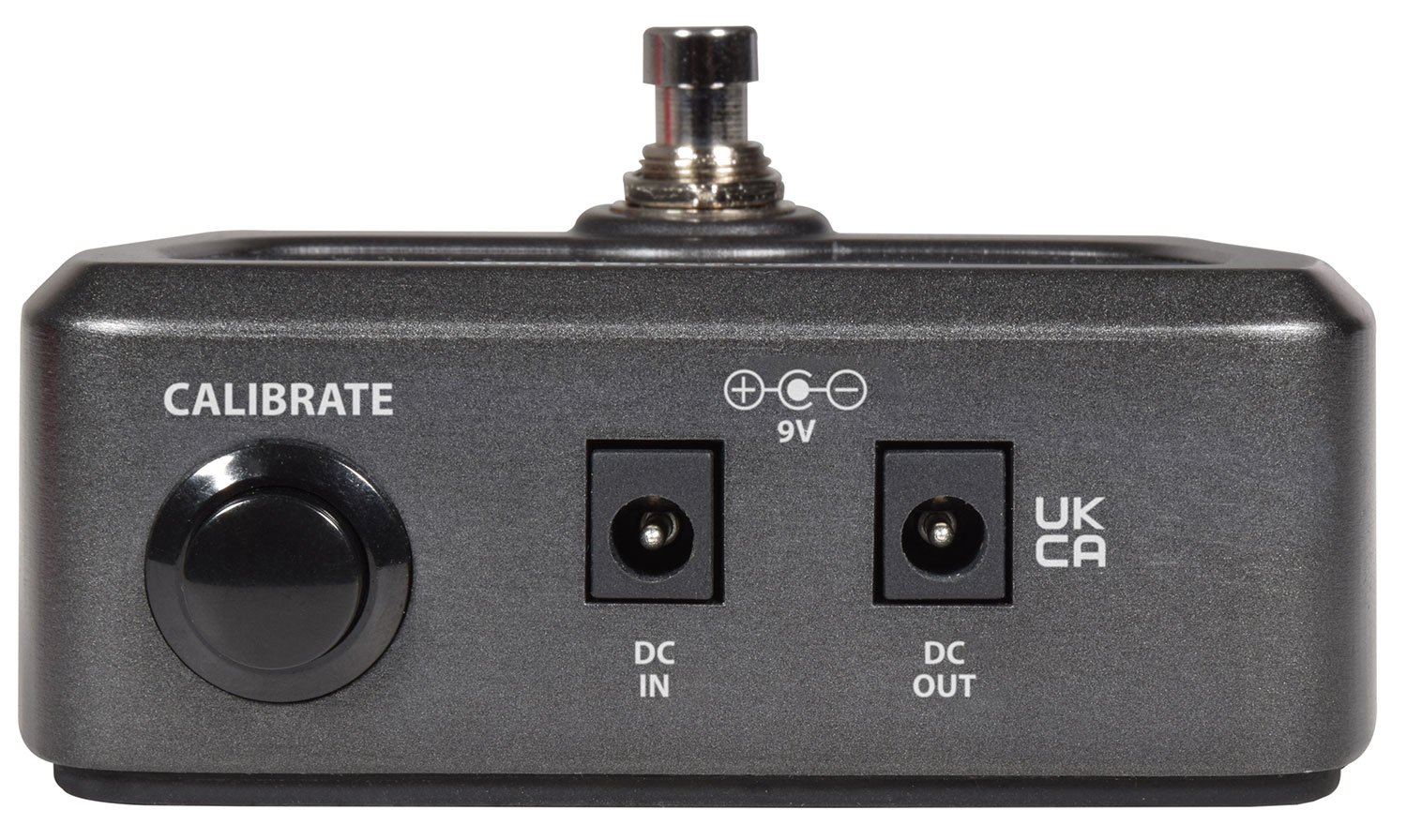

  • Connectors 6.3mm jack guitar input/output, 5.5x2.1mm DC power in/through
  • A4 frequency 430 - 450Hz
  • Dimensions 105 x 84 x 53mm
  • Weight 311g

In the box

The box for this item contains :

  • PT-12 large display pedal tuner
  • 9V (PP3) battery

Downloads

Instruction manual
For 174.248UK (104KB)
UK Declaration of conformity
For 174.248UK (262KB)
EU Declaration of conformity
For 174.248UK (251KB)
