CASA Active Sub Cabinets

178.122UK CASA-12BA

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommo...

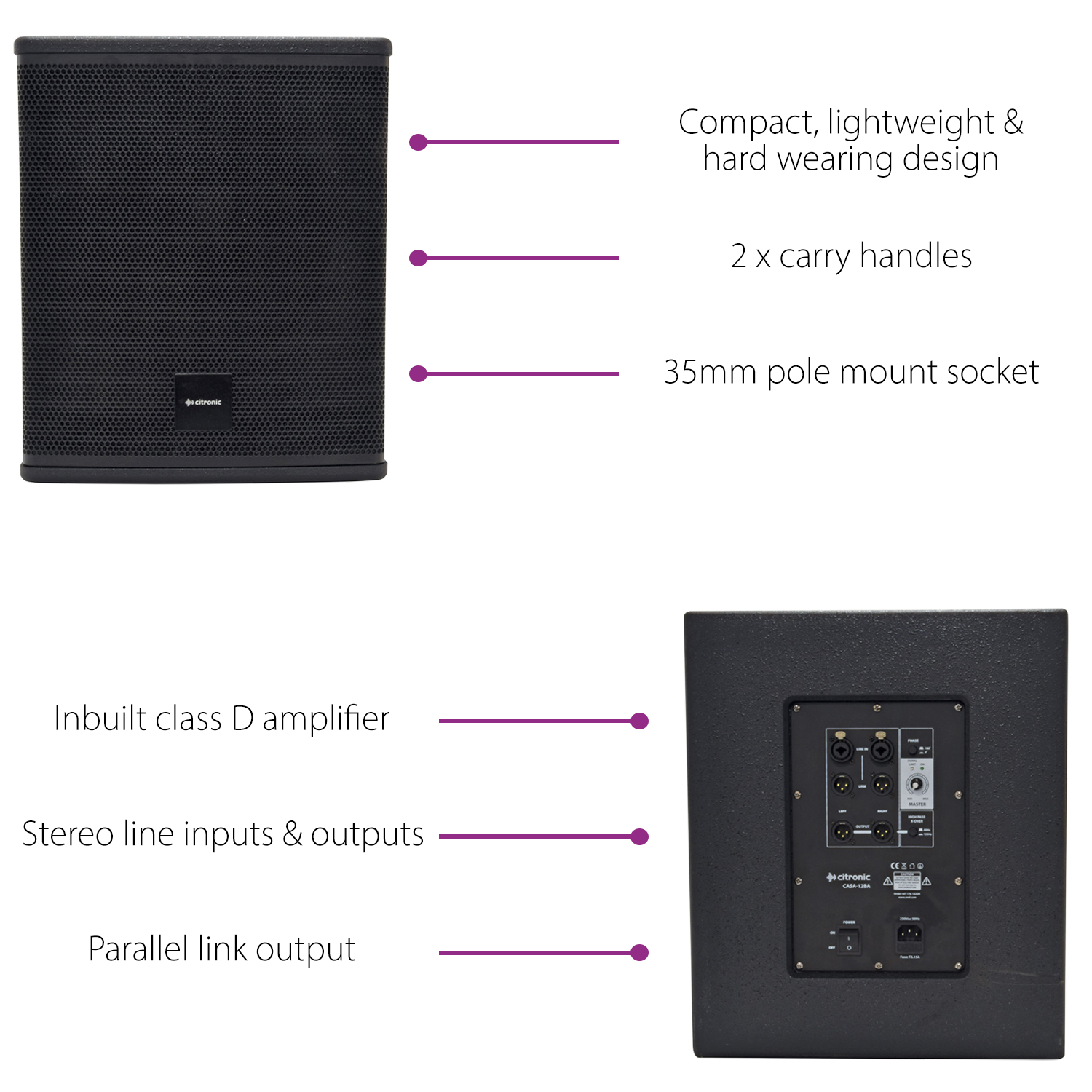

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish
  • 2 x side carry handles
Description Version Packed
178.120UK
CASA-10BA Active 10" Sub 300W
10" 300W Box Printed
178.122UK
CASA-12BA Active 12" Sub 400W
12" 400W Box Printed
178.125UK
CASA-15BA Active 15" Sub 500W
15" 500W Box Printed

CASA Active Sub Cabinets

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

  • Compact and lightweight design
  • 15mm MDF cabinets with hard-wearing paint finish

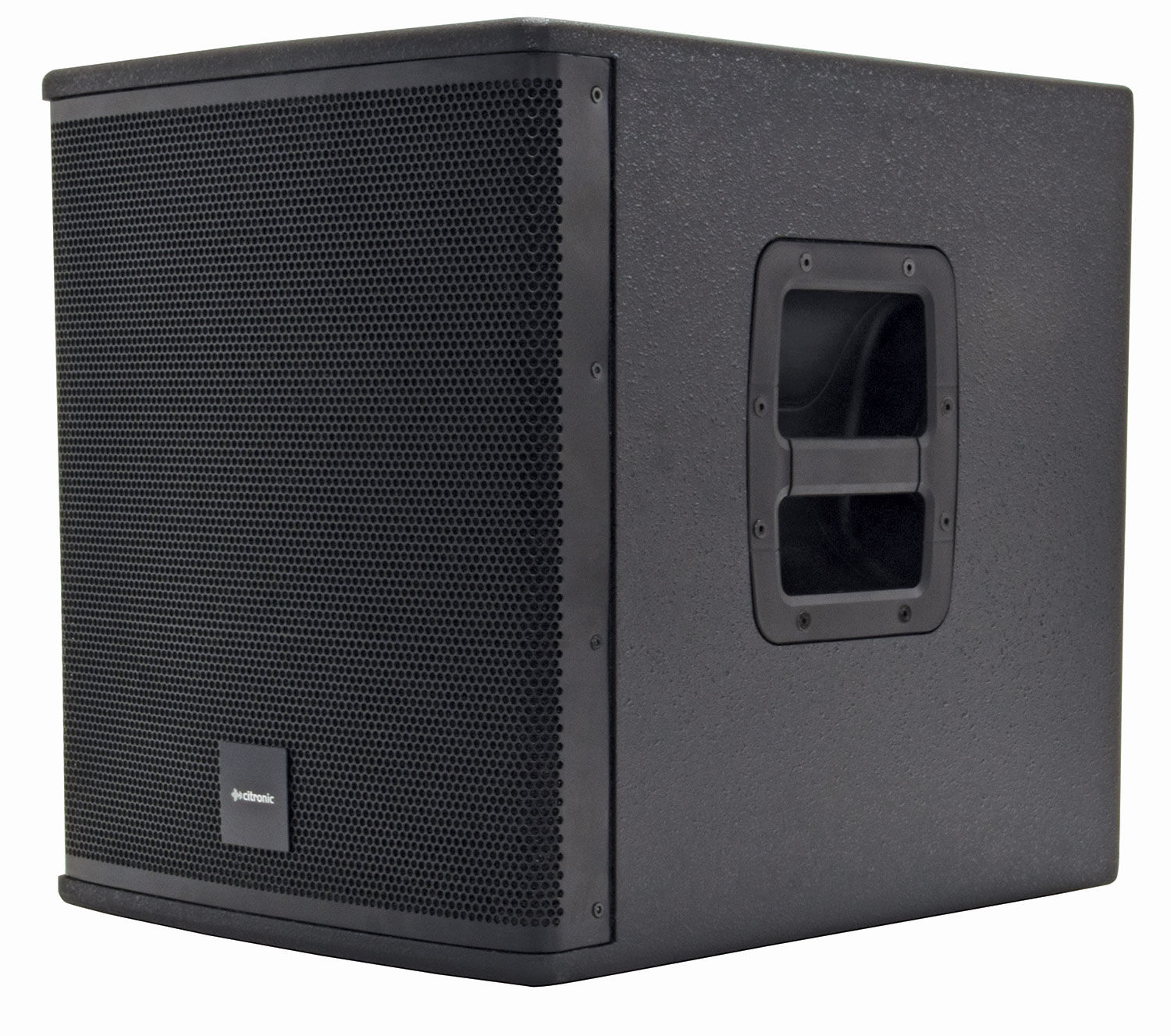

  • 2 x side carry handles

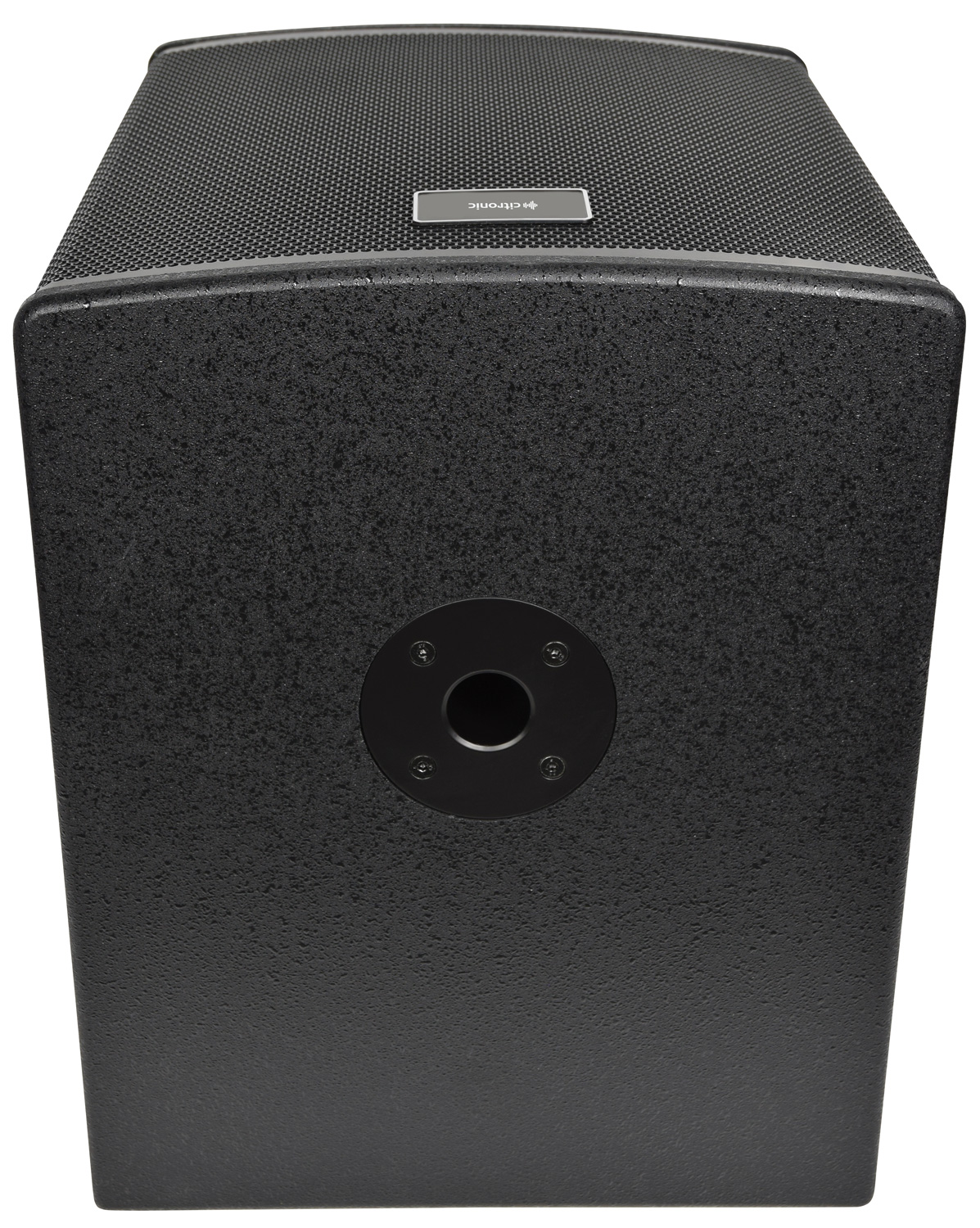

  • 35mm pole mount socket

Specification : Common

  • Power supply 230Vac, 50Hz (IEC)
  • Construction 15mm MDF with durable texture paint finish
  • Hardware 2 x side carry handles + 35mm pole mount socket
  • Amplifier : construction Class D

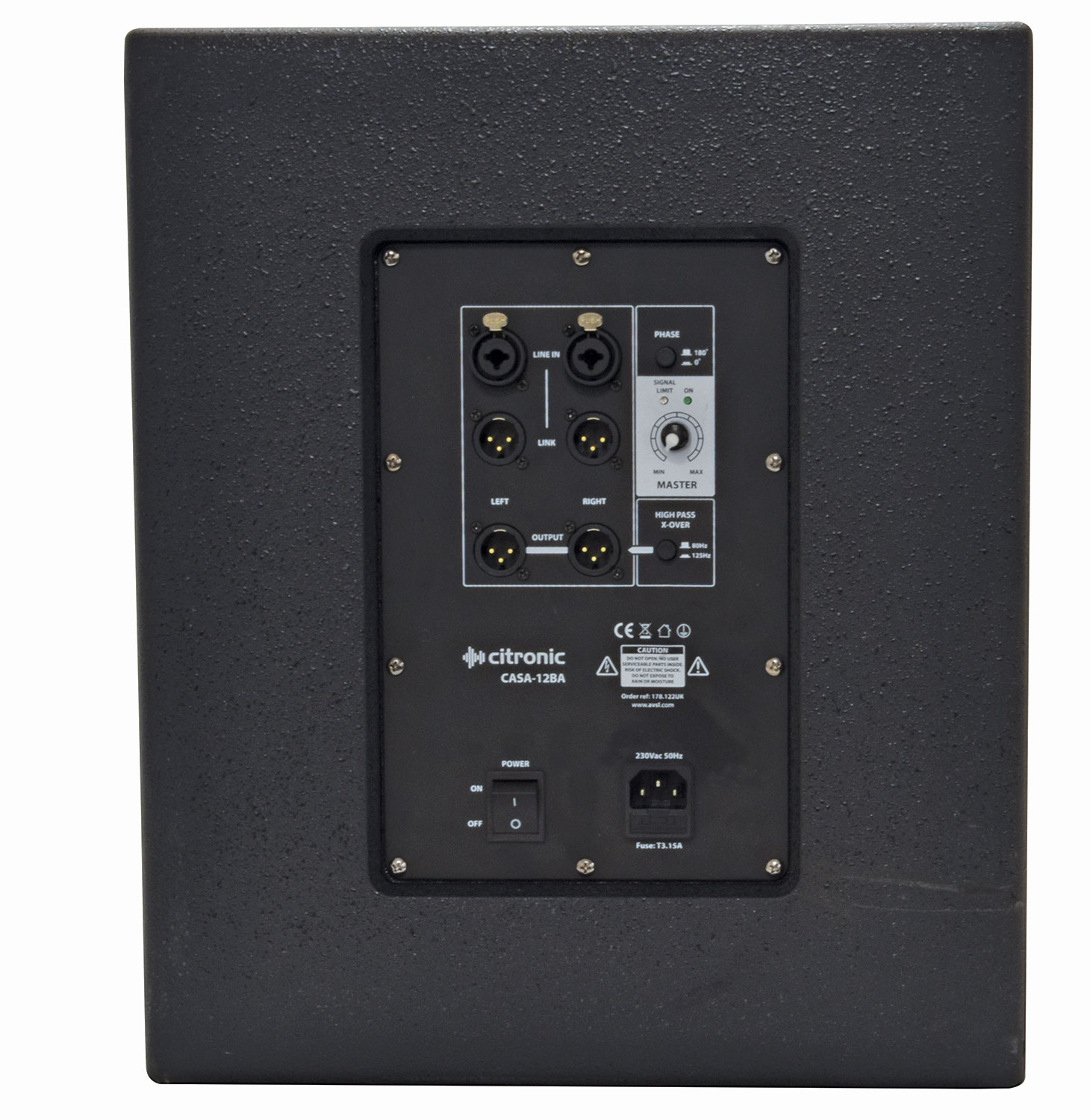

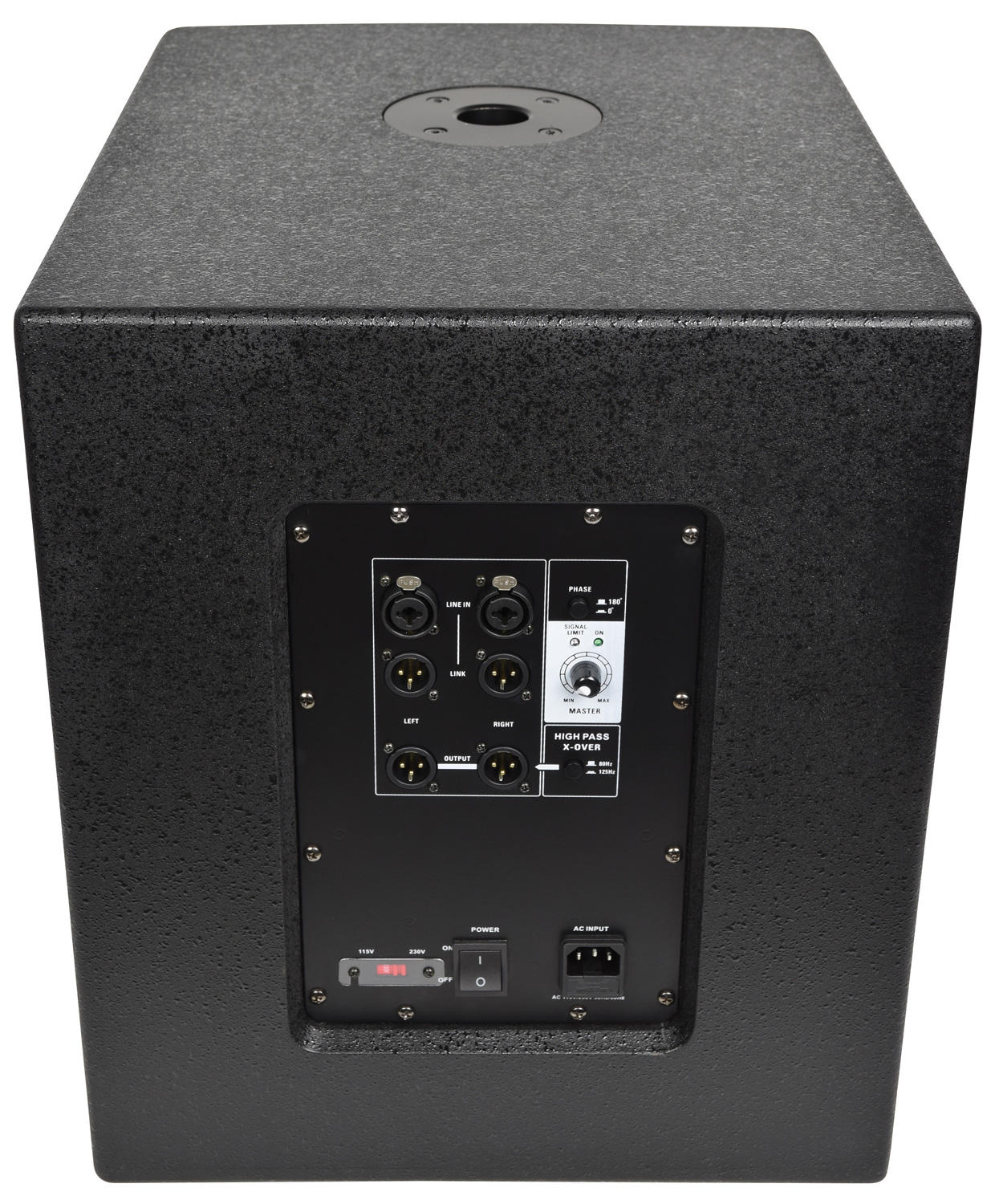

  • Line inputs L+R balanced XLR
  • Line outputs L+R balanced XLR & L+R link XLR
  • Controls Output level, phase switch, high pass x-over (output)

Specification : Versions

  178.120UK 178.122UK 178.125UK
Sub driver 250mmØ (10") 300mmØ (12") 380mmØ (15")
Voice coil 50mmØ (2") 62mmØ (2.5") 75mmØ (3")
Output power : rms 250W 350W 450W
Output power : max. 500W 700W 900W
Output power peak 1000W 1400W 1800W
Dimensions 431 x 407 x 338mm 480 x 450 x 380mm 564 x 540 x 448mm
Weight 16.23kg 18.86kg 25.42kg

Trade information

  178.120UK 178.122UK 178.125UK
Barcode / EAN 5015972215869 5015972215876 5015972215883
Package type Box Printed Box Printed Box Printed
Package dimensions 510 x 520 x 425mm 545 x 560 x 465mm 635 x 635 x 535mm
Package weight 18.20kg 20.30kg 27.80kg
Package quantity 1 unit 1 unit 1 unit
Carton dimensions 510 x 520 x 425mm 545 x 560 x 465mm 635 x 635 x 535mm
Carton weight 18.20kg 20.30kg 27.80kg
Carton quantity 1 package 1 package 1 package

In the box

The box for this item contains :

  • CASA series active sub cabinet
  • IEC mains power lead(s)

Support

Instruction manual
For 178.120UK (234KB)
Instruction manual
For 178.122UK (234KB)
Instruction manual
For 178.125UK (234KB)
