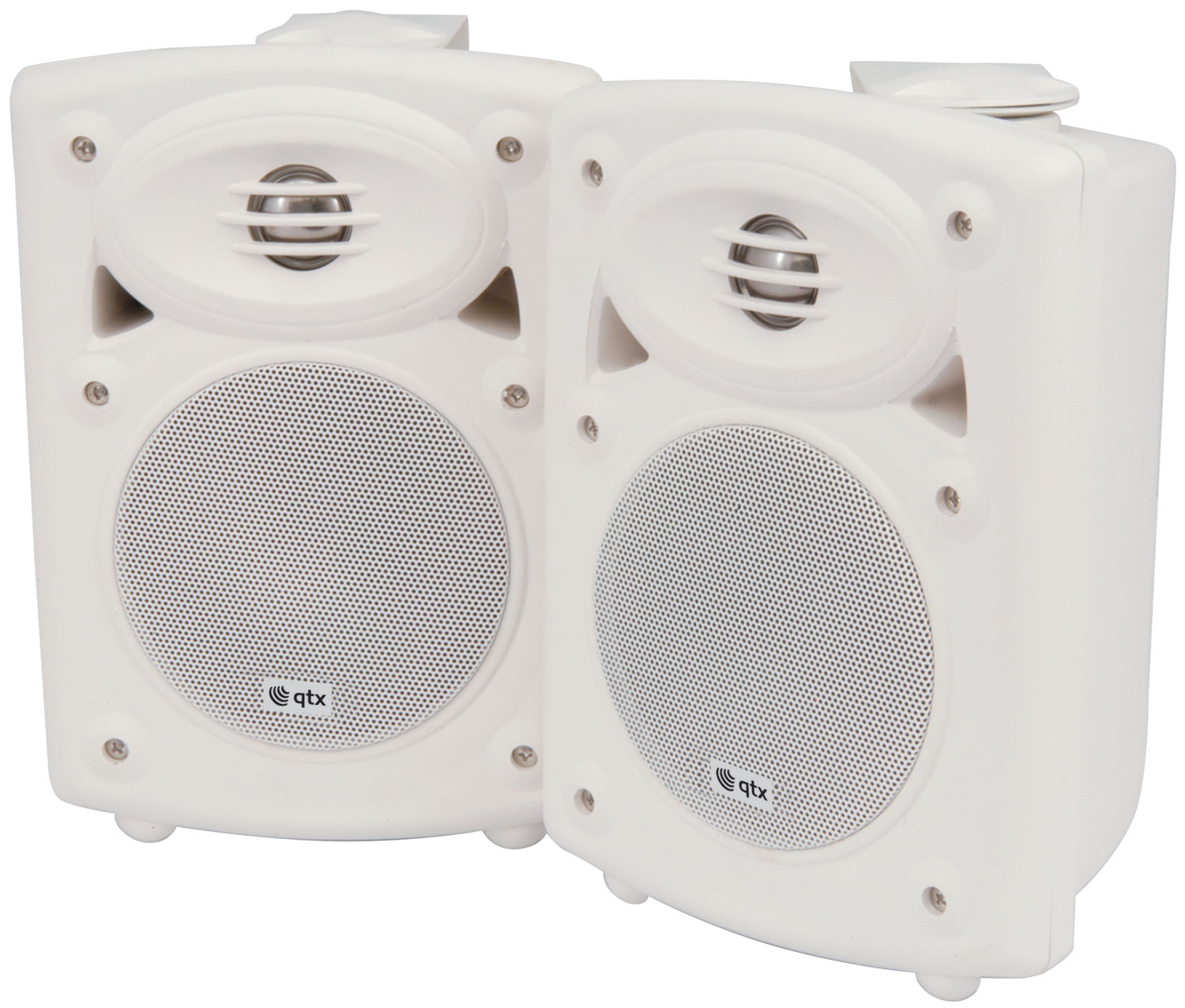

Amplified Stereo Speaker System

178.201UK QR5W

High performance 2-way stereo speakers system with built-in amplifier. Heavy duty vented design for high power and deep bass response is ideal for use as studio or DJ monitors. Supplied per pair wi...

  • 13.3cm (5.25") bass driver and 2.5cm (1") Neodymium dome tweeter
  • Input via RCA phono sockets
  • Built-in amplifier (40Wrms power)
Full description Find retailer
Description Version Packed
178.200UK
QR5B Active ABS Spk 5in Black 		5" Black Gift Box
178.201UK
QR5W Active ABS Spk 5in White 		5" White Gift Box

Amplified Stereo Speaker System

High performance 2-way stereo speakers system with built-in amplifier. Heavy duty vented design for high power and deep bass response is ideal for use as studio or DJ monitors. Supplied per pair with mounting brackets and connecting leads.

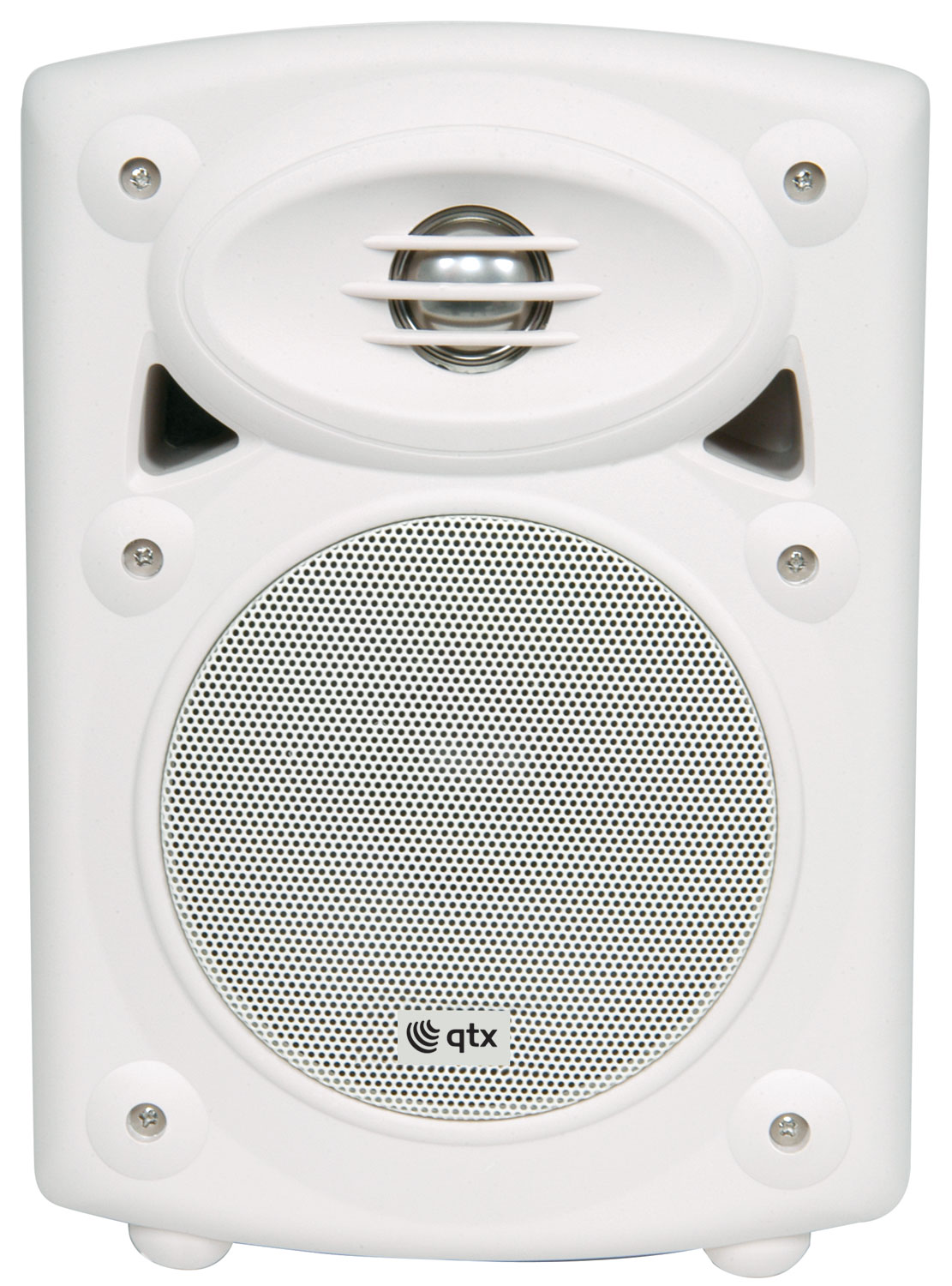

  • 13.3cm (5.25") bass driver and 2.5cm (1") Neodymium dome tweeter
  • Input via RCA phono sockets
  • Built-in amplifier (40Wrms power)

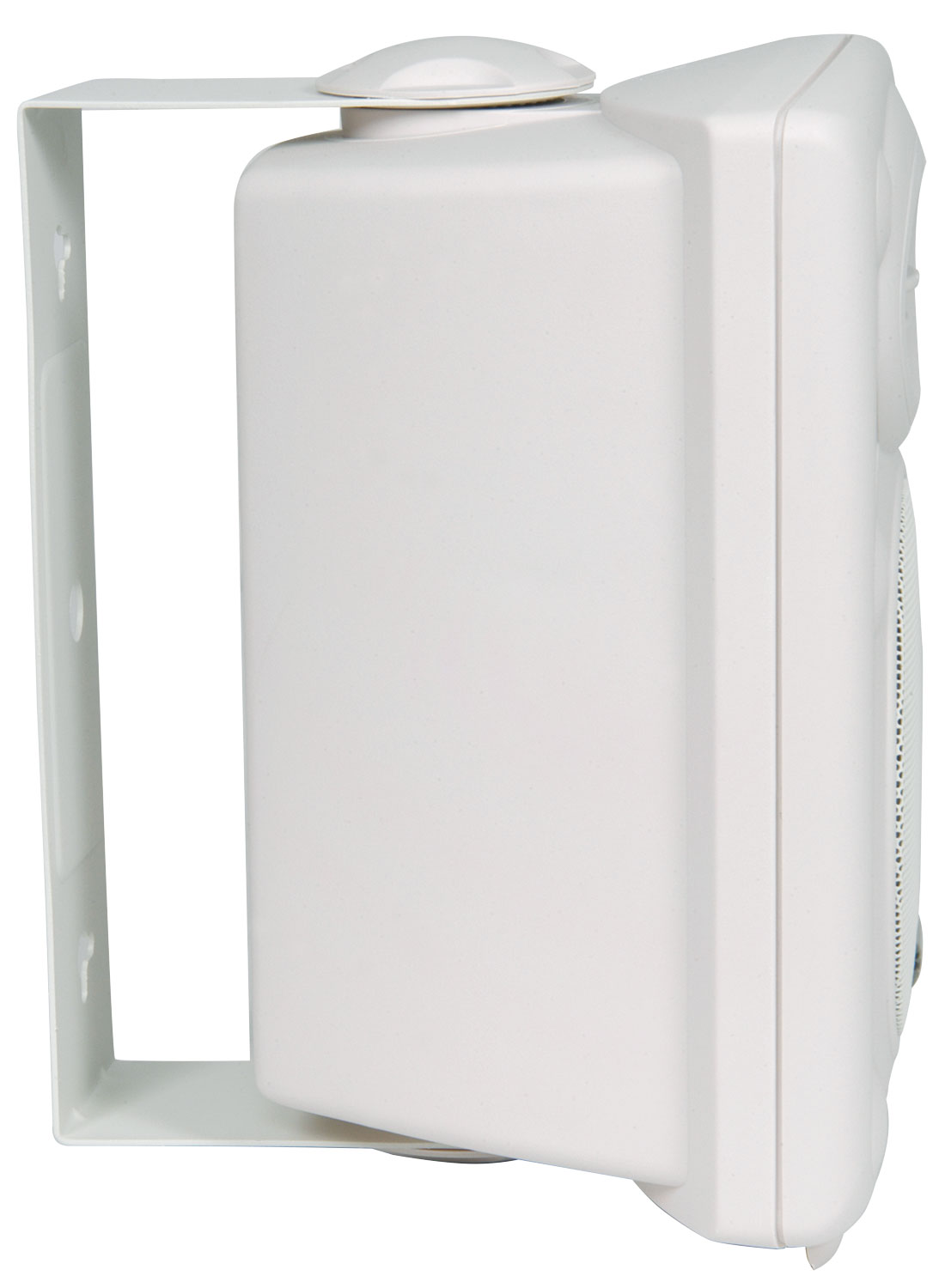

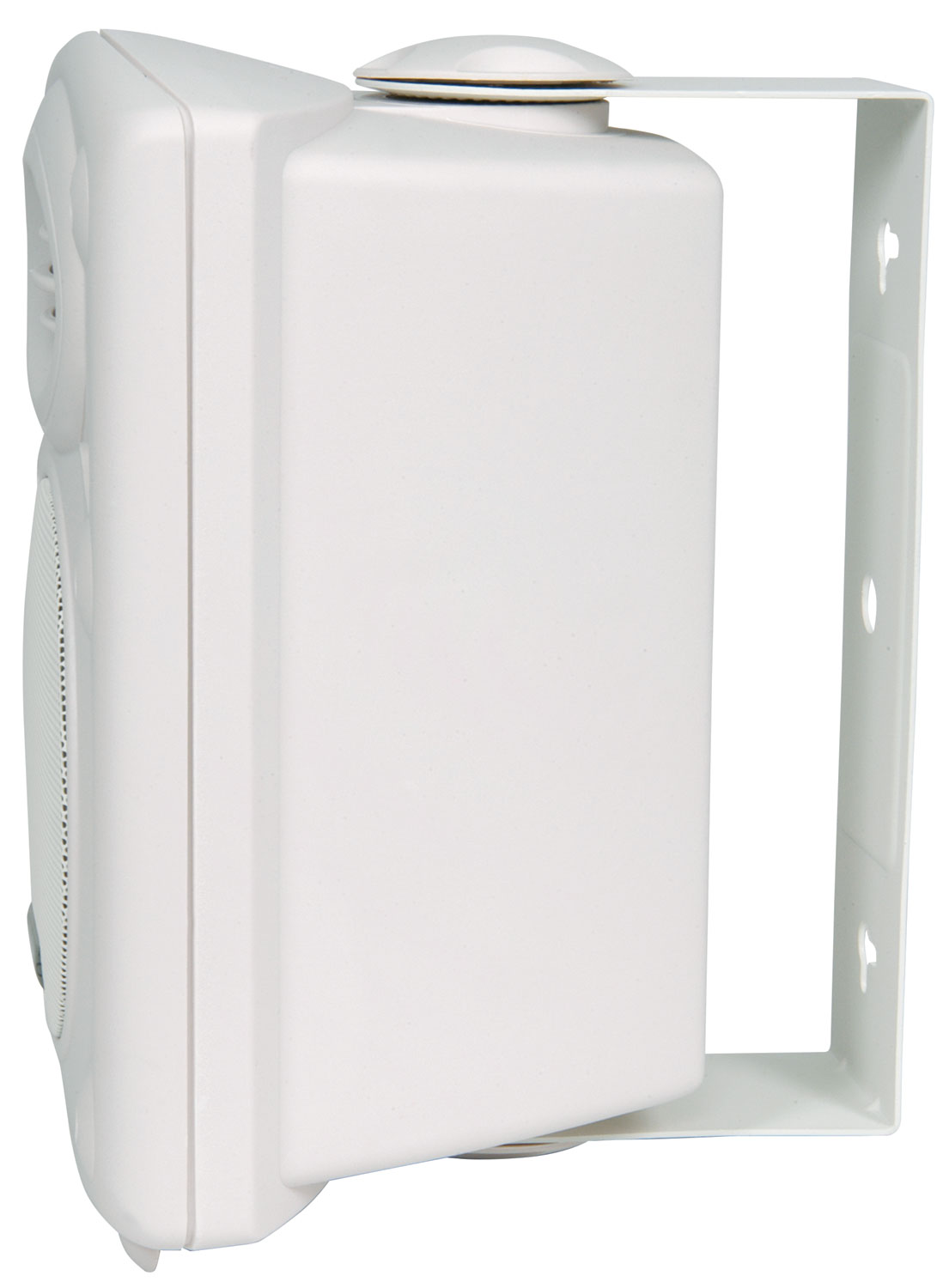

  • Mounting brackets included

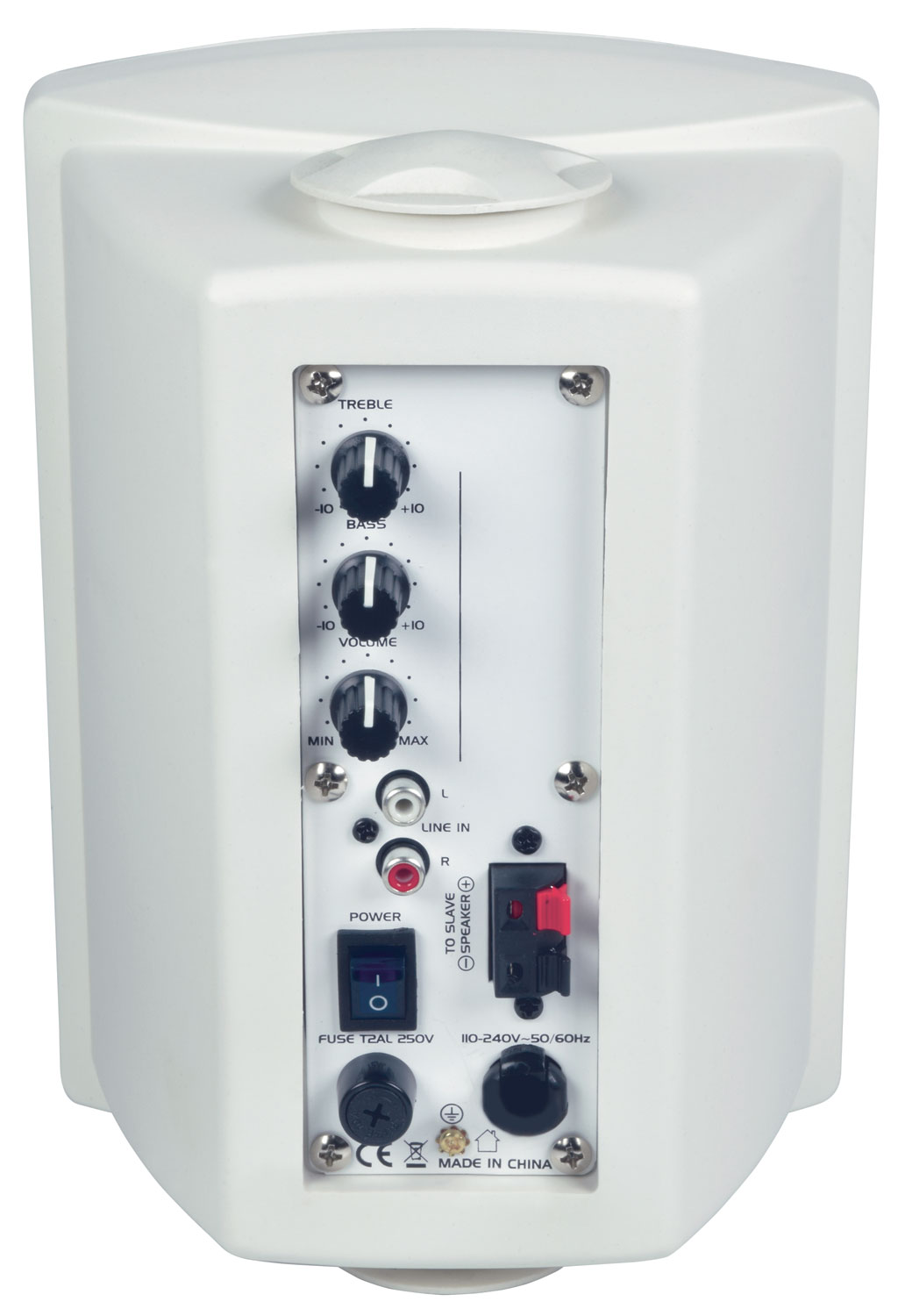

  • One powered and one slave speaker
  • 5m Speaker cable included

Specification : Common

  • Power supply 220-240Vac, 50Hz (Fig 8)
  • Power rms 2 x 20W
  • Frequency response 32Hz - 22kHz
  • Input level 290mV, 7k Ohms
  • Sensitivity 89dB
  • Dimensions 255 x 180 x 150mm
  • Weight 7kg

Specification : Versions

  178.200UK 178.201UK
Colour Black White

Trade information

  178.200UK 178.201UK
Barcode / EAN 5015972057148 5015972057155
Package type Gift Box Gift Box
Package dimensions 230 x 360 x 315mm 230 x 360 x 315mm
Package weight 6.80kg 6.80kg
Package quantity 1 unit 1 unit
Carton dimensions 385 x 490 x 345mm 385 x 490 x 345mm
Carton weight 27.20kg 27.20kg
Carton quantity 4 packages 4 packages
Pack plastic weight 0.12kg 0.12kg

Support

Instruction manual
For 178.201UK (318KB)
Instruction manual
For 178.200UK (318KB)

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.
