QRPA Portable PA with Bluetooth

178.839UK QR10PABT

Compact portable PA unit based on the QR speaker cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. Two VHF h...

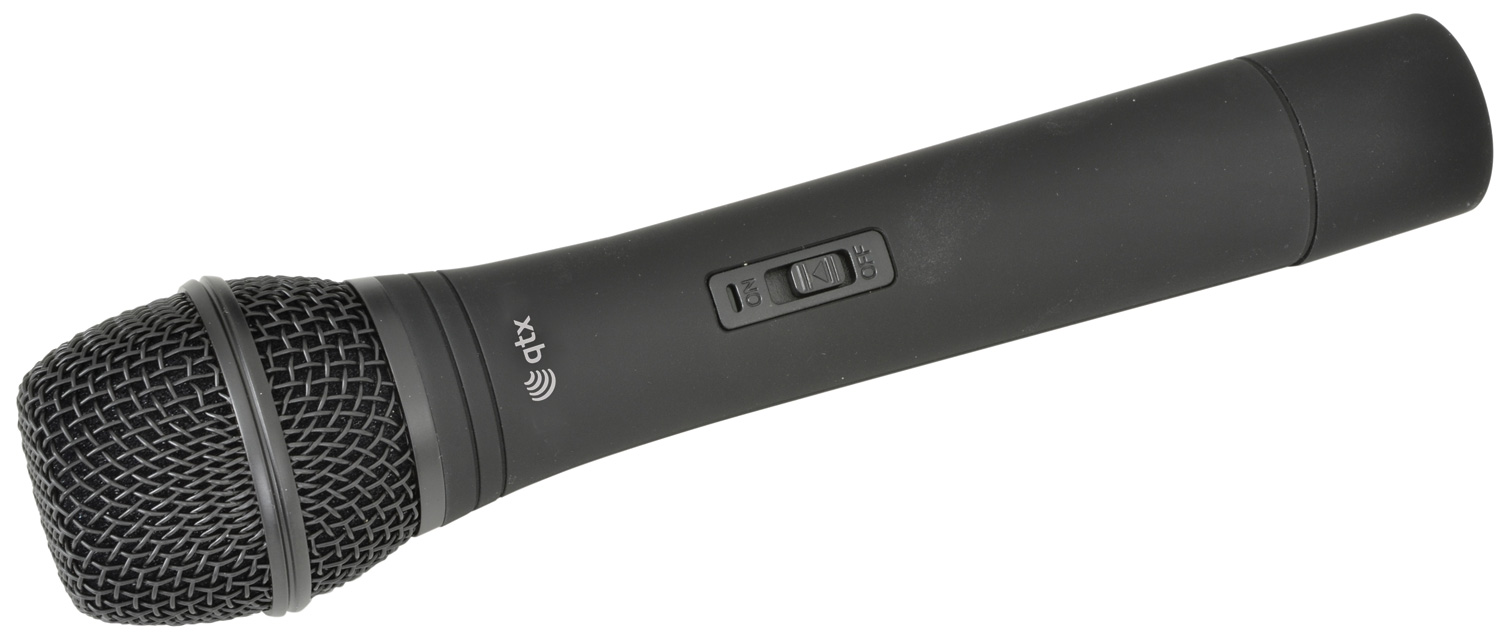

  • VHF handheld microphone included
  • Echo effect for microphones
  • Integral USB/SD/FM player with record feature and remote
Description Version Packed
178.838UK
QR8PABT Portable PA
8 Inch Box Plain
178.839UK
QR10PABT Portable PA
10 Inch Box Plain
178.847UK
QR12PABT Portable PA
12 Inch Gift Box
178.848UK
QR15PABT Portable PA
15 Inch Gift Box

QRPA Portable PA with Bluetooth

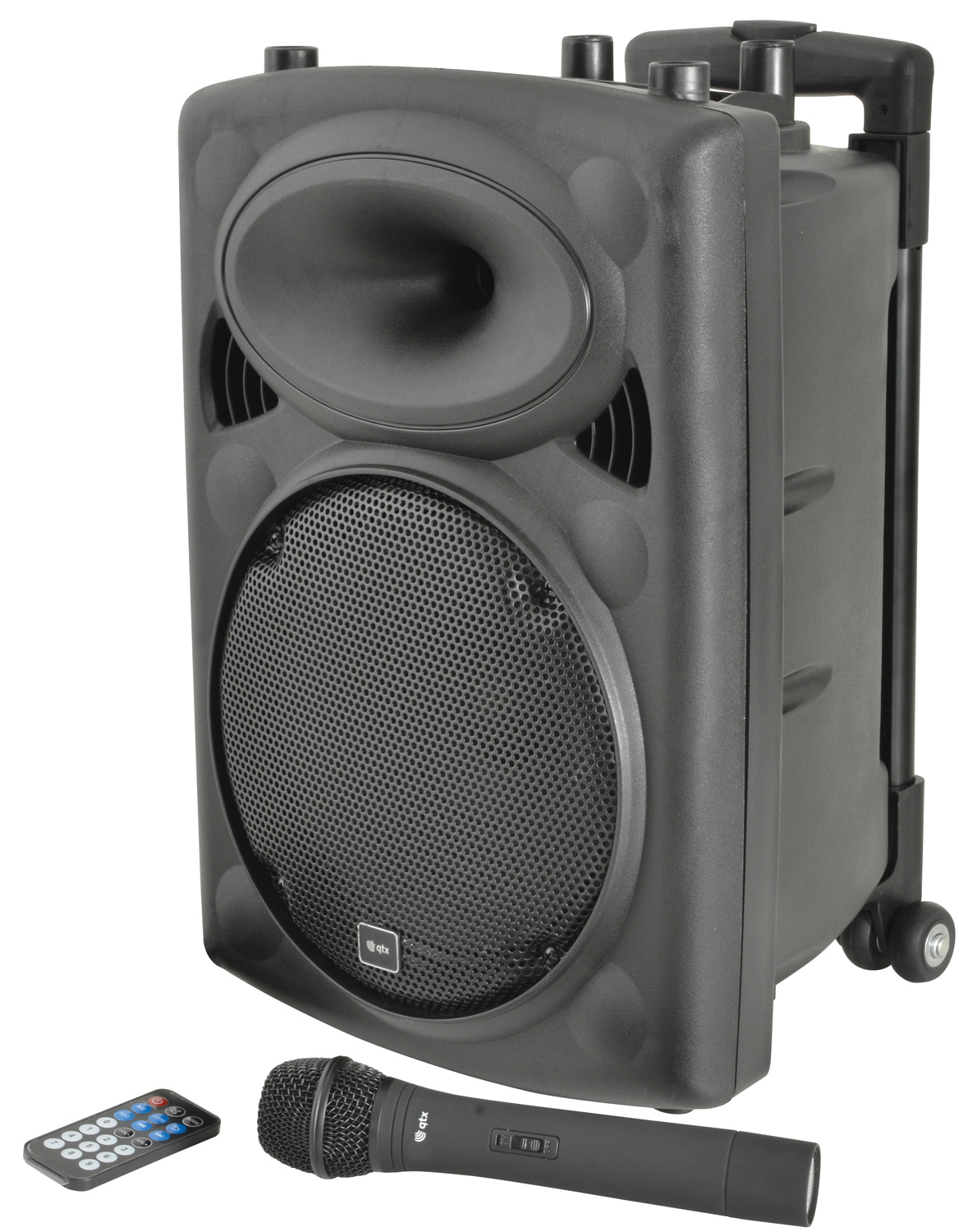

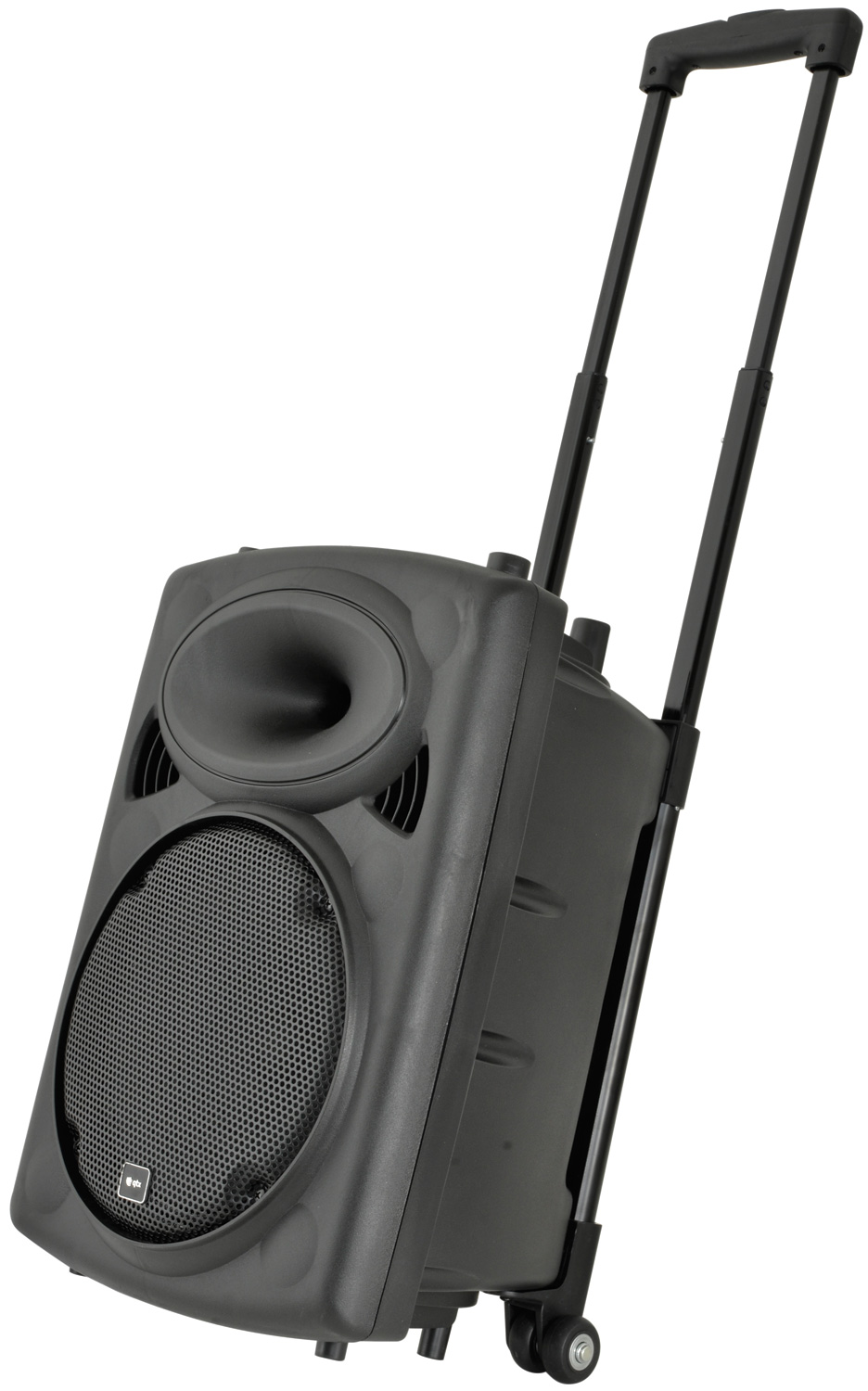

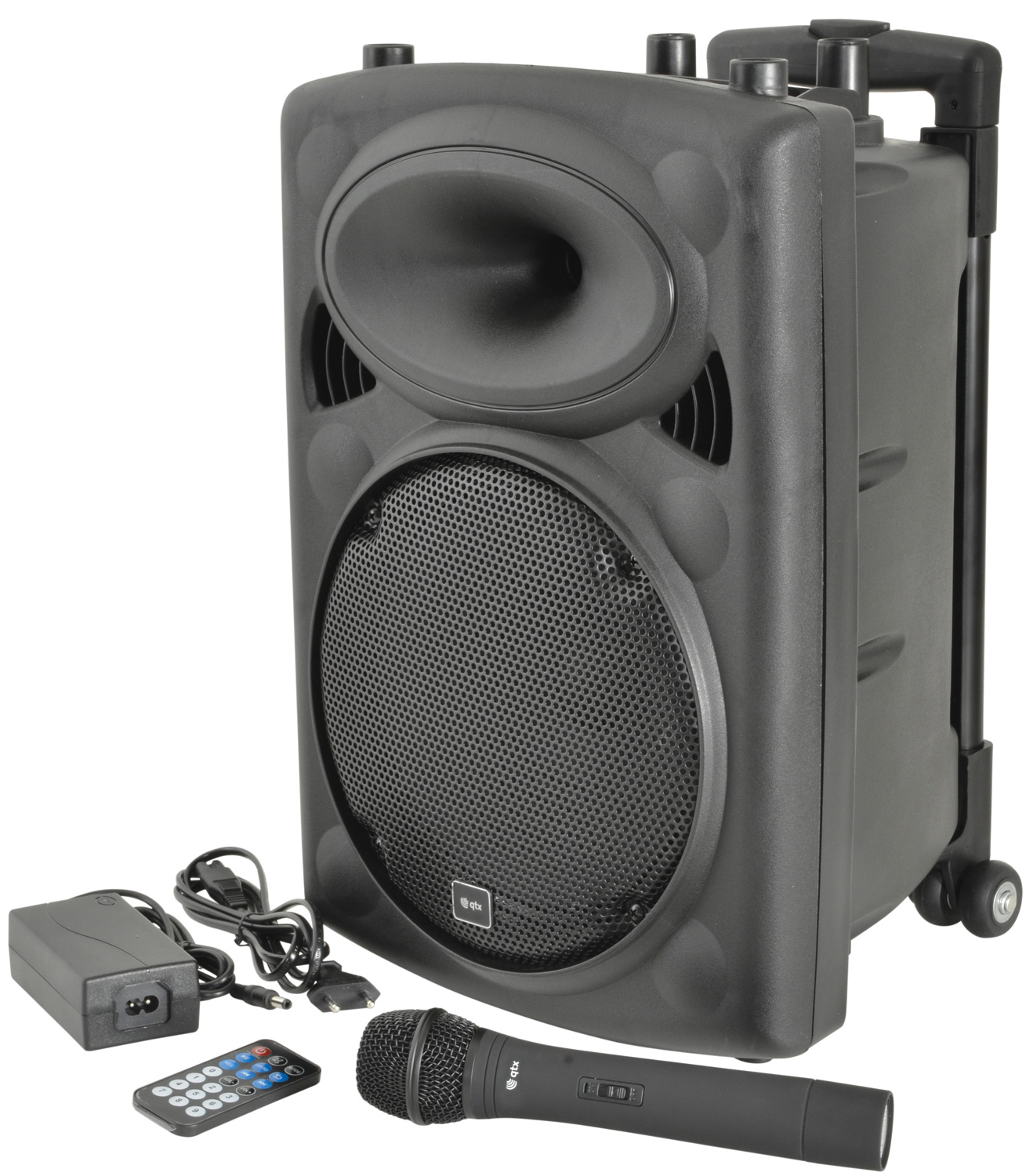

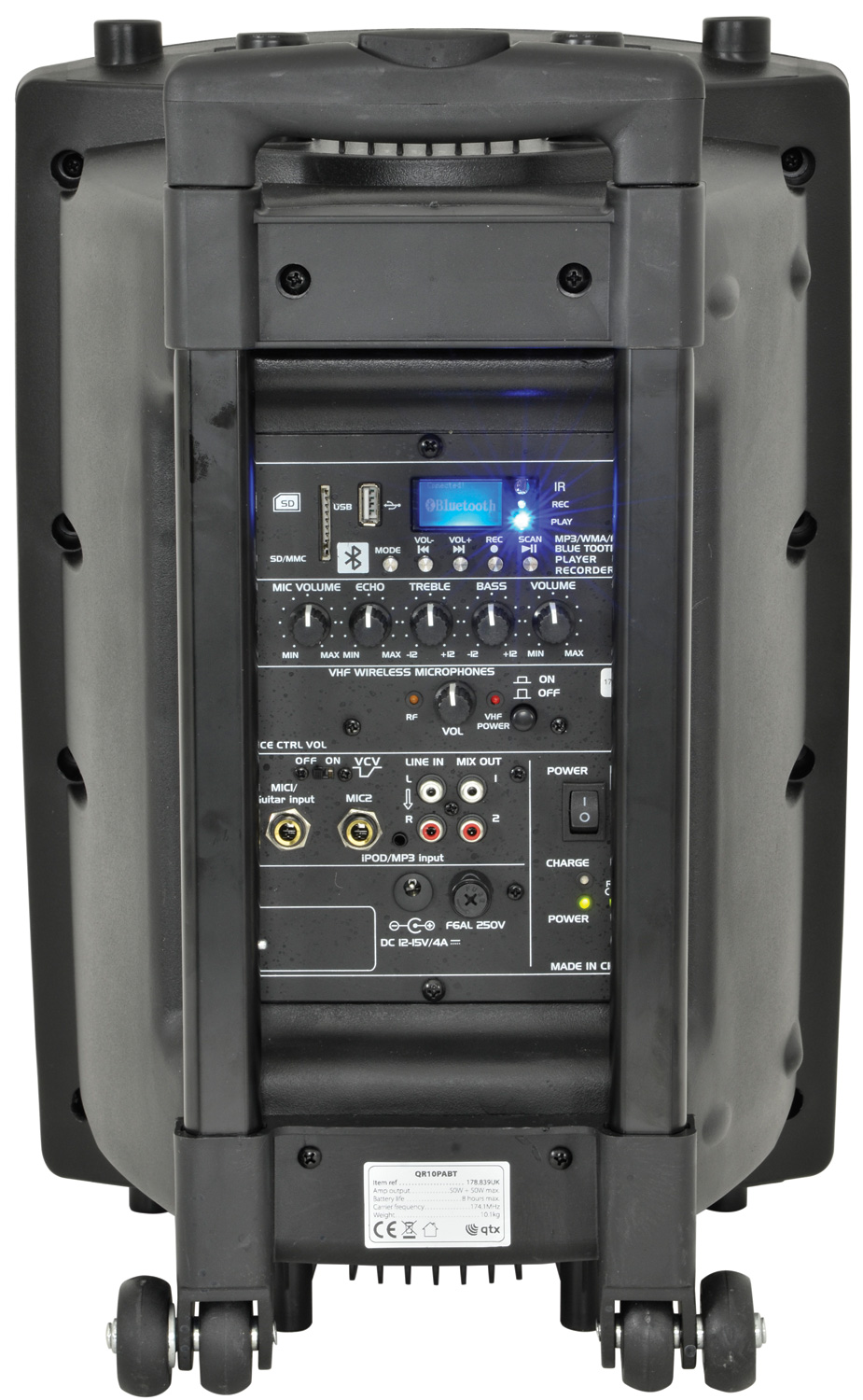

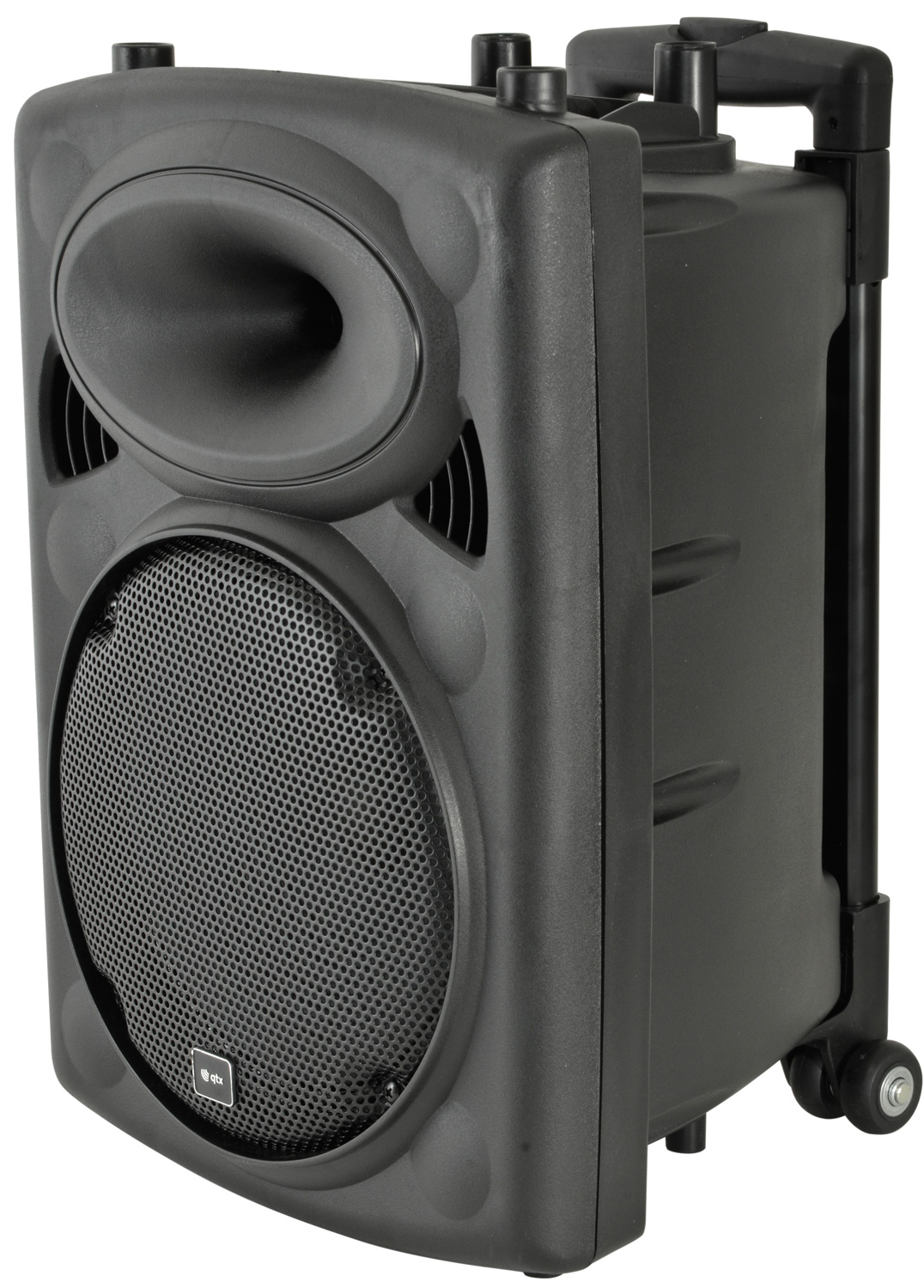

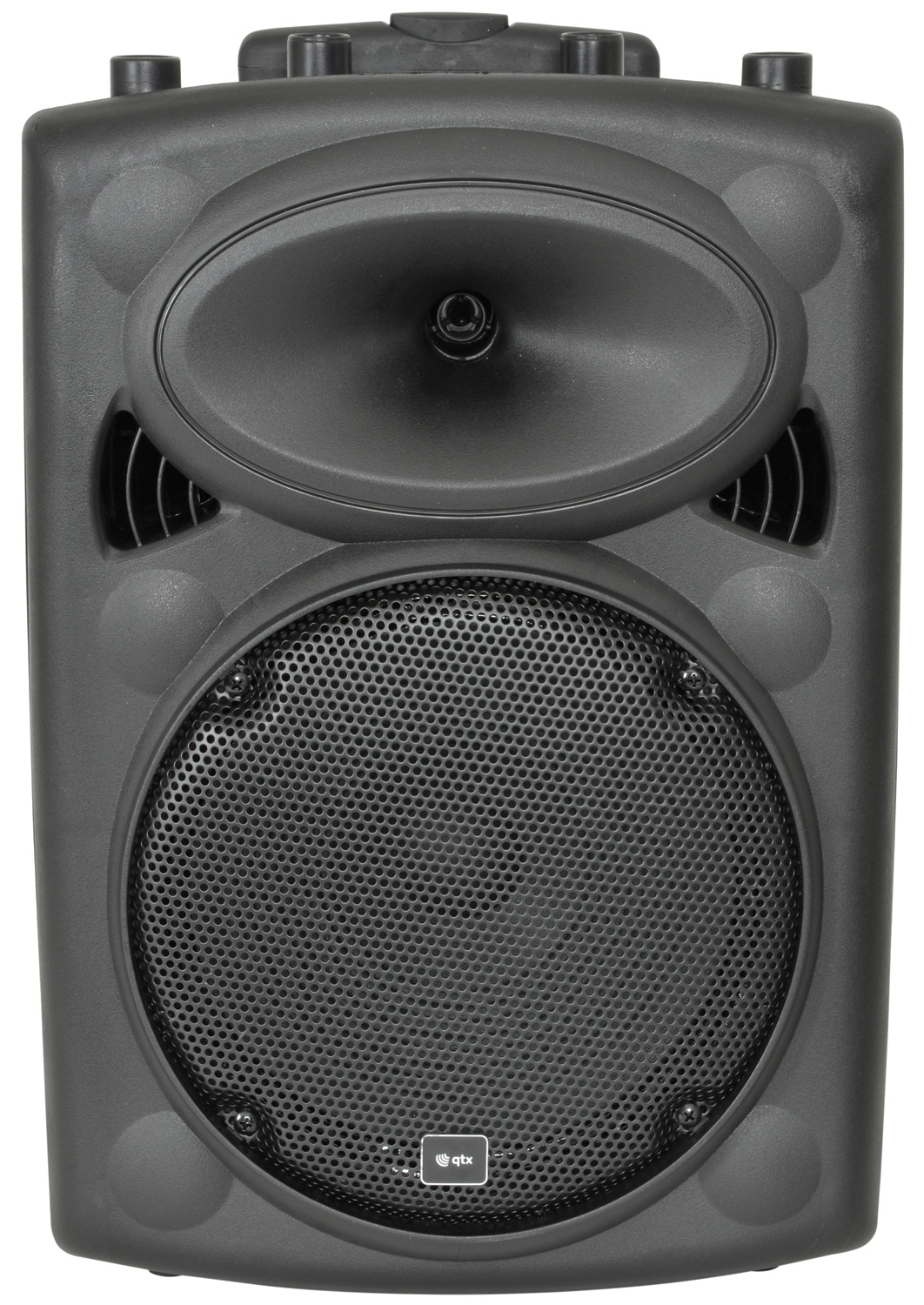

Compact portable PA unit based on the QR speaker cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. Two VHF handheld wireless microphones are included (one on 8” and 10” versions) with the receiver built into the mixer/amp section at the rear along with a further two wired mic inputs, auxiliary line input and integral USB/SD/FM media player with record function. A B/T receiver is also built into the media player to enable pairing with a smartphone or tablet for wireless audio playback. A retractable trolley handle and rear wheels provide easy portability.

  • VHF handheld microphone included
  • Echo effect for microphones
  • Integral USB/SD/FM player with record feature and remote
  • Mains/rechargeable operation
  • Built-in trolley facility
  • Switchable VCV 'mic override' function
  • B/T wireless pairing
  • Optional neckband mic. available (178.851UK)

Specification : Common

  • Power supply Internal battery or 12/15Vdc @ 3A mains adaptor (supplied)
  • Amplifier : output 50 + 50W max.
  • Battery life Up to 8 hours
  • Controls Mic volume, Echo, Bass, Treble, Volume & VHF mic volume, Bluetooth, VCV
  • Bluetooth version v4.2
  • Inputs 2 wired mic (jack) and aux (RCA)
  • Carrier frequency 174.1MHz + 175.0MHz (12" & 15" only)

Specification : Versions

  178.838UK 178.839UK 178.847UK 178.848UK
Main driver 200mmØ (8") 250mmØ (10") 300mmØ (12") 380mmØ (15")
Dimensions 290 x 400 x 230mm 320 x 470 x 270mm 570 x 350 x 310mm 685 x 440 x 380mm
Weight 9.1kg 10.1kg 14kg 18.4kg

Trade information

  178.838UK 178.839UK 178.847UK 178.848UK
Barcode / EAN 5015972169599 5015972169612 5015972177686 5015972177709
Package type Box Plain Box Plain Gift Box Gift Box
Package dimensions 350 x 470 x 290mm 360 x 530 x 330mm 370 x 398 x 630mm 442 x 482 x 730mm
Package weight 10.60kg 11.10kg 14.00kg 18.40kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 350 x 470 x 290mm 360 x 530 x 330mm 370 x 398 x 630mm 442 x 482 x 730mm
Carton weight 10.60kg 11.10kg 14.00kg 18.40kg
Carton quantity 1 package 1 package 1 package 1 package
Pack paper weight 0.50kg 0.92kg 1.00kg 1.50kg
Pack plastic weight 0.17kg 0.27kg 0.05kg 0.24kg
