QX series portable powered PA unit with Bluetooth
178.856UK
QX15PA
Self-contained PA with Bluetooth. Portable, with pull/carry handles. Includes 2 wireless mics. Various inputs, suited to buskers, DJs, fitness instructors, singer/songwriters, etc. Mains/battery power
- 2 VHF wireless microphones included
- Inbuilt media player and FM radio tuner, with Bluetooth/SD/USB inputs and IR remote control
- Mains or internal rechargeable battery power (up to 8 hours)
| Description | |
|---|---|
|
178.853UK
QX12PA portable PA unit with USB/SD/FM player & Bluetooth |
|
178.856UK
QX15PA portable PA unit with USB/SD/FM player & Bluetooth |
Accessories
| Description | |
|---|---|
|
178.891UK
Headset for QR+QXPA - 174.1MHz |
|
178.892UK
Headset for QR+QXPA - 175.0MHz |
|
178.893UK
Handheld Mic QR+QXPA- 174.1MHz |
|
178.894UK
Handheld Mic QR+QXPA- 175.0MHz |
|
952.411UK
VHF handheld transmitter for H25 PA |

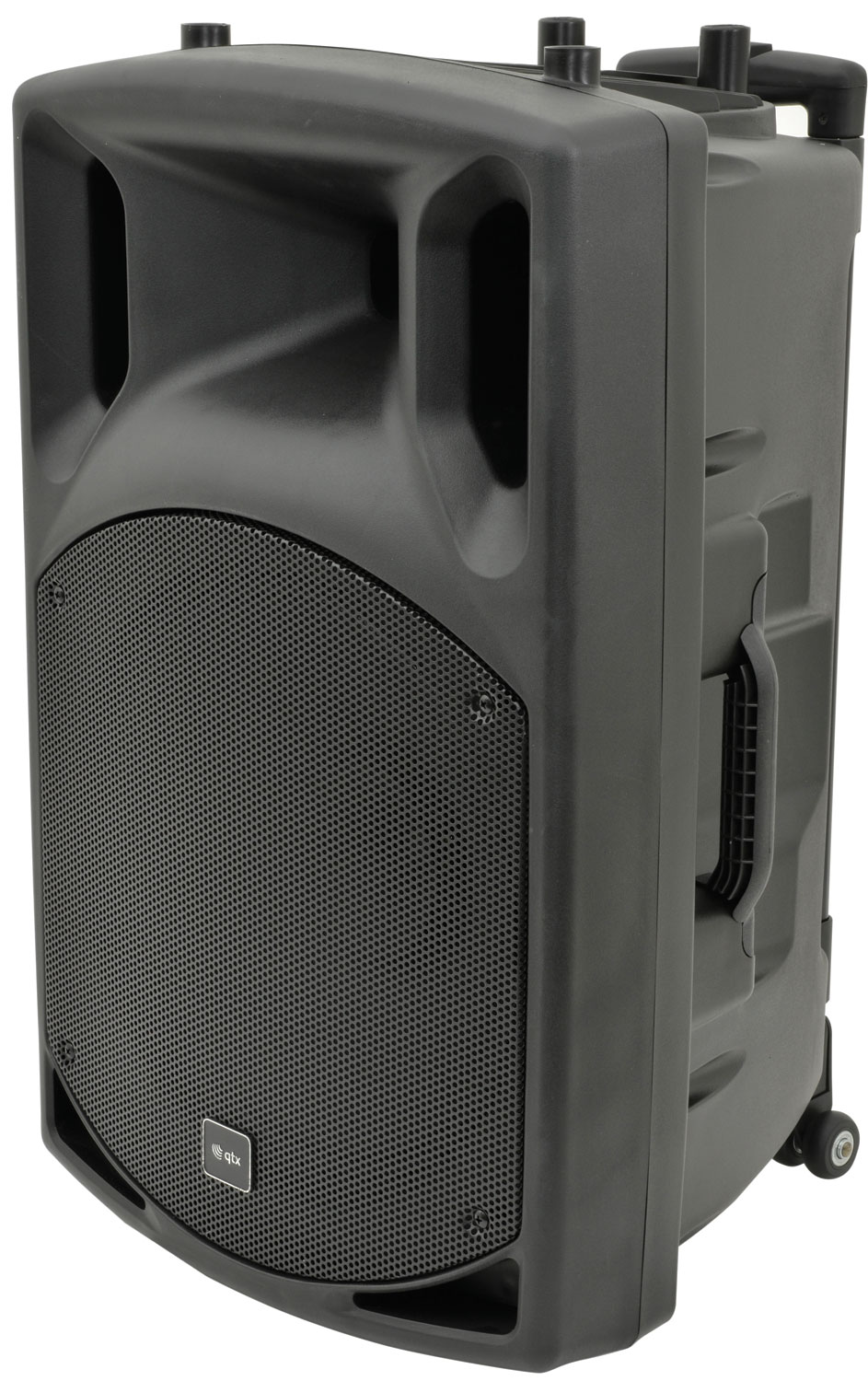

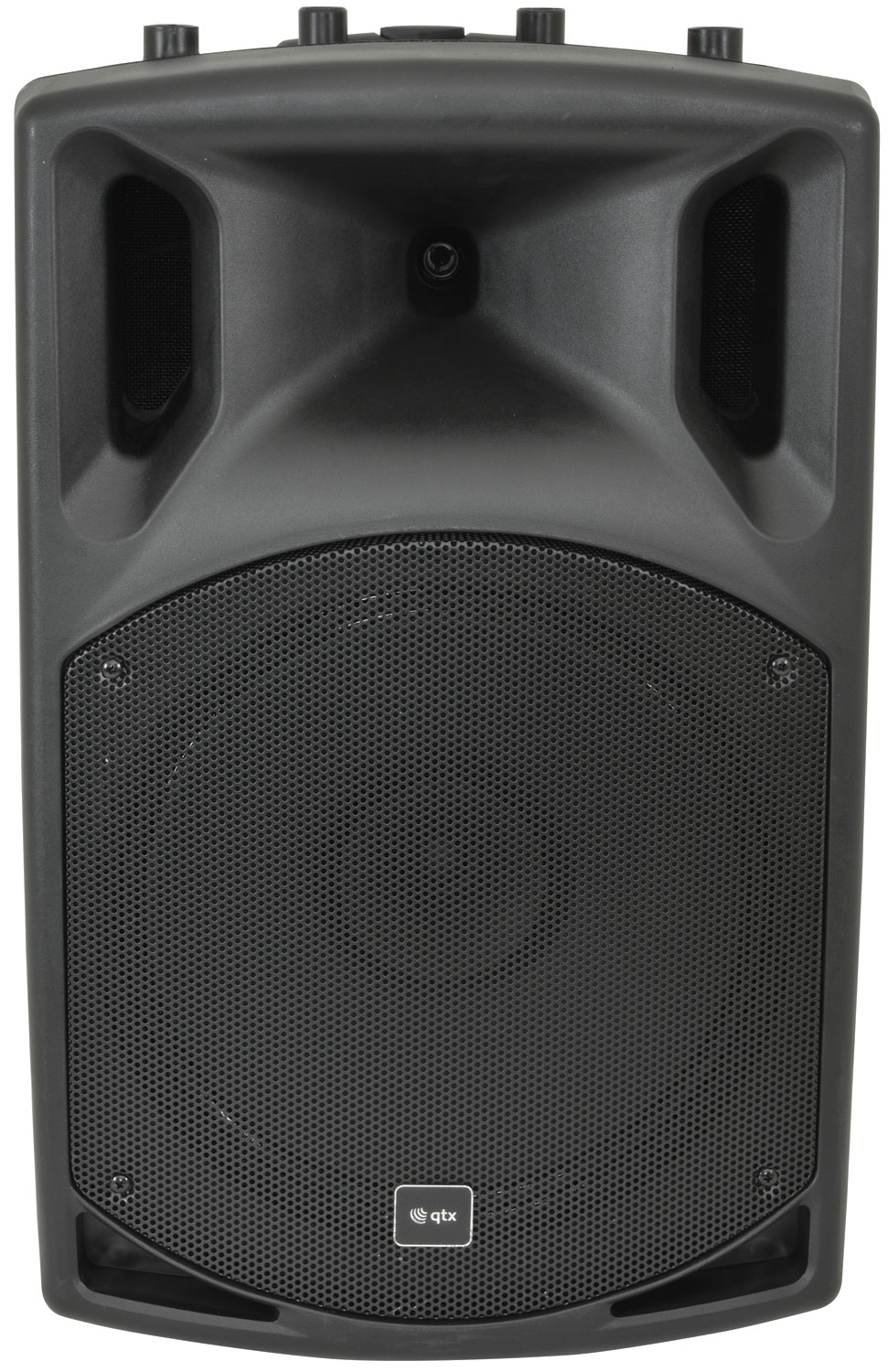

QX series portable powered PA unit with Bluetooth

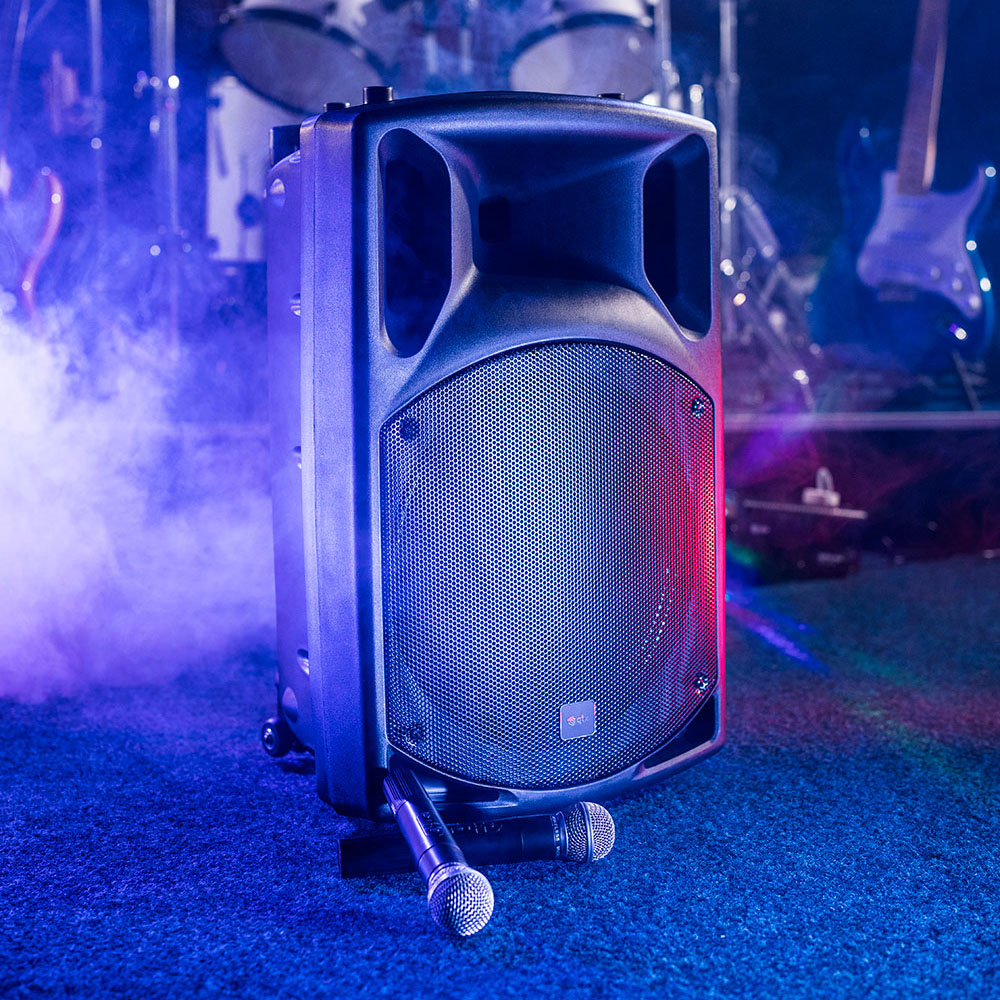

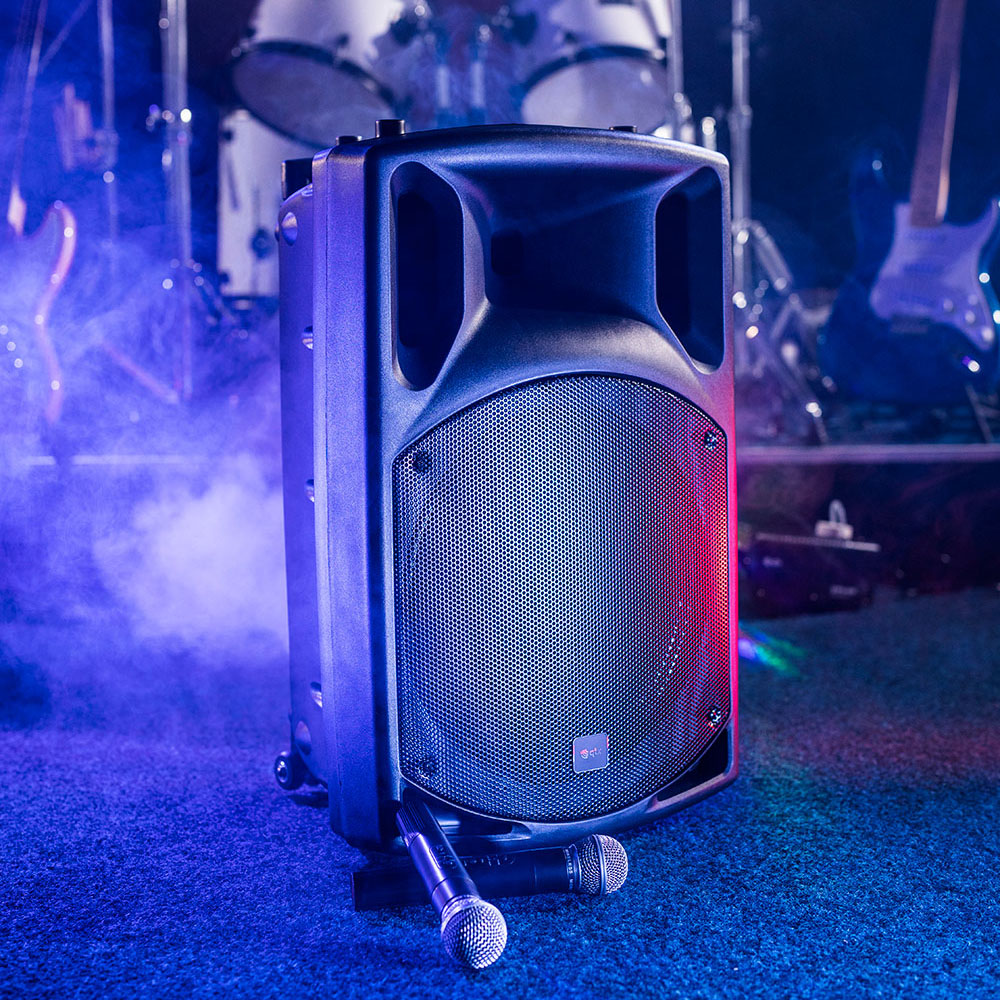

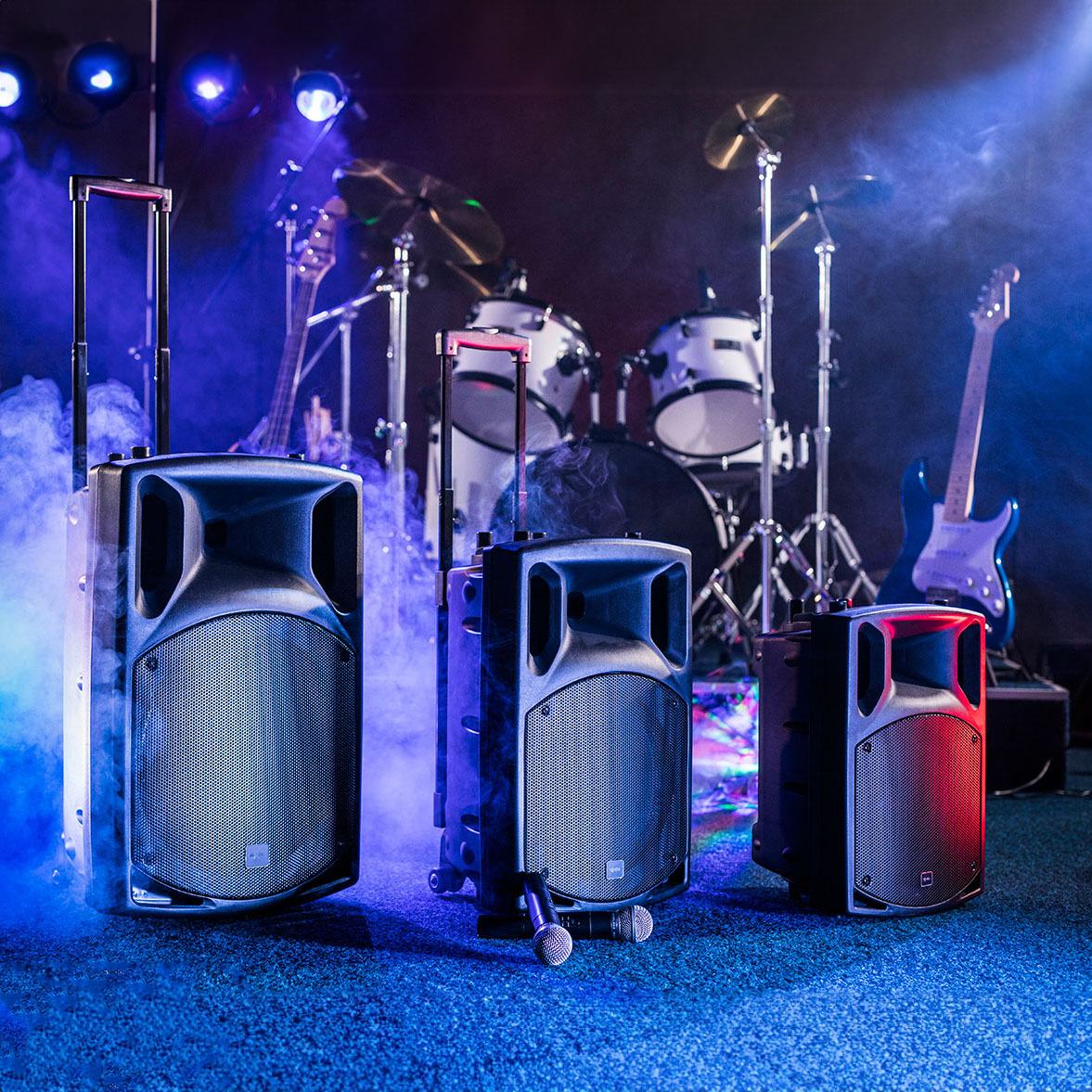

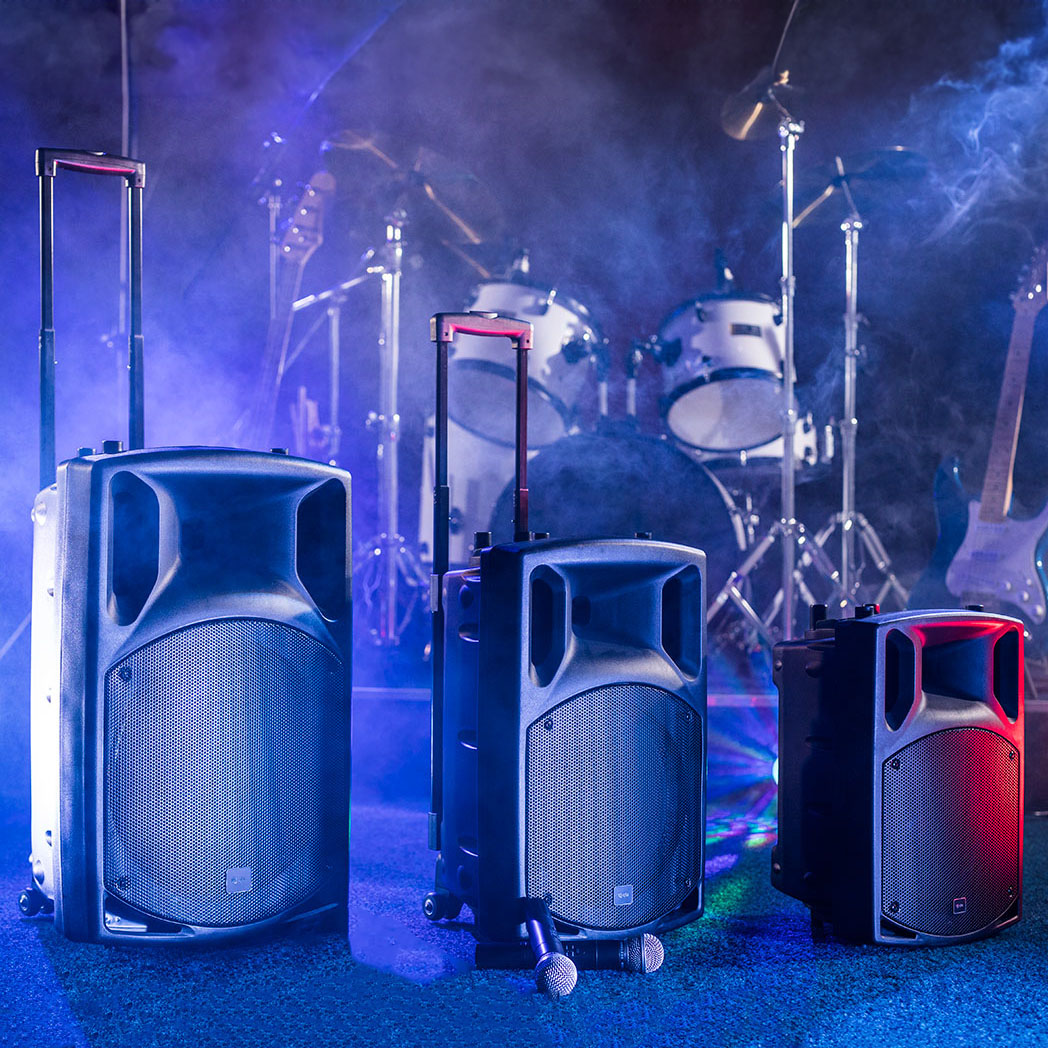

A self-contained PA system with pull and carry handles for easy portability, and a host of connectivity options including Bluetooth. The unit is supplied with 2 VHF wireless microphones, and features 2 further mic inputs, one of which doubles as a guitar input. The aux input is ideal for phones, tablets, laptops and mp3 players; and the RCA in/out adds DJ connectivity and expansion/recording possibilities. SD and USB media, an integrated FM radio tuner, and paired Bluetooth devices can be controlled via the internal media player with IR remote control. A switchable VCV ‘voiceover’ function automatically lowers the volume of background music when a mic signal is received. Powered by mains or internal rechargeable battery (up to 8 hours), and pole/stand mountable.
- 2 VHF wireless microphones included
- Inbuilt media player and FM radio tuner, with Bluetooth/SD/USB inputs and IR remote control
- Mains or internal rechargeable battery power (up to 8 hours)

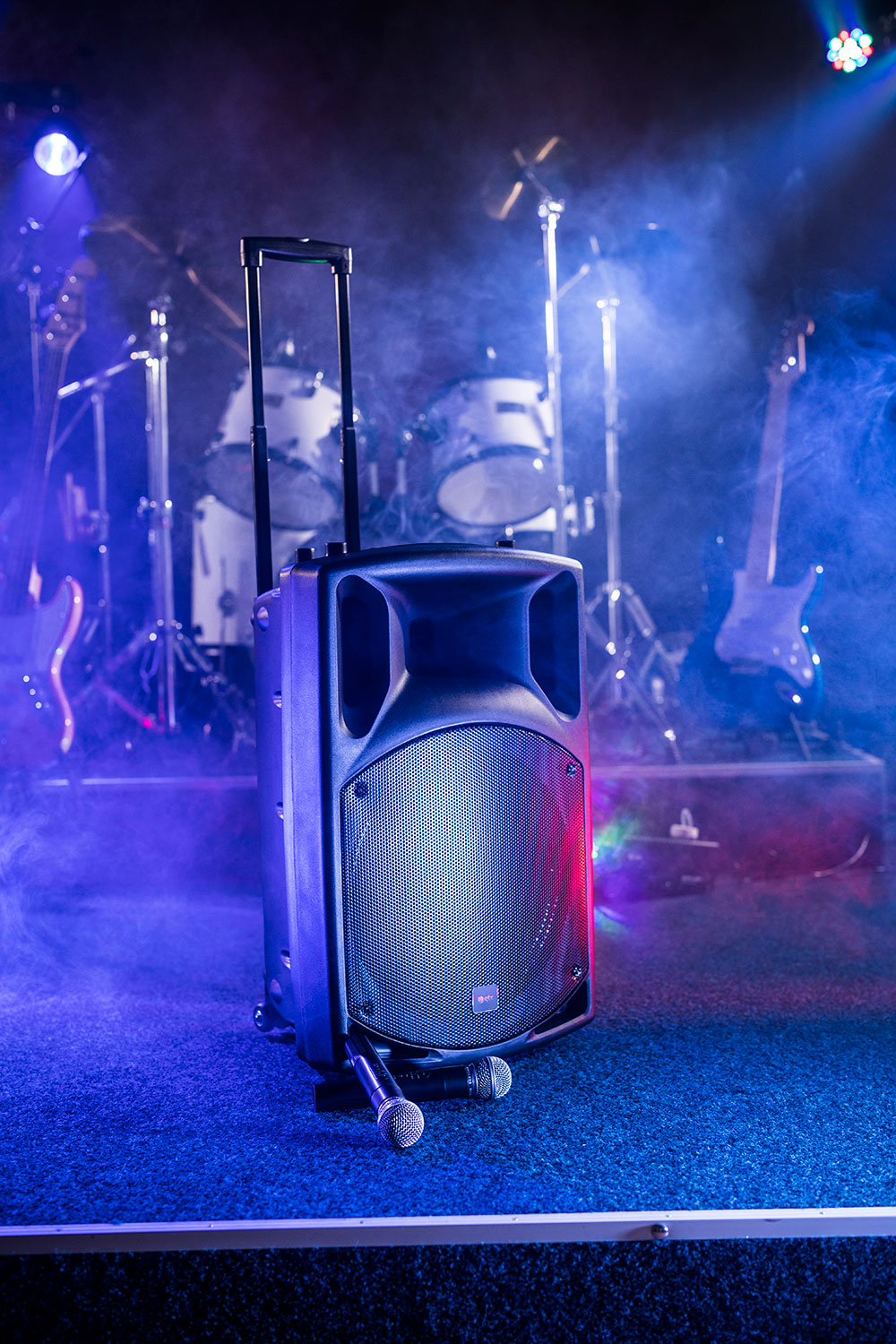

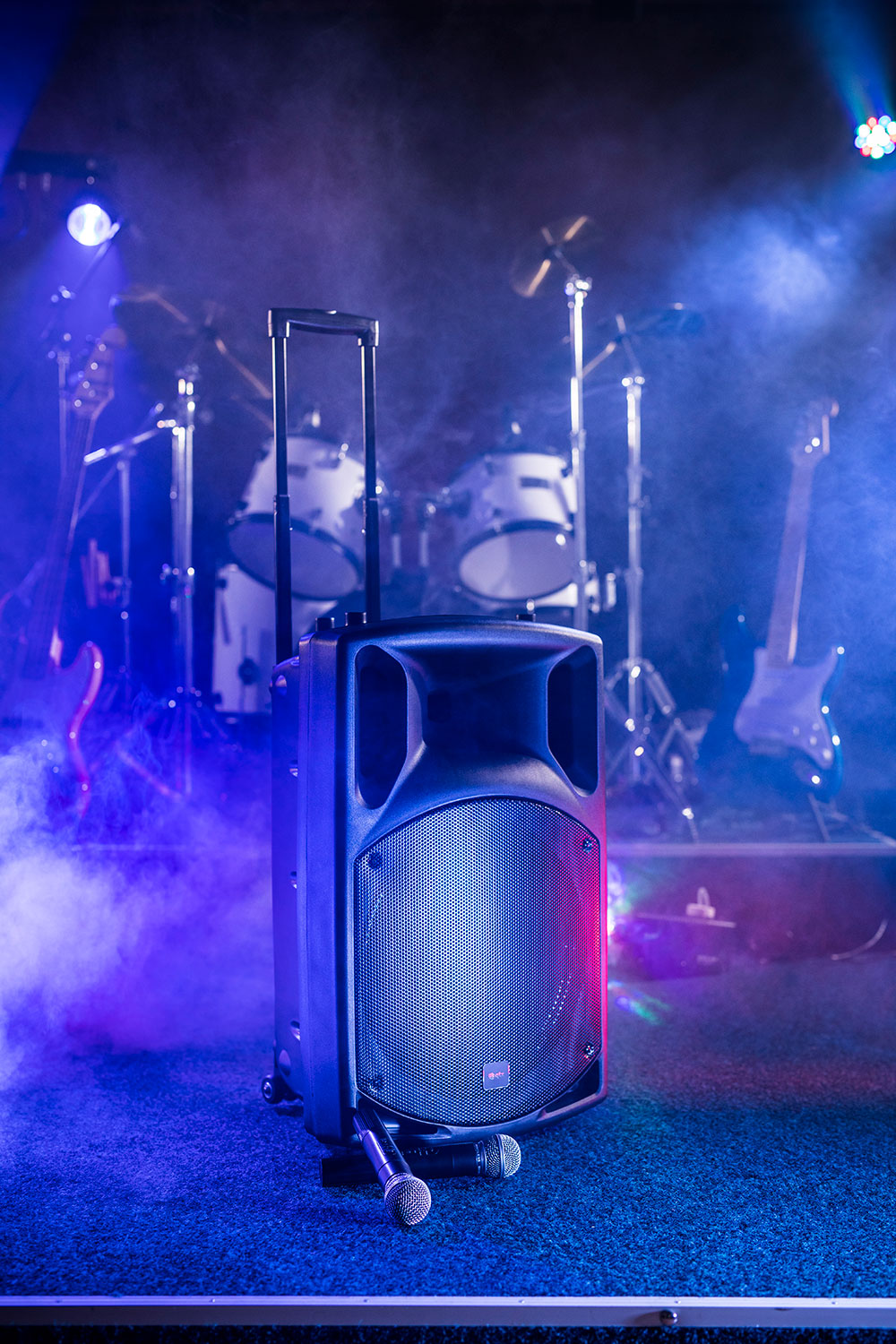

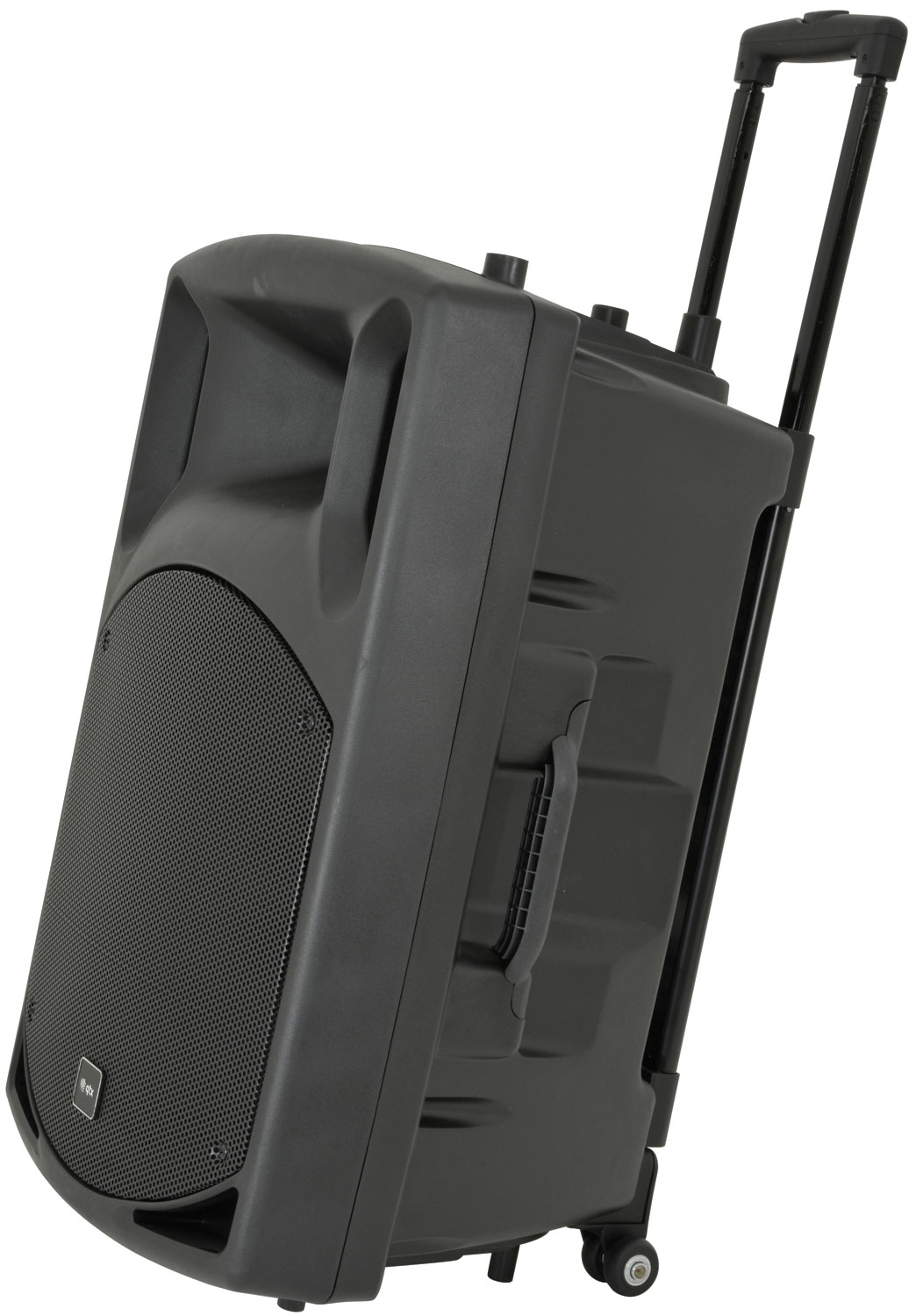

- Pull/carry handles and wheels for easy transit
- Active inbuilt amplifier
- Mic, guitar, line-level aux (mp3) and RCA inputs
- VCV ‘voiceover’ feature; lowers music for vocals
- Echo effect for microphones

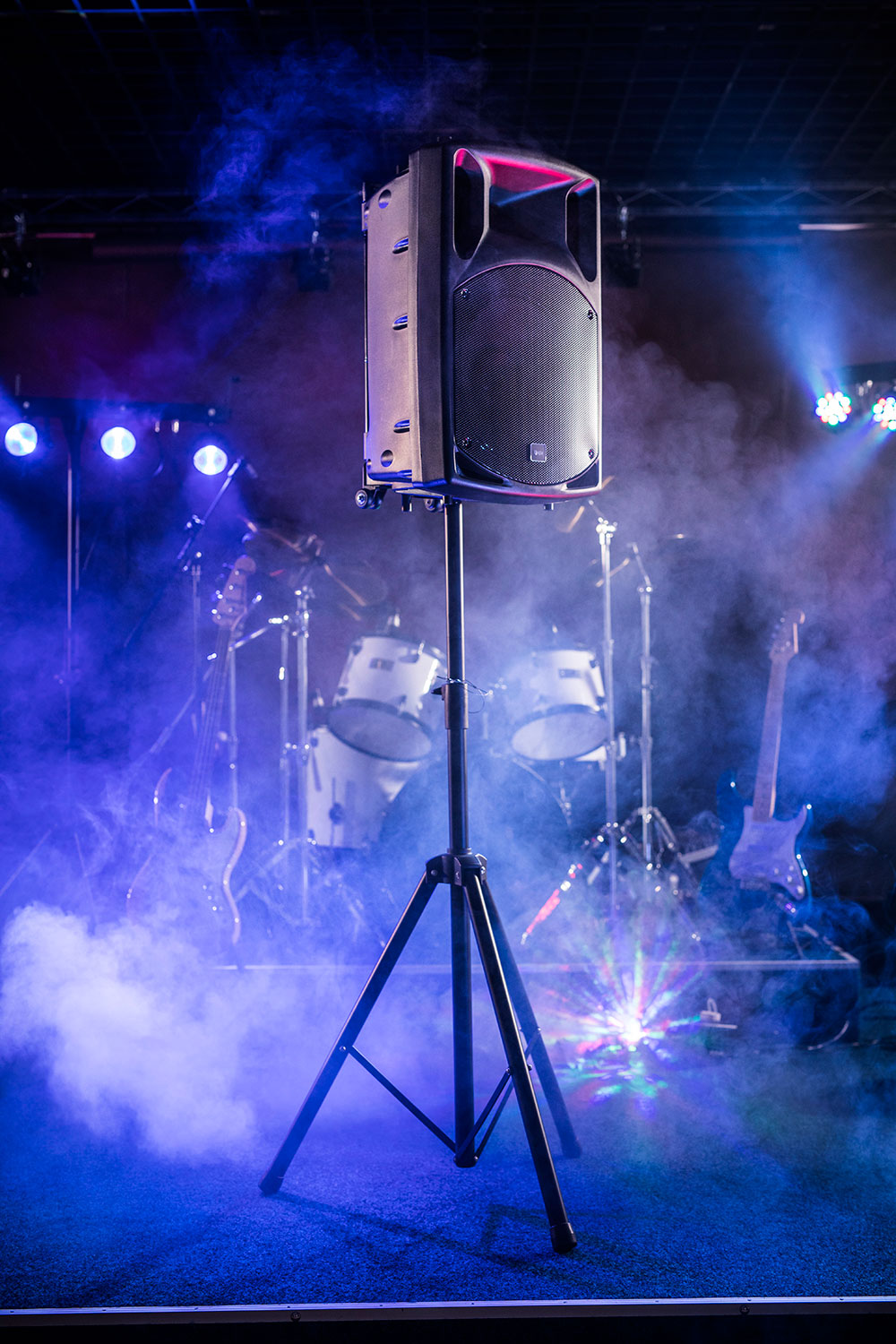

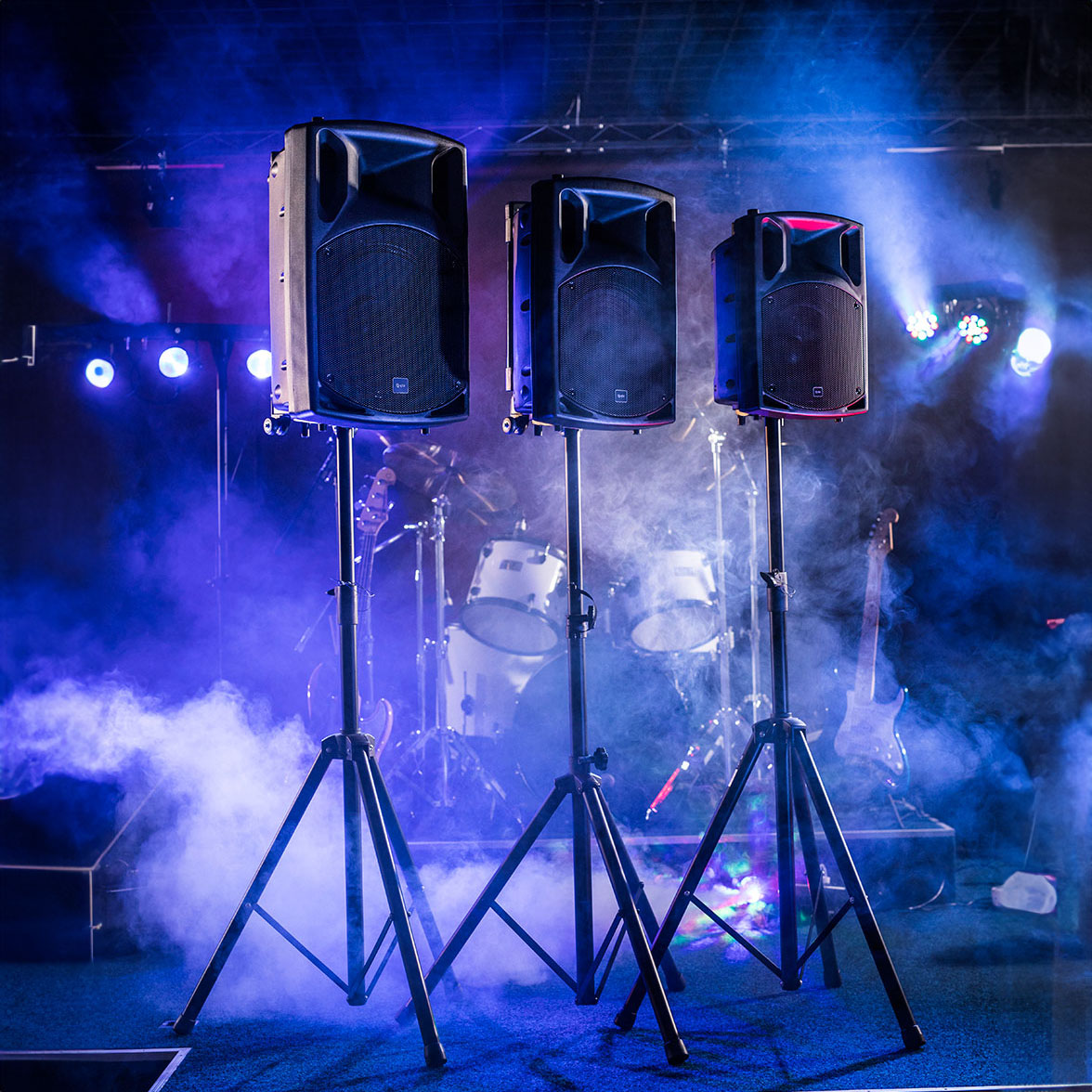

- 35mm stand/pole mount
- Optional neck-worn transmitters available: 174.1MHz (178.891) and 175.0MHz (178.892)
- Power supply 220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery
- HF driver 25mm (1'') Titanium compression driver
- Wireless microphone frequencies 174.1MHz + 175.0MHz
- Amplifier : output 50 + 50Wrms
- Battery life Up to 8 hours

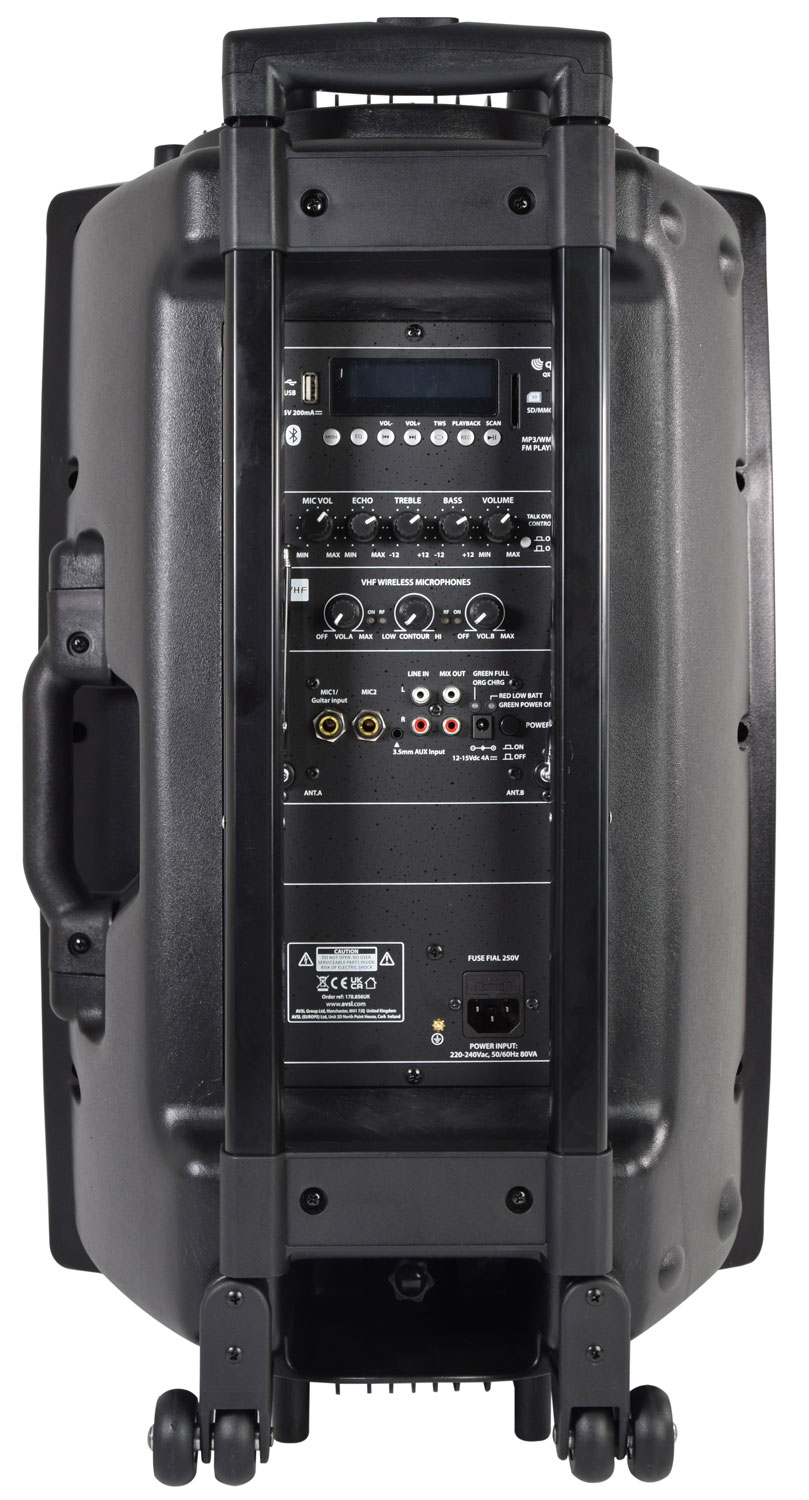

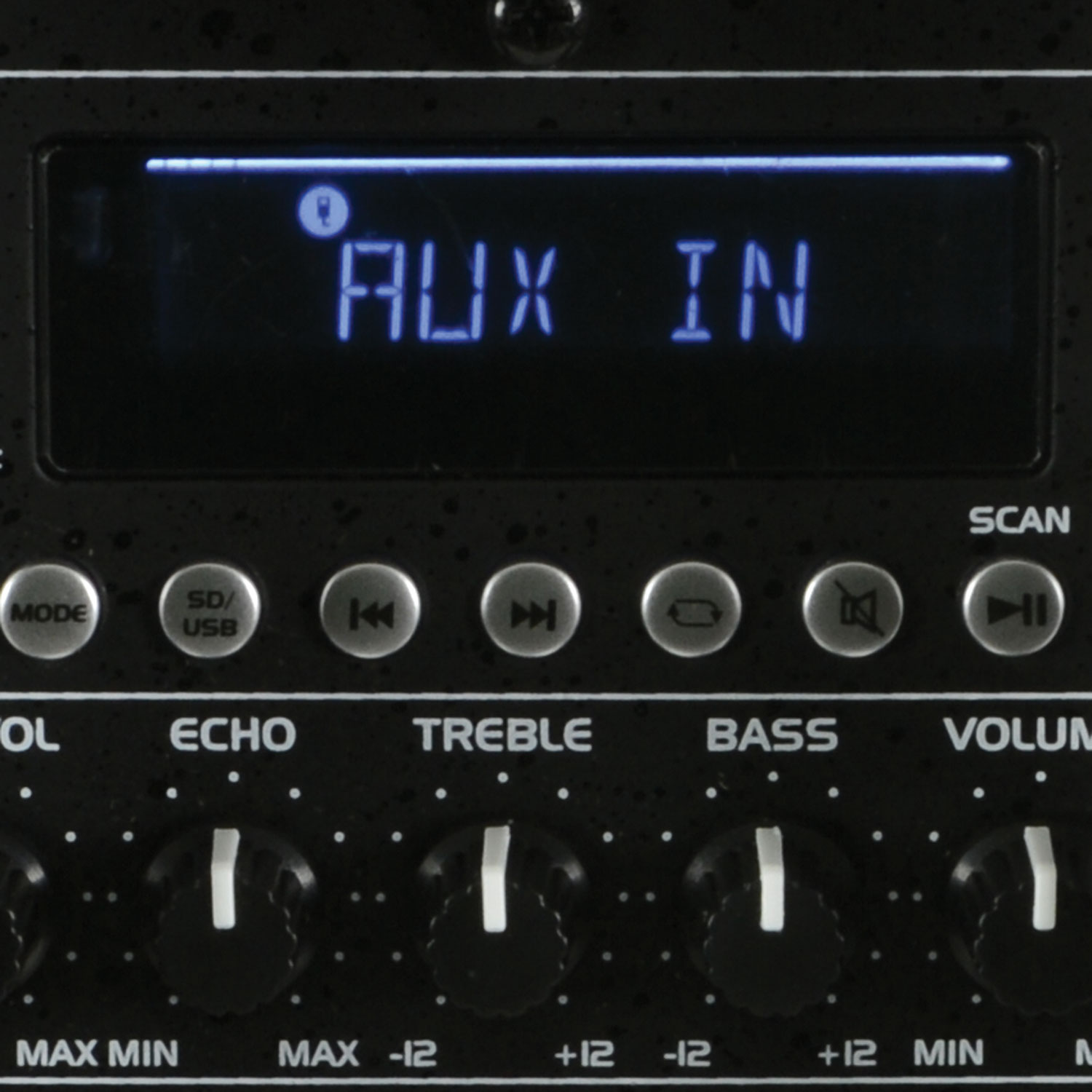

- Controls Volume, Bass, Treble, Echo, Mic vol, VHF vol, Contour, VCV, Bluetooth
- Inputs 2 wired mic (jack) and aux (RCA & 3.5mm)
- Bluetooth version 4.2
- Dispersion 90° x 60° (H x V)

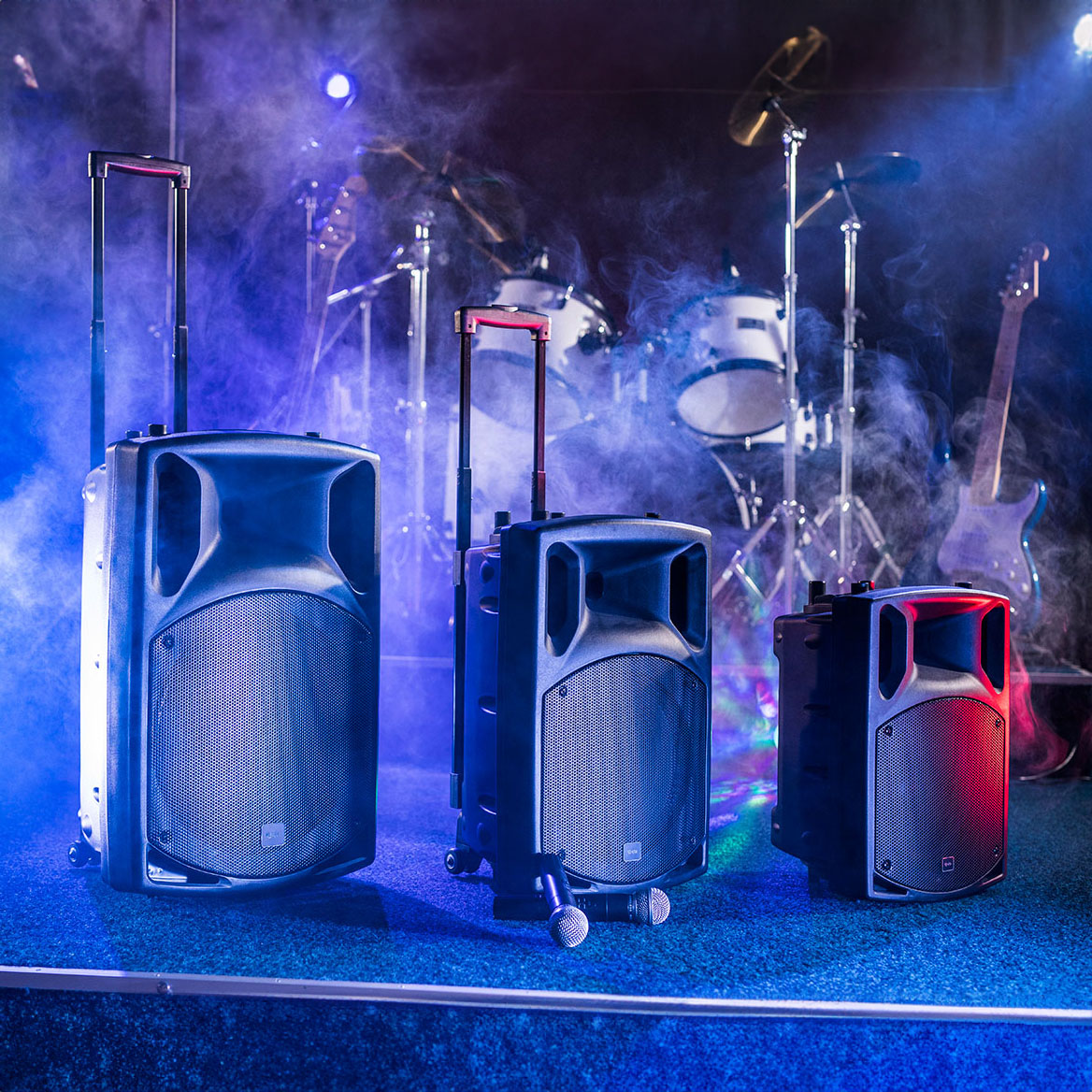

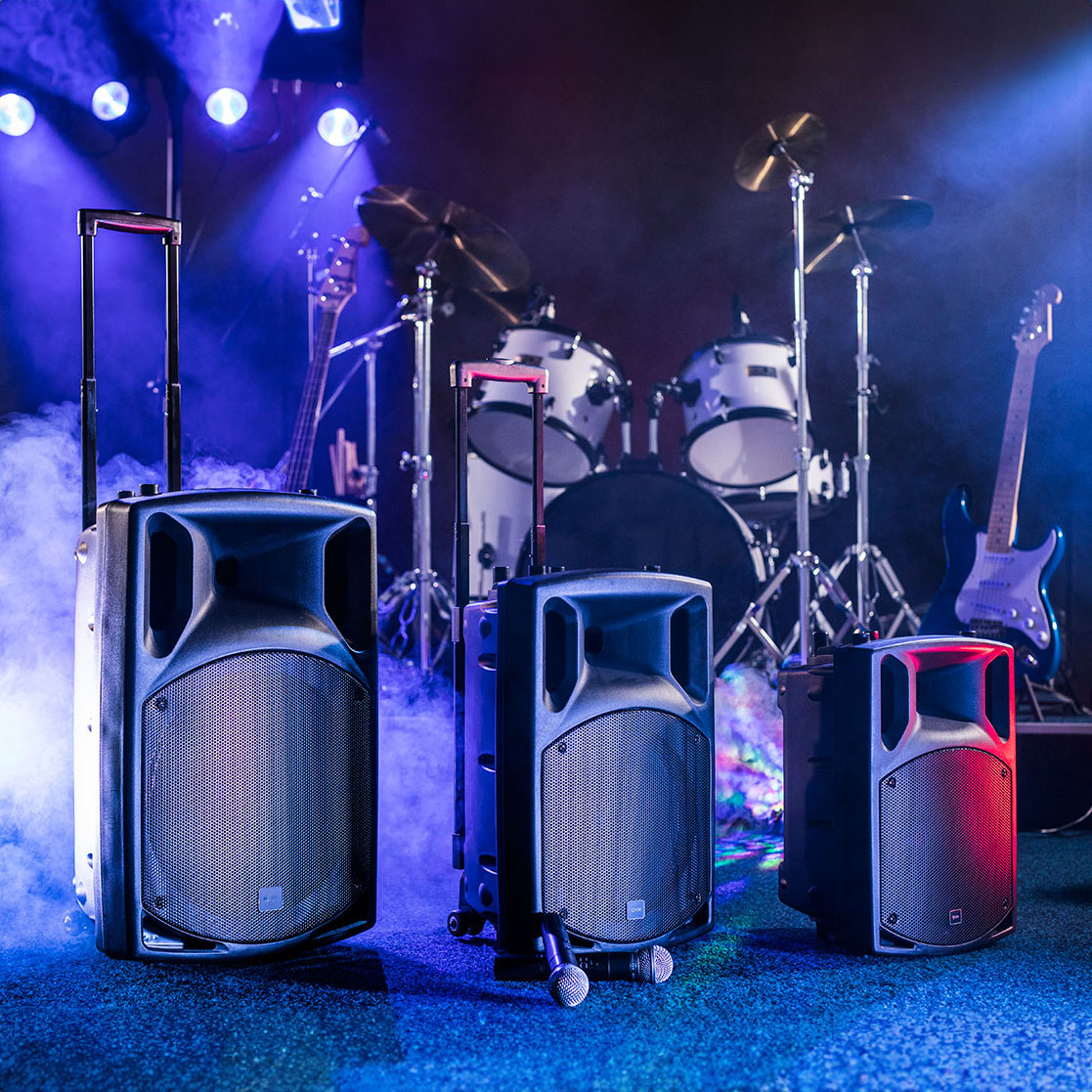

Versions
| 178.853UK | 178.856UK | |
|---|---|---|
| Main driver | 300mm (12'') | 380mm (15'') |
| Dimensions | 565 x 345 x 325mm | 675 x 420 x 395mm |
| Weight | 12.8kg | 18.1kg |
Support : articles
In the box
The box for this item contains :
- QX series portable PA unit

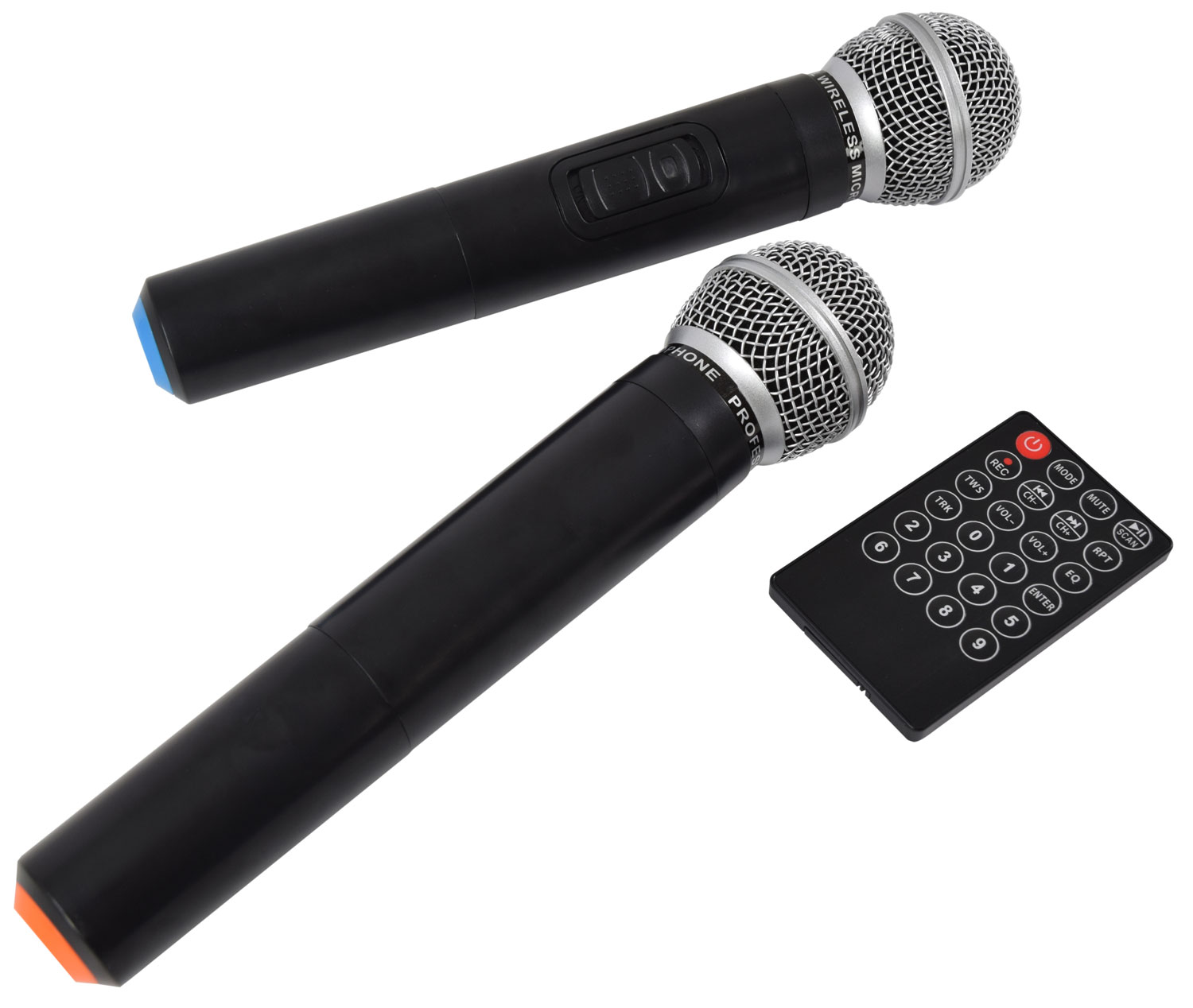

- 2 VHF wireless handheld microphones
- IR remote control for inbuilt media player
- Mains power lead
- User manual
