4-in-1 Remote Network Cable Test Meter

505.993UK TST-C1

A handheld test meter for determining continuity and wire/pin-related faults in network, telephone, USB and coaxial cables, before and after installation. The device comprises a main module and det...

  • Tests all common network types: RJ45 (UTP/STP), RJ11, USB and BNC
  • Easy-to-read LED indication for short/open circuit, crossover and no connection
  • Simple single-button test and audible alert for intuitive use
Description Version Packed
505.993UK
Remote Cable Tester 4 Port
Gift Box

4-in-1 Remote Network Cable Test Meter

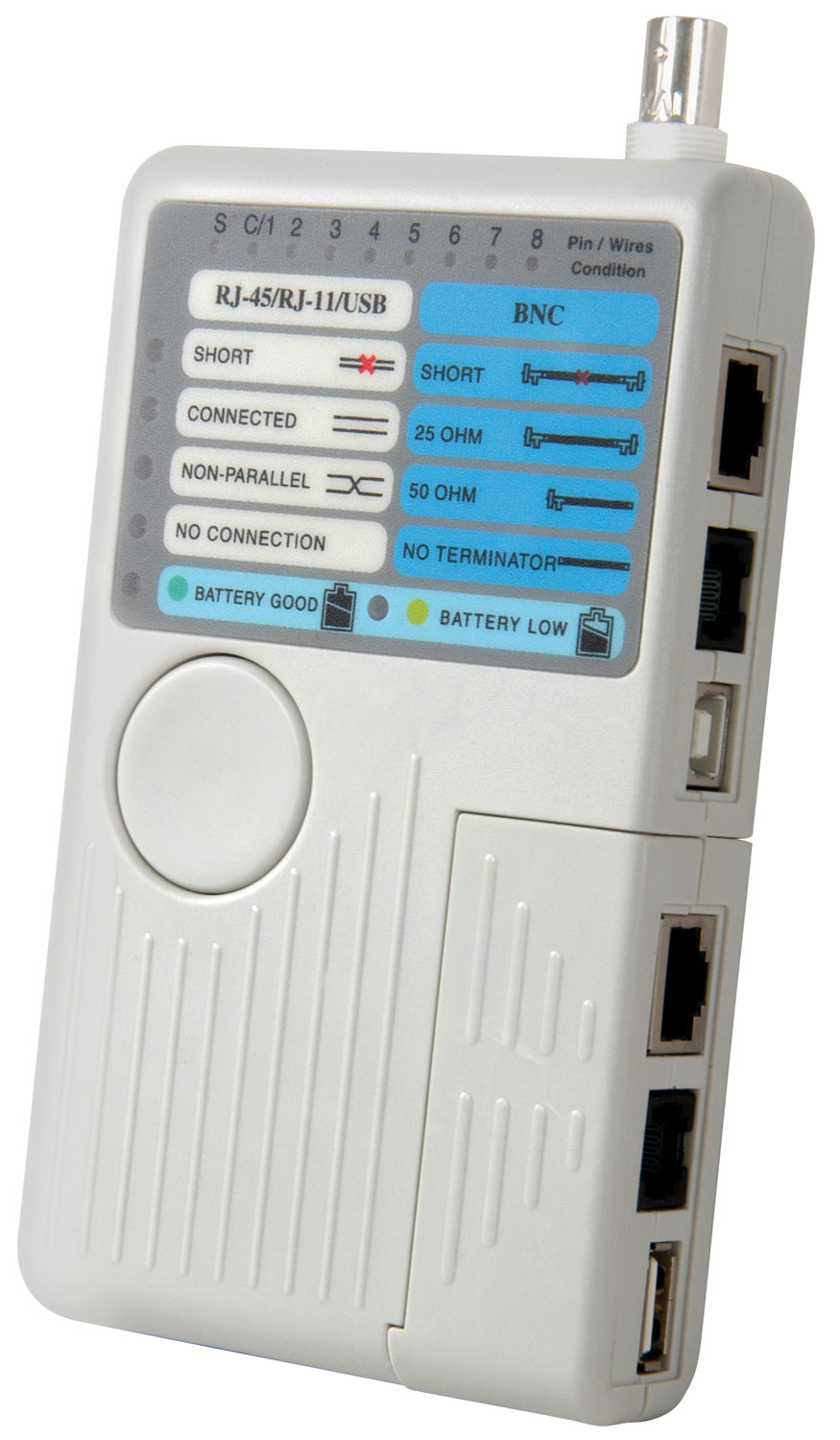

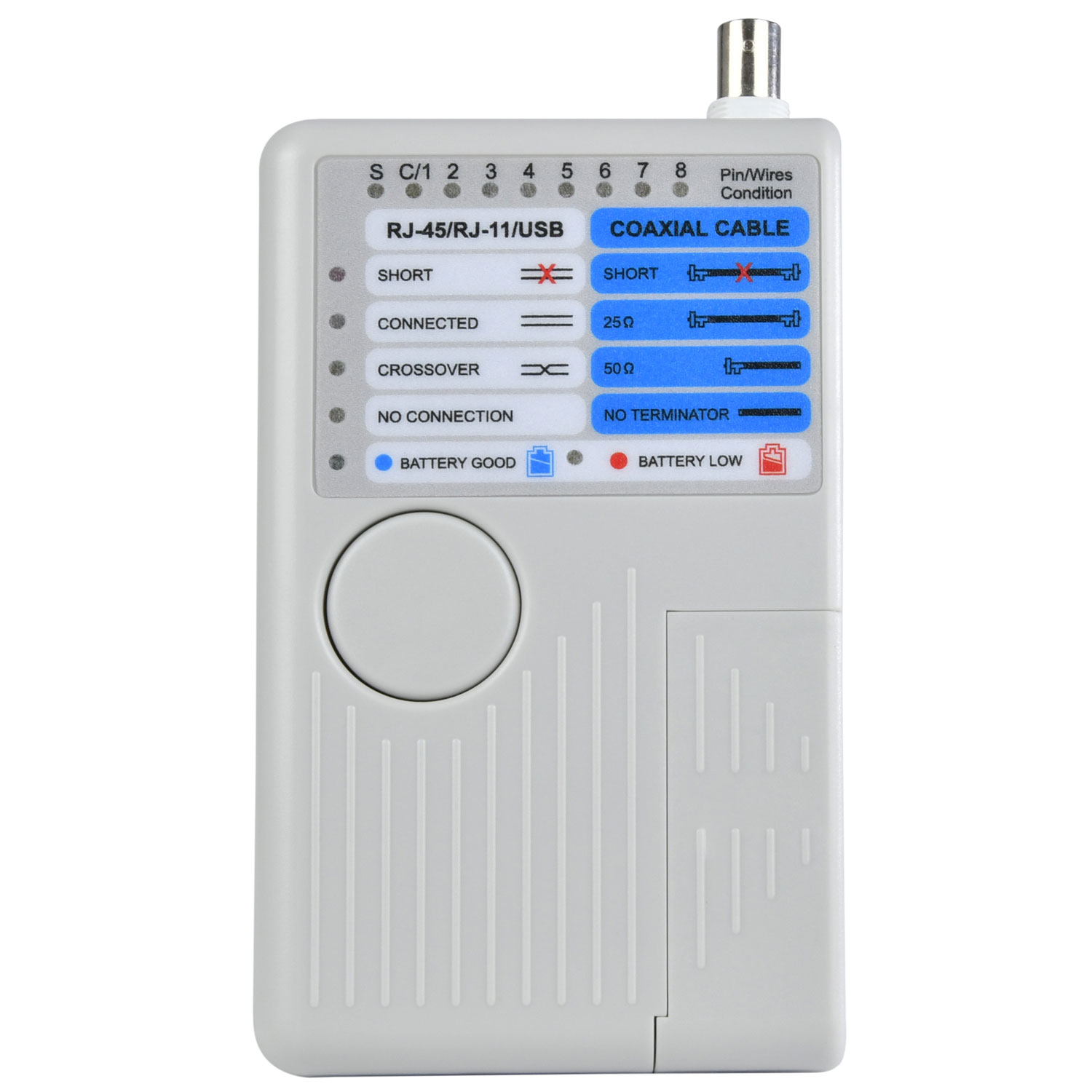

A handheld test meter for determining continuity and wire/pin-related faults in network, telephone, USB and coaxial cables, before and after installation. The device comprises a main module and detachable remote. To test a cable, its ends must be connected to the appropriate RJ45 (UTP/STP), RJ11 or USB jacks in both units. BNC leads must be connected to the plug on the top of the main module and terminated using the BNC remote jack (included) before testing. Pressing the test button generates an audible beep and one of several LED indications on the front panel, denoting various connection statuses, including crossover. The tester is battery powered, with an LED indicator to show when a replacement cell is required. A carry case is included, for protection in transit and storage.

  • Tests all common network types: RJ45 (UTP/STP), RJ11, USB and BNC
  • Easy-to-read LED indication for short/open circuit, crossover and no connection
  • Simple single-button test and audible alert for intuitive use
  • Remote unit stores conveniently within the main unit
  • Battery status indication
  • Carry case included
  • Max. cable length 180m (600ft)
  • Battery 1x 9Vdc PP3 (not supplied)
  • Dimensions 143 x 86 x 26.5mm
  • Weight 202g

In the box

The box for this item contains :

  • 4 Port network cable tester
  • Remote unit (attached to the main unit)
  • BNC remote jack
  • Carry case
  • User guide

Downloads

Instruction manual
For 505.993UK (1.1MB)
UK Declaration of conformity
For 505.993UK (248KB)
EU Declaration of conformity
For 505.993UK (237KB)
