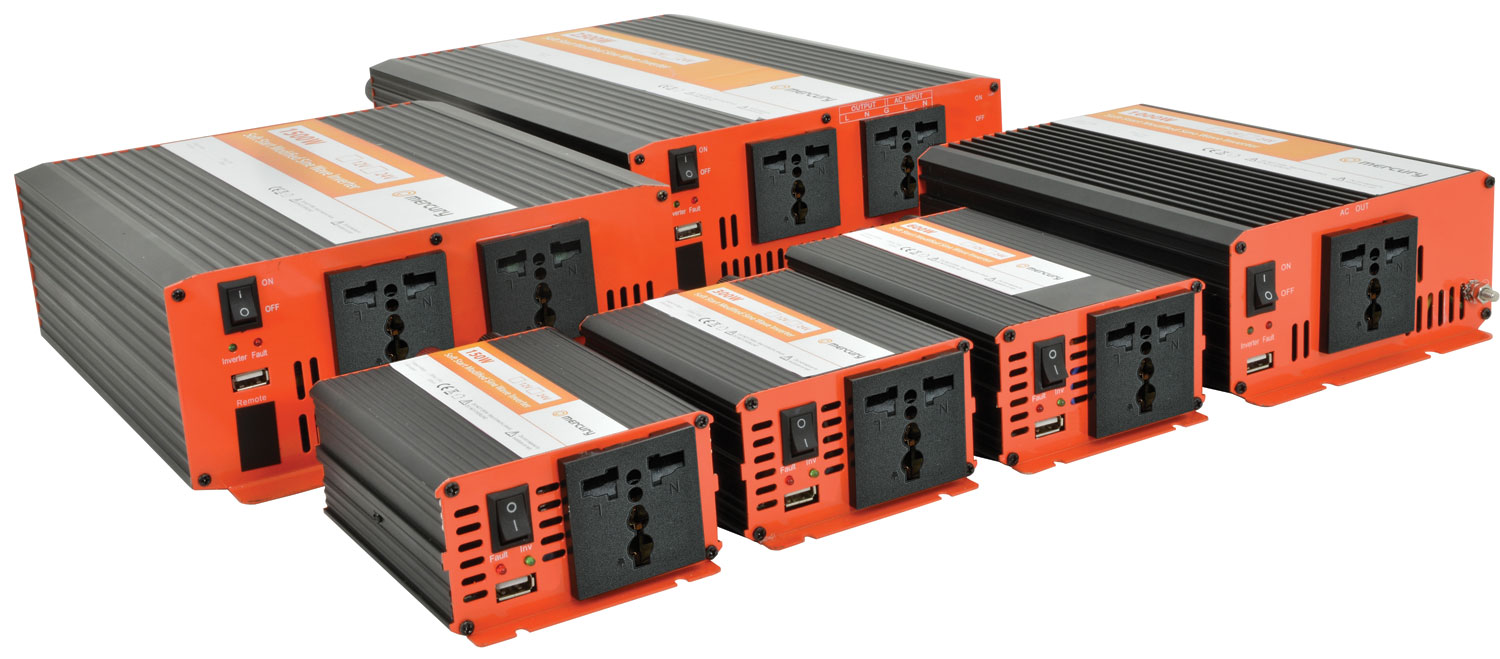

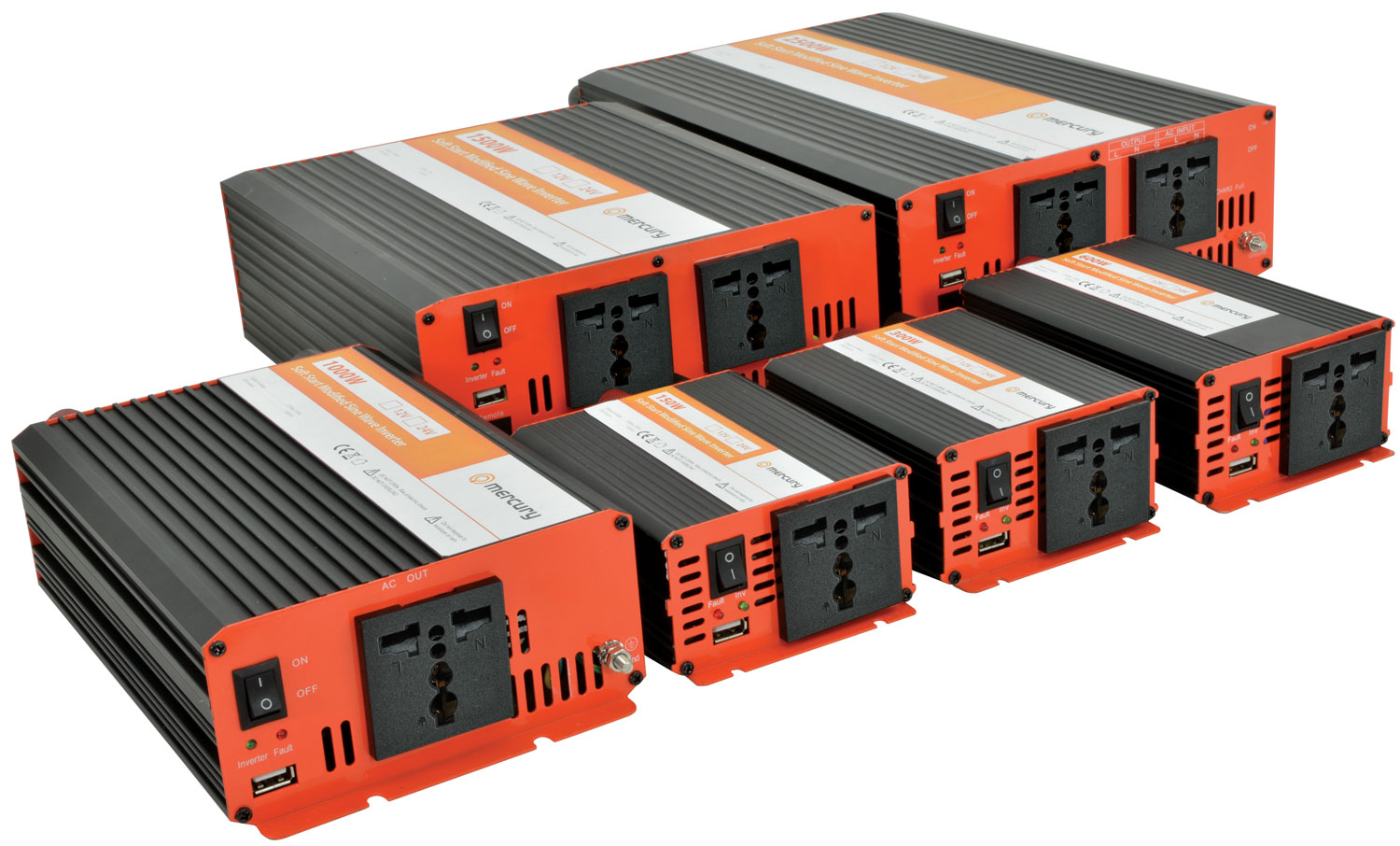

Soft Start Modified Sine Wave Inverters

652.000UK IMS150-12

These high efficiency power inverters use a modified sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries,...

  • Over 85% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • Low/over voltage input protection
Description Version Packed
652.000UK

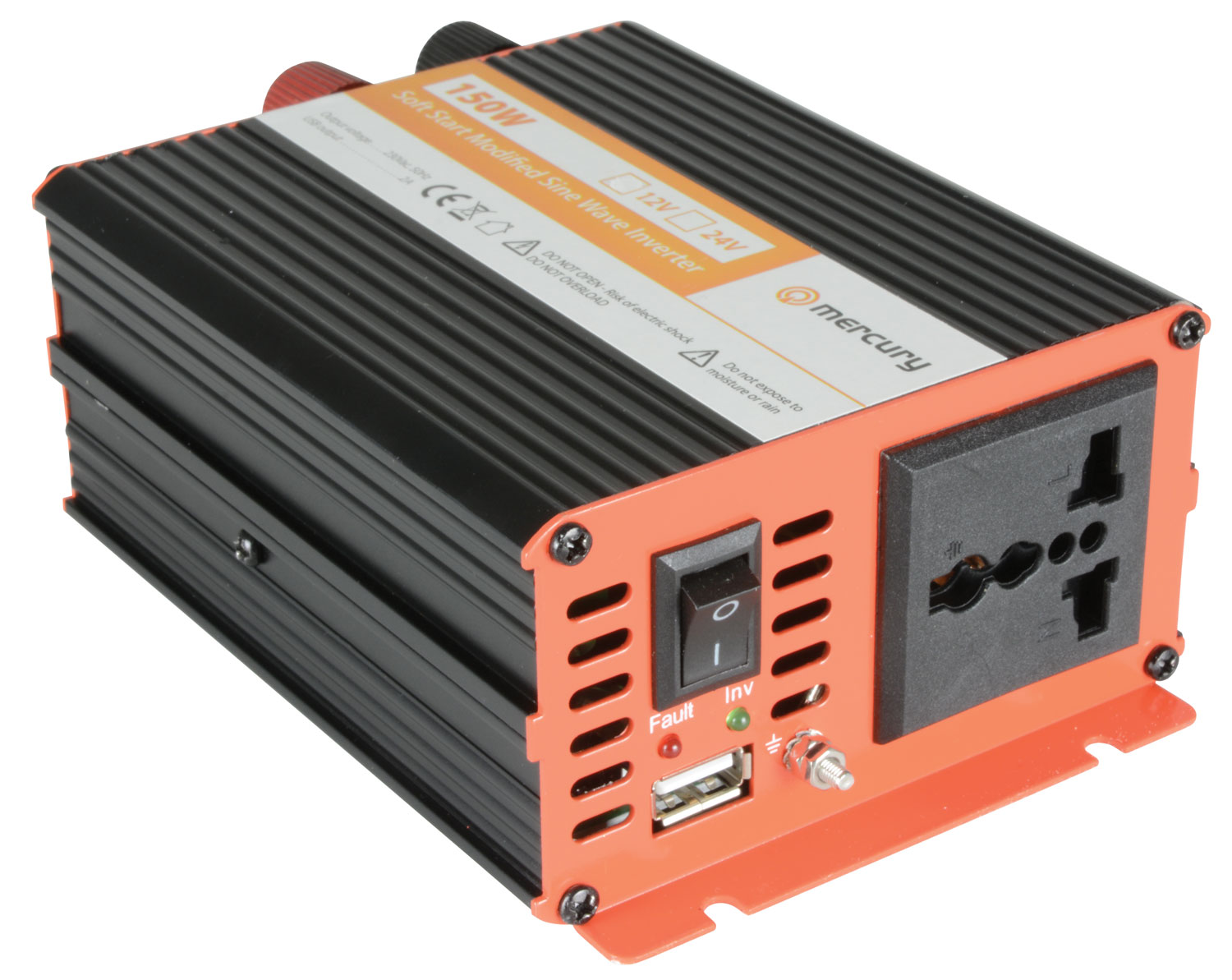

12Vdc 150W Modified Sine Wave Inverter
12Vdc 150W Sleeve
652.002UK
12Vdc 300W Modified Sine Wave Inverter
12Vdc 300W Box Label Colour
652.004UK
12Vdc 600W Modified Sine Wave Inverter
12Vdc 600W Box Label Colour
652.006UK
12Vdc 1000W Modified Sine Wave Inverter
12Vdc 1000W Box Label Colour
652.008UK
12Vdc 1500W Modified Sine Wave Inverter
12Vdc 1500W Box Label Colour
652.010UK
12Vdc 2500W Modified Sine Wave Inverter
12Vdc 2500W Box Label Colour
652.005UK
24Vdc 600W Modified Sine Wave Inverter
24Vdc 600W Box Label Colour
652.009UK
24Vdc 1500W Modified Sine Wave Inverter
24Vdc 1500W Box Label Colour
652.011UK
24Vdc 2500W Modified Sine Wave Inverter
24Vdc 2500W Box Label Colour

Soft Start Modified Sine Wave Inverters

These high efficiency power inverters use a modified sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or as a means to convert charged batteries for back-up power in case of a blackout. Ideal for use with TVs, lighting, fans, kettles and many other everyday appliances.

  • Over 85% efficiency
  • Soft start minimises inverter shutdown when using large inductive loads
  • Low/over voltage input protection
  • Short circuit, overload and overheat protection

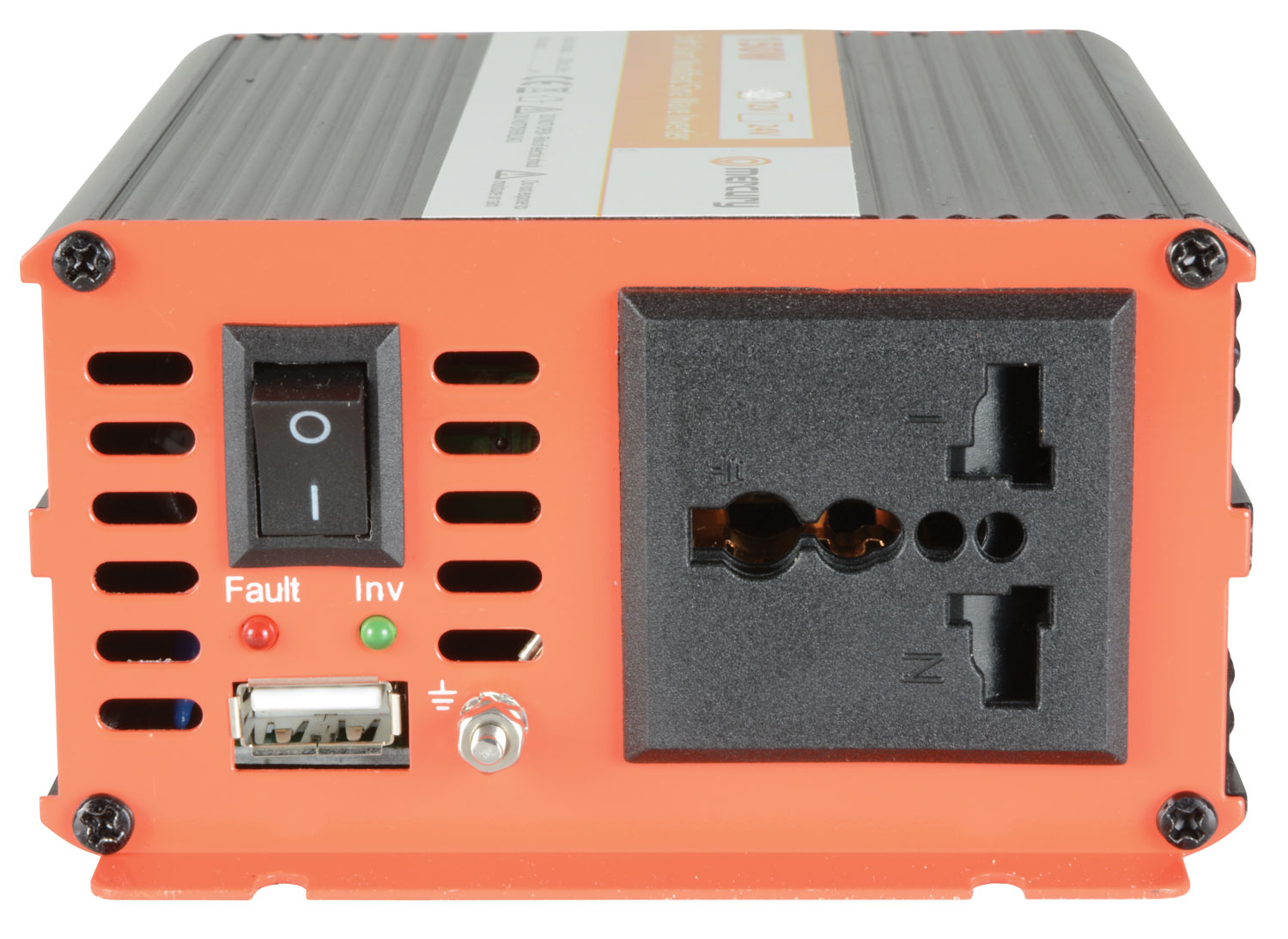

  • Built in 1000mA USB socket
  • LED and audible fault indicator

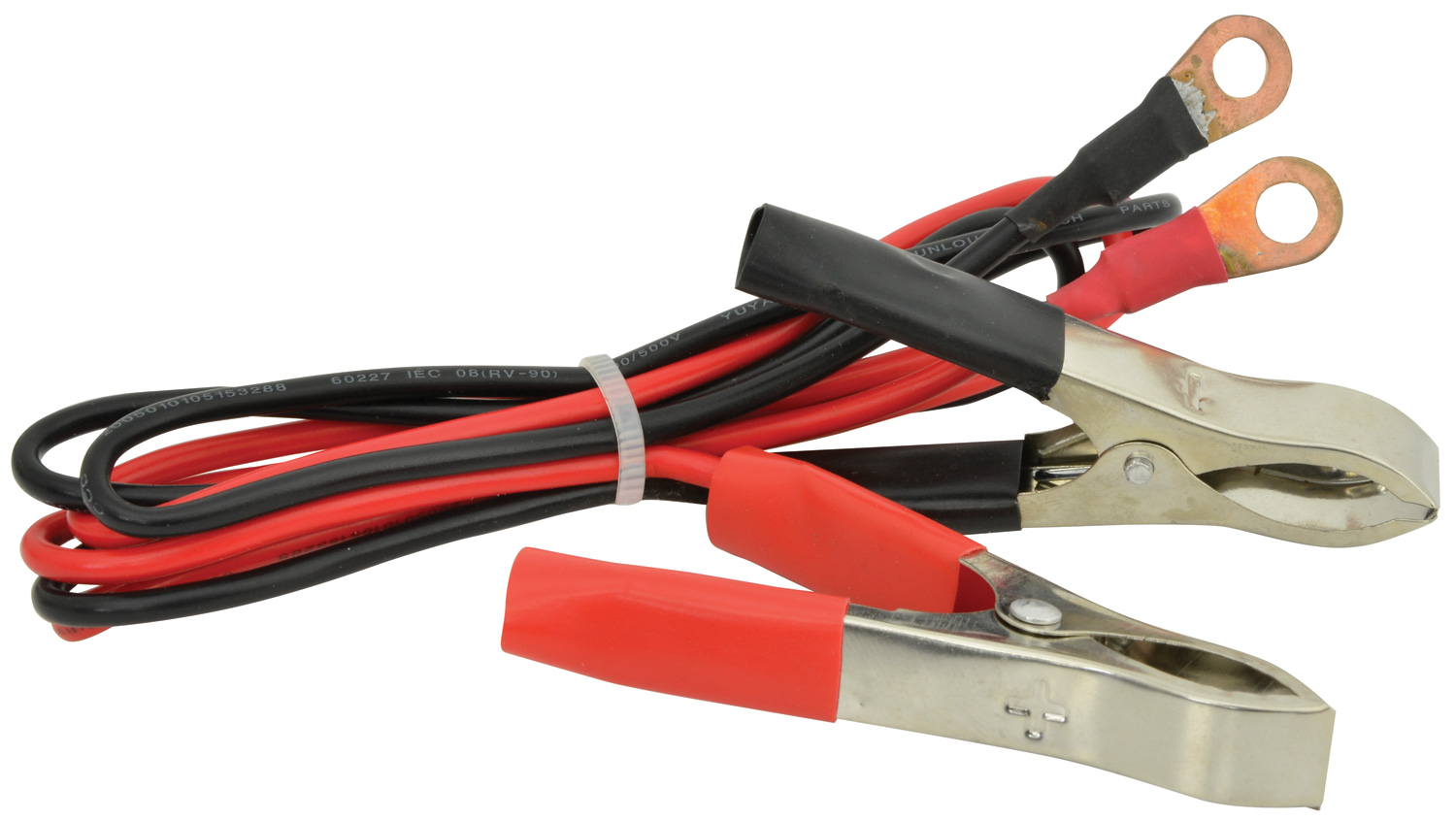

  • Supplied with 1 pair of 800mm DC power cables and a spare blade fuse (2 pairs for 1500W and 2500W)
  • 12V or 24V input versions available, please ensure the correct version is selected for the input power to be used
  • Please note: Ensure the device is well within the inverter output power rating. We recommend using an inverter capable of supplying a minimum of 3 times the device's rated power to avoid damage to the inverter by any current surge
  • Please note: For equipment with inductive loads, voltage sensitive devices or audio equipment we recommend using pure sine wave inverters which are more suitable for these devices
  • Output voltage 230Vac, 50Hz
  • USB output current 1A

Versions

  652.000UK 652.002UK 652.004UK 652.006UK 652.008UK 652.010UK 652.005UK 652.009UK 652.011UK
Continuous power 150W 300W 600W 1000W 1500W 2500W 600W 1500W 2500W
Voltage 12V 12V 12V 12V 12V 12V 24V 24V 24V
Input voltage 10.8 - 15.5Vdc 10.8 - 15.5Vdc 10.8 - 15.5Vdc 10.8 - 15.5Vdc 10.8 - 15.5Vdc 10.8 - 15.5Vdc 21.6 - 31Vdc 21.6 - 31Vdc 21.6 - 31Vdc
Standby no load current <0.25A <0.3A <0.3A <0.8A <0.8A <0.9A <0.3A <0.8A <0.9A
Cable type Crocodile clip Crocodile clip Ring terminal Ring terminal Ring terminal Ring terminal Ring terminal Ring terminal Ring terminal
Cable terminals 72mm crocodile clip + 6.4/12mm ring 72mm crocodile clip + 6.4/12mm ring 6.4/12mm ring 8.5/16.5mm ring 8.5/16.5mm ring 8.5/16.5mm ring 6.4/12mm ring 8.5/16.5mm ring 8.5/16.5mm ring

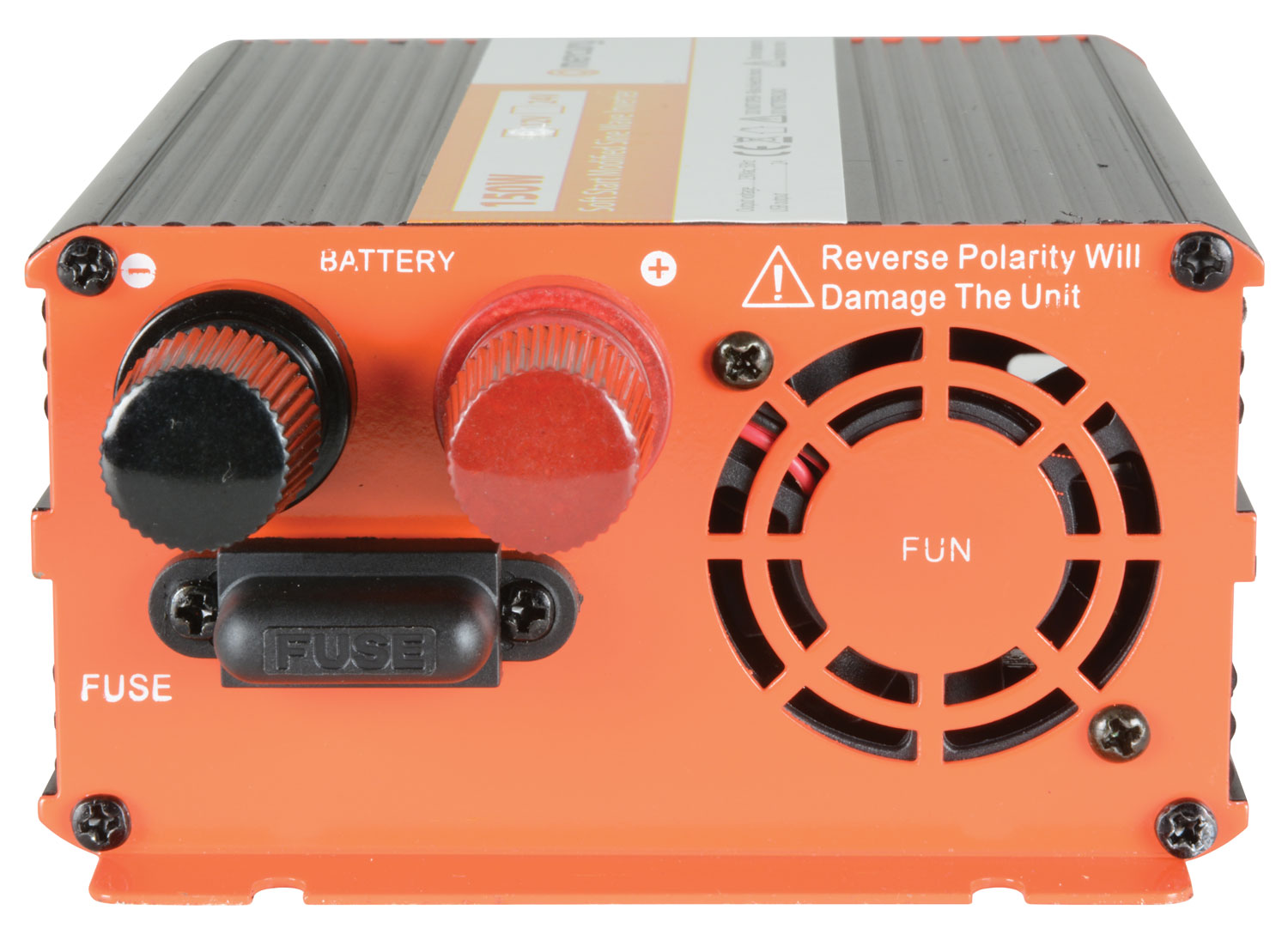

Inverter terminals M6 screws M6 screws M6 screws M8 screws M8 screws M8 screws M6 screws M8 screws M8 screws
Output sockets 1 1 1 1 2 2 1 2 2
Dimensions 160 x 103 x 55mm 160 x 103 x 55mm 190 x 150 x 70mm 260 x 150 x 70mm 305 x 220 x 88mm 375 x 220 x 83mm 190 x 150 x 70mm 305 x 220 x 88mm 375 x 220 x 83mm
Weight 650g 650g 830g 1.87kg 3.55kg 4.8kg 830g 3.55kg 4.8kg

Downloads

Instruction manual
For 652.000UK (510KB)
UK Declaration of conformity
For 652.000UK (248KB)
EU Declaration of conformity
For 652.000UK (236KB)
