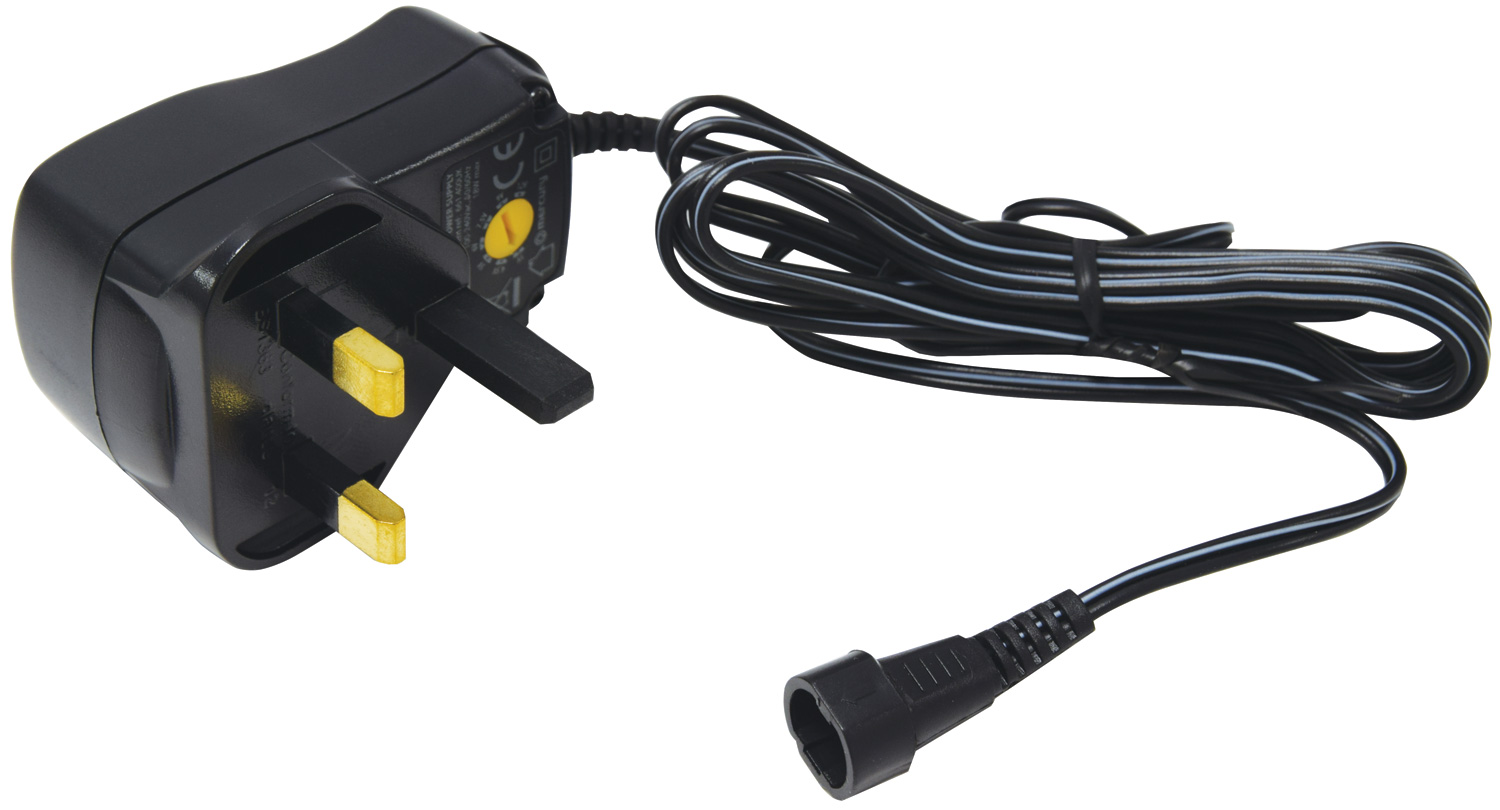

Energy Efficient Switch-mode Universal Power Supply 600mA
661.400UK
SMDC400UK
This compact, energy efficient switch-mode power supply gives up to 600mA with a variable output of 3V to 12V. Suitable for most low power electronic products such as CD Players, Walkmans, Radios, ...
- Up to 600mA at all output voltages
- Comes supplied with 8 adaptor plugs
- Uses 25% less power making it more energy efficient
| Description | |
|---|---|
|
661.400UK
Energy efficient switch-mode power supply 600mA |
Energy Efficient Switch-mode Universal Power Supply 600mA
This compact, energy efficient switch-mode power supply gives up to 600mA with a variable output of 3V to 12V. Suitable for most low power electronic products such as CD Players, Walkmans, Radios, Portable Games Consoles, MP3 players etc.
- Up to 600mA at all output voltages
- Comes supplied with 8 adaptor plugs
- Uses 25% less power making it more energy efficient
- Materials used and manufacturing process are more environmentally friendly
Specification
- Power max. 7.2W
- Adaptor plugs 3.5mm jack, 2.35 x 0.75mm, 3.5 x 1.35mm, 4 x 1.7mm, 5 x 2.1mm, 5.5 x 2.1mm, 5.5 x 2.5mm, 6.3 x 3mm
- Input voltage 100-240Vac, 50/60Hz
- Output current max. 600mA (all output voltages)
- Output voltage 3/4.5/5/6/7.5/9/12Vdc
- Dimensions 41 x 64 x 51mm
- Weight 120g
Trade information
| 661.400UK | |
|---|---|
| Barcode / EAN | 5015972086650 |
| Package type | Blister |
| Package dimensions | 43 x 72 x 32mm |
| Package weight | 0.15kg |
| Package quantity | 1 unit |
| Carton dimensions | 420 x 550 x 340mm |
| Carton weight | 7.60kg |
| Carton quantity | 50 packages |
| Pack paper weight | 0.01kg |
| Pack plastic weight | 0.00kg |
Support
Instruction manual
For 661.400UK (59KB)
For 661.400UK (59KB)
