Heavy Duty Transparent Speaker Cable
801.882UK

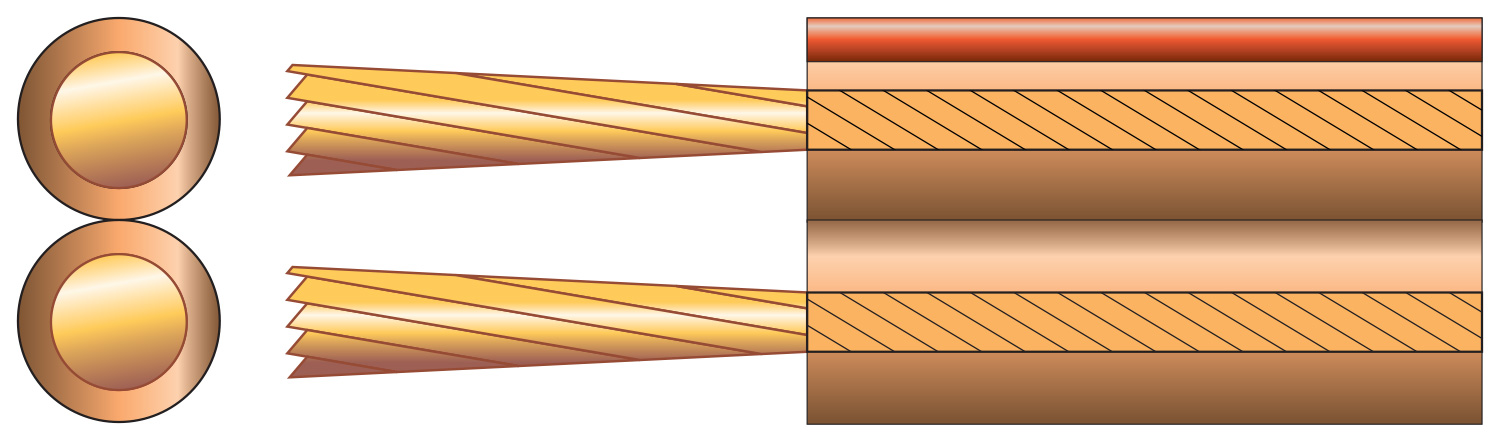

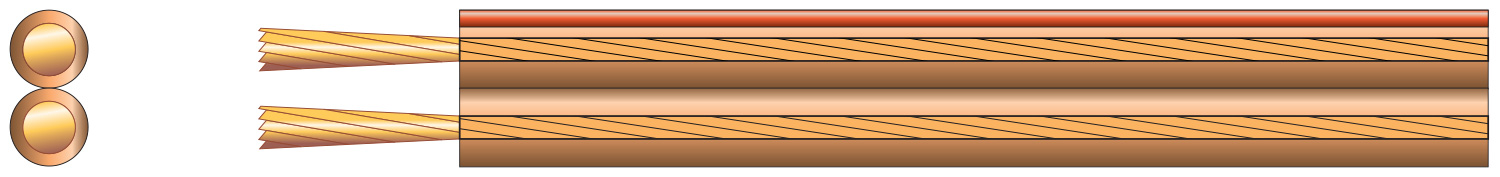

High quality 2 core flexible speaker cable in transparent sheath. Stranded conductors. Red polarity indicator.
Heavy Duty Transparent Speaker Cable
High quality 2 core flexible speaker cable in transparent sheath. Stranded conductors. Red polarity indicator.
Specification : Common
- Conductor Copper/Copper Clad Aluminium
- Sheath Clear
- Polarity Red
- Length 100m
Specification : Versions
| 801.880UK | 801.881UK | 801.882UK | 801.885UK | |
|---|---|---|---|---|
| CSA | 0.94mm² | 1.17mm² | 1.85mm² | 3.14mm² |
| Strands | 2 x (20 x 0.12mmØCu + 60 x 0.12mmØCCA) | 2 x (3 x (21 x 0.10mmØCu + 20 x 0.12mmØCCA)) | 2 x (7 x (15 x 0.10mmØCu + 13 x 0.12mmØCCA)) | 2 x (7 x (24 x 0.10mmØCu + 23 x 0.12mmØCCA)) |
| Dimensions | 4.2 x 8.2mm | 4.5 x 9.0mm | 4.8 x 9.6mm | 5.1 x 11mm |
| Current | 6A max. | 10A max. | 15A max. | 25A max. |
| Packed quantity | 8 reels | 4 reels | 4 reels | 2 reels |
Trade information
| 801.880UK | 801.881UK | 801.882UK | 801.885UK | |
|---|---|---|---|---|
| Barcode / EAN | 5015972050095 | 5015972050101 | 5015972050118 | 5015972050125 |
| Package type | Reel | Reel | Reel | Reel |
| Package dimensions | 140 x 200 x 140mm | 90 x 200 x 90mm | 90 x 200 x 90mm | 160 x 240 x 160mm |
| Package weight | 2.50kg | 5.00kg | 4.50kg | 6.00kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 210 x 410 x 315mm | 225 x 440 x 335mm | 225 x 440 x 330mm | 250 x 490 x 180mm |
| Carton weight | 10.00kg | 20.80kg | 13.00kg | 12.00kg |
| Carton quantity | 4 packages | 4 packages | 2 packages | 2 packages |
