AVSL : Product : Cable (Reels) : Power : 3 Core : 804.347UK

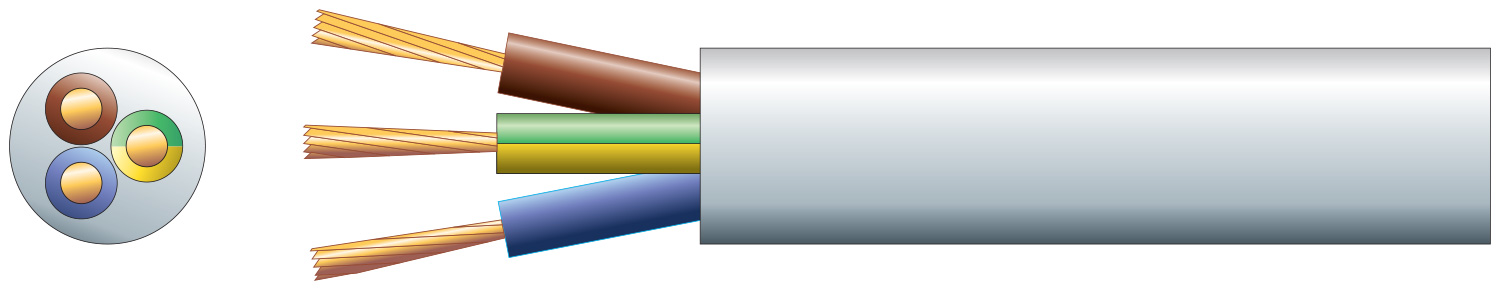

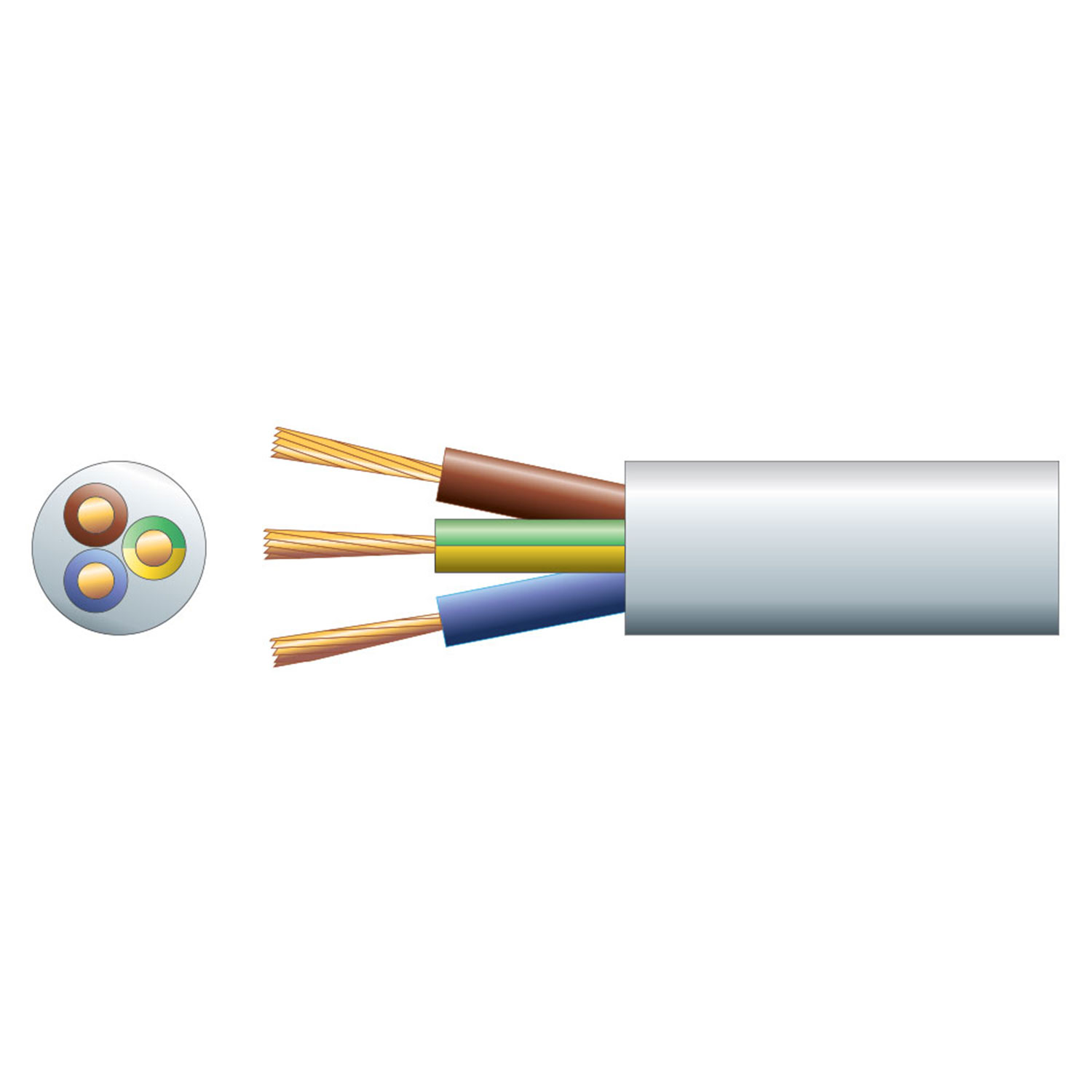

3183Y 3 Core Round PVC, 300/500V, HO5VV-F3, 15A

804.347UK

Round profile mains electric cable. Flexible PVC sheath. Suitable for connection of electrical equipment and most light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer

	Description	Version	Packed
	804.347UK 3 core round mains PVC, 3 x 48/0.2mm, 15A, 8.7mmØ, White, 100m	White 100m	Reel
	804.350UK 3 core round mains PVC, 3 x 48/0.2mm, 15A, 8.7mmØ, Black, 100m	Black 100m	Reel
	804.349UK 3 core round mains PVC, 3 x 48/0.2mm, 15A, 8.7mmØ, White, 25m	White 25m	Reel

3183Y 3 Core Round PVC, 300/500V, HO5VV-F3, 15A

Round profile mains electric cable. Flexible PVC sheath. Suitable for connection of electrical equipment and most light electrical applications. BSI approved to BS6500, VDE approved.

CSA 1.5mm²
Strands 3 x 48/0.2mmØ
Cable : dimensions 8.7mmØ
Packed 1 reel
Current 15.0A max.

Versions

	804.347UK	804.350UK	804.349UK
Length	100m	100m	25m
Colour	White	Black	White

Downloads

UK Declaration of conformity
For 804.347UK (248KB)

EU Declaration of conformity
For 804.347UK (237KB)
