Economy Transparent Speaker Cable
807.050UK

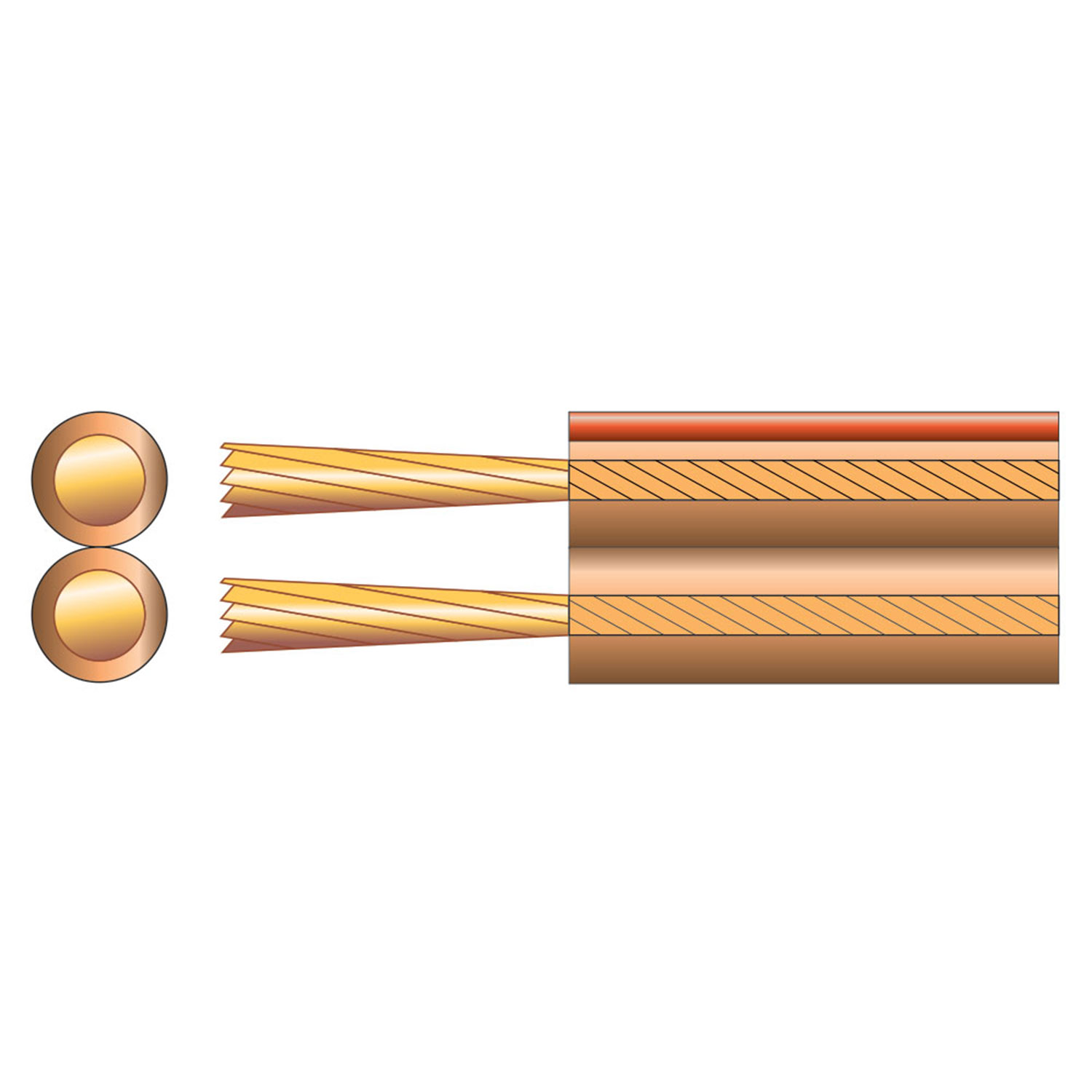

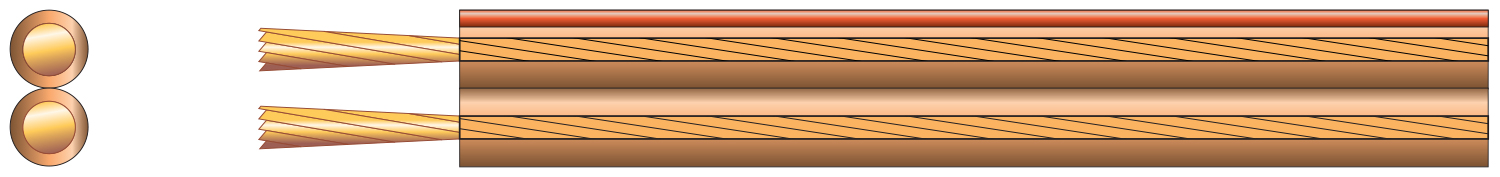

2 core flexible speaker cable in transparent sheath with CCA Conductor. Red polarity indicator.
Economy Transparent Speaker Cable
2 core flexible speaker cable in transparent sheath with CCA Conductor. Red polarity indicator.
Specification : Common
- Conductor Copper Clad Aluminium
- Sheath Clear
- Polarity Red
- Length 100m
Specification : Versions
| 807.047UK | 807.048UK | 807.049UK | 807.050UK | |
|---|---|---|---|---|
| CSA | 0.75mm² | 1.0mm² | 1.5mm² | 2.5mm² |
| Strands | 2 x (24 x 0.2mmØ) | 2 x (32 x 0.2mmØ) | 2 x (45 x 0.2mmØ) | 2 x (79 x 0.2mmØ) |
| Dimensions | 3.1 x 6.2mm | 3.5 x 7.0mm | 3.8 x 7.6mm | 4.5 x 9.0mm |
| Current | 6A max. | 10A max. | 15A max. | 25A max. |
| Packed quantity | 8 reels | 4 reels | 4 reels | 2 reels |
Trade information
| 807.047UK | 807.048UK | 807.049UK | 807.050UK | |
|---|---|---|---|---|
| Barcode / EAN | 5015972068656 | 5015972068687 | 5015972068717 | 5015972068748 |
| Package type | Reel | Reel | Reel | Reel |
| Package dimensions | 110 x 180 x 110mm | 200 x 200 x 100mm | 200 x 200 x 130mm | 215 x 215 x 150mm |
| Package weight | 2.50kg | 2.88kg | 3.38kg | 5.12kg |
| Package quantity | 1 unit | 1 unit | 1 unit | 1 unit |
| Carton dimensions | 370 x 370 x 250mm | 210 x 410 x 233mm | 210 x 410 x 295mm | 220 x 440 x 335mm |
| Carton weight | 20.50kg | 11.50kg | 13.50kg | 20.50kg |
| Carton quantity | 8 packages | 4 packages | 4 packages | 4 packages |
