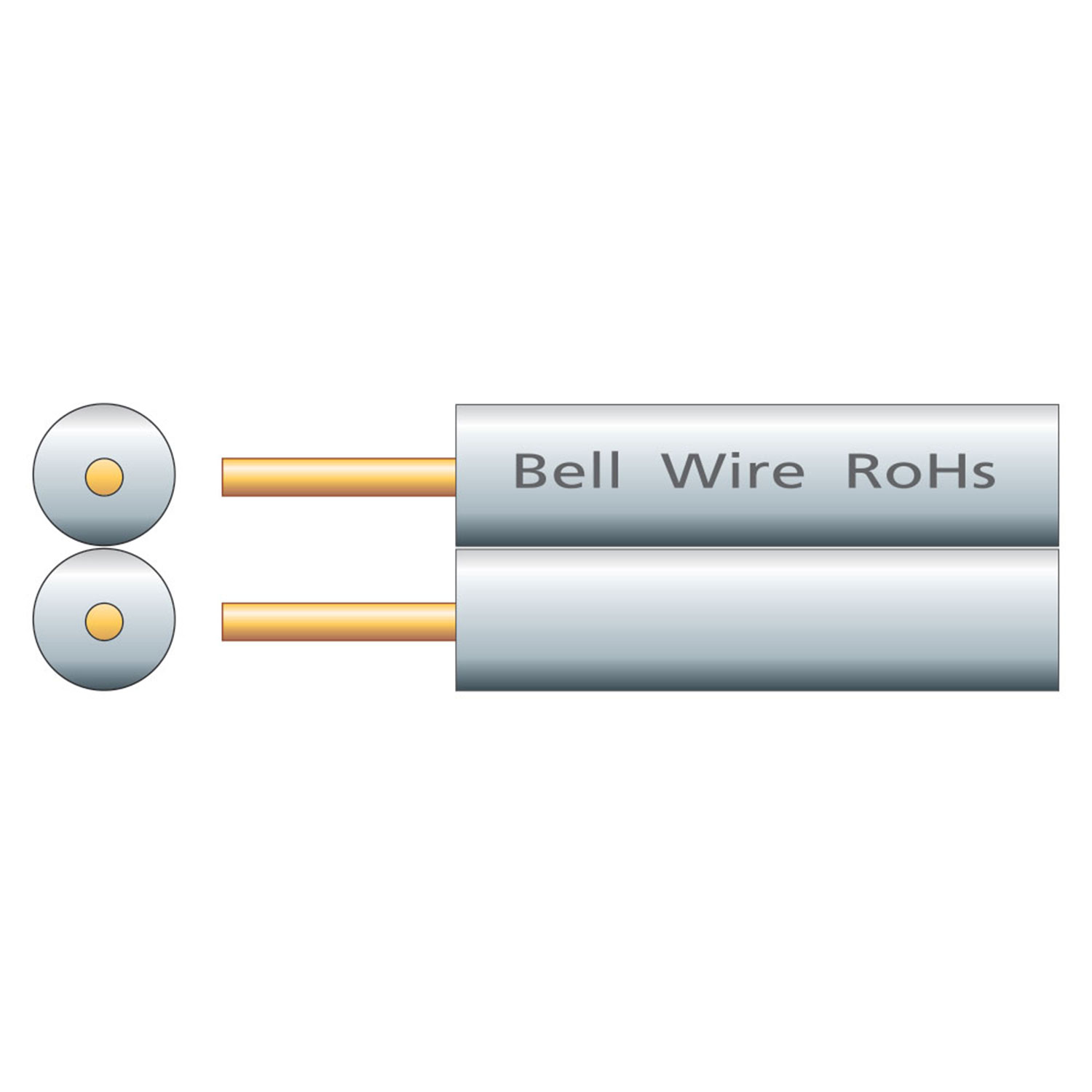

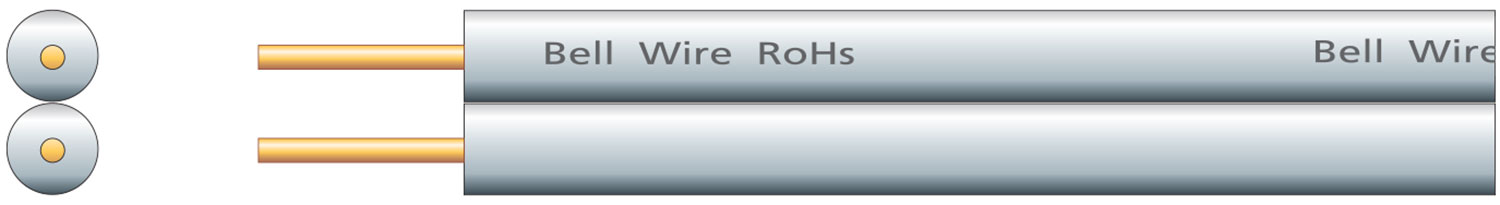

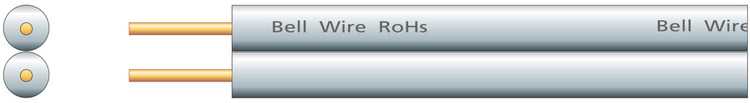

Figure 8 Bell Wire

808.207UK

Two core bell wire with solid copper clad steel conductor and white PVC sheath.

  • Solid copper clad steel conductor
Full description Find retailer
Description Version Packed
808.207UK
Fig.8 Bell Cable CCS White 100m 		White 100m Reel

Figure 8 Bell Wire

Two core bell wire with solid copper clad steel conductor and white PVC sheath.

  • Solid copper clad steel conductor
  • Conductor CCS
  • Strands 2 x 0.5mmØ
  • CSA 0.196mm²
  • Current 1A max.
  • Cable : diameter 2 x 4mmØ
  • Colour White
  • Cable : length 100m
  • Weight 1.3kg

Downloads

UK Declaration of conformity
For 808.207UK (241KB)
EU Declaration of conformity
For 808.207UK (234KB)
